Reading a 1968 Camaro Wiring Diagram Without Losing Your Mind

The factory wiring on these cars is dense, and the diagrams don't make it easy. General Motors shipped a lot of information in a relatively small book for '68, which sounds efficient until you're standing over a firewall trying to figure out why the dome light stays on. The diagram uses a color code system that changes meaning depending on which page you're looking at, and the dash panel section is particularly frustrating because everything loops back through multiple connectors that aren't labeled the way you'd expect them to be. I spent a weekend chasing a short on my friend's '68 because the parking lights would only work when the headlights were on. The diagram showed a clean path from the instrument panel dimmer switch through the light switch, but in practice there's a junction block behind the left side of the dash that isn't marked anywhere obvious. The wire colors on the diagram say black with a red tracer, but the actual harness had been modified by a previous owner who'd spliced in a different gauge wire. That's the thing about these diagrams — they show the factory intent, not every modification that's happened over fifty-plus years. I traced it with a multimeter set to continuity and found the bad splice about four inches into the connector housing. Heat shrink and a proper crimp solved it.

Where to Find the 1968 Camaro Wiring Diagram

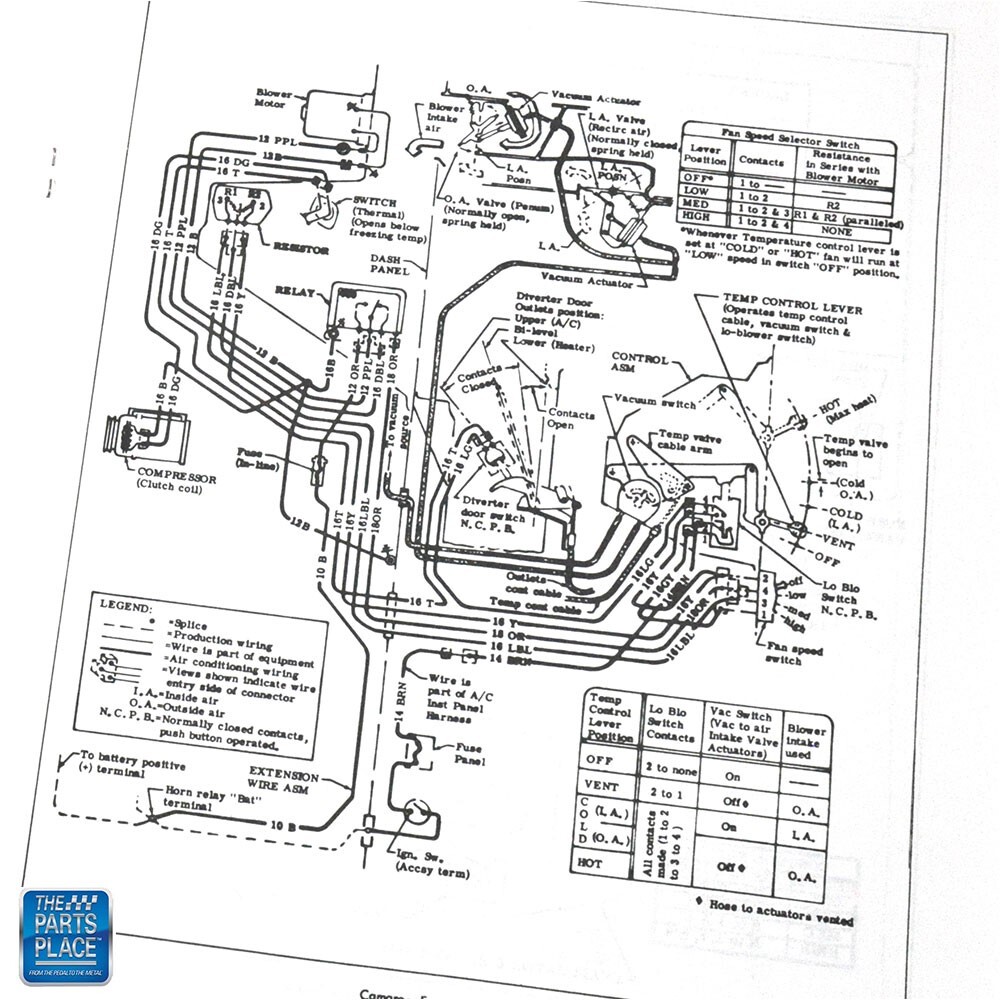

The official source is the GM service manual, specifically section 4-W. It covers everything from the battery and starter circuit to the taillight assembly. You can find PDF copies floating around on Camaro forums and through the GM Heritage Center. There's also the Haynes and Chilton guides, though they condense the wiring information significantly. For anything approaching serious work, the factory manual is worth the effort. The online scans are usually clear enough to read, but if you're working on a restoration where accuracy matters, ordering the reprint is the move. One thing most people miss: the diagram is split into separate sections for the engine compartment wiring versus the passenger compartment. They don't show the connections between those two sections very clearly. The main feed from the fuse block to the engine bay runs through the firewall at a point that isn't always easy to locate in photos. I've seen several people buy the wrong harness extension because they couldn't identify the exact pinout on the cowl-side connector. The color abbreviations are another trip-up. GM used codes like W (white), BLK (black), RED (red), ORN (orange), and so on. But they also used numbered codes for specific shades — code 206 is red, 412 is blue, 416 is green. If you're ordering replacement wire, you need those numbers, not just the generic color name. A "green" wire in 1968 Camaro terms could mean several different shades depending on the circuit, and using the wrong one will make diagnostics harder later on.

The diagrams also don't account for the many dealer-installed options that changed the wiring. A car with the RS package, the console, air conditioning, or the heavy-duty alternator will have a significantly different harness layout. Make sure your diagram matches your actual trim and options, or you'll be chasing wires that don't exist on your car. The option codes are listed on a plate under the spare tire cover or on the driver's side door jamb sticker. Decoding them takes maybe ten minutes and saves hours of confusion. If you're doing a full harness replacement, don't rely solely on the diagram. Lay out the new harness next to the old one before you start removing anything. Take photos of every connector before you disconnect it. Number each connector with masking tape and a marker. It sounds tedious, but it's infinitely faster than trying to figure out which of the twelve similar-looking brown connectors goes where after the fact.

Common Problems and What the Diagram Won't Tell You

The ground points are the most overlooked part of any 1968 Camaro electrical work. The diagram shows where grounds connect, but it doesn't tell you that the main chassis ground strap between the engine and body corrodes from the inside out. You can see a good connection on both ends and still have zero amperage passing through. Scrape the contact surfaces, use a star washer, and torque it down. This fixes more no-start and dim-light complaints than any other single thing on these cars. The fuse block itself is a weak point. The aluminum bus bars inside corrode over time, especially if someone has been topping off the battery with tap water instead of distilled. A visual inspection through the fuse block cover won't catch it. If your fuses blow repeatedly on circuits that shouldn't be drawing that much current, pull the block apart and clean the bus bars with a fine abrasive pad. It takes about twenty minutes and costs nothing. Another thing the diagrams don't highlight: the wire gauge drops off more than you'd expect on the long runs. The gauge from the starter solenoid to the ignition switch is thinner than the main power feed, and under heavy load — cold starts, running the blower fan at the same time — you'll get noticeable voltage drop. I measured a 1.2-volt drop across a section of the ignition feed wire on one car, which is enough to cause intermittent no-start conditions that drive you crazy diagnosing. If your car has a weak spark only when accessories are running, check the voltage at the coil positive terminal with everything on, not just at key-on engine-off.

The horn circuit is straightforward on paper but annoying in practice. The relay is mounted on the driver's side fender well, and the solder joints inside it crack. When the horns stop working randomly, pop the relay open and reflow the solder before replacing it. Half the time that's all it needs. For the gauges themselves, the diagram shows the sending units and the gauge cluster wiring, but it doesn't warn you that the cluster connector pins bend inward easily. When you pull the dash, those pins spread apart and lose contact. It's a known issue. Straighten them carefully with a small pick before reassembly, and make sure the connector locks down fully. An intermittent speedometer or fuel gauge is almost always that connector. The aftermarket wiring harnesses available now are decent for a budget build, but they skip some of the factory detail like the correct tie-wrap locations and the exact routing through the firewall grommets. If your car is supposed to be stock or near-stock, the factory-correct reproduction harness from a supplier like Circuit City or American Auto Wire is closer to what came out of the plant. They cost more and take longer to install, but the fit and function are better. I'd rather spend the extra time on a real restorer than deal with a cheap harness three months into ownership.

Ultimately, the 1968 Camaro Wiring Diagram is a reference tool, not a step-by-step manual. It tells you where things should go and how they should connect, but the actual car in front of you may have taken a few wrong turns along the way. Trust the diagram when it makes sense, trust your multimeter when it doesn't, and keep a notebook of what you find. The next person working on that car will thank you for it.
