Factory Radio Connections in the 06 Impala
The stock radio sits behind the dash and uses a GM proprietary connector that doesn't look like the standard ISO plugs you find on most aftermarket units. Swapping it requires either a retention harness or careful splicing of the individual circuits. The system supplies constant battery power, switched accessory power, ground, dash dimming, and speaker outputs. A few of those circuits also feed the steering wheel controls and the antenna amplifier, so missing one can make the whole thing behave strangely.
2006 Chevy Impala Radio Wiring Diagram
A wiring diagram for this car is mostly a map of those circuits from the factory radio plug to the fuses, grounds, and amplifiers. Most diagrams label the GM connector pins by letter and number, then tie each pin to a wire color and a function. If you want to install an aftermarket radio, you typically use a plug-and-play harness that matches those GM pin positions to the standard color code most head units expect. The harness itself doesn't change the car's electrical design; it just gives you labeled wires you can connect without cutting the factory loom.
What the Diagram Shows in Practice
The diagram breaks down into a handful of core circuits. There's the constant battery feed, the ignition-switched feed, the main ground, the instrument panel dimmer signal, and the speaker pairs. On top of that, the factory radio often shares power and ground with nearby modules through the same connector area. The steering wheel control circuit usually runs through a dedicated wire or a multiplexed signal line. The exterior mirror switch, door ajar light, and other cabin features don't typically touch the radio harness, but some aftermarket installations pull accessories from the same fuse panel, which can create confusion later if you're not tracking what's actually connected.
Get the Full Details
Connector Details and Pinout Basics

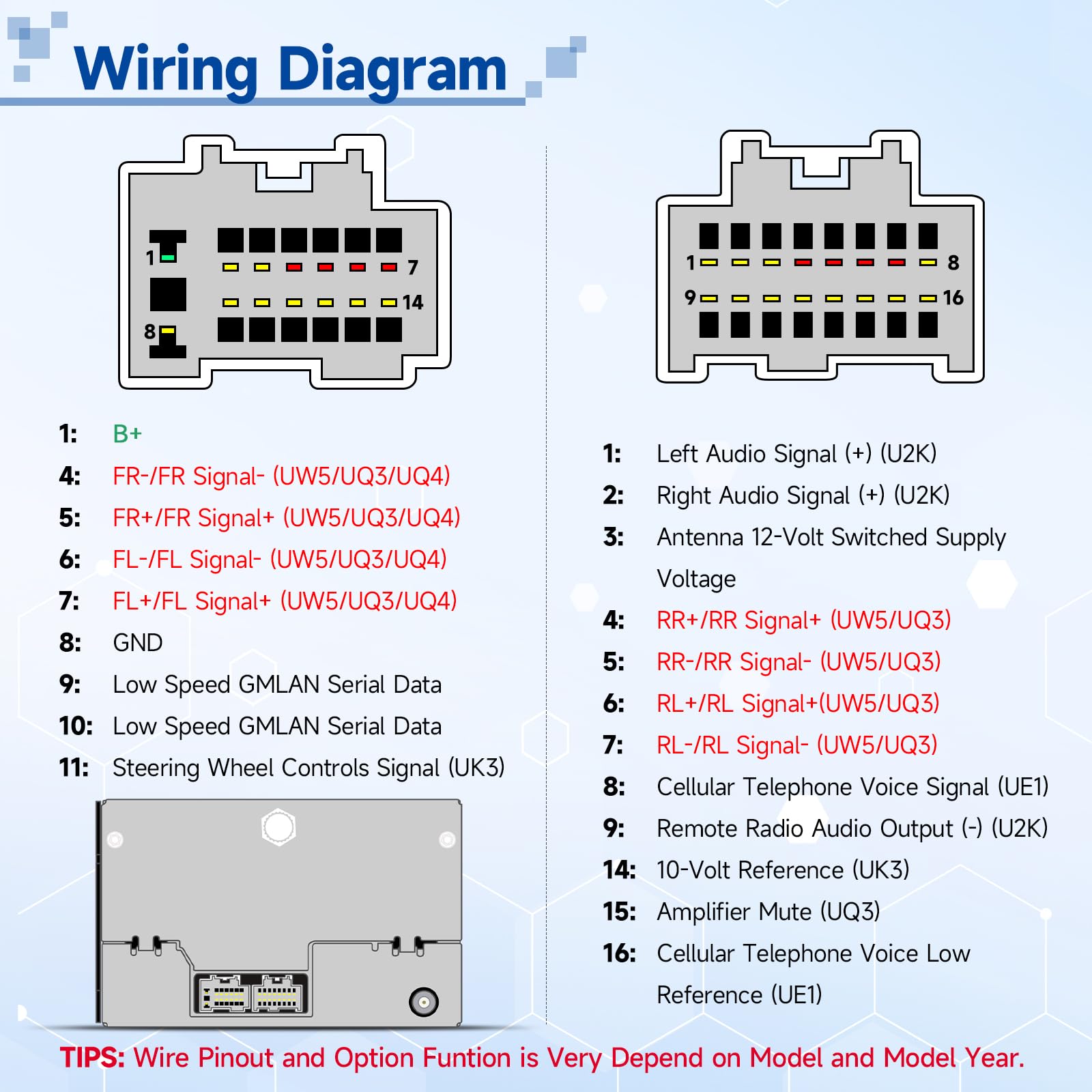

The factory radio connector on the 2006 Impala is a rectangular GM plug with a specific pin layout. The diagram will list each pin position and its assigned function. Common pin assignments include constant power, switched power, ground, illumination dimmer, antenna trigger, and speaker outputs. Aftermarket radio kits usually reference these same positions so you can match them to the wire colors on your new head unit. If you don't have a diagram, you can still identify the pins by testing voltage with a multimeter while the ignition is in different positions. That method takes longer and requires caution, but it works when the diagram isn't handy.
Common Aftermarket Wiring Steps
When replacing the radio, the typical steps are straightforward. Remove the trim panels around the dash. Disconnect the factory connector from the radio. Attach the retention harness to the factory plug. Connect the harness wires to the aftermarket radio according to its wiring diagram. Reinstall the radio and test all functions before closing everything up. The critical part is matching the harness wires to the radio's wire colors and functions. Most aftermarket radios use a standard color code: yellow for constant power, red for switched power, black for ground, orange for illumination, and so on. If your aftermarket radio has a different scheme, you'll need to consult its manual and translate the colors accordingly.
A Real Problem I Ran Into
I once installed an aftermarket unit in a 2006 Impala where the previous owner had already cut the factory harness and taped wires haphazardly. The diagram showed the correct pinout, but the existing connections were wrong. The radio worked initially, but the steering wheel controls stopped responding, and the dash dimming caused the screen to flicker. I traced the issue back to a mislabeled ground and a swapped illumination wire. The fix was to disconnect the old mess, verify each circuit with a multimeter, and then use a fresh retention harness to re-establish the correct connections. It saved about two hours of troubleshooting compared to guessing from the old wiring.
Limitations and When the Diagram Isn't Enough
The diagram assumes a factory radio and standard wiring. If the vehicle has an aftermarket amplifier, a Bose system, a navigation module, or a dealer-installed telematics unit, the pinout and wire functions can change. Some trims also have different speaker configurations or additional power feeds for memory seats linked to the radio. In those cases, relying solely on a generic diagram can lead to incorrect connections or non-functional features. The safest approach is to verify the specific options codes on the vehicle's build plate or consult a model-specific diagram that accounts for those options. If you're unsure, a professional installer with access to detailed schematics will reduce the risk of damaging modules.
Where to Find the Diagram
You can find the 2006 Chevy Impala Radio Wiring Diagram in GM service manuals, repair databases, and reputable automotive wiring resources. Many sites offer free diagrams for common models, and some sell detailed harness kits with matching diagrams. If you're buying a retention harness, the manufacturer usually provides a diagram tailored to that harness. Always double-check the pin numbers and wire colors against your specific vehicle, especially if you have additional options or prior modifications.
Practical Tips for a Clean Install
Label every wire before you cut or disconnect anything. Use a multimeter to verify voltage and continuity at each pin. Match the harness wires to the aftermarket radio's color code, and double-check that constant power and switched power aren't swapped. Ground connections should be clean and secure; a poor ground can cause interference and module resets. If your aftermarket radio includes a steering wheel control adapter, wire it according to the adapter's diagram rather than assuming it will work with the factory setup. Finally, test all functions—power, dimming, steering controls, antenna, and speakers—before reassembling the dash.
