What You Need to Know Before Touching a 2017 JCB 214S

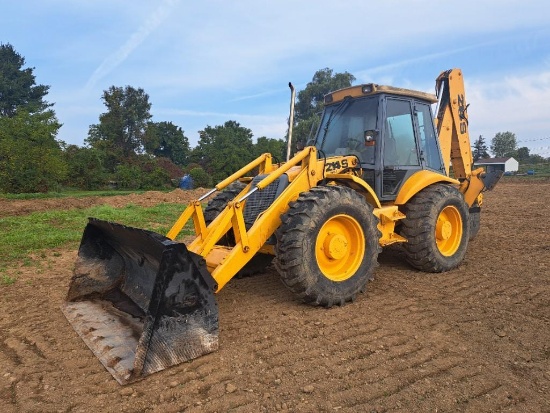

The 2017 JCB 214s Backhoe is a mid-size dual-purpose machine. It digs with the rear backhoe attachment and moves material with the front loader. The engine is a JCB Stage IV compliant unit. That means it has exhaust aftertreatment. Do not ignore that system. I have worked on enough of these machines that I can tell you which problems actually show up in the field versus which ones are theoretical. The hydraulic system on this machine is generally reliable if you keep the fluid clean and change the filters on schedule. The DPF on the engine is where most owners run into trouble. If you are doing short-cycle work where the engine never reaches proper operating temperature, the DPF will clog. I had a contractor who kept trying to diagnose a persistent fault code for three weeks before I told him to check his job sites. He was running the machine for fifteen-minute jobs and then shutting it down. The DPF was packed. He started doing longer continuous runs and the problem went away.
2017 Jcb 214s Backhoe Technical Overview
The machine weighs approximately 8,200 kilograms in standard configuration. Engine output is around 74 horsepower at the PTO. The hydraulic flow rate is roughly 95 liters per minute. These numbers are not record-breaking. They are adequate for residential utility work, light trenching, and general construction support. They are not adequate for heavy rock excavation or production-grade loading operations. The control valve is a load-sensing system. This means the hydraulics adjust flow based on demand rather than running at constant pressure. The benefit is fuel efficiency and smoother operation. The downside is that if you have worn cylinder seals or a cracked hose, the system may struggle to maintain pressure under load compared to a fixed-displacement setup. I learned this the hard way when a customer brought me a 214S that could not hold boom position. The issue traced back to a worn piston seal on the boom cylinder combined with minor valve spool wear. Replacing just the cylinder seals did not fully solve it. I had to also refurbish the control valve section for that circuit. Combined parts and labor ran about what you would expect for this class of machine.
Common Maintenance Items and Intervals
Engine oil changes every 500 hours. Use 15W-40 diesel engine oil meeting JCB specifications. The fuel filter should be replaced every 500 hours as well. Water separator filters need attention more frequently if you are running in damp conditions. Check the sediment bowl daily during the first few months of operation on a used machine. Hydraulic filters: return line filter every 500 hours. Suction strainer inspection at 1,000 hours. Hydraulic fluid changes are typically recommended at 2,000 hours but many operators stretch this to 3,000 hours with good results provided the fluid is tested regularly. I recommend annual oil analysis. It costs about eighty dollars and can save you from replacing a hydraulic pump prematurely. The cooling system deserves attention. The radiator on these machines collects debris easily. Clean it out every 100 hours if you are working in dusty or debris-heavy environments. I once pulled a four-inch clump of fiberglass insulation out of a radiator core. The previous owner had been working on a house wrap installation and never cleaned the fins. The machine was running fifteen degrees overheated under normal load.
Get the Full Details
Operational Limitations and Where This Machine Struggles
The 214S is not designed for continuous heavy digging. If you are breaking hard clay or working in rocky soil for eight hours a day, the hydraulic system and underlying frame components will see accelerated wear. I have seen cracked welds on the backhoe standoff on machines used in production rock work. The machine is rated for a maximum digging depth of around four meters and a maximum digging force that is competitive in its class but not exceptional. Understand the rating and work within it. The front loader capacity is approximately 1.0 cubic yard. This is fine for backfill and light loading. It is not sufficient for aggressive stockpile management or loading large dump trucks efficiently. Operators who try to use this machine as their primary loader tend to burn through tires and suspension components faster than expected. One thing manuals rarely emphasize: the transmission fluid on the front drive axle. Change it at 500 hours on a new machine as a break-in procedure, then every 1,000 hours after that. The factory interval states 2,000 hours but I have opened up axles on machines at the 2,000-hour mark with significant metallic contamination that was prevented by earlier changes. The fluid cost is trivial compared to an axle rebuild.
Troubleshooting the Most Common Faults
If the engine faults and derates, check the DPF differential pressure sensor first. These sensors fail occasionally and throw false codes. A simple test is to disconnect the sensor electrical connector and see if the fault changes behavior. If the machine starts acting erratic after disconnection, the sensor or its wiring is suspect. Hydraulic slow response typically traces to one of three things: clogged suction strainer, air in the system, or worn pump. Check the easiest ones first. I once spent two hours on a machine with sluggish hydraulics before I discovered the hydraulic tank breather cap was completely blocked. The tank was creating a vacuum and starving the pump. Five minutes to clean the cap fixed everything. The electrical system uses a standard JCB diagnostic port. A basic OBD2 scanner will not read these codes properly. You need a JCB diagnostic tool or at minimum a compatible Bluetooth adapter with the right software. Many independent mechanics get frustrated by this but it is standard practice in the industry. The ECU stores both active and historical codes. Clearing codes without addressing the root cause is pointless. The machine will just set them again.
Brake issues on the front axle are not uncommon on higher-hour machines. The service brakes are wet disc type. If braking feel becomes spongy or stopping distance increases noticeably, inspect the brake discs for scoring and check the caliper pistons for freedom of movement. Rebuild kits are available. New discs are expensive but necessary if they are below minimum thickness specification.
Parts Availability and Cost Expectations
JCB has good parts distribution in North America and Europe. Most common wear items are available through regional dealers within a day or two. However, specialty items like control valve sections or ECU components may require ordering from central inventory and can take a week or more. Plan accordingly if you are relying on this machine for income. A breakdown that keeps you off a job for ten days is significantly more costly than any spare part you might stock. Replacement cylinders run approximately two to three thousand dollars each depending on the application. Control valves for individual circuits can run four to six thousand if you need to replace the entire assembly. Refurbishing existing valves is usually possible and saves considerable money. I have rebuilt multiple control valve sections successfully with standard machining and seal kit replacements. Tires are another consideration. The 214S typically runs 12R16.5 tires on the front and similar sizing on the rear. Quality agricultural or industrial tires in these sizes run eight hundred to twelve hundred dollars each. Some owners opt for cheaper alternatives but the wear pattern and lifespan difference is substantial. I recommend spending the extra money on proper tires. The machine is not fast enough for off-road racing tires to matter but the right industrial compound will last significantly longer in abrasive conditions.
Buying Used: What to Actually Inspect
If you are looking at a used 214S, start with the engine cold. Listen for excessive knocking or ticking. Check the exhaust smoke color under load. Black smoke indicates fuel system issues or restricted air. Blue smoke means oil burning. White smoke that does not clear after warmup suggests head gasket or injector problems. Run the hydraulics through all functions. Watch for any binding, hesitation, or external leakage. Check the cylinders for any polished streaks on the chrome rods. Minor discoloration is normal. Deep scoring or pitting will accelerate seal wear and require cylinder rebuild sooner rather than later. Inspect the DPF condition if possible. Ask the seller about fuel quality and whether any diesel additive has been used. Poor fuel is the primary cause of DPF issues on these machines. Look for any signs of welding on the frame, especially around the backhoe mounting points and the front axle pivot areas. Repair quality varies enormously and poor frame repairs compromise structural integrity.
The undercarriage on the backhoe side deserves attention. Check pin and bushing wear on all linkages. Excessive play indicates delayed maintenance and will affect digging performance and control. Replacement pin and bushing kits are relatively affordable but the labor to install them is not trivial. Factor that into your negotiation if you find significant wear. This machine is a solid workhorse for the right applications. It is not a luxury item and it is not built for abuse. Treat it with reasonable maintenance discipline and it will serve you well. Neglect the DPF system and the hydraulic filters and you will regret it. The repair costs are predictable but not cheap.
