What You Actually Need to Know Before You Digitize Another Logo
Embroidery digitizing has three numbers that matter: stitch count, density, and pull compensation. Everything else is noise. I've watched people waste half a day chasing the wrong variable and not even notice which one it was. The 2026 Embroidery Cheat Sheet isn't a magic document. It's a reference for the stuff that keeps changing when you move from one garment to another, one thread brand to another, one machine to another. There is no universal constant. That's the whole point.
Stitch Density Is Where Most People Fail
Density is measured in stitches per square centimeter or inches, and the range that works for most midweight polyester thread sits between 6 and 10 stitches per square centimeter. Go lower and your fills show the fabric underneath. Go higher and you're packing thread so tight the needle can't pass through, the hoop distorts the material, and the backing shreds. I ran into this with a client who sent me a custom cap design for a golf course tournament. They wanted their full-color logo on a wool-blend twill high-profile cap. The digitizer who made the file used a running fill set at 12 stitches per square centimeter because the software default had never been changed. On polyester polos it looked fine. On wool blend it pulled the crown out of shape and the front panel warped every time the cap went into the garment. I reduced the density to 7, switched the underlay from a straight stitch to a half-width stitch, and added a center anchor point to break up the fill direction. Took twenty minutes to fix what should have been right in the first place. Here's the counter-intuitive part: sometimes you want to deliberately go lower density, not higher. Thin rayon thread at 6-7 stitches per square centimeter on a stable cotton twill actually looks sharper than the same design at 9-10. The thread lays flatter. Less bulk. Better edge definition. High density is not a quality marker. It's a structural requirement for certain fabric types.
Pull Compensation Is Invisible Until It's Wrong
Pull compensation accounts for the fact that thread physically pulls fabric inward as it stitches. Every column of stitching has a compensatory offset, usually between 0.2 and 0.6 millimeters depending on the stitch length and thread thickness. Most beginners leave it at zero or let the software guess. That guess is wrong about eighty percent of the time. When I digitize lettering, I set pull compensation manually per stitch class, not globally. Column stitches get one value. Satin stitches get another. Edge stitches get yet another. A global setting smooths everything out to a single number that compromises all three. The result is letters that look slightly round instead of sharp, especially on the corners of O, Q, and D. A quick test I use: after setting your pull compensation, zoom into 400% on the digitizing screen and look at the gap between adjacent columns. If the columns are touching or overlapping, your compensation is too low. If there's a visible gap larger than the width of one thread path, it's too high. Adjust in 0.05mm increments until the columns just meet.
Get the Full Details
Underlay Stitches Determine How Your Design Survives Real Use
This is the part nobody talks about because it's boring to look at. Underlay stitches are the foundation layers that hold the design in place before the top stitches are applied. They're what prevent the embroidery from shrinking, warping, or pulling away from the garment after three washes. Skip them properly or set them wrong and your perfect-looking digitized file falls apart in the field. Common underlay settings by fabric type: Stable woven fabrics like cotton twill or denim need a zigzag underlay or a double-stitch run stitch underlay. Dense zigzag provides the most stability for heavy fills. Single zigzag works fine for light lettering where bulk isn't a concern.
Stretch fabrics like performance polos or blends require a feather or center-pull underlay. These stitch patterns stretch with the fabric rather than fighting it. A standard zigzag underlay on a poly-spandex blend will cause the design to pucker and crack along the edges after repeated laundering. Mesh and cap backs are the worst case. They need a dense multi-pass underlay with short stitch lengths, and even then you're managing expectations. Mesh moves too much for fine detail to survive intact. I typically limit mesh designs to simple block lettering with generous spacing between elements. Anything more intricate will shift and blur regardless of underlay settings.
Thread Direction Changes Everything
When you change the direction of a fill pattern, the visual appearance of the stitch changes because each stitch has a slight sheen and lays differently depending on its angle relative to the light. A fill going left to right looks noticeably different from one going diagonal or bottom to top, even with identical density and stitch length settings. I had a job where a client sent me a vector logo for a safety vest. The original digitized version had the fill direction going straight horizontal. On the finished product, the logo looked washed out and the reflective material underneath showed through between the thread rows. I rotated the fill direction to approximately forty-five degrees. The stitches now interlocked better and covered the reflective strip completely while also giving the design more visual depth. A rule I follow: unless there's a specific reason to do otherwise, set fill stitch angles to thirty to forty-five degrees for most applications. This gives the stitches a natural interlocking pattern that minimizes visible gaps and produces a smoother surface appearance. Horizontal and vertical fills create parallel lines that are more obvious to the eye.
Jump Trims and Trim Lengths Save Hours on Production
Automated trim settings in digitizing software are usually set to trim every jump that exceeds a few millimeters. The default is often around four millimeters. That number is too aggressive for most real-world production. Trimming every small jump creates excessive needle breaks, increases thread tail management time, and adds thousands of extra trim cycles that wear out your trimmer mechanism over time. I set my trim threshold to ten millimeters for standard production jobs and fifteen millimeters for high-volume runs. Jumps shorter than that are handled by repositioning the garment or the hoop rather than trimming. This approach reduces trim events by roughly sixty percent on a typical design and cuts completion time on a batch of twenty shirts from about an hour and forty-five minutes down to under an hour. The tradeoff: you'll have longer floating threads between color changes. You need to clean those up manually during the finishing stage. But manual cleanup of three or four long jumps takes less time than programming the machine to trim twenty tiny jumps, and the threads are easier to manage when they're grouped together rather than scattered throughout the design.
Bobbin Thread Management
Most digitizers ignore bobbin thread choices. They should not. The bobbin thread affects the back of the embroidery, the comfort against skin, and in some cases the visibility through light-colored fabrics. Using a heavyweight polyester bobbin thread under a light topstitch on white fabric can show through as faint gray lines, especially in dense fill areas. I switch to a finer bobbin thread, usually 60-weight or lighter, whenever I'm working on white or light-colored garments with dense fill designs. The difference in appearance on the front is usually minimal. The difference on the back is significant. Garments with rough bobbin sides feel coarse against skin and have a higher return rate from customers complaining about itchiness.
Tension Settings Are Not One-Size-Fits-All
Top tension and bobbin tension interact in ways that most operators don't fully understand. If the top tension is too tight, the bobbin thread pulls through to the front of the fabric. If it's too loose, the top thread loops underneath. The correct balance depends on thread weight, fabric type, stitch density, and machine speed. A practical approach: start with the manufacturer's default tension setting for your specific thread type, then make adjustments in quarter-turn increments. After each adjustment, run a test sample and examine both the front and back. The goal is for the top and bottom threads to meet at the midpoint of the fabric thickness, with neither thread visible on the opposite side. I found that running machines at higher speeds, above eight hundred stitches per minute, generally requires loosening the top tension slightly. The increased speed creates more heat and friction in the thread path, which affects how the thread feeds through the tension discs. A setting that works perfectly at six hundred stitches per minute will often show small loops on the underside at eight hundred or above.
Stabilizer Selection Is the Most Underrated Decision
The stabilizer you choose affects stitch quality, production speed, and the final feel of the garment. Cut-away stabilizers provide permanent support but add bulk and require trimming. Tear-away stabilizers are quicker to remove but provide less durable support, especially on stretch fabrics. Water-soluble stabilizers leave no residue but dissolve during the process, offering no support after the design is complete. My general rule: use cut-away for permanent garments that will see repeated washing, tear-away for temporary applications and non-stretch woven fabrics, and water-soluble for designs on delicate or textured surfaces where any residual stabilizer would be visible. Never use tear-away on knit fabrics unless the design is very light and sparse.
File Formats and Compatibility
The most common embroidery file formats are DST, PES, EXP, JEF, and VP3. Each corresponds to a different machine brand. Brother uses PES and JEF. Husqvarna/Viking uses VP3. Melco uses EXX and EXP. Wilcom uses DST and EXX. Tajima uses DST exclusively. If you're sending files to a production shop, ask them what format their machines read natively before spending time converting between formats. A format that causes problems: PES files created in Brother PE-Design software sometimes don't translate cleanly to other software. The stitch data is intact but color sequences and thread type metadata can get lost in conversion. Always verify the final file on the actual production machine before running a full batch.
Testing Is Non-Negotiable

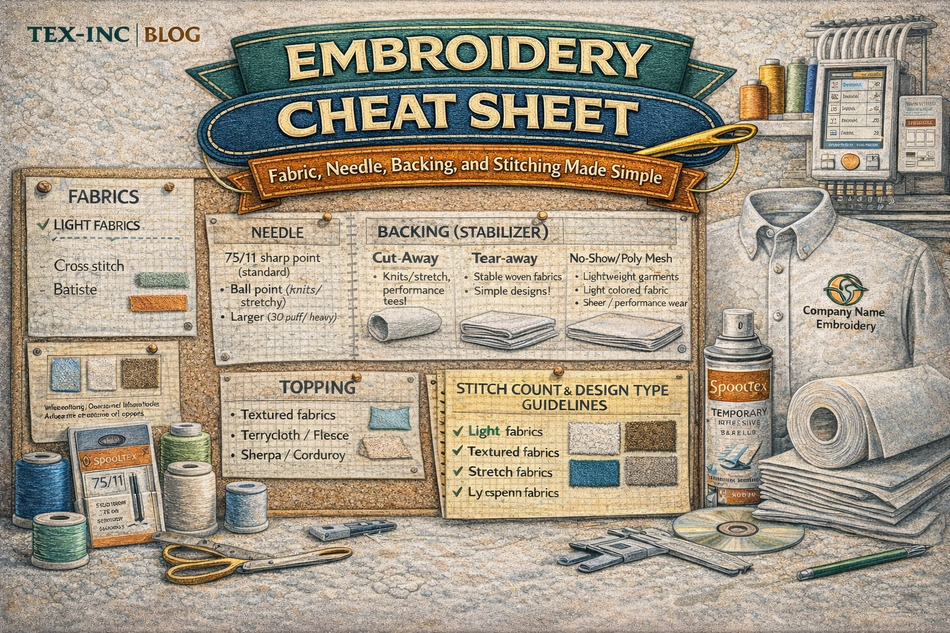

Never send a new digitized design directly to production without running a test sample. I test every new design, every new thread color combination, and every new fabric type. The test takes ten to fifteen minutes. Skipping it can cost you an entire shift if the design fails on twenty garments instead of one. What to check during testing: stitch density consistency, color accuracy against the original design, placement alignment with the garment, fabric distortion after stitching, thread tension on both top and bottom, and the appearance after a wash cycle if the garment will be laundered. A design that looks acceptable after one test might develop issues after five washes. Run at least one wash test on samples that will go into regular production. The 2026 Embroidery Cheat Sheet is essentially a compilation of these variables into a quick reference that saves you from memorizing every tension setting and density value. It doesn't replace judgment. It replaces the spreadsheet you'd otherwise maintain in your head. Keep it updated as you learn what works for your specific machines, threads, and fabric inventory. The only cheat sheet that works is the one you've corrected based on actual production results.
