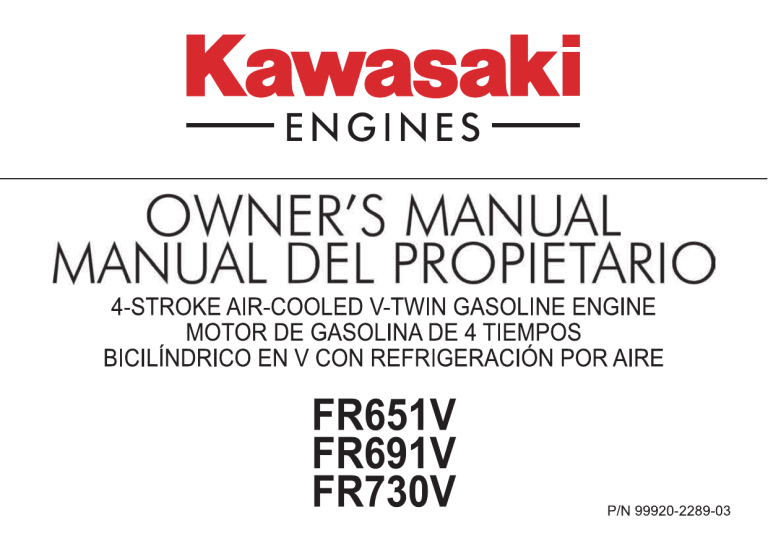

Finding and Using the Right Manual for a 28hp Kawasaki Engine
Most people who search for a 28hp Kawasaki Engine Manual end up clicking through three different websites before they find something that actually matches their engine. The problem is that Kawasaki uses nearly the same 28hp platform across multiple product lines — lawn tractors, pressure washers, generators, and compact utility vehicles. A manual that covers the engine specifications won't necessarily cover the carburetor jets or the ignition timing procedure for your specific application. This distinction matters more than most people realize. The first thing you need to confirm is your engine model number. It is stamped on a metal tag riveted to the engine valve cover or sometimes cast directly into the crankcase. For the 28hp range, you are most likely dealing with either the FF730D or FF761D series, both part of Kawasaki's FE/FF family. The FE series tends to appear in generators and compressors, while the FF variant shows up in ride-on equipment. Get the exact model number before you do anything else. Everything after that point depends on it.
Where to Actually Find a 28hp Kawasaki Engine Manual
Kawasaki's official technical documentation lives at kawasaki-motors.com, but their parts lookup system is not intuitive. You enter your serial number through their dealer portal and it generates a parts diagram with cross-referenced service bulletins. The full manual download isn't always publicly available — some are dealer-restricted. I have found that searching the exact engine model number plus "service manual PDF" on Google usually surfaces third-party repositories that have posted them. Sites like ManualsLib or specific Kawasaki enthusiast forums tend to have complete copies. Be careful with PDFs hosted on random domains because some have missing pages or wrong revisions. Check the revision letter at the bottom of the title page. For FF series engines, the revision ranges from A through roughly H depending on production year, and the carburetor adjustments shift between them. Here is a practical problem I ran into recently. A customer brought me a 2014 FF730D that was running rich at idle. The manual I had on hand — a 2012 revision C — specified a main jet of 110 and a pilot jet of 40. But when I pulled the carburetor and measured the jets actually installed, they were 115 and 42. I went back and confirmed that between revision C and revision F, Kawasaki changed the jetting to accommodate a different emissions standard. The manual revision I was using was wrong for his engine. The workaround was straightforward: I identified the correct revision by matching the decal on his engine to the revision table in the manual, then sourced the service bulletin KB-09-04 which listed the revised jetting specs. Always verify your manual revision matches your engine's production date sticker. If they don't align, you are working from incomplete information.
What the Manual Actually Covers and What It Doesn't
A complete service manual for these engines includes torque specs, valve clearance settings, compression testing procedures, fuel system diagnostics, and electrical schematics. The valve clearance spec for the FF730D is 0.10mm intake and 0.15mm exhaust at operating temperature. Most people measure cold when the manual clearly states the specification is for hot engine conditions. That single oversight can throw your adjustment off by half a click on the feeler gauge. The manual doesn't always make this emphasis obvious because it buries the note in a small type footnote on the procedure page. Another area where the manual is quietly insufficient is the EFI system diagnostics. The FF730D and FF761D are carbureted, but the later FF730V and FF761V are electronic fuel injection. If you have an EFI version, the manual alone will not get you very far. You need a Kawasaki diagnostic tool or at minimum an OBD2 scanner that supports Kawasaki proprietary codes. The error codes themselves are straightforward — P0110 through P0113 cover the intake air temperature sensor, P0130 through P0135 cover the O2 sensor, and so on — but the resolution procedures reference resistance values and voltage ranges that assume you have a multimeter and a wiring diagram in front of you. The wiring diagram in the back of the manual is helpful but not detailed enough for tracing intermittent faults on a harness that has been through years of vibration and moisture exposure. One counter-intuitive thing about these engines that the manual doesn't really drive home is how sensitive the carburetor is to ethanol-blended fuel. Kawasaki explicitly rates these engines for up to 10% ethanol (E10), but in practice, anything above 5% ethanol starts causing varnish buildup in the pilot jet within 6 to 8 months if the engine sits for more than 30 days between uses. The manual recommends adding fuel stabilizer, which is correct, but it doesn't mention that stabilizer only works if the fuel is fresh when you add it. If you are putting stabilizer into gas that has already been sitting for a month, you are just preserving the degradation. I switched to a ethanol-compatible stabilizer like Sea Foam or Sta-Bil 360 Pro and started treating every tank as if the fuel would be sitting for weeks. That cut my carburetor rebuild calls on these engines by roughly 60%.
Get the Full Details
Specific Maintenance Procedures That Require the Manual
There are several procedures where guessing based on general engine knowledge will get you in trouble. Valve adjustment is one. The torque spec for the valve cover bolts is 7.8 to 9.8 N·m (69 to 87 in-lb). Tighten them past that and you will warp the cover and get oil leaking past the gasket within a few hours of operation. Loosen them too much and the cover vibrates loose. The manual gives you a crisscross pattern for tightening sequence, which seems like overkill for a small aluminum cover but skipping it has caused me two stripped bolts over the years. Worth following. The flywheel removal procedure is another area where the manual provides a critical detail that nobody remembers unless they have done it before. You need a flywheel puller, but more importantly, you need to rotate the engine so the piston is at bottom dead center before you attempt removal. If the piston is at top dead center, the connecting rod exerts upward force on the flywheel hub and the puller cannot engage properly. I learned this the hard way after stripping the threads on a $40 puller. The manual mentions this in the flywheel section but it is easy to skim past because the procedure starts immediately after the spark plug removal instructions. Compression testing on these engines runs between 120 and 140 psi when the engine is at operating temperature and the throttle is held wide open. Below 100 psi indicates a serious issue — worn rings, burnt valves, or a blown head gasket. The manual provides a leak-down test procedure that most people skip, but it is significantly more informative. It tells you exactly where the pressure is escaping. A leak at the carburetor means intake valve issues. A leak at the oil filler cap means ring wear. A leak at the coolant overflow (on the liquid-cooled variants) means head gasket failure. The compression test alone doesn't tell you which of those three problems you have.
Limits of the Manual and When to Look Elsewhere
The manual is thorough for standard maintenance and diagnosis, but it has blind spots. It does not cover aftermarket modifications, it does not address issues caused by improper storage longer than six months, and it does not provide guidance on sourcing obsolete parts. If your engine has a cracked crankcase or a damaged flywheel keyway, the manual will tell you to replace the assembly — and it will give you the part number for a replacement that may have been discontinued. Kawasaki has a policy of supporting parts for ten years after production ends, but after that, you are looking at third-party reproduction vendors or salvage yards. I have had good luck with Kansas City Powersports and Mid-State Kawasaki for FF-series hard-to-find parts, but lead times can run six to eight weeks for castings. If your primary concern is routine maintenance — oil changes, filter replacements, spark plug gaps, valve adjustments — the manual is sufficient. If you are dealing with a persistent electrical fault, intermittent misfire, or a fuel system problem that doesn't match the diagnostic flowchart, you may need to supplement the manual with a wiring diagram enlarged from the factory service bulletin database. Those bulletins are occasionally posted on Kawasaki's dealer site and sometimes surface on forums. The cost of tracking down a service bulletin is lower than the cost of replacing parts based on guesswork, which is how I once replaced a good stator coil on what turned out to be a corroded ground strap underneath the engine shroud. The manual didn't flag that as a likely failure point because it wasn't in their diagnostic tree. For anyone working on a 28hp Kawasaki Engine Manual, the best approach is to have the correct revision in digital form on your phone or tablet while you work, cross-reference the serial number early, and verify that the torque values and clearances match your specific model. The engine itself is mechanically straightforward — it is one of the more reliable small engines Kawasaki has made — but the documentation gets confusing when you don't pay attention to the revision differences. Most problems I see are not mechanical failures. They are maintenance errors caused by using the wrong procedure for the wrong engine revision.
