Why Torque Specs Matter on the 3024C
The 3024C is a four-cylinder, liquid-cooled diesel that has been around long enough to accumulate grease under the fingernails of a lot of mechanics. It powers gensets, small construction equipment, and marine applications. The torque specs themselves are straightforward, but getting them wrong causes real problems — head gasket failures, warped heads, and cracked block threads are the usual aftermath. I spent a week chasing a chronic coolant loss on a 3024C last year and learned exactly how much the procedure matters, not just the numbers. Here are the numbers you actually need. Values are in Newton-meters first, foot-pounds second. Cylinder head bolts: Initial torque 55–67 Nm (41–50 lb-ft). Second pass increases to 134 Nm (99 lb-ft). Then turn each bolt an additional 90 degrees. The sequence runs from the center outward in a cross pattern. Use a torque angle gauge for the final step, not a regular torque wrench.
Connecting rod bolts: 55 Nm (41 lb-ft). These are the torque-to-yield type on most 3024Cs, which means replace them every time you pull the bottom end. Never reuse them, even if they look fine. The stretch is calibrated and going past it compromises clamping force. Main bearing cap bolts: 100–110 Nm (74–81 lb-ft), plus a 90-degree angle turn on many versions. Verify your specific application because industrial genset versions and machine versions can differ slightly. Oil pan bolts: 18–25 Nm (13–19 lb-ft). Do not overtighten these. The aluminum pan and block threads are easy to strip if you force them.
Valve cover bolts: 10–13 Nm (7–10 lb-ft). Light torque is enough. Over-torquing cracks the cover or strips the insert. Timing gear cover bolts: 18–25 Nm (13–19 lb-ft). Same deal as the oil pan — don't force it. Exhaust manifold nuts: 34–41 Nm (25–30 lb-ft). These threads go into the aluminum head, so go slow and use anti-seize on the threads if the manufacturer spec allows it.
Get the Full Details
Flywheel housing to block bolts: Around 67–81 Nm (50–60 lb-ft) depending on diameter. Measure twice, torque once here because misalignment at this joint causes vibration issues downstream.
How the Head Bolt Procedure Actually Works
Most people miss that the three-step head bolt sequence is not optional on this engine. You cannot skip from 50 ft-lbs straight to 90 degrees and expect the gasket to seal properly. The initial torque sets the gasket contact, the second pass takes up any remaining clearance in the head-to-block interface, and the angle turn achieves the actual clamp load. Torque-to-yield head bolts work by stretching slightly past their elastic limit, so the final 90-degree turn is where the real sealing force comes from. If you just hit the target ft-lb number and stop, the bolts haven't reached proper stretch. I stripped a head bolt thread insert on a 3024C once because the previous mechanic had torqued the bolts cold on a hot morning without letting the engine reach normal operating temperature first. The aluminum block expanded unevenly and the bolt seized during the angle turn. The workaround was to heat the area gently with an induction heater to about 80 degrees Celsius, let it soak for ten minutes, then back the bolt out in small increments while applying penetrating fluid. Took two hours instead of twenty minutes, but the insert survived.
Common Pitfalls That Beginners Miss
One thing nobody tells you about the 3024C head bolts is that the torque values assume clean, lightly oiled threads. If the bolts are dry or have carbon buildup, you can be off by as much as 15 percent in clamping force. Always clean the threads and apply a thin film of clean engine oil or the lubricant specified in the service manual. Also, the bolt holes in the head can accumulate carbon deposits over time, which changes the effective length and therefore the stretch calculation. I have seen heads resurfaced by an extra half-millimeter because someone forgot to check bolt protrusion after grinding, and the bolts were now too short to reach proper tension. Another thing: the torque values are for room temperature assembly. If you are working in direct sunlight on a metal engine block, the aluminum can be significantly warmer than ambient, and the expansion coefficients between steel bolts and aluminum head will affect your final readings. Let the engine sit in the shade for a bit before torquing, or work in a climate-controlled space if you can.
What the Specs Can't Tell You
The torque numbers assume a healthy block, clean threads, and undamaged fasteners. If your head is warped beyond specification, no amount of correct torque will fix a combustion leak. If the main bearing journals are worn, the 100 Nm spec means nothing because the bearing clearance is already too loose. If you are dealing with an older 3024C that has seen high hours, check the condition of the head bolt holes before you invest time in the torque procedure. Re-tapping or using Heli-Coil inserts on stripped threads is standard practice, but you need to make sure the insert doesn't alter the bolt diameter requirement. Also worth noting: the 3024C head bolts are sensitive to over-torque during the initial stages too. Going past 67 Nm on the first pass can prematurely stretch the bolts and reduce the effective range available during the 90-degree turn. You lose clamping capacity that way. Stick to the range, not the upper limit, unless the manual specifically calls for it on your version.
Where to Find the Official Spec Sheet

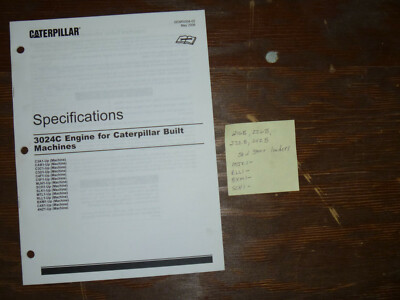

The authoritative source is the Caterpillar 3024C Technical Reference Manual (SEBD1497 or later revision). You can access it through Cat dealer systems like ET (Electronic Technician) software or the official Caterpillar S.U.R.E. portal. Third-party sources exist, but for something this specific I would trust only the dealer documentation. The manual also includes the bolt sequence diagram, which is essential because the order is not the same as a typical cross-pattern — it follows a specific Caterpillar progression from center rows outward.
