Working Through the Neuron Worksheet

The 311 The Neuron Worksheet Answers come up frequently when people are studying introductory neurobiology or anatomy courses. The worksheet typically covers action potentials, ion channels, membrane potential, and the basic electrophysiology of neurons. Getting through it without guessing is worth the effort because these concepts build on each other rapidly. When I first encountered this material, I was frustrated by how the answer key often simplifies things beyond usefulness. The worksheet usually asks students to diagram the phases of an action potential and label where specific ion movements occur. One thing most keys get wrong or skip entirely is the role of voltage-gated potassium channels during the repolarization phase versus the undershoot. Students lose points there constantly. The standard approach is to work through the question sets in order. Start with the resting membrane potential section. You need to understand why the resting potential sits around minus 70 millivolts before anything else makes sense. The sodium-potassium pump moves three sodium ions out for every two potassium ions in. That electrogenic contribution accounts for roughly minus 10 millivolts of the total resting potential. The rest comes from potassium leak channels and the unequal distribution of large negatively charged proteins inside the cell. Memorizing the numbers without grasping that mechanism is why people struggle later.

My actual problem with the answer key was a question about refractory periods. The provided answer listed absolute and relative refractory periods but didn't explain why the absolute refractory period aligns with voltage-gated sodium channel inactivation. I kept confusing the two and marked answers incorrectly on practice quizzes. What finally clicked was drawing the timeline of channel states side by side. Sodium channels go through open, closed, and inactivated states. Potassium channels open more slowly and stay open longer. Once I mapped those kinetics onto the membrane potential curve, the refractory period question became trivial. The inactivation gates on sodium channels physically prevent another action potential from starting, which is what creates the absolute refractory period. The relative refractory period exists because the membrane is hyperpolarized and further from threshold, not because sodium channels are still inactivated. For the synapse portion of the worksheet, the tricky part is distinguishing excitatory postsynaptic potentials from inhibitory ones at the ionic level. Excitatory inputs typically open cation channels permeable to both sodium and potassium, with the net effect being depolarization because sodium influx dominates. Inhibitory inputs usually open chloride channels or potassium channels, driving the membrane potential toward the equilibrium potential for those ions. The answer key sometimes glosses over this and just says "excitatory depolarizes, inhibitory hyperpolarizes." That's not wrong but it's insufficient for understanding summation or how inhibition actually works. Another common pitfall involves myelination and saltatory conduction. The worksheet often asks you to calculate conduction velocity or explain why myelin increases it. The correct reasoning is that myelin increases membrane resistance and decreases capacitance, which allows the local current to spread farther before decaying. Nodes of Ranvier concentrate voltage-gated sodium channels, so the action potential regenerates only at those gaps. Less membrane to depolarize per unit length means faster propagation. Students frequently write that myelin "insulates" the axon without explaining what that insolation actually does to the electrical properties. Insulation alone doesn't speed things up. The reduction in capacitance is the key factor.

The answer key for the calculation sections tends to use rounded values. If your computed membrane potential differs slightly from the key, check whether you used 61 or 62 millivolts as the Nernst constant at body temperature, or whether you accounted for relative permeability using the Goldman equation. The resting potential calculation requires knowing the permeability ratios: potassium is roughly 25 to 50 times more permeable than sodium at rest. Using equal permeability gives a drastically wrong answer. I'd recommend working through each section with a blank sheet of paper, writing out the full reasoning before looking at any answer. The worksheet itself is designed to make you generate the explanation, not just fill in blanks. When you read the answer key, use it to catch gaps in your logic, not to verify that your answer matches word for word. Some keys have errors or leave out important qualifiers. One limitation of relying on these answer sheets is that they don't cover edge cases like what happens during sustained high-frequency firing, where sodium channel accumulation of inactivation can lead to use-dependent block. Or how certain toxins like tetrodotoxin specifically block voltage-gated sodium channels while others like tetraethylammonium block potassium channels. The worksheet rarely goes there, but exams based on it sometimes include questions that require that deeper knowledge. If you're preparing for a test, supplement the worksheet with lecture notes and at least one primary source or textbook chapter on neuronal electrophysiology.

Get the Full Details

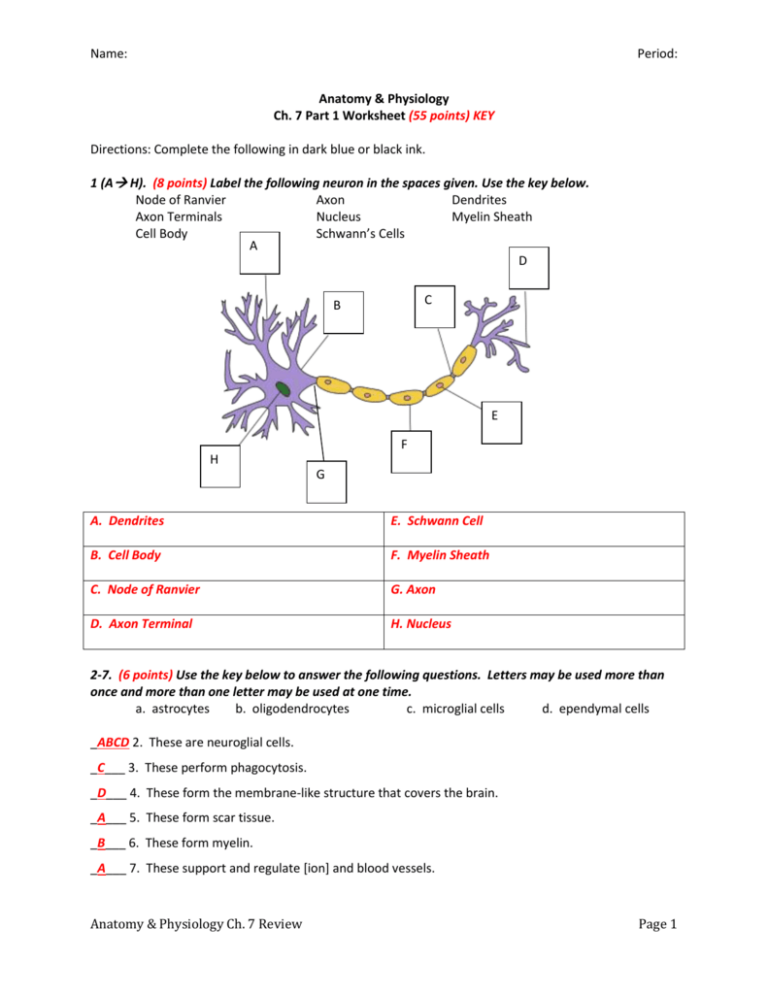

The Anatomy Of The Neuron Worksheet Answers | Anatomy Worksheets
The Anatomy Of The Neuron Worksheet Answers | Anatomy Worksheets

Another honest note: the worksheet answers for questions about neurotransmitter reuptake and degradation are often oversimplified. The exact mechanisms vary significantly between glutamate, GABA, dopamine, and acetylcholine. A single answer key cannot capture that variation adequately. If a question asks broadly about synaptic termination, the most complete answer mentions reuptake pumps, enzymatic degradation, and diffusion, in roughly that order of importance for most central synapses. If you're stuck on a particular section, try working backward from the physiology. Instead of memorizing that calcium influx triggers vesicle fusion, ask yourself what would happen if calcium channels were blocked. Synaptic transmission stops. That causal chain is harder to forget than a labeled diagram and it applies to every question on the worksheet and beyond it.
