Getting the Right 325 Mini Excavator Parts Manual Without Losing Your Mind
The 325 mini excavator is one of those models where the parts diagrams look simple on the surface but actually hide a lot of variation depending on the serial number range and the country the machine was sold in. I have dealt with more than a few people who ordered the wrong hydraulic seal kit because they assumed a generic PDF would cover all production runs. It will not. You need the right manual, and you need to know which version applies to your machine before you start clicking through any catalog. A proper parts manual for this machine gives you exploded-view diagrams, reference numbers, part descriptions, and often cross-references to OEM and aftermarket equivalents. The diagrams are organized by system—hydraulics, undercarriage, engine, attachments—and each part gets a unique identifier that the dealer uses to pull the item from stock. Some manuals also include bolting specs and torque values, though that information is usually scattered across separate service documents rather than consolidated in the parts book. I learned this the hard way once. A customer called me about a cracked boom cylinder rod on their 325. The parts diagram showed the rod assembly as one line item with a single reference number. I ordered what looked right based on the diagram, and when it arrived it was the short-body variant meant for a different frame configuration. The serial number on the hydraulic cylinder did not match mine. I had to return it and wait two weeks for the correct one. The workaround was simple in hindsight: I stopped relying on the diagram alone and pulled the serial plate from the machine, then cross-checked it against the serial range table that is typically printed on the inside front cover of the manual. Once I confirmed my machine fell in the mid-production range, the correct part number lined up perfectly.
How to Find the Correct Manual for Your Machine
The first thing you need is the serial number. It is stamped on a plate near the operator station or on the frame rail. Write it down. Do not guess. Manufacturers change component suppliers and part designs mid-production, so a machine built in one quarter of a year may use entirely different fittings, hoses, or sensors compared to the same model built the next quarter. The parts manual will have a serial range table that tells you exactly which parts apply to which serial numbers. Official channels are the most reliable source. Contact the authorized dealer for your brand and give them the serial number. They can pull the exact parts manual PDF for your machine. This usually takes one business day if you provide the serial number upfront. Some dealers will charge a small fee for the document, while others include it free with a service contract or parts purchase. Online sources exist but come with risks. You will find PDFs posted on excavation forums, parts resale sites, and random document-hosting pages. Some of these are accurate. Many are outdated, missing pages, or scanned at a resolution too low to read the tiny reference numbers in the diagrams. I have seen three different versions of the same manual floating around online, each with different page numbering and one of them missing the entire attachment section. If you use an unofficial source, verify that the serial range table in the document matches your machine. If it does not, the manual is wrong for your unit.
Reading the Diagrams Correctly

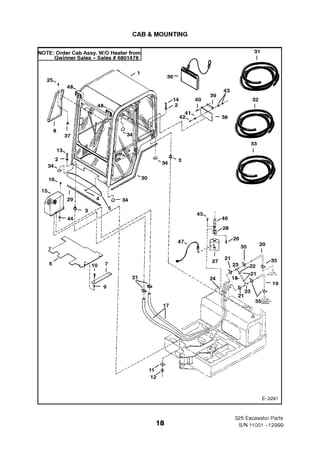

Parts manuals use exploded views, which means components are shown separated rather than assembled. This makes it easy to miss how parts actually fit together if you are not used to reading them. The reference numbers are keyed to a parts list table. Each row in that table corresponds to one number on the diagram and includes the part number, description, and sometimes the quantity required per assembly. Here is a detail most people miss: the quantity column does not always tell you how many of a given part you need for the entire machine. It tells you how many are used per sub-assembly shown in that particular diagram. If a diagram shows a hydraulic valve block and the table lists a certain O-ring with a quantity of four, that does not necessarily mean you need four O-rings for the whole hydraulic system. It means four per that valve block. If the machine has three identical valve blocks, you multiply accordingly. I have caught myself ordering single quantities for assemblies that clearly required multiples because I skimmed instead of doing the math. It costs money to figure that out the wrong way. Another thing to watch for is supersession. The part number printed in the manual may be the original manufacturer number, but the dealer may have already replaced it with an updated version. The manual might include a supersession note, often marked with an asterisk or a footnote, indicating the new part number that replaces the old one. If you order the original part number and it comes back as obsolete, you will be waiting on a reorder. Check the supersession list if one is included in your manual. Dealers usually keep these updated in their internal systems, so calling them with the part number is faster than waiting for the order to bounce back.
Get the Full Details
Common Pitfalls That Waste Time and Money
Ordering by diagram appearance alone is the most common mistake. A hose might look identical in two different diagrams, but the fittings, length, and pressure rating can differ. Always use the reference number and the part number from the parts list, never the visual similarity. I once spent forty-five minutes hunting for a mismatched hose because two diagrams shared the same visual layout but different reference codes. The part list was clear if you actually read it, but the diagrams looked interchangeable at a glance. A second pitfall is assuming all 325 mini excavators are the same make. There are multiple manufacturers that produce machines in the 3.2 to 3.5 ton class, and some use very similar naming conventions. Verify the brand and model designation on the serial plate before you search for any manual. A parts manual for a Bobcat 325 will not help you if you actually have a Kubota KX080-4 or a CAT 320, even though those are all in roughly the same size range. A third issue is the condition of the manual itself. Older PDFs that have been scanned from paper originals often have blurry pages, missing corners, or text that is too faint to read. If you are working in the field and need to identify a small fitting or a tiny part number under poor lighting, a low-resolution scan is nearly useless. In those situations, downloading a clean digital version from the dealer is worth the effort. It takes about five minutes to request and download, and it saves an hour of frustrated squinting at a photocopy.
What the Manual Will Not Tell You
The parts manual is not a troubleshooting guide. It will not tell you which symptoms point to a failing component or how to diagnose a hydraulic issue. For that you need the service manual, which is a separate document. Some dealers bundle both, but many sell them separately. The parts manual also does not include wear tolerances, clearance specs, or replacement intervals. Those live in the maintenance schedule and the service procedures sections of the operator manual or the official service documentation. Additionally, the parts manual covers factory-equipped components. Aftermarket attachments, custom hydraulic lines, or dealer-installed options may not appear in the standard diagrams at all. If your machine has been modified from its original configuration, the manual will not reflect those changes. I have seen this happen frequently with machines that have been fitted with quick-attach couplers or auxiliary hydraulic lines that were added after the original sale. The diagrams show the stock configuration. If your machine differs, you need to identify the non-standard parts yourself or consult the dealer with photos of your setup.
Practical Next Steps
Locate your serial number and write it down. Contact your dealer and request the parts manual PDF for your specific serial range. Verify the serial range table inside the document matches your plate. Use the reference numbers and part numbers from the parts list, not the diagrams alone, when placing orders. Check for supersession notes if the part number you find does not ring a bell. Cross-reference the manual with the service manual if you are diagnosing a problem rather than just replacing a worn component. And if you are working from a low-quality scan, get a cleaner copy—it is worth the extra ten minutes.
