3D Golf Swing Analysis

Setting Up and Using 3D Golf Swing Analysis Tools

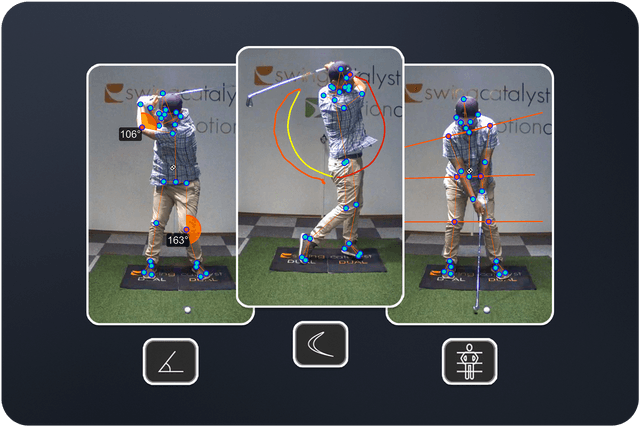

I spent about three years working with swing capture systems at a teaching facility before moving purely into video-based analysis. The short version is that 3D Golf Swing Analysis takes the markers or bone structures from a golfer and turns them into something you can actually measure instead of just watching someone swing and guessing what feels wrong. Most people start with a consumer app like Swing Catalyst, SportsSWING, or even the free versions that come with certain phones now. Those are fine for a basic read but they break down fast once you need precision numbers. The core of it is tracking joint angles and club position across time in three dimensions. You are looking at plane angles, face angles, path vectors, and rotational speeds. The output usually gives you a timeline where you can zoom into any frame and see exactly where the club is relative to the target line, the spine angle at address, and where the hands are at impact. That is the part that separates it from 2D video analysis, where everything is flattened and you lose depth information entirely. Here is a practical example. I had a student whose driver shot always went left at waist height. In 2D video it looked like a normal push draw. The 3D data showed his spine was tilting away from the target through impact by about eight degrees, which closed the face relative to his body while the path stayed neutral. Standard coaching would have him "keep your head behind the ball" and waste a month on a cued fix. The real issue was a hip rotation timing problem that only showed up in the joint angle data.

How to Run Your First 3D Golf Swing Analysis

Start with markerless systems if you can. The older marker-based setups require putting reflective dots on the golfer's joints and then having someone calibrate each one every session. It takes twenty minutes before you can even start recording. Markerless systems like those from Hudl Technique, V1 Sports, or the newer Arccos integration handle most of that automatically. They use pose estimation models trained on thousands of swing videos to infer joint positions without physical markers. You need at least two cameras for decent depth reconstruction. One positioned down the target line behind the golfer and one at a forty-five degree angle from the lead side. Put both on tripods at hip height minimum. If you only have one camera, the software will try to reconstruct depth from a single perspective but the error margins go up significantly, especially for horizontal plane measurements. You might end up with five to eight degrees of error on face angle readings, which makes the data misleading for lower handicap players. Once your cameras are set up, have the golfer do three warm-up swings at fifty percent speed while the system captures and calibrates. Then record full speed swings. Most systems will process each swing in about two to four minutes depending on your hardware. A decent laptop handles five to ten swings per session without lag. A desktop with a GPU pushes that to twenty or thirty before you notice slowdown.

3D Golf Swing Analysis Software Options

The main options break down into three tiers. The free tier includes apps like Home Golf and basic phone-based tools. They give you slow motion video and some angle overlays but no true 3D skeletal tracking. The mid-tier covers systems like The Swing Catalyst app on iPad, 18Birdies, and Arccos Caddie. These provide actual 3D data from markerless tracking and cost between twenty and eighty dollars a month or a one-time fee of roughly one hundred fifty dollars. The professional tier includesTrackMan, GC Launch Monitor systems, and K-Vest. Those are in the two to four thousand dollar range and include everything from launch data to full skeletal analysis with sub-degree accuracy. For a personal setup at home, I recommend starting with an iPad and the Swing Catalyst app or the 18Birdies Pro package. You get three cameras that sync wirelessly, the software does the 3D reconstruction, and you can export data for coach review. It is the most reasonable entry point unless you are already spending five hundred dollars a month on lessons that should be using this kind of data.

Common Problems and What I Learned the Hard Way

Markerless systems struggle with the lead arm during the downswing when the golfer has a lot of body rotation. The pose estimation model gets confused because the arm crosses over the torso multiple times per swing, and the algorithm loses track of the elbow and wrist joints for about three to five frames around impact. I ran into this with a member who had a very high hand speed and a tight takeaway. The system was reporting his left wrist was flat at impact when the data from the second camera clearly showed it was flexed about twelve degrees. I fixed it by adding a third camera from the trail side at a low angle, which gave the software enough reference points to triangulate the wrist position correctly. Another issue is lighting. These systems rely on contrast between the golfer's clothing and the background. White shirts on white garage walls will confuse the depth sensors on mid-range equipment. I had a golfer train in a well-lit garage for two weeks before I realized half his data was garbage because the algorithm kept treating his shirt as part of the background. Moving him to an area with darker walls and diffuse lighting cut the error rate in half overnight. Don't trust the default calibration. Most systems assume an average height and arm length for their initial joint placement. If your student is under five six or over six three, the scale of the entire model shifts and every measurement becomes slightly wrong. Adjust the anthropometric settings manually before recording any practice swings. It adds about ninety seconds to the setup but saves you from making a correction based on bad data.

Reading the Data Without Getting Lost

The biggest mistake I see is people staring at too many numbers at once. A full report from a professional system can show forty or fifty data points per swing. Pick three metrics that matter for the specific problem you are working on. For a slice problem, look at face angle at impact, club path, and the horizontal club head speed differential between the lead and trail shoulder during the transition. Ignore everything else until you have a handle on those three. Timing is more useful than raw angles. A twenty degree face angle means different things depending on whether it happens two frames before impact or two frames after. Look at the sequence. Is the body opening before the hands? Is the club getting shallow too early? The order of events matters more than any single number. I track the time from hip rotation initiation to club head impact, measured in frames at the system's capture rate. For most amateur golfers this window should sit between fourteen and twenty-two frames at sixty frames per second. Outside that range something is out of sync. Compare to a baseline you trust. Don't compare a high handicapper to a touring pro. Compare the golfer to their own previous swings. Systems like Arccos and Swing Catalyst let you overlay multiple swings on the same timeline. Use that feature to see if a change you made actually moved the data in the right direction or just changed the problem somewhere else.

When 3D Golf Swing Analysis Won't Help

It cannot fix a mental game issue. If a golfer is tense because they are trying to hit a specific shot under pressure, the data will show restricted shoulder turn and an early extension, but no amount of number crunching will tell them to relax. A coach has to work that part separately. It also fails completely with golfers who have severe mobility limitations. If someone cannot externally rotate their hips past fifteen degrees due to a surgical repair, the system will still generate a report that assumes a typical range of motion. The data becomes theoretical rather than actionable. In those cases, work with a physical therapist first and use swing analysis only after mobility improves enough to support a normal pattern. Another limitation is cost versus benefit for casual players. A weekend golfer who plays twice a month and shoots in the ninety range will not benefit from a four thousand dollar system or a monthly subscription to professional software. The data is accurate but the improvements they get from a few lesson sessions will exceed what the analysis alone can provide. Save the budget for actual instruction and use free or cheap tools only for supplemental feedback.

The technology keeps getting better. The gap between consumer and professional systems is closing, and the software is getting faster at processing without needing a dedicated GPU. But the core value remains the same. The numbers only matter if someone knows how to interpret them and connect them to what is actually happening in the swing. Raw data without context is just noise with a spreadsheet format.
