How to Actually Use a Service Manual Parts List on a 3D Printer

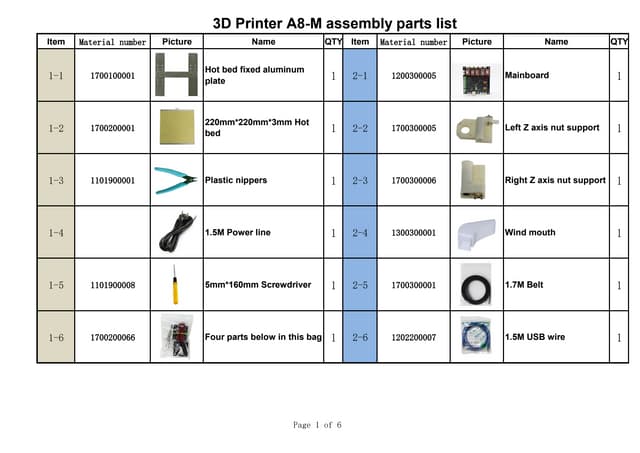

People treat the parts list in a 3D printer service manual like it's a shopping catalog. It's not. It's an engineering reference that tells you what the manufacturer intended to put in the machine, not necessarily what's in yours right now. I've spent years pulling printers out of recycling bins and trying to figure out which belt tensioner was clipped onto which frame rail, and the parts list helps but it also lies to you sometimes. A service manual parts list is a structured bill of materials pulled from an exploded view diagram. Each line item has a reference designator, a manufacturer part number, a description, and usually a quantity. Some manuals include a separate pricing table. Others don't. The format varies wildly between brands and even between regional distributors. Most of the useful information in a parts list isn't the part numbers themselves. It's the reference designators. When someone on a forum asks what R14 is on a Voron 2.4 mainboard, the answer lives in the service manual parts list, not in a generic schematic. The reference designator maps directly to a physical location on the assembly drawing, which means you can trace a failed component back to its circuit function by looking at nearby labels on the board.
I keep a spreadsheet with columns for part number, description, reference designator, printer model, and supplier. When I'm rebuilding a machine I haven't touched in six months, opening that spreadsheet takes about forty seconds and saves me from misordering a 24V fan when the unit actually uses a 12V fan on the same mounting pattern. The difference matters more than it sounds. Some manuals include a separate "consumables and wear items" section that the main parts list doesn't cover. This is where thermal strips, bed springs, and extruder gear teeth live. The main BOM often omits these entirely because the manufacturer doesn't want to sell you fifty thousand of them through the service channel. Check the service manual's table of contents before you assume the parts list is comprehensive.
Downloading and Using the Manual Effectively
Search for the service manual by printer model plus the word service. Creality, Tronxy, Elegoo, and Prusa all publish theirs on their support pages. Third-party printers often have them on GitHub or shared drives maintained by community members. If the manual doesn't exist for your model, you're working from memory and photographs, which is slower and less reliable. Once you have the manual, open the parts list and cross-reference it against the exploded diagram. The numbers in the parts list should match callout numbers on the drawing. If they don't, the manual has a misprint, and those sections are not trustworthy. I once spent two hours hunting for a Z-bracket part number that turned out to be a typo in the original documentation. The correct number was in a different revision of the same manual from six months later. Use the part numbers as search terms on supplier sites. Don't search by description alone. Two vendors might call the same linear rail something different. The manufacturer part number cuts through that ambiguity. I find that searching "W30-2-866E servo manual" on Google returns the exact datasheet and compatible replacements within the first result, while searching "3D printer servo" returns thirty pages of unrelated components.
Get the Full Details
When ordering replacements from the parts list, account for the possibility that the listed part number is obsolete. Manufacturers discontinue components without updating their service manuals. Before you place an order, verify the part number on the vendor's site. If the vendor doesn't carry it, look for the electrical or mechanical specification in the parts list description and find a cross-reference based on those specs instead of the number.
A Specific Problem I Had With a Parts List
I inherited a batch of older Prusa i3 Mk2S printers where the original service manual listed the hotend assembly as a single part number. The manual didn't break out the thermistor, the heater cartridge, or the silicone sleeve as separate line items. One of the printers had a shorted thermistor, and I needed to replace just that component. The parts list didn't help me identify the thermistor part number because the hotend was sold as one unit. I ended up opening a dead hotend from a non-functional printer, measuring the thermistor resistance at room temperature, and finding the exact B-value and resistance rating on the component body. Then I searched by those electrical specifications instead of by a manufacturer part number. The replacement thermistor I installed was a generic NTC 100K B3950, which is what the original used. The service manual would have been useless for this repair if I hadn't already known to look at the component specs directly. This happens more often than you'd think. Service manuals lump sub-assemblies together to simplify the document. If your failure is inside that sub-assembly, the parts list won't give you a direct path to the individual component. You need to disassemble the sub-assembly and read the part markings yourself.
Common Mistakes People Make With Parts Lists
The biggest mistake is assuming the parts list is accurate for every configuration of the printer. Manufacturers run multiple revisions of the same model. The parts list usually covers one specific revision, and sometimes the revision isn't even stated clearly. A Prusa i3 Mk3+ from 2021 might have a different stepper motor connector than the same model from 2023. If you order the part number from the manual without checking the serial number against the manual's revision notes, you'll receive the wrong connector and waste time figuring out why it doesn't fit. Another mistake is ignoring the quantity column. Some part numbers appear multiple times in the parts list with different reference designators. That means the same physical part is used in several locations on the machine. When you order replacements, order the total quantity across all locations, not just one. I've seen people order a single idler pulley when the printer uses four, then wonder why the replacement doesn't solve the belt slack issue on the second axis. People also overlook the fact that some part numbers in service manuals are internal manufacturer codes, not distributor part numbers. Searching an internal code on Amazon or AliExpress usually returns nothing useful. Search the description instead, or look up the code on the manufacturer's own portal if they have one. Sometimes the code only exists inside the company's ERP system.
When the Parts List Won't Help You
Service manual parts lists don't cover modified or upgraded machines. If someone has replaced the stock firmware, swapped the motherboard for an MKS base, or 3D printed a replacement gantry plate, the original parts list is irrelevant for those changes. The documentation describes the factory configuration, not the current one. You need to photograph the actual machine and identify components visually when modifications are involved. Third-party accessories also fall outside the scope of most service manuals. A touchscreen upgrade, an external filament sensor, or an auto-bed-leveling kit won't appear in the parts list because the manufacturer didn't design them. If your problem involves one of these additions, the service manual is a starting reference for the underlying hardware, but the accessory documentation lives elsewhere. Printers that have been in service for several years often have parts lists that don't reflect field failures and subsequent redesigns. The revision history at the front of the manual is where you check whether the documented parts list has been updated after production changes. Skipping that section is a reliable way to order a component that was replaced mid-production without anyone telling you.
Practical Workflow for Using a Parts List on a Live Repair
Start by matching the printer's serial number to the manual revision. Check the revision history for any part number changes. Open the parts list and scan for the failing component or assembly. Note the reference designator and part number. Cross-reference the part number on supplier sites to confirm availability and price. If the part number is obsolete, extract the electrical or mechanical specification from the description and search by those parameters instead. Order the part with a buffer quantity if the printer uses multiple instances of the same component. Include a note with the printer model and serial number when contacting the supplier, because they can sometimes flag version-specific fitment issues that the manual doesn't mention. Keep the manual digital but also print the relevant pages for the shop bench. PDFs are searchable, but a printed copy is faster to flip through when you're holding a broken part and need to find its reference designator on the exploded diagram without navigating menus. I have a drawer of printed service manual pages from every printer I've worked on. It sounds excessive until you're standing at a bench at 10 PM with a failed board and a dead laptop battery.
The parts list is a tool, not an authority. It points you in the right direction, saves you from guessing part numbers, and gives you the vocabulary to communicate with suppliers. It also has gaps, revision ambiguities, and occasional errors. Treat it like a reliable map that occasionally reroutes you through a construction zone. Read the fine print, verify what you can verify, and keep a backup plan when the manual stops being helpful.
