Understanding the 6L80E Manual Valve Body

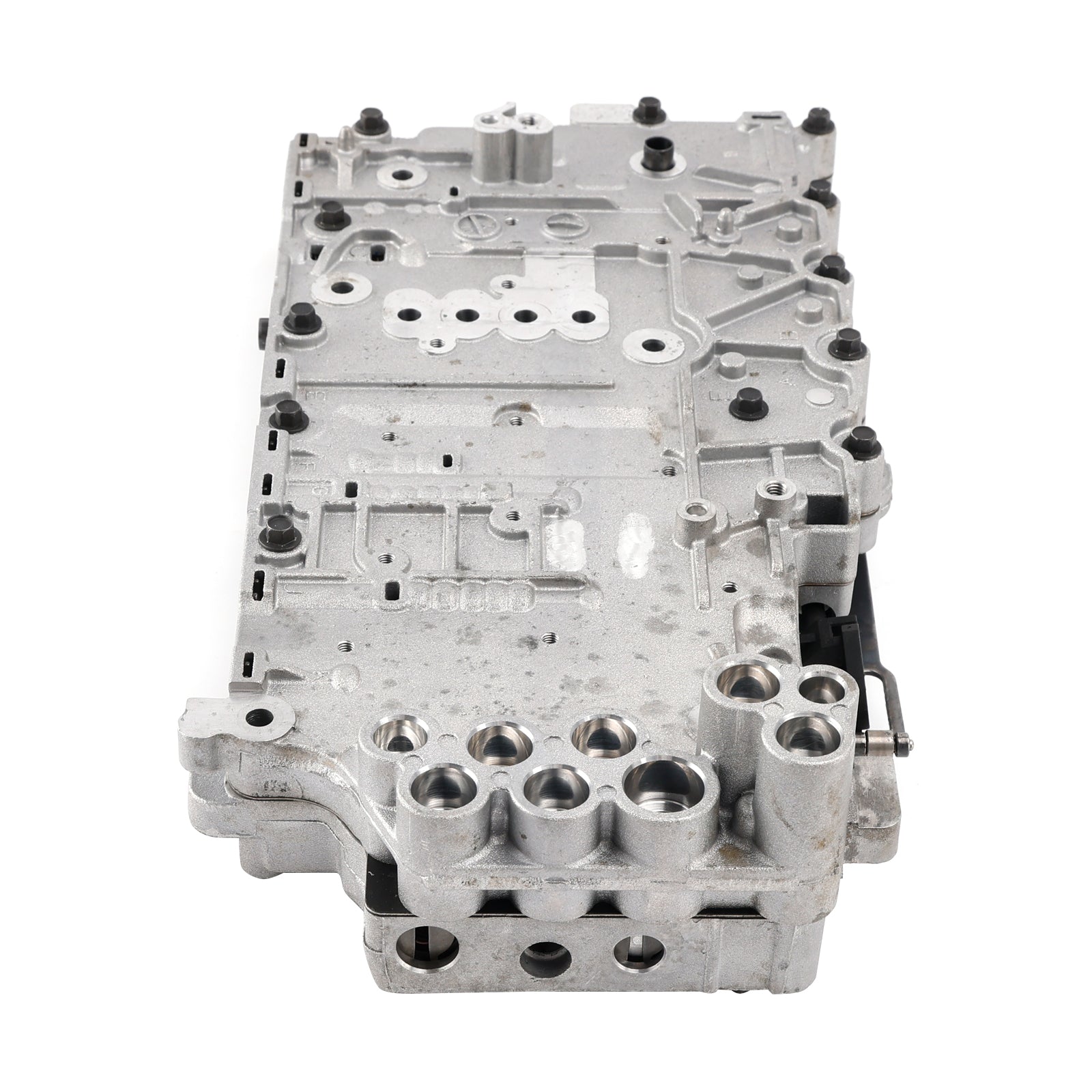

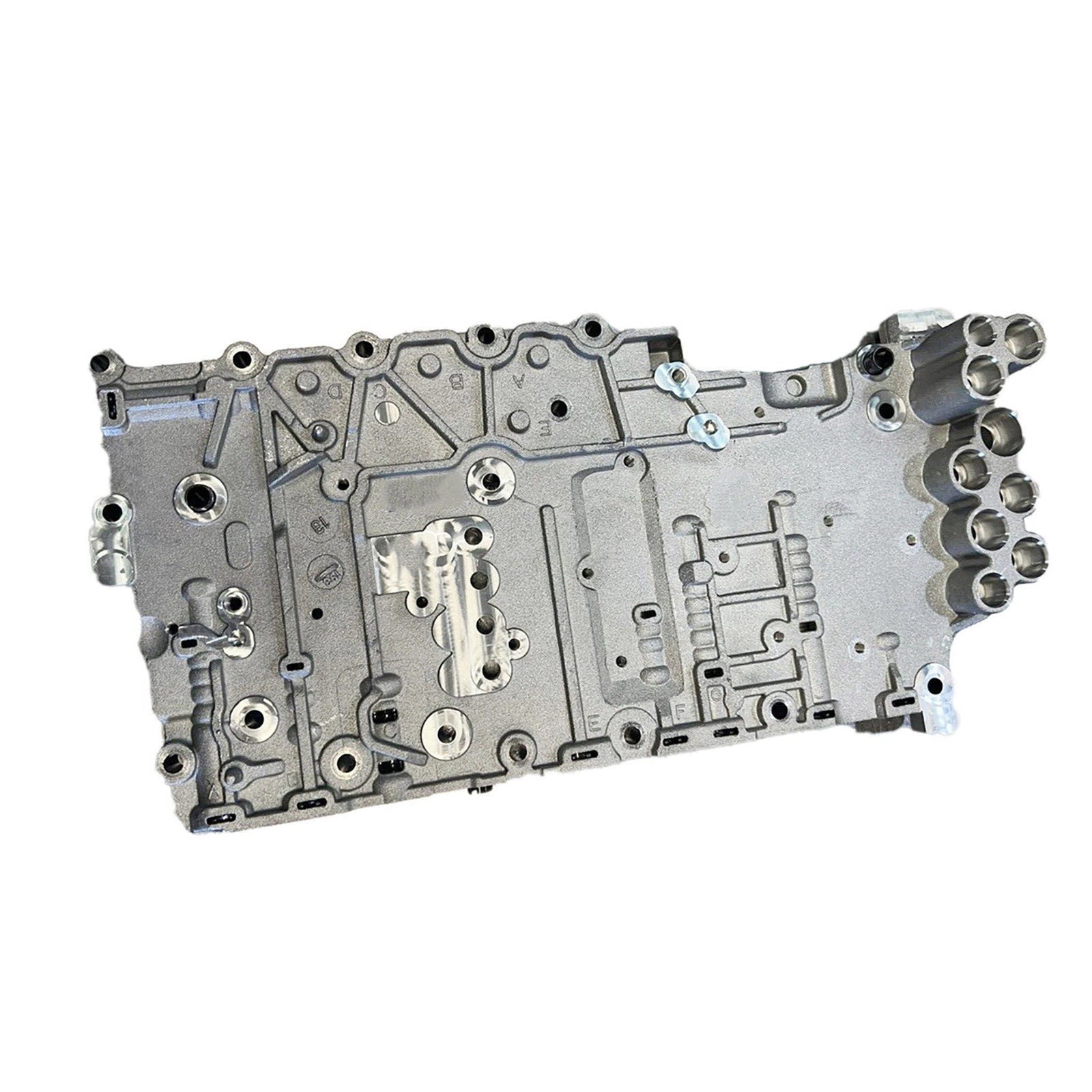

The 6L80E manual valve body is a piece of aluminum that sits between the transmission pan and the main valve body. It controls mechanical gear selection through a series of passages and channels. The manual valve itself is operated by the shift linkage or cable. When you move the shifter into Drive, Reverse, or Low, the manual valve physically directs line pressure to the appropriate circuits. Nothing electronic about it. I spent about three weeks dealing with a stubborn 2-3 shift flare on a '09 Silverado with 87,000 miles. The code pointed to the solenoid pack, so I swapped it. No change. Then I noticed the manual valve detent was worn smooth on the third gear channel. The valve was slipping past its stop slightly under load, causing the delayed engagement. It's an easy thing to miss because the wear isn't visible without a bore gauge and a feeler gauge, and most people just blame the TCM.
How to Replace the 6l80e Manual Valve Body
Drop the pan first. You will want a new gasket and plenty of ATF. The manual valve body bolts are torx, not standard hex, so make sure your socket set covers T40 and T45. There are eight bolts holding it down, plus two smaller ones near the output shaft. Label them. They are different lengths and putting a long bolt in a short hole will cross-thread the aluminum housing. Once the bolts are out, the whole assembly lifts straight up. Do not force it. There is a small retaining clip on the front that catches on the separator plate. Wiggle it free gently. The manual valve rod is connected to a pushrod inside the case. When you pull the body up, watch the pushrod. It can fall back into the transmission and you will spend twenty minutes fishing it out with a magnet if you are not careful. After removing the old unit, inspect the mating surface on the case. Look for scoring marks around the manual valve bore. Light scoring can be dressed with very fine emery cloth. Deep scoring means you need a bore sleeve kit or a replacement case. I have seen cases with .015 inch of wear in the manual valve bore and people still trying to run stock valve bodies on them. It will not hold proper line pressure at idle.
Clean everything thoroughly. Use brake cleaner on steel parts and transmission fluid on aluminum surfaces. Never let brake cleaner sit on the aluminum separator plate channels for more than a few seconds. It will dull the finish and cause minor swelling in the seals if any are left behind. Lay out the new gasket and seat it carefully. The locator pins on the case should align with the holes in the gasket. If they do not, you have the gasket upside down or the wrong type. Install the new manual valve body and hand-tighten all bolts first. Then torque in a crisscross pattern to 89 inch-pounds. Not foot-pounds. Inch-pounds. These are small fasteners in soft aluminum. Over-torquing will strip the threads and you will be replacing the entire valve body casting, which runs about $400 to $600 depending on whether you buy aftermarket or OEM. Reconnect the shift linkage, refill with six quarts of Mercon LR ATF, and run the engine. Cycle through all gear ranges while holding the brake. Let it idle in each position for ten seconds before moving to the next. Check for leaks around the pan gasket. The initial shift feel should be firm. If it is still soft or there is a flare, the issue may not have been the manual valve body at all, and you should check the low-reverse apply circuit seals next.
Get the Full Details
The main limitation of the 6L80E manual valve body is the material. GM used a softer aluminum alloy in the early models, produced roughly between 2006 and 2009. Later versions switched to a harder heat-treated alloy. If you are working on an early model, expect the manual valve bore to wear faster than you might think, especially if the transmission has seen hard shifting or insufficient fluid. There is no practical seal kit repair for a worn bore. The only real fix is a sleeved valve body or a replacement unit from a later production run. Another thing people overlook is the manual valve spring. It is a small torsion spring inside the valve body that returns the manual valve to Park when line pressure drops. On high-mileage units, this spring loses tension. The result is a delayed or incomplete engagement when dropping from Drive to Park at a stoplight. You can test it by removing the manual valve and checking the spring resistance with your fingers. If it feels loose, replace it. The spring is available separately for about eight dollars and takes two minutes to swap. I also ran into a problem once where the manual valve body was functioning perfectly but the transmission would not go into second gear. Turns out the pushrod connecting the shift lever to the manual valve was bending slightly at the factory spec dimension. It was about two millimeters too short, preventing the manual valve from reaching full Detent in second. A quick measurement with calipers before installing a new valve body saved me from tearing the whole transmission apart again. Measure the pushrod length against the service manual specification of 2.8 inches before you consider it.
