Working with the 747-400 FMC: What Actually Happens in the Cockpit

The Boeing 747-400 Flight Management Computer is the central navigation and performance brain of the aircraft. It sits behind two Control Display Units (CDUs) and handles everything from flight planning to fuel optimization. Most pilots will tell you the FMC is reliable about 99 percent of the time. The other 1 percent is what eats your afternoon. The official documentation for the 747-400 FMC comes from Boeing in the form of the FCOM (Flight Crew Operating Manual) and the FMC Quick Reference Handbook. These are not consumer PDFs you just download from the open internet. Airlines that operate the 747-400 maintain them through their own technical publication systems. If you are a pilot or dispatcher looking for the actual guide, your company's document control or the Boeing Skylink portal is where you pull it. There are third-party summaries and training guides floating around aviation forums and study sites, but none of them carry the same weight as the official airline-supplied material. I have used condensed versions for quick reference, and they are fine for general understanding. They are not sufficient for actual dispatch or approach preparation. Let me explain how the system actually works from a practical standpoint. The 747-400 typically has two FMCs — left and right — each with its own CDU. The left side is normally pilot flying and the right is pilot monitoring, though this can swap. Each CDU has two lines of display, a keypad on the right side, and six soft keys along the bottom of each screen line. The soft keys change context depending on which page you are viewing. That is the first thing that trips up newer pilots. The display does not always tell you what each key does. You have to know the page structure or spend time pressing keys to find the function you need.

The FMC processes navigation data from multiple sources. GPS, DME, VOR, and inertial reference all feed into it. The system blends these inputs and outputs position information to the autopilot and flight directors. During a typical cruise, the FMC is updating your position roughly once per second. It uses the IRS alignment data as a primary reference and cross-checks against ground-based nav aids. If GPS is available and active, it becomes the primary source. The transition between sources is seamless to the crew unless something goes wrong. Here is a specific problem I ran into that most guides do not mention. We were flying a long-haul route and the left FMC developed a position difference warning against the right FMC. The discrepancy was about 0.3 nautical miles. Small to anyone who has not spent four hours watching it grow. What made it worse was that the difference only appeared during the cruise phase, not during climb or descent. The CDU showed both sides as "NAV" and both claimed accuracy. We tried resetting the left FMC through the circuit breaker panel. That cleared the fault temporarily but it came back within twenty minutes. The workaround was to leave the left FMC reset and continue using the right FMC for the remainder of the flight. We filed a deferred item through MEL and the engineering team replaced the left FMC computer during the next stop. The root cause, according to the post-flight report, was a failing inertial component in the left IRS that slowly drifted out of tolerance. The FMC flagged it, but the system design allowed continued operation because GPS was still valid. This is one of those cases where the manual says "operate on single FMC" but does not really prepare you for the psychological weight of watching a caution light sit there for hours. The FMC performance section is where most of the action happens for long flights. You enter your takeoff weights, fuel loads, cruise altitude, and cost index. The cost index is a number between 0 and 999 that tells the FMC how much you value time versus fuel. A low cost index means fuel economy priority. A high number means time economy. Most airlines operate between 40 and 120 depending on the route and fuel prices. The FMC then calculates your optimal cruise altitude and speed. On a typical 747-400 cross-country, this can save anywhere from 200 to 800 pounds of fuel compared to a fixed altitude and speed profile. The actual savings depend heavily on wind conditions and how well your flight plan matches the real atmosphere.

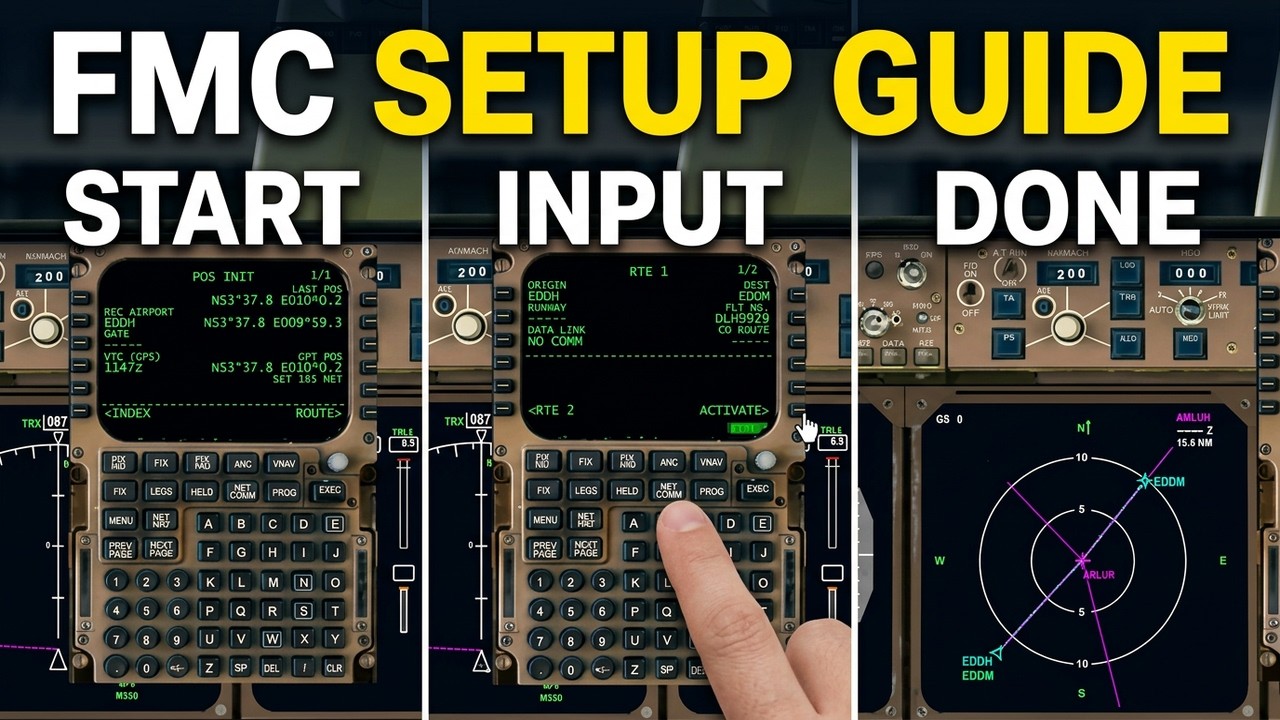

One thing that catches people off guard is how the FMC handles the initial position entry. When you power up the FMC after a full shutdown, you have to enter your present position. This is usually done by entering your departure gate or runway. The FMC then uses that position along with the IRS alignment data to initialize the navigation database. If you enter the wrong runway or taxiway, your entire flight plan starts from a bad position. I have seen this happen when a pilot confuses runway 27L with 27R at a busy airport where the taxiways are extremely close together. The FMC did not catch it because both runways fall within the acceptable alignment tolerance. The error propagated through the entire flight plan and only became obvious when we were over the first enroute waypoint and the predicted position did not match reality. The fix was to use the IRS POS ALIGN page and verify our position against known ground features on the map display. This took about five minutes and reset the FMC to the correct position without needing a full shutdown cycle. The VNAV (Vertical Navigation) system on the 747-400 deserves its own section because it is fundamentally different from the 737 NG version and even more different from the 777. The 747-400 VNAV computes a vertical path based on your entered cruise altitude, descent altitude at the destination, and the speed restrictions along your route. It does not use a fixed descent profile like some simpler systems. Instead, it calculates where to begin your top of descent based on your current altitude, groundspeed, and the target altitude at the first restricted waypoint. The calculation assumes a typical 3-degree glidepath but adjusts for the actual wind and aircraft performance. In practice, this means you sometimes get a top of descent point that seems too early or too late depending on whether you have a strong tailwind or headwind at altitude. When winds are strong and variable, the VNAV descent path can be off by several thousand feet from what ATC expects. The crew should monitor the predicted altitude at each waypoint and be ready to manually adjust if the path looks unreasonable. Another counter-intuitive point about the 747-400 FMC is how it handles holding patterns. You can enter a holding pattern directly into the FMC and it will compute the turns and timing automatically. However, the system assumes standard rate turns unless you manually override them. At higher altitudes in a heavy 747, standard rate turns can exceed bank angle limits. The FMC will not warn you about this before you reach the hold. I learned this the hard way when we were cleared for a hold at FL350 and the FMC planned a turn that would have put us at approximately 30 degrees of bank. The aircraft physically could not achieve that without exceeding the performance envelope. The workaround is to enter the hold and then manually review the computed bank angles on the plan or fix page. If the bank angle looks too aggressive, you adjust the holding speed or enter a manual altitude restriction to force the FMC to recalculate with more conservative parameters. This is not something the manual emphasizes because it is an edge case that most pilots will never encounter. But when you do encounter it, it can be confusing fast.

The navigation database on the 747-400 follows the standard 28-day AIRAC cycle. This means updates come out on the same schedule as every other major airliner in the world. Your FMC needs a database insert every 28 days, and you cannot legally operate with an expired database unless your MEL allows it and you follow specific procedures. Most airlines use a portable data loader to update the FMC database. The process takes about ten minutes per FMC. You can update both FMCs simultaneously if you have two loaders or do them sequentially. The important thing is that both FMCs must have the same database effective date. A mismatch between left and right FMC database cycles will cause navigation discrepancies and potentially trigger a master caution. For those looking for supplementary material beyond the official guides, there are training DVDs and simulator sessions that walk through FMC operations in detail. The Boeing 747-400 FMC User Guide that circulates in aviation training circles is usually a condensed version covering the most common operations. It is useful for familiarization but should not replace the FCOM. I keep a printed copy of the condensed guide in my jumpseat bag for quick lookups during irregular operations. When things go wrong at 35,000 feet with two kids screaming behind me and ATC asking where we are, having the soft key functions on one page beats digging through the full manual. The biggest limitation of the 747-400 FMC is its reliance on ground-based navigation aids for non-RNAV approaches. The aircraft supports LNAV/VNAV approaches at many airports, but if the runway does not have an approved RNAV procedure, you are back to flying VOR or ILS approaches using the FMC only for navigation guidance. The FMC will not compute vertical guidance for a traditional VOR approach. You fly the horizontal path from the FMC and manage the vertical path manually or with the autopilot altitude hold. This is perfectly adequate but requires more crew coordination than a modern RNP approach. Some airlines have found that crews who are not comfortable transitioning between FMC lateral navigation and raw-data vertical flying make more errors during approach phase. The training manual addresses this but the reality is that not every pilot gets the same amount of recurrent training on legacy approach modes.

If you are studying for a 747-400 type rating or trying to understand the FMC operations, start with the CDU pages in order. Learn the init page, the route page, the departure page, the climb page, the cruise page, the approach page, and the descent page. Master those seven pages and you will handle 90 percent of normal operations. The remaining 10 percent involves the identity page, the positions page, the N1 limit page, the performance page, and the misc pages. Those are for special situations. You do not need to memorize them until you need them. And when you do need them, you will be grateful you spent ten minutes understanding how they work rather than panicking and pressing every key in sight. The 747-400 FMC is an older system compared to what you find in the 787 or A350, but it is proven, well-understood, and does exactly what it promises. The interface is not as intuitive as glass cockpit displays, and the soft key layout requires muscle memory to develop. After a few hundred hours of operation, you stop reading the display and just know which key does what. That is the goal. Until then, keep the user guide accessible and do not be afraid to consult it mid-flight. There is no penalty for looking things up when the system is doing exactly what the manual says it should do.
