How to Use the Advantage Engineering Trans Fluid Exchanger in Practice

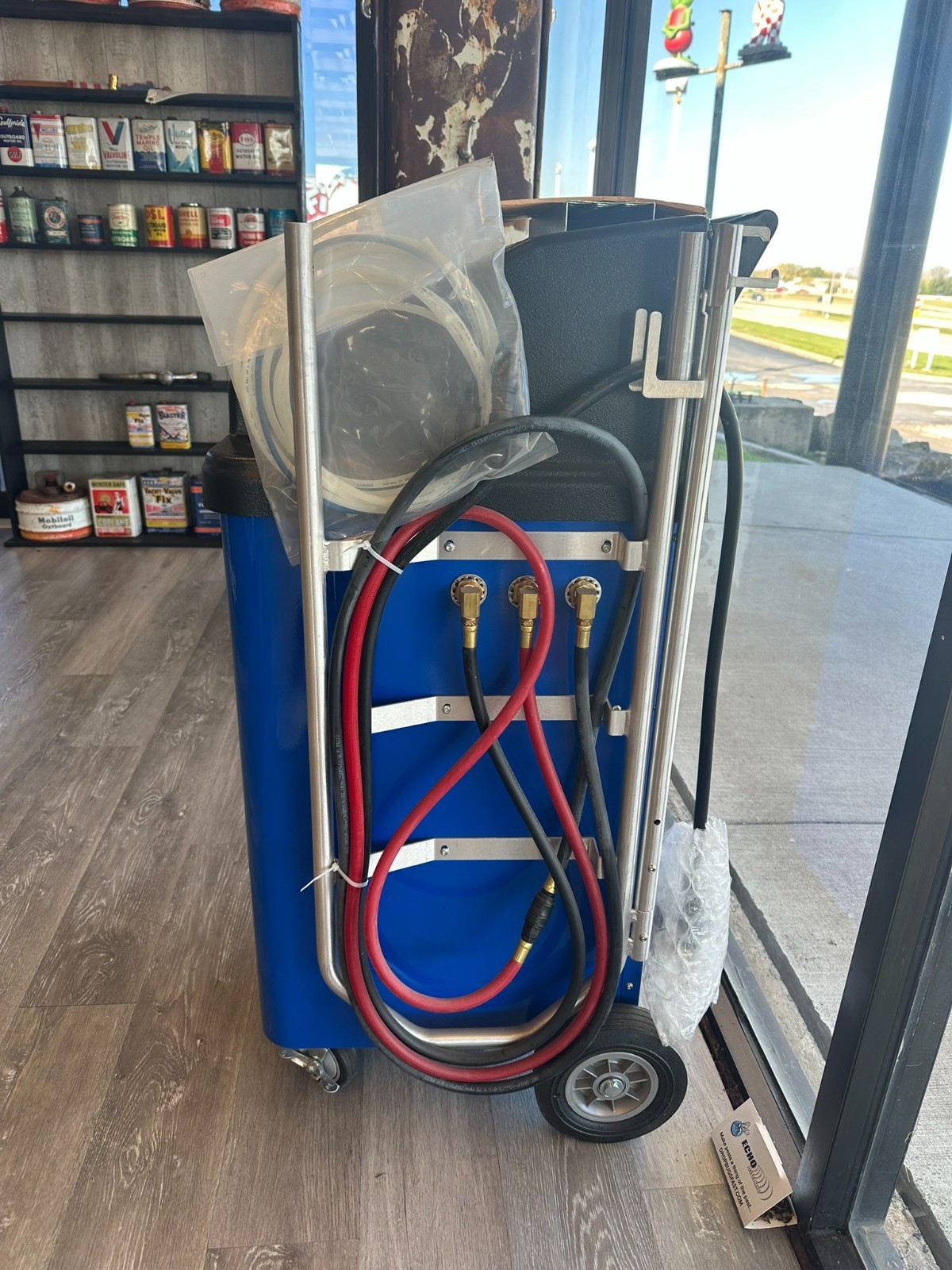

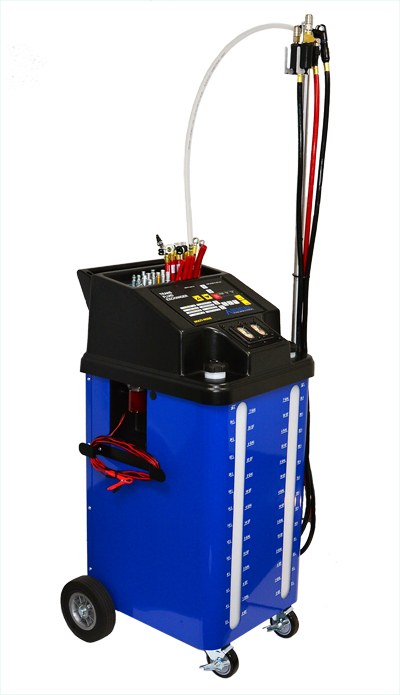

The Advantage Engineering Trans Fluid Exchanger is one of those tools that looks simple on paper but has enough quirks to make you earn your keep if you're not paying attention. It sits on a shelf in most shops that do automatic transmission service, and it works by connecting to the transmission cooler lines and using a built-in pump to cycle fresh fluid through the system while pulling the old stuff out the other side. Here's what the unit actually is. It's a self-contained pump assembly with a filter element, a reservoir, and quick-connect fittings on both inlet and outlet sides. You hook the suction line to the cooler line coming from the transmission back to the tank, and the push line goes into the supply side going to the transmission. Then you run a hose from the unit's discharge back into the transmission fill point or dipstick tube, depending on the application. The pump does the work of pulling old fluid through and forcing clean fluid back in simultaneously. The first thing people miss is that you need the transmission at normal operating temperature before you even start. Cold fluid is thick, and the exchanger won't pull much of anything out until the fluid is warm and thin. I usually recommend running the engine for about 10 to 15 minutes in drive and neutral before connecting the unit. This also helps liquefy any varnish or sludge that's been sitting in the pan and passages.
Once connected, the process takes roughly 20 to 30 minutes for a complete exchange on most street transmissions. You watch the fluid come out through the clear section or check the reservoir to see when the old fluid is gone and fresh fluid is flowing clean through. The exchanger typically moves about two to three gallons per minute, which sounds fast but depends heavily on line restrictions and the condition of the transmission's internal filter. There's a specific problem I ran into with a GM 4L60E that took me way longer than it should have. The truck had a worn inline cooler filter that was partially clogged with clutch material, and the exchanger would prime fine but then cavitate badly once it started pulling. The flow rate dropped to a trickle and the pump started making that whining noise that means it's starving. I ended up bypassing the inline cooler filter temporarily with a short hose jumper just to get clean flow through the exchanger, flushed the system, and then replaced the filter before returning the truck to service. If you're working on a transmission that's been neglected, always check for inline filters or restrictors before assuming the exchanger isn't working. Another thing that bites people is the assumption that this method exchanges 100 percent of the fluid. It doesn't. The torque converter holds roughly a gallon and a half to two gallons of fluid depending on the model, and the exchanger can't reach into the converter to pull that out. So on a transmission with about 12 quarts of total capacity, you're really only exchanging around 8 to 9 quarts per pass, maybe 70 to 75 percent of the total system. If you need cleaner fluid, you run the exchange, then drain the pan and refill, which pulls out the sediment-heavy fluid sitting at the bottom. Two rounds of that gets you much closer to a clean system.
The filter element inside the exchanger matters more than most people realize. Advantage Engineering sells replacement filters, and they're worth using. Some shops skip the filter and run straight fluid through, which is fine for a simple drain and fill swap but defeats the purpose if the transmission has any contamination in the fluid. The filter catches particles that would otherwise get pushed right back into the valve body and apply drums on the next cycle. One counter-intuitive thing about these units is that pushing fresh fluid in under pressure through the cooler lines can actually force debris out of sediment pockets and into places it wasn't sitting before. I've seen cases where a transmission that ran fine after a drain and fill started slipping after an exchanger flush because the higher flow rate dislodged accumulated varnish that then choked a small orifice in the valve body. Slow and steady during the initial phase of the exchange, letting the fluid flow by gravity as much as the pump allows, reduces this risk. Don't just max out the pump flow on a dirty transmission. The cooler line fittings are another pain point. The quick-connect style works well when the O-rings are in good shape, but on older vehicles those lines often have cracked or hardened fittings from years of heat cycling. I've had to fabricate custom adapters using -6AN fittings and braided line because the original quick-connect ports were too corroded to seal properly. If you're fighting leaks at the connection points, don't just keep tightening them. Make an adapter. It's faster in the long run.
Get the Full Details
There are also transmissions where the exchanger simply won't work well without modification. Some Ford units have internal check valves or restricted cooler circuits that prevent meaningful flow through the external lines. In those cases, the only reliable method is a traditional pan drain and fill, possibly multiple times, because the exchanger can't overcome the internal restriction. You'll know this quickly if the pump runs and you're not moving any fluid after five minutes of priming. I also want to mention the fluid specification issue. The exchanger doesn't care what fluid you put in it, and that's both its strength and its weakness. If you're switching from a Mercon-spliced fluid to a Type F or a synthetic alternative, the partial exchange nature of this tool means you're mixing fluids. That's usually fine for most ATF swaps, but if you're doing something specific like a heavy-duty tow package transmission that needs a particular friction modifier profile, the leftover old fluid can throw off the chemistry. In those situations, a full pan drop and manual refill is the safer route. The unit itself is reasonably durable. I've used mine for probably two thousand exchanges over the years and the pump still runs straight. The main wear items are the O-rings on the quick connects and the filter element. Keep spare O-rings on hand. The ones that come with the unit are decent but not particularly long-lived if you're connecting and disconnecting daily.
For the actual procedure in a shop setting, I'd lay it out like this. Warm the transmission, position the exchanger within reach of both cooler lines and the fill point, connect the suction line to the return line at the transmission, connect the push line to the supply line, run the discharge hose back to the fill tube, install the filter element, and start the pump at low flow. Watch the output fluid color change. When it runs clear, switch to fresh fluid and top off. Reconnect the cooler lines, run the engine through each gear range at idle to circulate, check the level, and road test. That's it. The whole thing takes about 45 minutes including the warm-up time, and you don't have to remove the pan or touch the transmission itself. If your shop does a lot of transmission service, the Advantage Engineering Trans Fluid Exchanger is worth the investment because it eliminates the need for a full drain and fill on the majority of routine fluid changes. It's not a magic bullet for every situation, and it won't replace pan service when the transmission is contaminated or the filter is shot, but for maintaining fluid quality on a schedule it does exactly what it claims to do with minimal labor time.
