Where to Find Reliable Parts Lists for AC Service Work
The biggest problem I see people running into is trying to match a generic troubleshooting guide to their specific unit. Manufacturers change internal layouts between production runs, sometimes without updating the model plate. I spent an afternoon on a Carrier 38MQA where the manual listed a capacitor as a cylindrical snap-in, but the actual unit had a dual-run capacitor in a rectangular housing. The part numbers were identical on paper, but the physical connection points were completely different. Once you learn how to read these lists properly, they save a massive amount of time. Start by finding the actual model and serial number. They are usually on a sticker inside the access panel or on the side of the outdoor cabinet. Don't rely on the marketing name on the box. The 24SNB6 and the 24SCB6 from the same production year can share similar case dimensions but use entirely different control boards. Once you have those numbers, go to the manufacturer's official support portal. Most major brands — Trane, Carrier, Lennox, Goodman, Rheem — have a parts lookup system free on their website. Enter the model number and you get a schematic diagram with every part called out. This is the single most important skill in AC repair. The diagram shows you how components physically relate to each other, not just a flat list of part numbers.
I found this especially critical when working on a Bryant 395MAC heat pump in 2022. The schematic showed the reversing valve was plumbed into the liquid line rather than the suction line, which is the opposite of what the aftermarket parts manual described. Without that diagram, I would have ordered the wrong valve fitting and wasted two trips to the supply house. Next, take the actual part numbers from the manufacturer diagram and cross-reference them with HVAC supply houses. Sites like Repair Clinic, HVAC Parts Discount, and Johnstone Supply let you search by OEM number. You will often find three different pricing tiers: the exact OEM replacement, a universal equivalent, and a rebuilt version. For critical components like compressors and control boards, stick with OEM. For consumables like capacitors and contactors, the aftermarket options are generally fine if they meet the same voltage and MCA ratings. Here is a common mistake that costs people money: checking only the electrical components. A proper parts list for an AC repair goes well beyond capacitors and relays. Make sure your list includes filter driers, service valve cores, line set fittings, refrigerant orifice tubes, and drain line assemblies. On a Goodman GMVM series I worked on last spring, the unit kept short cycling because the orifice tube had partially degraded. The parts diagram didn't prominently feature that component, so I almost missed it entirely.
Understanding What Is Actually in These Manuals

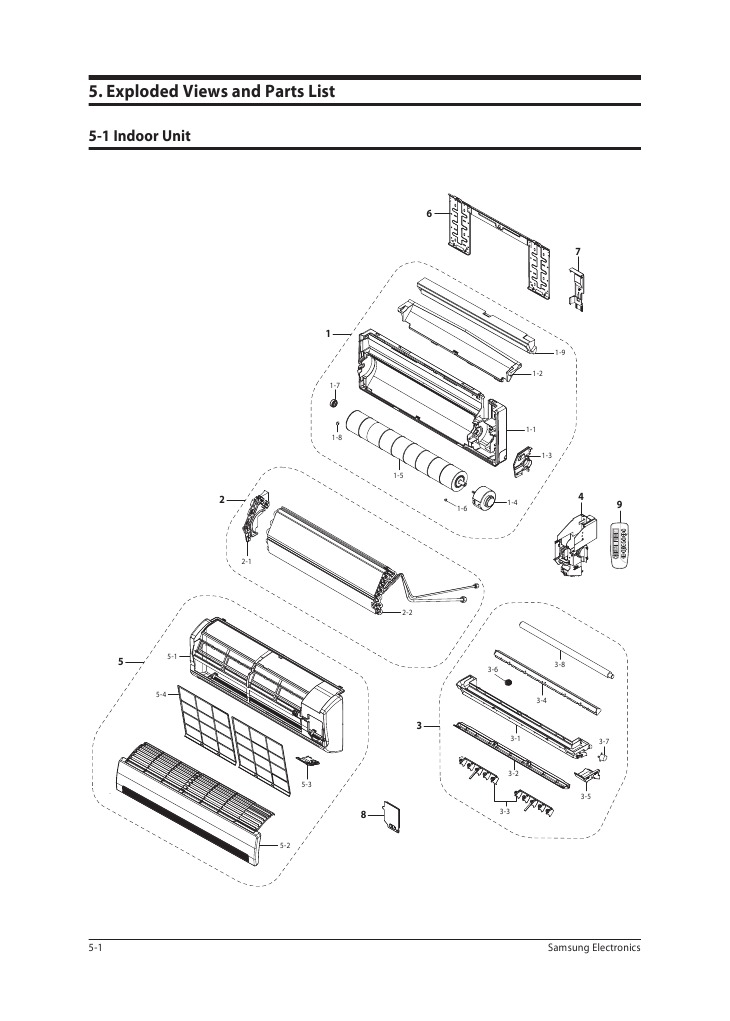

Most repair manuals break down into four sections: electrical schematics, pneumatic and refrigerant layout diagrams, exploded parts views, and a printed part number index. The exploded view is what most technicians rely on. It shows every screw, bracket, gasket, and shield in the correct assembly order. You can see exactly what fits where before you ever open the unit. The electrical schematic is equally important. It maps out the high-voltage and low-voltage circuits with wire color codes. I keep a laminate of common schematics in my truck because being able to trace a circuit while standing at the unit is faster than pulling out the manual every time. The manual is there for reference when something doesn't match the standard wiring, which happens more often than you would expect on older installations. One thing these manuals don't always cover well is refrigerant type changes. Units originally charged with R-22 sometimes got converted to R-410A or R-452B by previous technicians, and the parts diagram won't reflect that. Always confirm the refrigerant by reading the nameplate and checking the service port configuration before ordering any refrigerant-specific components. An R-410A service port will not thread onto an R-22 line set.
Get the Full Details
Common Pitfalls That Waste Time and Money
The most frequent error I see is ordering the wrong capacitor. Capacitors are rated by microfarads and voltage. A 35/5 MFD capacitor looks almost identical to a 37/5 MFD version, but putting the wrong one in the circuit stresses the compressor and can kill it within months. Always note both the running and starting microfarad values, and never substitute a lower MFD rating. Higher is acceptable within reason — a 40/5 replacement for a 35/5 original is fine, but not the other way around. Another issue is misreading part numbers that look similar. The letter O and the number zero are frequently confused. A part number ending in 0O9 can look like 009 or 0O0 depending on the print quality. I have lost count of the times I ordered a part only to receive a completely different component. When in doubt, call the supplier and read the number back to them slowly. It takes thirty seconds and prevents a two-day delay waiting for a return shipment. Some manuals use superseded part numbers. Manufacturers regularly retire old numbers and assign new ones. The manual might still reference the original number while the supply house only stocks the replacement. Good suppliers maintain a cross-reference table. If a part number comes back as discontinued, ask for the supersession number before assuming it is unavailable.
What These Methods Don't Handle Well
Manufacturer parts lookup systems have real limitations. They are not always up to date with field modifications, retrofit kits, or aftermarket upgrades that were installed after the unit left the factory. A homeowner may have swapped out a contactor, added a freeze stat, or replaced a board with an upgrade kit, and none of that shows in the online diagram. You will still need to verify everything physically before ordering. The systems also struggle with units past their typical service life. For models over fifteen years old, parts may be discontinued entirely. The manufacturer's lookup will return no results or suggest a full condenser coil assembly when you only need a single valve core. In those cases, specialty suppliers like HVACSpares, Partstown, and local independent distributors often carry salvaged or aftermarket components that the OEM won't touch anymore. There is also the problem of regional variations. A unit sold in Florida may have a different economizer assembly than the same model sold in Minnesota. The base model number stays identical, but the accessory options differ. Always verify the full model designation, including any suffix letters or numbers that indicate regional or feature-specific configurations.
Practical Steps to Verify Any Air Conditioner Repair Manual Parts List Before Ordering
Remove the suspected failed component from the unit before you do anything else. Take a clear photo of the label showing the part number, MFD rating, voltage, and physical dimensions. Check for any additional markings like pin configurations or mounting hole patterns that affect compatibility. Then open the manufacturer's manual on your phone and compare the diagram part number against the label on your removed component. If they match, you are in good shape. If they do not match, the unit has been modified or the manual is referring to a different production run. Run the part number through at least two independent suppliers before placing an order. Cross-check the specifications, not just the number. Two suppliers agreeing on a part's details gives you reasonable confidence. One supplier claiming a part is compatible while another says it is not means you need to investigate further rather than guess. Keep a log of every part you order and whether it fit correctly. Over time you build a personal reference database that is more reliable than any manual. I have units in my log going back to 2016 with notes like "35/5 cap fits but terminal orientation reversed — needs adapter." That kind of detail doesn't show up in any published documentation.
