What to Actually Do When Your Airvo 2 Throws an Error
The first thing most people do is Google the code and panic. It is not worth the stress. These machines are built to be maintainable by the patients who use them daily. You do not need a service engineer for half of the errors you will see. I have worked with respiratory equipment for long enough that I know the difference between "replace the machine" and "unplug it and plug it back in." Here is what I know about Airvo 2 Error Codes based on actual troubleshooting work.
Understanding How the Airvo 2 Reports Problems

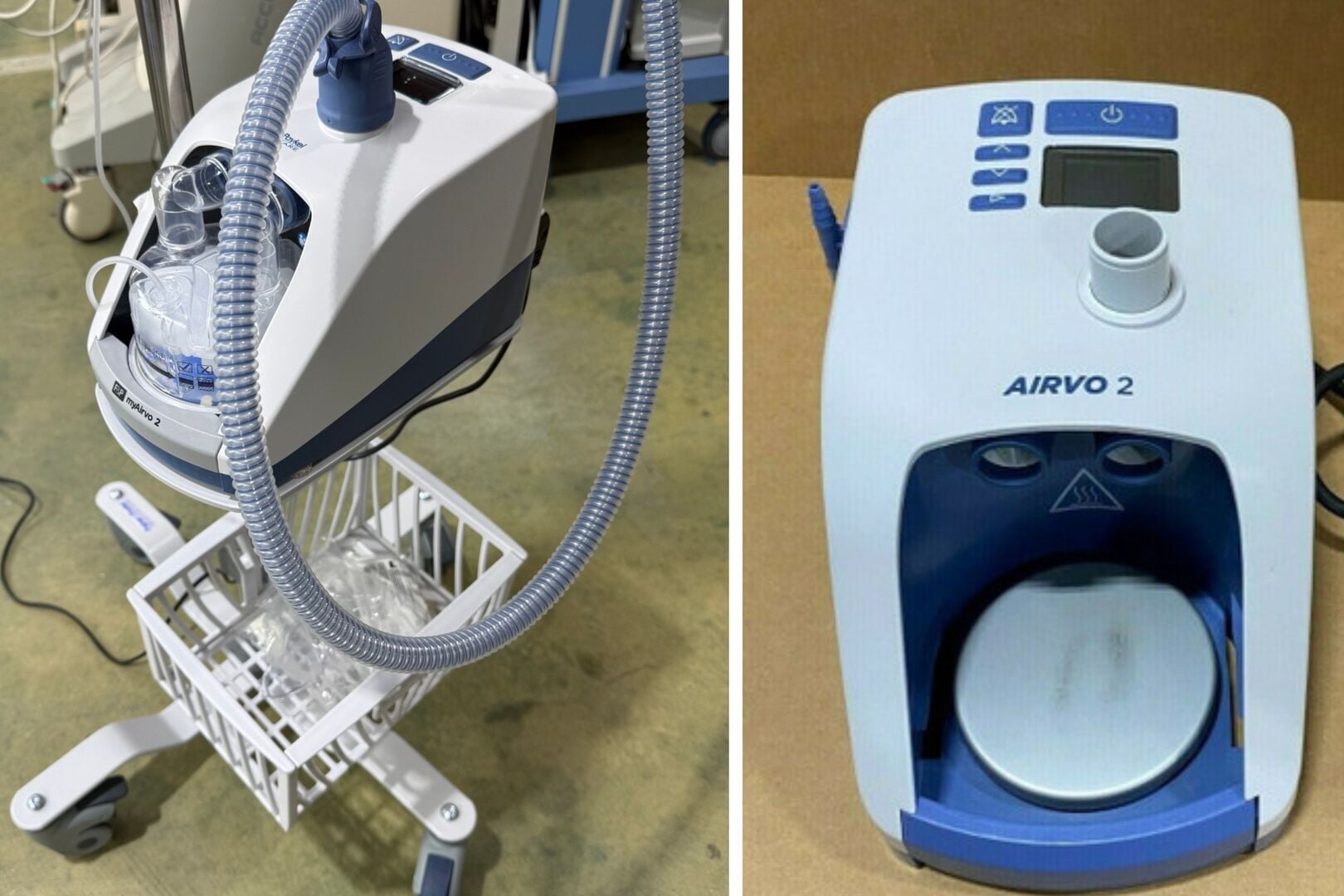

Before diving into specific codes, it helps to understand the architecture. The Airvo 2 is a heated high-flow nasal oxygen device with an integrated humidifier. It runs a series of self-diagnostic checks every time it powers up. These checks monitor pressure sensors, flow transducers, temperature sensors on the heated tube, the conductance sensor in the water chamber, and communication between the main logic board and the display panel. When one of these checks fails, the machine throws an error code and usually shuts down or prevents treatment from starting. The codes are not random. They follow a pattern based on which subsystem is reporting the failure.
The Most Common Airvo 2 Error Codes and What They Mean
E-01 is the most frequent code I encounter. It indicates a pressure sensor fault. In practice, this is almost never the sensor itself being dead. More often it is a dirty flow transducer assembly or a loose connection on the pressure sensing line. If you see E-01, unplug the machine, remove the water chamber, and inspect the inlet port where the air enters. Look for mineral deposits or debris. Clean it with isopropyl alcohol on a cotton swab. Let it dry completely. Reassemble and power up. This fixes the vast majority of E-01 errors without buying any parts. E-02 signals an open or short circuit in the heated tube temperature sensor. The heated tube is a separate component that attaches to the base unit. Over time, the connectors at both ends can loosen or accumulate moisture. Before ordering a replacement tube, try disconnecting and reconnecting it firmly on both ends. Check the metal contacts inside the connector housing for corrosion. A small amount of contact cleaner goes a long way here. E-03 means the machine cannot achieve the target pressure. This is a pressure delivery problem. The most common cause is a clogged intake filter. Check the filter first. If the filter is clean, the issue is usually a leak somewhere in the circuit—either a loose hose connection or a cracked component. Run the machine with just the base and no patient interface attached. If the error clears, the problem is downstream. If the error persists with no attachments, the blower or pressure sensor may be failing.
Get the Full Details
E-04 is a conductance sensor error in the water chamber. The Airvo 2 uses electrical conductance to measure water level. Mineral buildup from tap water coats the sensor electrodes and throws off the reading. I prefer a descaling solution made specifically for this purpose rather than white vinegar, which can leave residues. Fill the chamber with the descaling solution, let it sit for twenty minutes, then rinse thoroughly three times with distilled water. If E-04 persists after proper descaling, the water chamber itself needs replacement. E-05 indicates a heater fault. This could be the heated tube heater or the chamber heater depending on the configuration. If the error occurs immediately on power-up before the heater has had a chance to warm, it is likely a blown heating element or a broken wire. If it appears after several minutes of operation, check for restricted airflow that could cause overheating. Ensure nothing is blocking the outlet port. E-06 is a pressure sensor calibration fault. This is less common than E-01 but more serious. The machine detects that the pressure sensor readings are outside acceptable tolerance ranges. This usually requires a service technician with calibration equipment. However, before calling support, verify that the airway is completely clear and the machine is on a flat stable surface. Vibration can occasionally throw off sensor readings during the startup diagnostic sequence.
E-07 means the temperature exceeded safe limits during the self-test. The machine detected abnormal heating. This is rare. If it happens, inspect the heated tube for visible damage. Do not use the machine if the tube shows any cracks or discoloration. The heating element could be failing in a way that creates hot spots. E-08 is a communication error between the display panel and the main board. This is almost always a ribbon cable issue. The flexible connector between these two boards can become loose from vibration or thermal cycling. Opening the case and reseating the ribbon cable connections resolves this in most cases. If you are not comfortable opening the housing, this is one scenario where calling for service is the right call. E-09 indicates a water chamber seating problem. The machine does not detect the chamber properly. Make sure the chamber is inserted fully and rotated until it locks into place. The alignment marks should line up. If you are using a third-party water chamber, it may not have the correct connector geometry. Stick to the manufacturer chamber.
A Specific Problem That Took Me Three Hours to Solve
There was one case that still frustrates me a little. A patient was getting intermittent E-03 errors that came and went unpredictably. Sometimes the machine would run for an hour and then shut down. Other times it would fail immediately. The intake filter was clean. The hose was intact. The connections were tight. Nothing matched the standard troubleshooting path. The breakthrough came when I noticed the error only happened after the heated tube had been running for a while. The machine warmed up fine, started therapy, and then three to four hours in it would throw E-03. I traced the issue to a hairline crack in the air outlet port of the base unit. The crack was microscopic and only opened slightly when the housing expanded from heat. When it opened, the pressure sensor lost its seal and the machine thought the circuit was compromised. I replaced the base unit and the problem disappeared entirely. The lesson here is that thermal expansion can create failure modes that static inspection misses. If you have an intermittent error that seems to correlate with runtime or temperature, look for cracks or stress points that only appear under operating conditions.
Things the Manual Does Not Tell You
The first thing nobody mentions is that distilled water is not optional. Tap water will damage the conductance sensor and the humidifier chamber over time. I have seen chambers from patients using tap water that looked fine on the outside but were coated internally with mineral scale that no amount of descaling could fully remove. The conductance sensor readings become unstable and you get false E-04 errors repeatedly. Distilled water costs very little. The replacement chamber costs significantly more. Another counter-intuitive point: the heated tube has a limited lifespan even if it never throws an error. The heating element degrades gradually. After about six to twelve months of daily use, you may notice the machine taking longer to reach the set temperature or struggling to maintain humidity levels in low ambient temperatures. This is normal wear. It is not an error code situation yet, but it is worth monitoring. If the relative humidity output drops noticeably despite correct settings and distilled water, the tube is wearing out. There is also a nuance with the E-01 code that people miss. The flow transducer sits in the air path and measures airflow using a pressure differential. If the machine has been used in a dusty environment, the transducer ports can accumulate dust. This is different from mineral buildup. The fix is blowing compressed air through the transducer ports from the opposite direction of normal airflow. Do not use liquid on the transducer itself. Isopropyl alcohol is for the water chamber contacts only. Compressed air is for the transducer.
When to Stop Trying to Fix It Yourself
Some errors genuinely require professional service. E-05 with a visibly damaged heater, persistent E-08 after reseating cables, and E-06 that survives a full diagnostic cycle are the ones I send to support. The Airvo 2 has a built-in service mode that runs more detailed tests. If you can access it, run the full diagnostics and note which test fails. That information saves the technician time and can sometimes lead to a remote resolution without a parts shipment. The main limitation of doing this yourself is that you cannot recalibrate the pressure sensor or replace internal components like the blower motor or main board without specialized tools and genuine parts. Attempting these repairs voids the warranty and risks creating safety issues. The Airvo 2 deals with oxygen-enriched air and heated gas. A malfunction here is not just an inconvenience, it is a patient safety concern. If you are unsure, call the manufacturer or your DME provider. Most of the time though, the problem is simple. Dirty sensor, loose connector, wrong water type, or a worn consumable part. Those are routine maintenance issues, not machine failures. Keep a log of when each error appears and what you tried. Patterns emerge quickly and they save you from unnecessary service calls.
