Working on an Alpha One? Start Here
The Mercury Alpha One sterndrive powered millions of boats from roughly 1980 to the mid-2000s. It's a hybrid system — outboard lower unit bolted to an inboard engine via a pivot bracket and hydraulic steering. The design is relatively simple but it has some quirks that catch people off guard if they've only worked on true outboards or raw inboards. You want the official service manual. Mercury Marine published it, and it's still available through marine parts dealers and a few PDF repositories. Search for "Mercury Alpha One Service Manual" or look up the part number for your specific year since there were revisions. The manual covers gear assembly tolerances, water pump service, U-joint replacement, and the trim/tilt systems. It's worth the twenty or thirty dollars most vendors charge for it. Here's the thing the manual doesn't make obvious enough: the lower unit gear oil on these drives gets contaminated with water a lot faster than people expect. The seal between the upper and lower housing — the one you access by removing the three bolts on the gear case — is a common failure point. When it leaks, water gets into the gear oil and turns it the color of chocolate milk. That's not normal. Fresh oil should be amber or light brown. If yours looks milky, you've got a seal issue and you're grinding gears slowly.
I replaced the forward/reverse actuator on a friend's boat last year. The shift would engage sometimes and slip out at idle other times. The manual points at the shift shaft bushings first, but in practice the real problem was the elastomer coupler inside the shift mechanism. These rubbers harden over time and lose their ability to hold position. I found the worn coupler after tearing apart the actuator. The fix was replacing the entire shift kit — part number varies by model year — and torquing everything to spec. Took about forty minutes once I had the right parts. Without the manual as a reference for torque values, I probably would have over-tightened something and cracked the housing.
Gear Oil and Lower Unit Maintenance
Change the lower unit gear oil every season or every fifty hours, whichever comes first. Use SAE 90 gear lube unless your manual specifies synthetic. The alpha one uses hypoid gears and they need the additive package in proper gear oil. Some people use automotive gear oil to save money but it lacks the marine-specific additives that protect against corrosion in saltwater environments. That's a false economy. To drain the oil, remove the lower fill plug first. If it strips easily, you know it's been on too long. Then remove the lower drain plug. Gravity does the work. After that, install the fill tube adapter onto the upper fill hole and pump in fresh oil until it weeps out of the vent hole. Wipe it clean, reinstall both plugs with new crush washers, and torque them. The fill plug torque spec is usually around eight to ten foot-pounds. Don't overtighten these. The aluminum housing strips easily and you'll be chasing a leak for the rest of the summer.
Get the Full Details
Water Pump Impeller Replacement
This is the most common seasonal maintenance task and it takes about fifteen minutes on a warm engine. Remove the water pump cover on the lower unit. The impeller sits inside. Pull the old one out and inspect the housing for scoring. If the housing is rough, a new impeller won't seal properly against it and you'll have cooling issues regardless of what you install. Here's a detail most people miss: lubricate the new impeller vanes with petroleum jelly or dedicated impeller lubricant before installation. Dry installation can cause the vanes to curl or tear during the first few rotations. I've seen boats run dry for thirty seconds during startup because someone installed a dry impeller and it stuck to the housing. The engine overheats fast. Five seconds of prep prevents that. Also check the water pump housing O-ring. It's cheap. Replace it every time you open the pump. A degraded O-ring causes air leaks in the cooling system which leads to localized hot spots and eventual head gasket problems. That's a repair that costs a thousand dollars and two days of labor. The O-ring costs four dollars.
Universal Joints and Shift Cables
The Alpha One has a U-joint connecting the engine transmission to the drive leg. It wears. Inspect it during winterization. Grab the drive leg and try to rotate it by hand with the engine in neutral. There should be some smooth resistance but no binding or clicking. If you feel grit or roughness, the U-joint bearings are gone. Replacement requires removing the drive leg from the transom — not a trivial job but not impossible with basic hand tools. Shift cable adjustment is another area where people wing it. The manual gives you the procedure: disconnect the battery, put the transmission in neutral, align the shift lever marks on the drive, and tighten the cable adjuster. The critical part is that you must verify the actual gear engagement by starting the engine and testing in a safe area. The marks on the lever can be off by a tooth or two and still look correct. If your shift cables are slightly out of adjustment, the drive may not fully engage reverse, which means you're relying on partial gear teeth under load. That strips teeth. I've seen it more times than I care to admit.
Trim and Tilt Systems

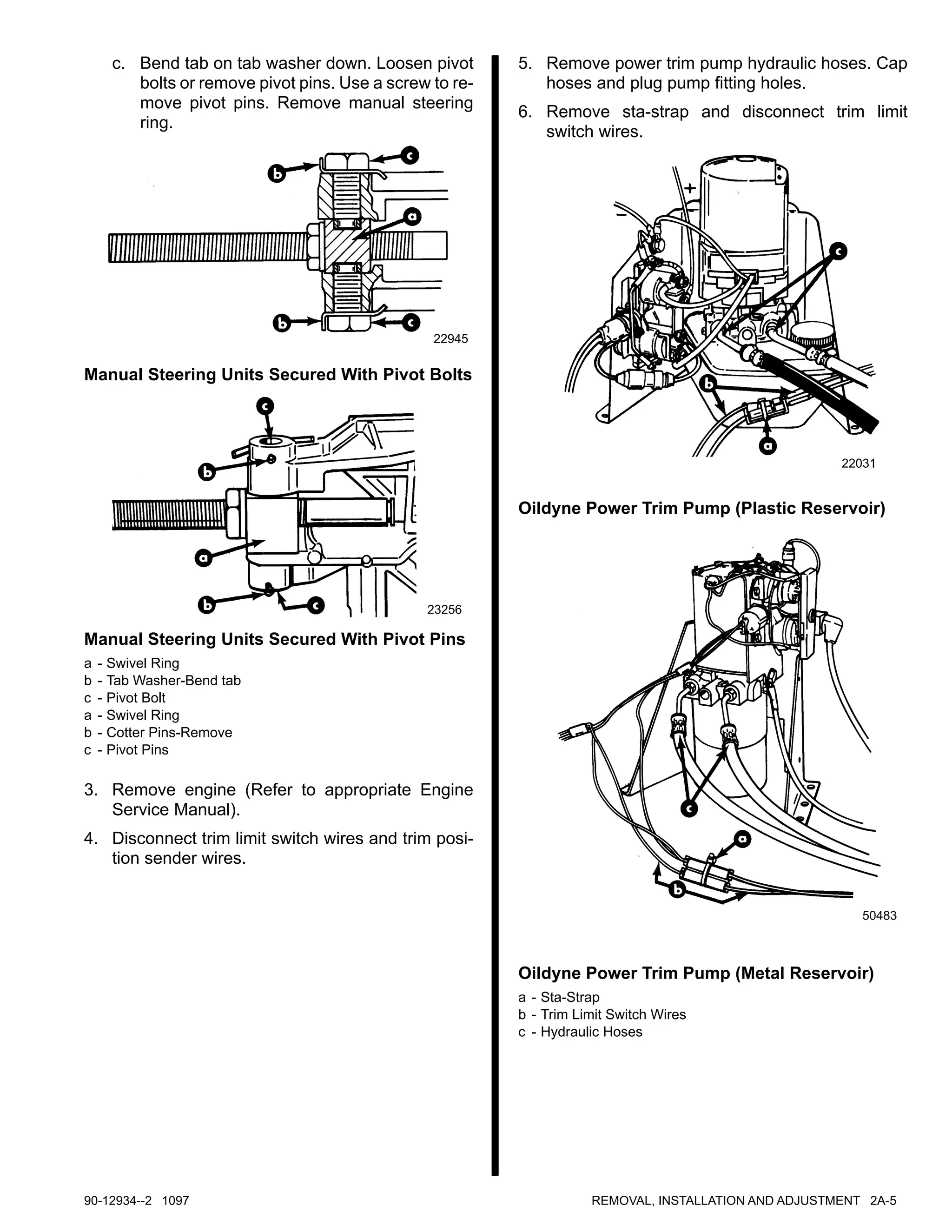

The hydraulic trim/tilt system on Alpha One drives uses a pump unit mounted on the engine transom and a cylinder on the drive leg. The most common failure is the seal kit inside the trim cylinder. When the seals go, the drive sags or won't hold trim position. You can rebuild the cylinder with a seal kit from any marine parts store. The procedure involves compressing the internal spring with a C-clamp or proper trim tool, removing the retaining clip, and pulling the piston assembly. The pump unit itself rarely fails but the pressure relief valve inside it can stick. If your trim operates slowly in one direction but fine in the other, check the pump first. Bleeding the system is straightforward — run the engine at idle, cycle the trim fully up and down several times with the steering wheel turned to reduce pump load, and top off the reservoir fluid. Use only MerCathane or equivalent trim fluid. Do not use brake fluid or automatic transmission fluid as substitutes. The seals in these systems are designed for specific fluid chemistry and incompatible fluids cause swelling and leaks within months.
What This Drive Does Well and Where It Fails
The Alpha One was engineered for reliability and serviceability in its era. Parts are still widely available. The gear cases are robust if maintained. But the design has inherent weaknesses. The sterndrive pivot point uses bushings that wear with saltwater exposure. When those bushings get sloppy, you get vibration at plane speed that gets worse with RPM. People often blame the prop for this when the real fix is replacing the pivot bushings and checking the bracket for cracks. The fuel line routing on many Alpha One installations runs close to the exhaust manifold on the engine side. Over decades, heat degradation makes those lines brittle. I replaced a fuel line on a 1992 Alpha One that was so cracked I could see daylight through it. The manual shows the correct routing and the required fuel line specifications. Ignoring that and using automotive fuel hose will get you a fire hazard and a failed inspection. Use only SAE J30R7 marine fuel line.
Where to Find the Manual
The official Alpha One Sterndrive Manual can be obtained from Mercury Marine authorized dealers, some marine supply websites, and through third-party PDF sellers. Mercury's own website has a parts and documentation section where you can enter your serial number and access the correct manual variant. Serial numbers matter because Mercury made design changes across the production run — different gear ratios, different water pump designs, different shift mechanisms — and using a manual for the wrong year range will give you incorrect tolerances and procedures. Check the serial number plate on the drive bracket or the upper housing. It's usually a metal tag riveted to the drive. If it's missing, look near the transom bracket mounting bolts.
A Note on Propeller Selection
Running the wrong propeller size damages Alpha One drives faster than almost anything else. If your engine can't reach the manufacturer's recommended wide-open-throttle RPM range, you're under-propping or over-propping. Under-propping causes the engine to lug and puts excessive load on the U-joints and gears. Over-propping causes the engine to miss redline and can damage the piston rings and valves from insufficient cooling at lower RPM under load. The sweet spot is typically 400 to 500 RPM below the engine's maximum rated WOT RPM. A tachometer is required for this measurement. Guessing based on sound or boat speed is unreliable. I had a customer who thought his Alpha One was slipping gears because the boat wouldn't accelerate like it used to. We checked the props and found he was two inches too large in diameter. Swapped to the correct size and the drivetrain stress dropped immediately. No mechanical issue existed at all.
