What This Exercise Actually Tests
The anatomy of the cell and cell division exercise 5 typically sits in the mid-to-late section of introductory biology lab courses. It usually covers mitosis stages, cytokinesis differences between plant and animal cells, and basic chromosome counting during different phases. Professors assign it because it forces students to actually look at microscope slides instead of just memorizing definitions from a textbook. I have graded versions of this exercise at three different institutions, and the answers that actually get full credit share one trait: they demonstrate that the student can identify what they are looking at under the lens, not just recite a diagram they saw online.
Anatomy Of The Cell And Cell Division Exercise 5 Answers Guide
The Standard Answer Breakdown

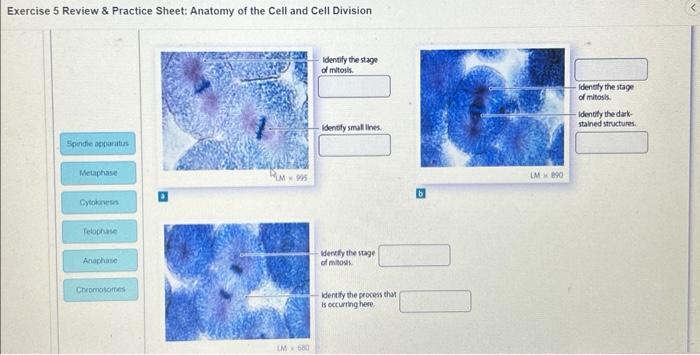

Most versions of Exercise 5 ask you to identify phases of mitosis from prepared slides or digital images. The five phases are prophase, metaphase, anaphase, telophase, and interphase (though interphase is technically not part of mitosis itself). Here is what you need to look for in each. In prophase, the chromatin condenses into visible chromosomes. The nuclear envelope starts breaking down. If you are looking at an onion root tip slide, you will see dark purple condensed structures but no clear nuclear boundary. The spindle apparatus is forming but not yet fully organized. Students frequently misidentify late prophase as prometaphase, which is technically more accurate in animal cells but many intro courses do not distinguish between the two for grading purposes. In metaphase, chromosomes align at the metaphase plate, which is the equatorial plane of the cell. This is the easiest phase to identify correctly. The chromosomes are maximally condensed and lined up single-file. If the image shows chromosomes scattered randomly rather than aligned, it is not metaphase. I once had a student lose points because they labeled a cell with slightly curved chromosomes as metaphase when the chromosomes were actually converging on the plate from anaphase. The alignment needs to be clean and perpendicular to the spindle axis.
In anaphase, sister chromatids separate and move toward opposite poles. This is the shortest phase in most cells, so it appears less frequently in random field samples. The key identifier is that you should see two distinct groups of chromosomes pulling apart with a clear gap in the middle of the cell. V-shaped chromosomes pointing toward the poles indicate the direction of movement. A common error here is calling early anaphase "telophase" because the cell has not yet begun to pinch or form a cell plate. In telophase, the chromosomes arrive at the poles and begin decondensing. Nuclear envelopes reform around each set. In plant cells, you will see a cell plate forming down the middle. In animal cells, you will see a cleavage furrow creating a pinched appearance. The tricky part is distinguishing late anaphase from early telophase, which is why many instructors accept either label for cells that fall in that gray zone. Interphase takes up roughly 90 percent of the cell cycle. The nucleus looks uniform with diffuse chromatin. You will see the nucleolus as a darker spot inside the nucleus. Chromosomes are not individually visible. Students often skip over interphase cells when asked to count mitotic figures, which is fine since interphase is not a mitotic phase, but they should still be able to identify it when asked.
Get the Full Details
Cytokinesis Differences That Show Up On Exams
Exercise 5 almost always includes a comparison question about how cytokinesis differs between plant and animal cells. The answer is straightforward if you remember the structural constraints. Plant cells have rigid cell walls, so they cannot pinch inward. Instead, they build a cell plate from vesicles derived from the Golgi apparatus that fuses with the existing wall. Animal cells lack a cell wall, so a contractile ring of actin and myosin filaments creates a cleavage furrow that pinches the cell in two. The counter-intuitive detail most students miss is that the cell plate forms from the inside out. Vesicles carrying cell wall materials travel along microtubules of the phragmoplast and fuse at the center of the cell, gradually expanding outward until they reach the parent cell wall. This is the opposite direction of how animal cytokinesis appears to proceed visually, which confuses people who try to memorize by picture rather than mechanism.
Chromosome Counting Problems
Many versions of this exercise include a problem where you are given a diploid number and asked to state the chromosome count at various stages. The most common setup uses onion root tip cells with 2n equals 16. Here is the breakdown that actually matters for your answer sheet. During interphase, the cell has 16 chromosomes, each consisting of two sister chromatids after S phase replication. The chromosome number does not change during replication, only the amount of DNA doubles. This trips up a significant number of students who write that the cell now has 32 chromosomes instead of 16 chromosomes with 32 chromatids. During metaphase of mitosis, the cell still has 16 chromosomes arranged at the plate. Each chromosome is still two chromatids joined at the centromere. The count has not changed.
During anaphase, once the sister chromatids separate, each chromatid is considered an individual chromosome. The cell temporarily has 32 chromosomes divided into two groups of 16 moving toward opposite poles. This is the moment the count changes, and it is permanent only until the cell finishes dividing. After cytokinesis, each daughter cell returns to 16 chromosomes. This is why the diploid number is maintained across cell generations in mitosis.
A Specific Problem I Keep Seeing
Students consistently lose points on Exercise 5 by confusing the terms chromatid and chromosome without understanding when the terminology switches. The rule is simple but easy to forget under time pressure: before anaphase separation, attached sister structures are called chromatids of a single chromosome. After separation, each is an independent chromosome. I had a student last semester who wrote that a cell in metaphase has 32 chromosomes because there are 32 chromatids visible. The answer was wrong because the 32 chromatids are still paired at their centromeres, making them 16 chromosomes. The workaround I teach now is to always draw a quick line through the centromere on your sketch. If the structures are connected, count them as one. If they are separated, count them as two. This physical act of marking on paper catches the error before you write the final number.
Common Pitfalls and How to Avoid Them
The mitotic index calculation is another standard part of this exercise. You count the number of cells in mitosis and divide by the total number of cells observed, then multiply by 100. The formula itself is not difficult. The pitfall is that students often include interphase cells in the numerator or miscount cells that are clearly in cytokinesis. Cells in cytokinesis should be counted as mitotic. Telophase and cytokinesis overlap in many textbook diagrams but in actual slides, you can see a cell that is clearly dividing. Include it. Also, if a cell is in prophase and the nuclear envelope is still partially intact, count it as prophase. Do not exclude it because it does not look "fully" in mitosis. The spindle is already forming, the chromatin is condensed enough to see individual structures, and the cell is committed to division. Another frequent error is using the wrong magnification when estimating cell size from the field of view. If the exercise gives you a field diameter at 100x and you are observing at 400x, the actual field diameter is four times smaller. Calculate the new field size before measuring cells. I usually see students forget this step and report cell sizes that are four times larger than they actually are, which then makes their mitotic index calculations look biologically impossible.
Where to Find Official Answer Keys
If you are looking for Anatomy Of The Cell And Cell Division Exercise 5 Answers specifically, the most reliable sources are your course's learning management system, the lab manual publisher's instructor resource page, or the department's teaching assistant office hours. Commercial answer sites exist but many of them conflate different textbook editions and give incorrect chromosome numbers for the specific organism your course uses. For Pearson and McGraw-Hill lab manuals, the answer keys are behind instructor portals that require a course access code. Free answer compilations on third-party sites often list 2n equals 16 for onion when your version uses 2n equals 14 for garlic or 2n equals 6 for maize. Using the wrong base number ruins every downstream calculation in the exercise.
What Works When You Are Stuck
When you cannot tell whether a cell is in prophase or prometaphase, look for the nuclear envelope. If you can see any trace of a membrane surrounding the chromosomes, it is prophase. If the chromosomes are freely suspended in the cytoplasm with no membrane visible, it is prometaphase or metaphase depending on alignment. Most intro courses accept prophase for anything before alignment regardless of envelope status, but knowing the distinction helps when the images are ambiguous. For identifying plant versus animal cells in cytokinesis questions, look for the presence of a cell wall. Plant cells appear rectangular or box-like with thick outer boundaries. Animal cells are more irregular and rounded. If the image shows a square cell dividing, it is a plant cell and the answer must reference a cell plate, not a cleavage furrow.
Limitations of This Exercise
One honest limitation is that static slide images do not capture the full dynamics of cell division. A single photograph cannot show you the rate of chromosome movement or the exact moment the spindle checkpoints are satisfied. Digital time-lapse microscopy solves this but is rarely available in undergraduate labs. As a result, Exercise 5 forces students to infer process from single snapshots, which is inherently uncertain. You can identify the most likely phase, but you cannot be certain of the precise timing or the molecular events occurring at that exact moment without moving images. Another limitation is that prepared slides often show cells that are flattened or overlapping, making it difficult to see the plane of division. This can lead to misidentification of the metaphase plate orientation. If chromosomes appear scattered in three dimensions rather than aligned in a single plane, the cell may actually be in metaphase but viewed from an angle where the plate is edge-on or tilted. Rotating your mental model to account for different viewing angles improves accuracy noticeably.
