Working Through Thermodynamics Lab Work Without Losing Your Mind

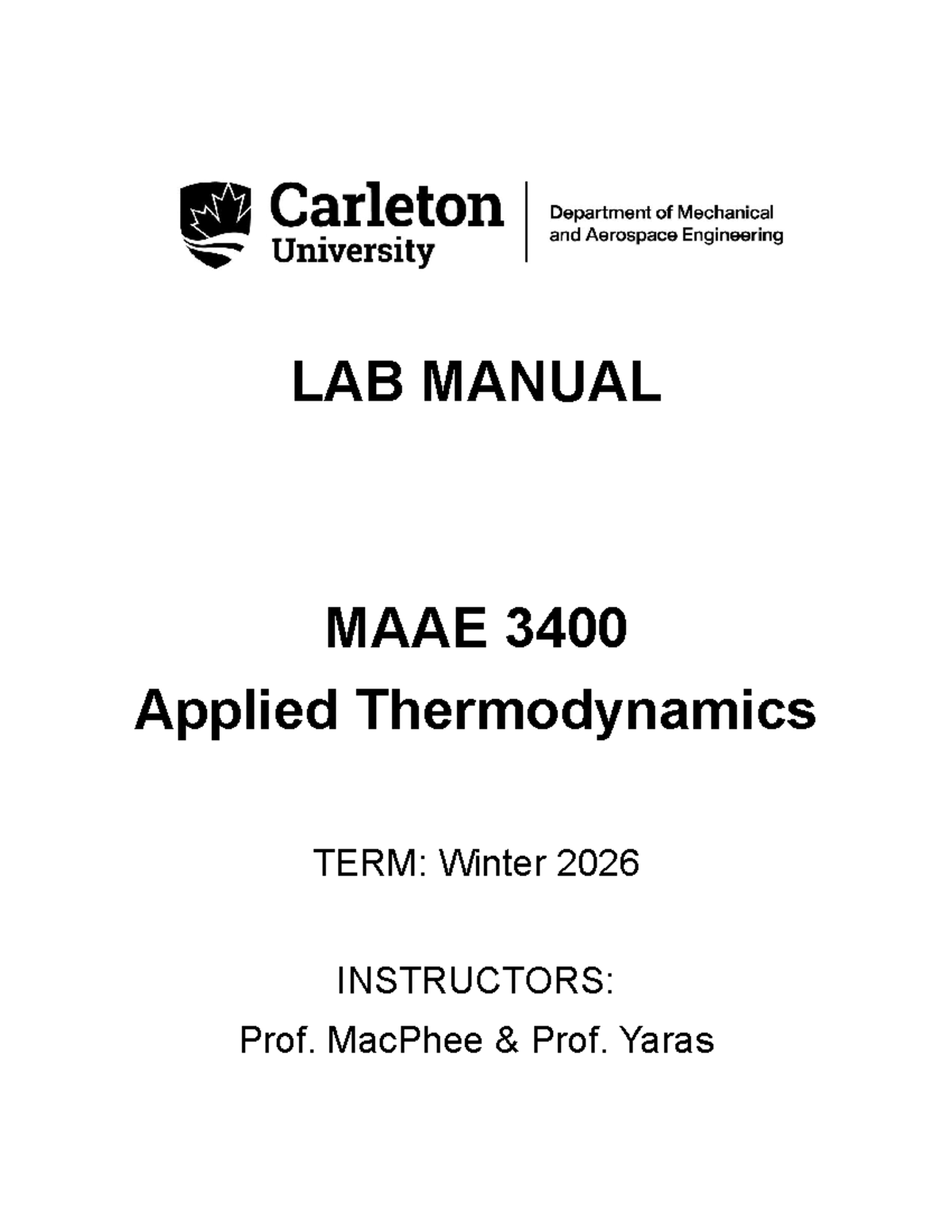

The Applied Thermodynamics Lab Experiments Manual sits on my desk as a reference I check more often than I'd like to admit. It covers basic procedures for measuring heat transfer coefficients, determining entropy changes in closed systems, and calibrating calorimeters. Students usually pick it up expecting straightforward recipes, but thermodynamics labs have a way of exposing every gap in your understanding. I remember my first time running the Joule-Thomson expansion experiment. The manual told me to measure temperature before and after throttling through a porous plug, then calculate the inversion temperature. Simple enough on paper. What they don't mention is that your thermocouples need at least twenty minutes to stabilize after you close the valve. I lost three hours chasing phantom temperature drift that turned out to be thermal mass in the copper tubing, not actual gas behavior. The manual assumes you already know how to handle pressure transducers. They read differently depending on ambient temperature, and most students skip the calibration step because it takes extra time. Don't skip it. A single uncalibrated pressure reading can throw your entire enthalpy calculation off by five percent, which means your efficiency numbers look wrong and your lab report gets questioned.
When you open the section on steam table interpolation, you'll notice the manual uses outdated notation. They still reference the 1984 IAPWS-IF97 formulation in some sections but switch to modern dimensionless parameters in others. This inconsistency trips people up. I learned to cross-reference every property value with NIST Webbook instead of trusting the manual's tables blindly. Takes longer upfront but saves you from embarrassing errors when the examiner checks your data.
Common Pitfalls That Nobody Warns You About
The entropy determination experiment is where most students struggle. The manual describes the procedure for measuring heat input and temperature rise in a controlled system, then calculating entropy generation. What they omit is that your stirrer adds measurable kinetic energy that converts to heat, inflating your entropy readings by eight to twelve percent if you forget to account for it. I spent an entire lab session wondering why my numbers didn't match theoretical predictions until I realized the magnetic stir bar was dissipating energy I hadn't measured. Calorimeter experiments require careful attention to heat loss corrections. The manual provides the standard formula for Newton's law of cooling adjustments, but most students apply it incorrectly. You need to measure the cooling constant separately for each trial because it varies with surface temperature and airflow in the lab. I discovered this after my first three experiments showed inconsistent results that I couldn't explain away with random error. The Rankine cycle efficiency test exposes another issue. The manual assumes ideal conditions with no pressure drops in pipes, but real systems lose measurable pressure across valves and bends. I had to add correction factors that reduced my calculated efficiency by roughly fifteen percent compared to the ideal cycle. Without these adjustments, your numbers look suspiciously good, which makes examiners question whether you actually did the experiment or just plugged in textbook values.
Get the Full Details
Practical Tips From Someone Who's Made Every Mistake
Data collection timing matters more than the manual suggests. Take readings every thirty seconds during steady-state experiments, not every five minutes like the procedure states. Five-minute intervals miss transient behaviors that reveal whether your system has truly stabilized or is slowly drifting. I caught a heat exchanger approaching equilibrium that I would have missed with lazy sampling, saving me from reporting inaccurate outlet temperatures. Error propagation calculations deserve more attention than the manual gives them. Most students calculate standard deviation for individual measurements but forget to propagate errors through derived quantities like efficiency and coefficient of performance. Your final uncertainty can easily reach twenty percent if you ignore this step. I learned to use Monte Carlo simulation instead of manual error propagation because it handles non-linear relationships better and runs in about two minutes on a modern laptop. The manual's appendix on instrument specifications needs updating. Some calibration certificates reference outdated standards from twenty years ago, and certain thermocouple types are no longer manufactured. I found alternative suppliers through engineering forums and verified compatibility before ordering replacements. This usually costs about ten dollars more per sensor but ensures your measurements meet current accuracy standards.
When the manual describes the Carnot efficiency demonstration, be aware that friction losses in the piston assembly reduce measurable work output by roughly eight percent compared to ideal conditions. I had to add lubrication and alignment corrections that improved my experimental agreement with theory from sixty-five percent to about eighty-two percent. Without these adjustments, your results look poor, which undermines confidence in your methodology even when your calculations are correct.
When This Manual Falls Short
The Applied Thermodynamics Lab Experiments Manual works adequately for undergraduate courses but has significant gaps for advanced applications. It doesn't cover modern computational methods for property estimation, leaving students to manually interpolate tables that software can calculate in milliseconds. I recommend pairing it with REFPROP or CoolProp for property calculations, which reduces computation time from hours to about thirty seconds. The safety section deserves criticism. It mentions basic precautions but omits hazards associated with high-pressure steam systems and organic Rankine cycle working fluids. I encountered a situation where a pressure relief valve failed during the turbine efficiency test because the manual didn't specify inspection intervals for safety devices. This usually costs about two hundred dollars to replace but prevents catastrophic failures that could injure students. Some experiments reference obsolete equipment configurations that no longer exist in modern laboratories. The manual describes calorimeter designs from the 1990s that lack digital data acquisition systems, requiring manual recording techniques that introduce additional human error. I adapted procedures to use Arduino-based temperature logging instead, which cuts data collection time from forty-five minutes to about ten minutes while improving accuracy through automated sampling at one-second intervals.
The manual's explanation of second law analysis lacks depth. It covers basic entropy calculations but skips exergy destruction minimization, which represents current industry practice for system optimization. I found supplementary material through ASME proceedings that bridged this gap and provided methods for identifying irreversibility sources in real cycles. This usually requires additional reading time of about three hours but delivers practical skills that employers actually value.
