Calculating the Wet Cross-Sectional Area of an Open Channel

The wetted area of a canal — area mojada de un canal — is just the cross-sectional area occupied by water at any given moment. It is not the entire geometry of the channel, only the part where water is actually touching the bed and banks. That distinction matters because everything downstream, every velocity estimate, every discharge calculation, hinges on that number being right. Most people, when they first measure a channel, record the full width and maximum depth and call it a day. That gives you the geometric area of the conduit, not the wetted area. They are not the same thing unless the channel is running completely full, which in practice almost never happens and is usually a failure condition anyway. The wetted area shrinks as flow drops, and it does not shrink linearly with depth in anything other than a perfect rectangle. A trapezoidal canal, which is what most irrigation and stormwater channels actually are, has a curved relationship between stage and area. Get that wrong and your discharge calculation will be off in a direction that compounds through every subsequent estimate. If the channel is rectangular, which some box culverts and flumes are, the math is trivial: multiply the water width by the water depth. Width of 2 meters, depth of 0.8 meters, wetted area is 1.6 square meters. That is it. No trigonometry, no iterative solver, just w times d. But rectangular channels are the exception in the field. Most canals are trapezoidal or irregular, and that is where people start making mistakes.

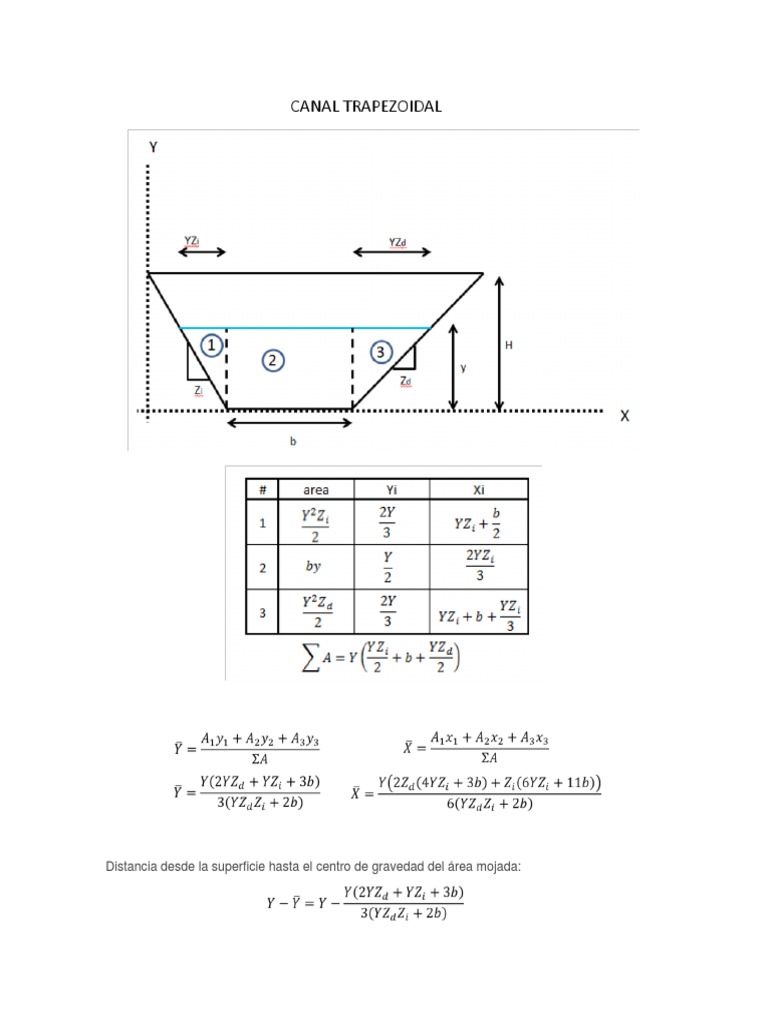

A trapezoidal channel has a bottom width, side slopes, and a water depth. The standard formula is A = b·y + z·y², where b is the bottom width, y is the water depth, and z is the horizontal component of the side slope (a 2:1 slope means z equals 2). This is not approximate. It is exact for a perfect trapezoid. What is approximate is the assumption that the channel geometry is actually a perfect trapezoid, which in practice it never is. I worked on a concrete-lined irrigation canal in central Mexico that was supposed to be 3 meters wide at the bottom with 1.5:1 side slopes. The design documents had the area formula right. What they did not have was a record of how much the channel had scoured over six years of operation. The actual bottom width at the low-flow stage was closer to 4.2 meters in the middle reach because the water had carved a deeper, wider path into the subgrade where the lining had developed hairline cracks. If you plug the design dimensions into the formula, you get 2.4 square meters at a depth of 0.8 meters. The real wetted area was roughly 3.1 square meters. That is a 29 percent error on a parameter that directly scales your velocity estimate and therefore your discharge. The flow was being under-reported across the whole system by roughly that amount, which meant farmers downstream were getting less water than the allocation sheets said they should. The workaround was not complicated. I walked the reach with a measuring rod and a tape, took cross-sections at fifteen meter intervals, and computed the wetted area from the actual geometry at the prevailing stage. Then I built a stage-area curve by repeating that process at three or four different flow levels throughout the season. Once you have that curve, you do not need to re-measure the geometry every time. You measure the water level and look up the area. It is how gauging stations actually operate, and it is the only reliable way to handle a channel that changes shape over time.

Irregular and Natural Channels

When the cross-section is not a simple geometric shape, which is the case for most earth channels and all natural streams, you integrate. In practice that means breaking the section into vertical slices, measuring the depth at each slice, and summing the areas of the individual strips. A chain or tape laid across the surface gives you the horizontal positions, a sounding rod or echo sounder gives you the depths, and the area comes from the trapezoidal rule applied to those data points. It is slower than plugging numbers into a formula, but it is how you handle a channel whose shape you cannot describe with a single equation. The pitfall here is spacing. If you place your cross-section points too far apart, especially across a wide low-velocity floodplain, you will miss the concave curvature of the bank transitions and the area will be underestimated. Five meter spacing is a reasonable minimum for a small canal. Two meters or less if the geometry is complicated or if you need discharge accuracy better than ten percent. The extra time at the beginning saves you from re-gauging later.

How the Wetted Area Feeds Into Discharge

Once you have the area, you need velocity to get discharge. The standard approach is Manning's equation, Q = (1/n) · A · R^(2/3) · S^(1/2), where A is the wetted area you just calculated, R is the hydraulic radius (A divided by the wetted perimeter), S is the channel slope, and n is the roughness coefficient. The wetted area appears directly in the equation, but it also appears inside the hydraulic radius, which means an error in area propagates through two terms instead of one. That is why getting A right is not optional. A 10 percent error in area will typically produce closer to a 15 percent error in discharge, depending on the shape and the slope. Another thing that catches people is the roughness coefficient. The area calculation does not depend on n, but n dominates the uncertainty in the final result. A concrete irrigation canal might have n between 0.012 and 0.018 depending on condition and vegetation. Using a single value when the actual range spans fifty percent is worse than admitting the uncertainty and reporting a range for discharge instead of a point estimate.

Common Errors That Undermine the Calculation

The most frequent mistake is measuring the full channel depth instead of the water depth. If the channel has a freeboard margin, which nearly all lined canals do, that margin is not part of the wetted area. Recording the bank-to-bed distance instead of the water-surface-to-bed distance is a beginner error, but it happens often enough that I still see it in field reports. A second mistake is using the top width as the channel width in the rectangular formula for a trapezoidal section. The top width is the water surface width, which is wider than the bottom width because of the side slopes. If you use the top width as b in the rectangular calculation, you will overestimate the area. The correct approach for a trapezoid is the formula I gave earlier, or, if you have already measured the top width T, you can back-calculate the bottom width as b = T - 2zy and then apply the standard formula. A third mistake that shows up repeatedly is ignoring the wetted perimeter when computing the hydraulic radius. People will calculate A correctly and then divide by the top width instead of the wetted perimeter. The wetted perimeter includes the bed and both sloping sides that are in contact with water, not just the surface width. For a trapezoid, P = b + 2y(1 + z²). The difference between using top width and using the correct perimeter can change the hydraulic radius by twenty to thirty percent in shallow, wide channels, which translates directly into a discharge error of similar magnitude.

When the Method Breaks Down

Steady-state geometry-based calculation assumes the channel shape is stable and the flow is steady or slowly varying. Both assumptions fail in flashy mountain streams, in channels with moving bars and dunes, and in culverts that are partially full and transitioning between pipe flow and open channel flow. In those cases, the wetted area changes faster than you can measure it, and a static cross-section is meaningless. The alternative is continuous stage recording with a rating curve, or direct velocity-area gauging with a current meter or ADCP. Rating curves require periodic revalidation because the relationship between stage and area shifts when the bed migrates, but they are the only practical option when the geometry is not stationary. Another scenario where the formula approach fails is a channel with significant vegetation. The effective roughness and the effective flow area both change with the season. A canal that looks like a clean trapezoid in March may be partially blocked by cattails and algae by July, reducing the effective wetted area by an amount that is not captured by the geometric formula. In those cases, you either measure the effective area by indirect methods — tracking balls or floating objects at multiple points to estimate velocity distribution, then working backward — or you accept that the uncertainty band on your discharge estimate is wider than you would like and report it as such.

Practical Field Procedure

For a routine measurement on a stable irrigation canal, the process is straightforward. Lay out a tape across the channel at the cross-section location. Record station marks every one or two meters. Measure water depth at each station with a sounding rod or staff. Record the water surface elevation with a level or GPS if you have one. Compute the area from the depth-by-station data using the trapezoidal rule. If the channel is a known trapezoid and the geometry has not changed, verify the result against the formula. If the two numbers disagree by more than a few percent, go back and check your depth readings — the formula is more likely to be right than your measurements, assuming the geometry is actually what you think it is. For the stage-area relationship, repeat the cross-section at several different flow levels over time. Three points is the minimum for a curve. Five or six is better. Fit a power function or a polynomial, whichever the software you are using defaults to, and check the residuals. If the residuals show a pattern rather than random scatter, you do not have enough points or your cross-section location is affected by backwater or a local obstruction. Move the gauge or add stations at lower and higher stages.

Summary of Key Formulas

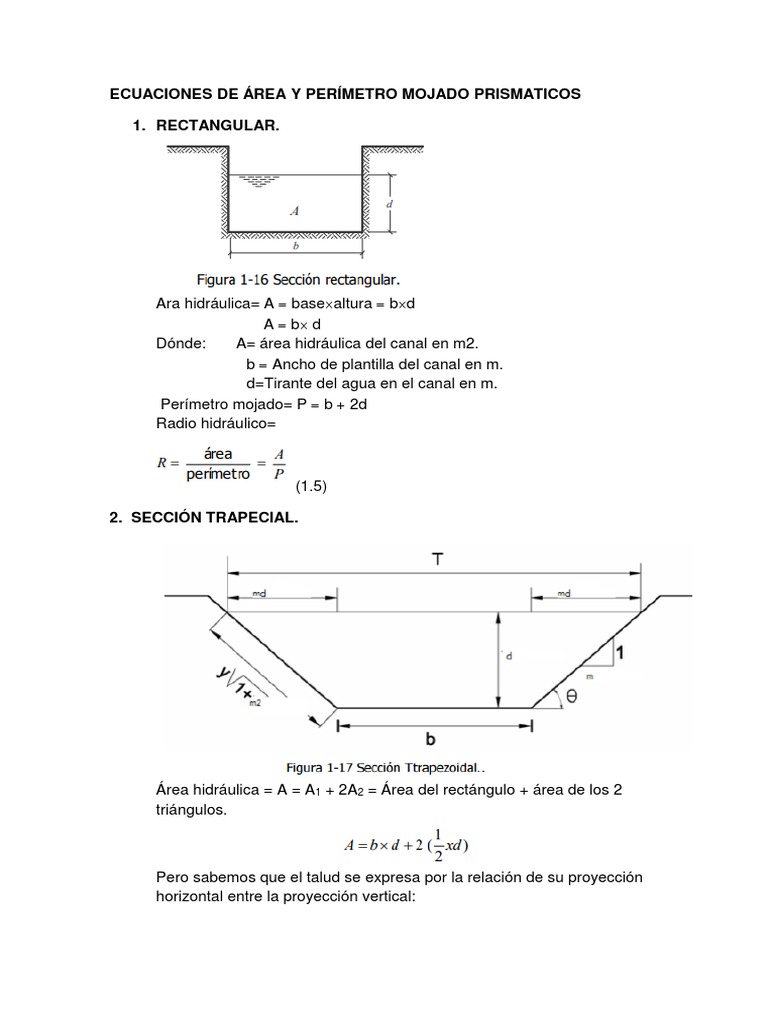

Rectangular: A = w · y Trapezoidal: A = b·y + z·y² Wetted perimeter (trapezoidal): P = b + 2y(1 + z²)

Hydraulic radius: R = A / P Discharge (Manning): Q = (1/n) · A · R^(2/3) · S^(1/2) Irregular sections: integrate numerically from cross-section data using the trapezoidal rule across measuring stations.

The term area mojada de un canal refers to exactly this set of calculations. It is a basic parameter, not a complex one, but it is deceptively easy to get wrong because the geometry in the field rarely matches the geometry on the drawing. Measure the water, not the channel. Recheck the geometry periodically. And whenever possible, build a stage-area curve and validate it against direct measurements rather than trusting the formula forever.
