Understanding AREMA Manual 2013 Roadway and Ballast Design
The AREMA Manual for Railway Engineering, Chapter 30 is where you go when you need to design or evaluate track structure for a railway. The 2013 edition covers roadway substructure and ballast in a way that actually maps to what happens on the ground. It is not theoretical fluff. It gives you load assumptions, ballast depth requirements, subgrade classification methods, and drainage expectations that engineers and contractors use on real projects. The manual organizes its roadway and ballast guidance around track class. Class 1 through Class 5 each have different allowable axle loads and train speeds, which directly dictate ballast depth and subgrade requirements. A Class 4 mainline carrying 286,000-pound axle loads is not designed the same way as a low-speed industrial spur. The tables in Chapter 30 are built around these distinctions. You pick your class, then follow the associated minimum ballast thickness, shoulder width, and subgrade preparation rules. Ballast depth starts at a minimum of 10 inches for lower-class tracks and goes up to 12 inches or more for heavier traffic. The manual also specifies that ballast should extend beyond the tie ends by a specific width, usually measured from the outside edge of the tie. Shoulder slope and cross-drainage details are included too. This is not optional. It is what gets checked during engineering reviews and right-of-way inspections.
Subgrade preparation is where things get more nuanced. The manual references the California Bearing Ratio and relative strength of the underlying soil. You will see references to subgrade stabilization when the natural ground falls below a certain CBR threshold. Lime treatment, cement stabilization, or geosynthetic separation are common fixes when the native material is weak or prone to moisture movement.
How the Design Process Actually Works
Start by determining the track class based on anticipated axle loads and operating speed. Then work through the ballast cross-section geometry. Tie length matters here too. A 10-foot tie gives you less shoulder room than a 12-foot tie, and the manual accounts for that difference in its width specifications. Next, evaluate the subgrade. Take samples from the proposed roadbed level and run CBR tests. If the value is under 3, you are going to need some form of improvement. That could mean removing and replacing poor material, spreading a geotextile layer before placing ballast, or applying a stabilizing agent. The manual does not prescribe one single solution for weak subgrades, but it gives you the framework to justify whatever approach you choose. Drainage is another area where the manual is explicit but often ignored in the field. Water is the primary cause of track structure failure, not load. A well-designed ballast section with proper cross-slope and side ditches will outperform a thicker ballast section that sits in standing water. Make sure your long-profile grading plan keeps the roadbed above the water table and directs runoff away from the track centerline.

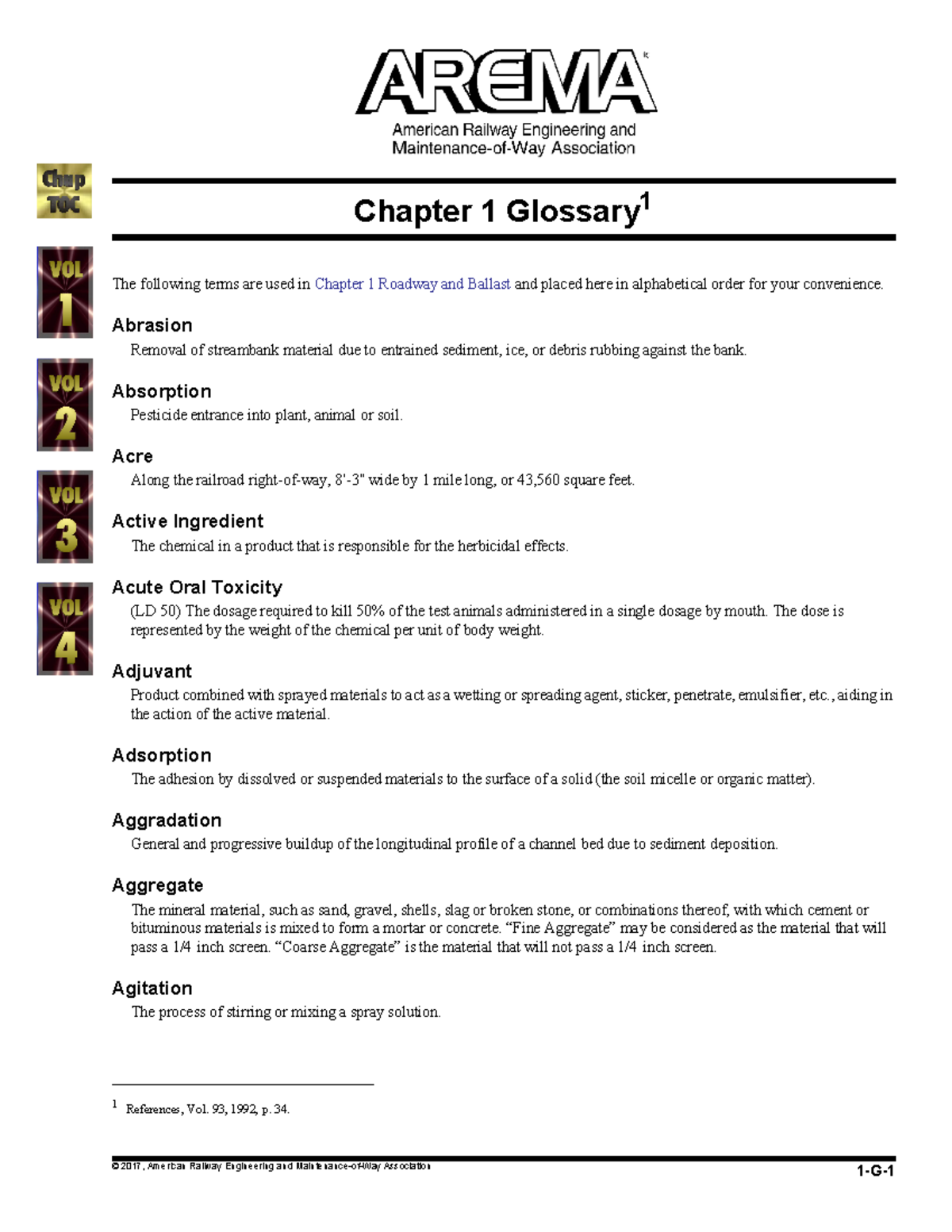

Get the Full Details
Common Pitfalls I Have Seen On Site
One mistake that comes up repeatedly is treating ballast depth as a minimum rather than a maintenance target. Freshly laid ballast at 12 inches will not stay at 12 inches. Stocking material and tamping operations reduce the profile over time. I have seen designs specify 12 inches of ballast without accounting for a 2-to-3 inch maintenance allowance, which means the track is already at the edge of acceptable performance the day it opens to traffic. Another issue involves subgrade contamination from ballast fouling migrating downward. The manual assumes a clean transition between ballast and subgrade, but in practice, fine particles work their way down and water does the rest. Using a geotextile separator is standard practice now, but it is still skipped on projects where someone decided the soil looked fine visually. It usually does not look fine for long. I ran into a specific problem last year on a Class 3 upgrade where the existing subgrade showed a CBR of 2.1 in the test pits. The owner wanted to save money by skipping full replacement and just spreading a geotextile over the top. The manual supports geotextile use under the right conditions, but a CBR that low with seasonal moisture variation is a recipe for differential settlement. I pushed for a 12-inch removal and replacement with crushed aggregate base material instead. It added about three weeks to the schedule and roughly forty thousand dollars to the bid, but the track has not settled since. The alternative would have been a warranty claim within two seasons.
Where the Manual Falls Short
The AREMA Manual 2013 Roadway and Ballast guidance is solid for conventional freight and passenger rail design, but it has gaps. It does not address modern heavy-haul dynamics as thoroughly as you might want, especially for tightly spaced high-adhesion locomotives and long coupled consists. The lateral stability criteria for curved track with modern super-elevation practices can feel thin if you are working outside North America or on specialized industrial lines. The ballast size and gradation recommendations are conservative and based on traditional crushed stone performance. If you are evaluating alternative materials like processed slag or certain recycled concrete aggregates, the manual does not give you clear acceptance criteria. You end up relying on supplemental testing and manufacturer data rather than the handbook itself. For high-speed passenger applications above 110 mph, the roadway and ballast chapter alone is not sufficient. You need to cross-reference with other chapters and specific high-speed design guides. The manual acknowledges this separation, which is fair, but it means you cannot treat Chapter 30 as a complete standalone resource for every type of railway project.
Accessing the Document
AREMA manuals are proprietary publications. You can purchase the current manual directly through the AREMA bookstore at their official website, aremanet.org. The 2013 edition may still be available in print or digital format through their catalog, though newer revisions have been issued for some chapters since then. Some universities and engineering firms hold institutional subscriptions that allow access to digital copies. If you are working for a railway or a consulting firm, check whether your organization already has a license before buying individually. Chapter 30 is frequently revised, so verify that the edition you are using aligns with the project specifications. Some contracts require the latest edition, and having an older version can become a compliance issue during plan review.
Practical Takeaways
Pick the track class first and let it drive everything else. Do not undersize ballast depth thinking you can make up for it later with tighter surfacing tolerances. Test the subgrade properly before you commit to a design. Include a maintenance margin in your ballast volume calculations. Drainage details matter more than extra inches of stone. And when the CBR comes back low, do not take the cheap path without running the numbers on long-term settlement risk.
