Understanding Article 450: What Actually Matters on the Jobsite

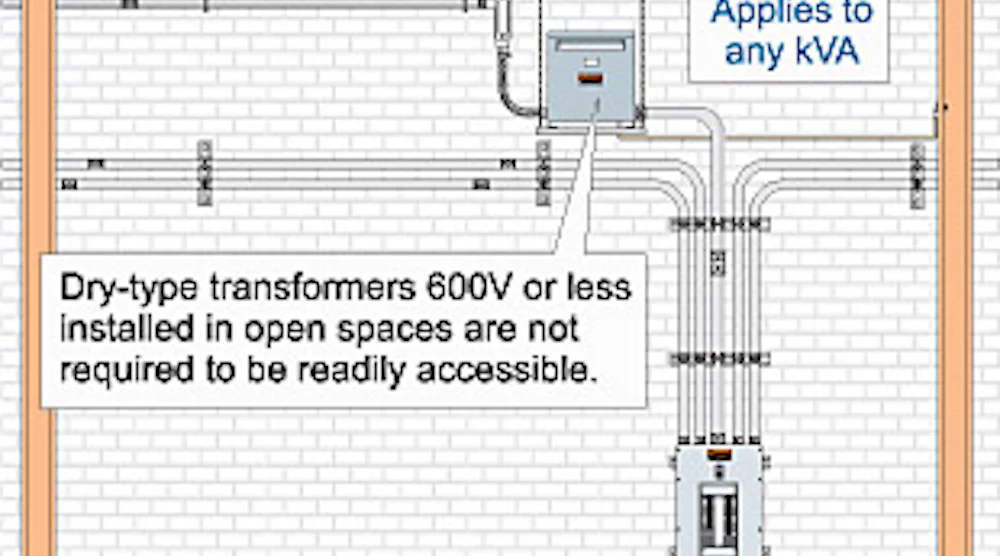

Article 450 of the NEC covers transformers and transformer vaults, but most people treat it like a reading assignment they skim. The code sections themselves are dense, and when you're pulling wire or inspecting a vault installation, you need to know which requirements actually bite and which ones are just procedural. The core of Article 450 is split into two main branches: transformer installations in general and transformer vaults specifically. Sections 450.1 through 450.19 deal with overcurrent protection, location restrictions, ventilation, nameplates, grounding, and the different requirements for dry-type versus liquid-insulated transformers. Sections 450.16 through 450.25 cover vault construction, wiring, ventilation, guarding, and identification. The high-voltage sections starting at 450.20 are a separate beast entirely and most residential and light commercial work never touches them. I need to be clear about something right away: Article 450 doesn't give you a single checklist. It gives you a framework where the answers depend on voltage class, insulation type, kVA rating, and whether the transformer is indoor or outdoor. A 25 kVA dry-type transformer in a closet and a 750 kVA liquid-filled transformer in a vault have almost nothing in common beyond being covered by the same article number.
Overcurrent Protection: Where Most People Mess Up
Section 450.3 is probably the most litigated section in the entire article. The basic rule is straightforward: primary overcurrent protection is required, and the rating depends on the transformer's impedance and primary voltage. But the exceptions are where things get complicated. For dry-type transformers 600 volts and below, the primary OCPD typically ranges from 125% to 250% of the primary full-load current, depending on whether the transformer has thermal protection. If the transformer is provided with a thermal protector that opens the primary circuit, you can size the primary OCPD higher. If it doesn't have thermal protection, you're stuck at the lower end of the range. This distinction matters because a lot of small dry-type transformers don't come with thermal protection built in, and installers forget to account for that. Secondary protection under 450.10 is another area where inspectors and contractors argue. The code requires secondary overcurrent protection for transformers rated over 600 volts, but for transformers 600 volts and below, secondary protection is only mandatory in specific cases: multiple secondary conductors, conductors tapped from the secondary, and certain life safety systems. If you're feeding a panelboard directly from a transformer secondary, you generally don't need a separate secondary OCPD because the panel's main breaker serves that function. But if you're tapping conductors from the secondary to feed a remote load center, those tap conductors need protection sized to their ampacity, and that protection counts as the secondary protection required by 450.10.
I ran into this exact situation last year on a remodel project. We had a 112.5 kVA dry-type transformer in a mechanical room feeding a new panelboard 40 feet away through 4/0 aluminum secondary conductors. The inspector wanted a separate secondary OCPD at the transformer before the panelboard's main breaker. I pulled 450.10(B)(2), which allows the overcurrent protection for the secondary conductors to be located at the point where they receive supply—in this case, the transformer itself—rather than at the far end of the run. The argument worked, but only because I had the specific exception quoted and the conductor sizing documented. Without that preparation, it would have been a hard fail.
Get the Full Details
Ventilation Requirements Are Not Optional
Section 450.5 and 450.18 cover ventilation, and this is one of those areas where the code is more specific than most installers realize. Dry-type transformers generate heat, and if that heat isn't dissipated properly, the thermal overload protection will trip repeatedly or the transformer will degrade prematurely. The code requires ventilation openings to be provided based on the transformer's kVA rating and the enclosure type. The default rule is that free open area for ventilation needs to be at least equal to the net free area of the transformer's ventilation openings. In practice, this means you can't just throw a transformer into a sealed closet and call it done. If the transformer requires 200 square inches of net free ventilation area, your enclosure needs to provide at least that much, accounting for any louvers, grilles, or mesh that reduce the effective opening. Vaults have their own ventilation requirements under 450.18, which reference Section 110.31 for general vault requirements. The vault needs provisions for both incoming and outgoing air, and the ventilation system has to be capable of handling the heat load from the transformer at full load. I've seen vaults where the contractor installed a exhaust fan that was rated for the room's general HVAC needs rather than the transformer's specific heat dissipation. That's a mistake. The transformer's nameplate gives you the losses in watts, and you need to size the ventilation to move enough air to keep the temperature rise within the transformer's design limits. A rough rule of thumb is about 2.8 cubic feet per minute of air per watt of losses for natural ventilation, but mechanical ventilation changes the calculation entirely.
Transformer Vaults: Construction and Wiring
Transformer vaults are covered in 450.16 and 110.31. The construction requirements are strict: walls, floors, and ceilings need a fire-resistance rating of at least 3 hours, the door needs to be at least a 3-hour fire-rated assembly, and the vault needs to be well-sealed against water and flame penetration. These aren't suggestions. I've seen violations where the floor slab wasn't thick enough or the door frame wasn't properly anchored, and both are easy fixes if you catch them before the concrete pours or the door gets hung. Wiring in vaults falls under 450.17, which requires conductors to be installed in raceway or cable tray. Open wiring on insulators isn't permitted in vaults. The conductors also need to be protected from physical damage, which means any exposed runs need schedule 80 conduit or equivalent protection. This section is straightforward, but the physical damage requirement catches people off guard when conduit runs across a vault floor where forklifts or other equipment might hit it. Grounding a transformer vault is covered under 450.22, and it's one of those areas where the NEC and the bonding requirements for equipment grounding conductors overlap in ways that aren't always obvious. The vault structure itself needs to be grounded, and all metal enclosures, raceways, and equipment inside the vault need to be bonded to the grounding electrode system. The grounding conductor sized for the vault follows 250.66 based on the size of the ungrounded conductors feeding the transformer. A common mistake is to ground the vault to a separate ground rod instead of tying it into the building's existing grounding electrode system. That creates a ground loop and violates 250.50, which requires all grounding electrodes to be bonded together.
Identification and Nameplate Requirements
Section 450.14 requires nameplates on all transformers, and 450.7 covers the general identification requirements. The nameplate needs to show voltage, current, impedance, frequency, kVA or kW rating, and the type of insulation. For transformers installed in vaults, the identification also needs to be visible from outside the vault so that emergency responders and inspectors can see what they're dealing with without entering the space. Nameplate information is critical for sizing overcurrent protection and conductors. If the nameplate is missing or illegible, you can't accurately determine the full-load currents, and that affects every downstream calculation. I've had situations where an old transformer had a corroded nameplate and the only way to get accurate ratings was to do a no-load current test and work backward from the primary and secondary voltages. That's time-consuming and not always reliable, so it's worth making sure nameplates are protected from corrosion and physical damage during installation.
High-Voltage Transformers: A Different Ballgame
Sections 450.20 and 450.21 cover transformers rated above 35 kV, and these require a level of engineering that most electrical contractors don't deal with. The insulation requirements, clearance distances, and testing procedures are significantly more rigorous. If you're working on a project that involves high-voltage transformers, you should have a qualified engineer review the design before any installation begins. The code provides the framework, but the specifics depend on the utility requirements, the transformer manufacturer's instructions, and the building's electrical system design. One thing that surprises people is that 450.20 references IEEE C57.12.00 and other industry standards for high-voltage transformer testing and installation. The NEC sets the minimum, but the standards often require more. If you're spec-ing a high-voltage transformer installation, don't assume the NEC alone covers everything. Check the manufacturer's installation manual and the applicable IEEE standards before you start pulling permits.
Vault Maintenance Access
Section 450.24 requires maintenance access to transformer vaults. The vault needs to be accessible for inspection and maintenance, which means clear working space around the transformer as specified in 110.26. The minimum working clearance in front of the transformer is 3 feet, but that increases with higher voltages and specific fault current conditions. If the vault is in a confined space where you can't achieve the required clearance, you need to either reconfigure the layout or provide a removable section of wall or floor to allow access during maintenance. This requirement is more of an issue in retrofits than new construction. When you're adding a transformer to an existing building, the available space might not accommodate the required working clearance. In those cases, the solution is usually to relocate the transformer to a larger enclosure or to modify the vault structure to provide the necessary clearance. There's no shortcut around this requirement, and inspectors will flag it during the final walk-through.
Practical Takeaways
Article 450 is not a section you can skim. The requirements vary significantly based on transformer type, voltage, and installation location. The most common problems I see on jobsites are undersized overcurrent protection, inadequate ventilation, missing or illegible nameplates, and improper vault grounding. Each of these is a fixable issue if caught early, but all of them become expensive if caught after inspection or after the transformer is already installed. The best approach is to pull the relevant sections of Article 450 before you start the design, verify the transformer specifications against each requirement, and document any deviations or exceptions with the authority having jurisdiction. If you do that, you'll rarely have surprises during inspection.
