Reading Error Codes on a CCTV Camera Without Losing Your Mind

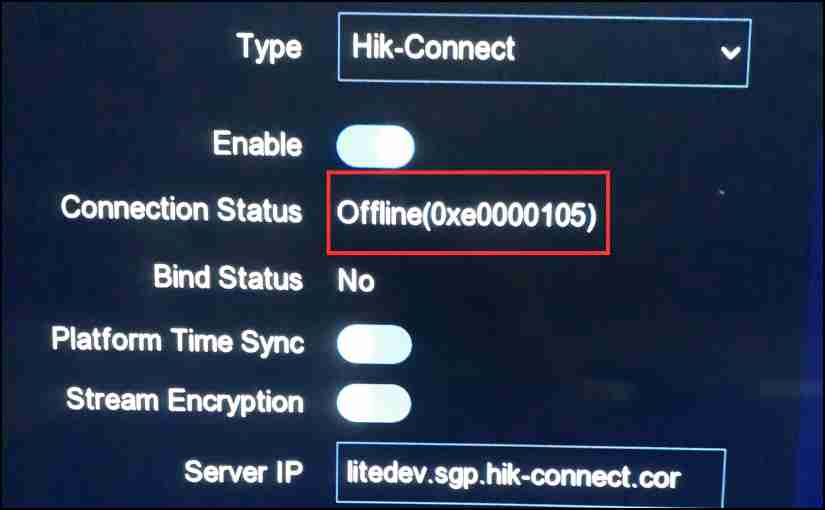

You plug in a camera. The power light comes on. Then you see it — some string of letters and numbers on the screen or in the monitoring software. ERR03. E-404. CODE-LK. Whatever it says, it means something is wrong and you probably have no idea what that something is. This happens all the time. The cameras are not complicated devices, but the error reporting across brands is about as standardized as car dashboard lights from the nineties. I've spent more years than I care to count pulling cameras down from ceilings and climbing back up with the same unit after swapping a power adapter or reseating a cable, only to get the same code again. You learn pretty quickly that the error code itself is only half the story. The other half is which power supply you're running it off, what the PoE budget looks like on your switch, and whether the firmware version actually matches the error table the manufacturer published. I had a case last year with a batch of Hikvision DS-2CD2xxx cameras throwing a generic "system error" on a new NVR. Took me three hours to realize the NVR was providing 802.3af power and these particular units needed 802.3at because the heaters were drawing too much current in winter. The error code didn't say "check your PoE budget." It just said "error." Generic, unhelpful, totally accurate from the camera's perspective.
What Assembly Manual Cctv Camera Error Codes Actually Is
It's not a single universal system. There is no ISO standard for CCTV error codes the way there is for OBD-II in cars. Each manufacturer builds their own lookup table, and within each brand there are different tables for different product lines. A "CODE-HB" on a Dahua camera means something completely different from a "CODE-HB" on a HiWatch or a Lorex. When you pull up the Assembly Manual CCTV Error Codes documentation for your specific make and model, you're getting a reference that covers assembly-line diagnostics, factory test errors, and field-service codes — and those three categories overlap more than manufacturers would like you to know. The codes themselves typically fall into a few buckets. Sensor errors — the image sensor isn't responding or is reading abnormal values. Communication errors — the board can't talk to the lens, the IR driver board, or the internal processor. Power errors — voltage out of range, current draw too high, PoE negotiation failed. Firmware errors — corrupted flash, failed update, hash mismatch. Mechanical errors — PTZ movement fault, focus motor stall, IR cutter stuck. And the most frustrating category: generic system codes that just say something is wrong without saying what. Those are usually left in because the manufacturer doesn't want to give away diagnostic depth to people who aren't authorized service technicians.
How to Actually Use the Manual When a Camera Throws a Code
Step one is identifying what you're working with. Not just the brand and model number — those are on the label — but the firmware version and the hardware revision. I've seen people chase error codes across firmware versions because the meaning of a particular code changed between a v5.5.0 build and a v5.6.2 build. The model number alone won't tell you that. Check the web interface or the NVR device page for the full version string. Look for a hardware revision mark on the camera body itself, usually a small suffix like "H" or "V2" printed near the serial number. Once you have that, find the error code table. It's usually in the manual under a section called "Troubleshooting," "Fault Diagnosis," or "Indicator Lamp Description." Sometimes it's a separate PDF called "Error Code Reference" or "Service Manual." If the manual you downloaded doesn't include one, you're probably looking at the consumer version. The service manual has the real codes. The public manual has the watered-down version that tells you to reboot the camera and call support if it still doesn't work. Here's where most people go wrong. They match the code to the table, see "sensor malfunction," and immediately order a replacement camera. Don't do that yet. Sensor errors on modern IP cameras are more often caused by a loose flex cable between the sensor board and the main board than by an actual dead sensor. I once replaced three cameras before I finally opened the fourth one and found the ribbon cable connector was seated slightly crooked. Reseated it properly, same code cleared, camera worked fine. Takes about four minutes with a PH00 Phillips screwdriver and a plastic spudger. Costs you nothing except the five hours of frustration before you figure it out.
Get the Full Details
Another thing the manuals rarely emphasize: many error codes are transient. The camera logs them during boot if a component doesn't initialize within the expected time window. A cold camera coming up in freezing temperatures might throw a temporary IR heater fault code that clears after thirty seconds once the thermal pad warms up. If the code appears consistently in your NVR event log, it's real. If it shows up once and never returns, it was a boot-time glitch. Don't chase ghosts.
Common Error Code Categories and What They Actually Mean
Power-related codes (usually E-series or P-series). These are by far the most common in the field. A camera spec'd at 12V DC / 2A running off a 12V 1A power supply will throw power errors whenever the IR LEDs kick on. Same thing with PoE — if your switch is borderline on budget and five cameras are all drawing maximum power simultaneously during a cold snap, you'll get intermittent power codes on whichever camera happens to be at the end of the chain. The fix isn't always "replace the camera." It's often "upgrade the power supply" or "move the camera to a different PoE port on a different switch." Check your voltage at the camera end with a multimeter while it's running. If you're below 11V on a 12V system or below 44V on a PoE system, that's your problem regardless of what the error code says. Communication codes (usually C-series or comm errors). Camera can't talk to its own internals. Could be a bad ribbon cable, could be a failed I2C device on the bus, could be a corrupted configuration file causing the init sequence to hang. If you recently changed a setting in the camera's web interface — resolution, bitrate, stream profile — and then started seeing communication codes, roll that change back. I've had this happen twice where a specific combination of H.265+ enabled with a particular ROI bitrate zone setting would cause the encoder chip to timeout on startup, registering as a communication fault. Reset to default, update firmware, reapply settings one at a time. Firmware codes (F-series or U-series). These are the ones that make people reflash and then format the NVR in frustration. Most firmware error codes mean one of two things: the update was interrupted, or the firmware file doesn't match the hardware revision. Yes, really. I've seen cases where someone flashed a firmware meant for the V1 board onto a V2 board and got a hash mismatch error that the manual listed as "internal storage failure." It wasn't. It was a version mismatch. Always verify the hardware revision against the firmware release notes before flashing anything. And always use the manufacturer's official upgrade tool — the web interface upload function has failed on me multiple times due to browser timeout issues, while the dedicated tool completes the same file in a clean pass.
PTZ-specific codes. If you're dealing with a PTZ camera, the error codes tend to be more specific because there are more moving parts. Home position fault, azimuth limit error, elevation motor stall, preset travel exceeded. These are usually mechanical. Check the cable management inside the dome — wires get pinched during assembly and then slowly wear through over weeks of movement. Also check whether the camera was physically bumped during installation. A PTZ that's been knocked out of home position by even a few degrees will throw a home-seeking error on every startup until it re-calibrates, and some cheaper models don't recalibrate automatically. You have to manually re-home them through the interface.
The Edge Case Nobody Talks About
Network time protocol issues can generate error codes that look like hardware faults. This one cost me an entire afternoon on a project last year. Six cameras across two switches were all reporting intermittent "storage error" codes. The NVR's HDD was fine. The cameras weren't even connected to the NVR's storage — they were streaming to it. I spent two hours replacing an SD card in one camera, checked the other five, verified cable connections, rebooted everything. The codes kept coming back in the same pattern: always between 2 and 4 AM, always on the same six cameras, never on the others. The breakthrough came when I noticed the NVR's system log showed a time sync jump of several hours every night at 2 AM. The ONVIF profile S handshake between the cameras and NVR uses timestamps for authentication. When the NVR's clock jumped backward due to a bad NTP sync, the cameras' session tokens became invalid, and the authentication failure registered in the camera logs as a storage error because the corrupted session data was being written to the camera's internal buffer. Fixed the NTP source on the NVR, cleared the camera buffers, codes stopped. The error code was technically accurate — there was a storage anomaly. It just wasn't the kind of storage anomaly the manual was describing.
What the Manuals Won't Tell You About These Systems
First, error code meanings can change between firmware revisions without any notice in the release notes. Manufacturers rarely document code reassignments. If you're working with a camera that's been updated multiple times, the code table in the manual you downloaded might not match what the camera is actually reporting. The only way to be sure is to test. Clear the code, reproduce the fault, confirm the behavior matches the description. Second, many brands use the same base error codes across entirely different product families. A code that means "lens communication failure" on a fixed-lens bullet camera might mean "SD card write error" on a PTZ from the same brand. The code registry is shared internally but the manual sections are product-specific. Cross-reference carefully. Third, and this is the one that matters most: not every code in the log is a problem worth fixing. Some are informational. Some are deprecated warnings from older firmware versions that the current firmware ignores anyway. If the camera is functioning normally — proper video, correct settings applied, no recurring failures — a single historical error code from three weeks ago doesn't mean anything. Only act on codes that are current and reproducible.
Where to Find the Actual Documents
Start with the manufacturer's official support site. Download both the user manual and the quick installation guide — sometimes the error code table is in the quick guide and not in the full manual. If you need the service-level codes, search for "service manual" or "technical bulletin" along with the model number. Third-party sites like manualslib or sdmmc.com sometimes have scans of documents that the manufacturer has removed from their site after a product lifecycle change. Archive.org is also useful for finding older firmware versions and their accompanying documentation if you're working with legacy equipment. The exact Assembly Manual Cctv Camera Error Codes reference you need will depend entirely on your camera's make, model, and firmware build. There's no shortcut around that. But once you have the right document and you understand what the codes are actually telling you — and more importantly, what they're not telling you — most of these issues resolve faster than people expect. The camera is rarely the thing that's broken. It's the power, the network, the configuration, or the firmware. The error code is just pointing at one of those. Learn to read past it.
