Working with Assembly Manuals for Dishwasher Replacement Parts
Most people grab a replacement part without checking the manual first, then spend two hours figuring out why it doesn't fit. I've seen it repeatedly. The manual isn't decoration. It tells you which parts are interchangeable across model revisions, what torque specs matter, and which components share part numbers between brands that bought the same supplier. Here's how I approach it when something breaks and I need to order the right piece.
Assembly Manual Dishwasher Replacement Parts: Where to Find and How to Use Them
Start by locating your model number. It's usually on a sticker inside the tub, behind the kickplate, or on the door frame. Write it down. Then search for the assembly manual using the format "brand model number assembly manual PDF." GE, Whirlpool, Bosch, and Samsung all post them directly on their support sites. Third-party sites like Partstown, Repair Clinic, and AppliancePartsPros also host manuals and cross-reference them with parts diagrams. Once you have the manual open, here's what most people skip that actually matters: The bill of materials (BOM) list at the end of the document. It pairs every exploded-view part number with a description and sometimes a supersession note. If a part number has been replaced, the BOM will show the old number crossed out and the new one next to it. I found this out the hard way when I ordered a Bosch spray arm, part number 00650899, only to have it arrive and not match the mounting clip on a 2018 model. The manual's BOM listed that part as superseded by 00678432 for units manufactured after week 22 of 2017. Five minutes in the BOM would've saved me a return shipping fee.

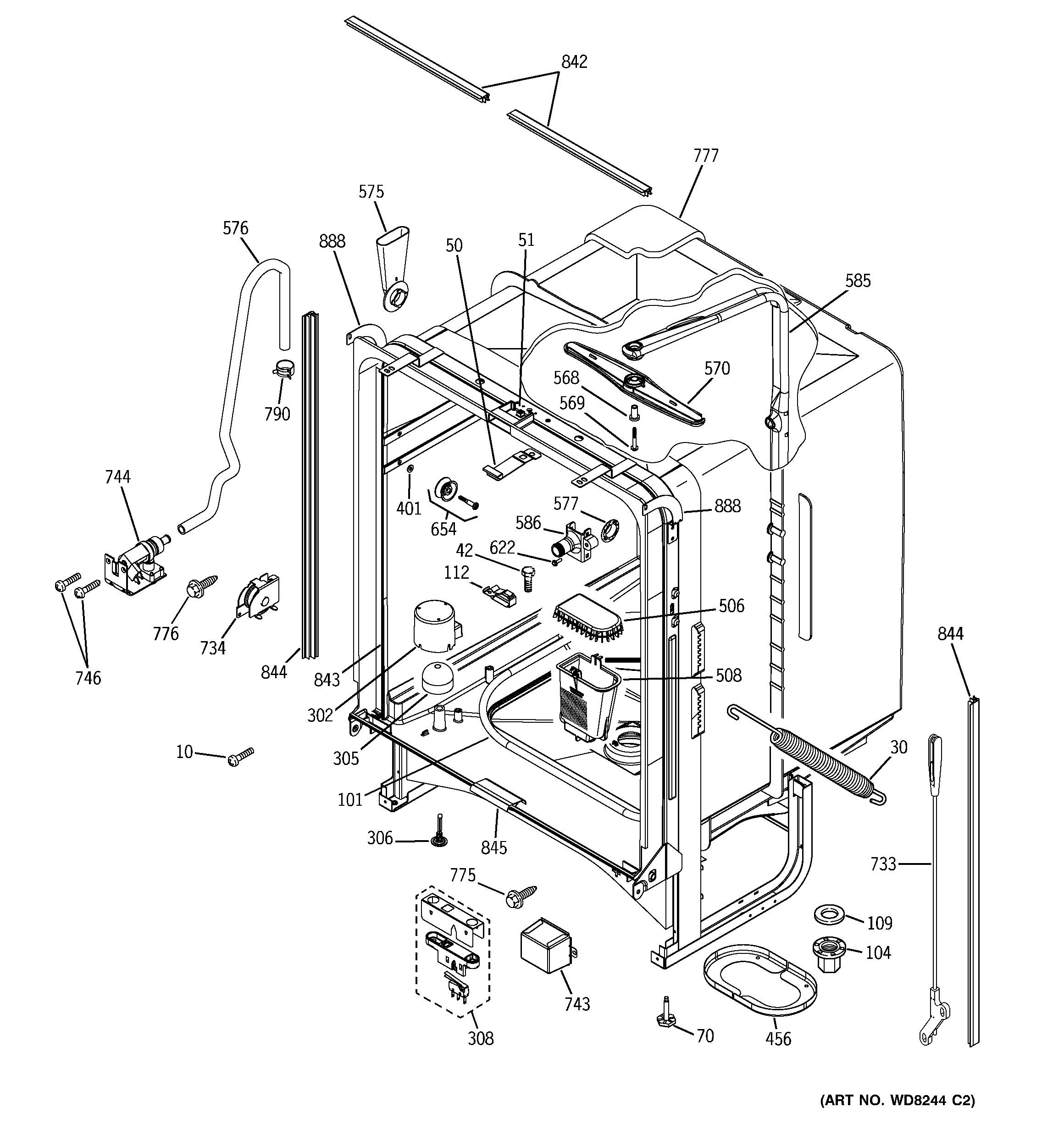

The exploded diagram is useful but don't treat it as gospel for fitment. Manufacturers sometimes consolidate diagrams across multiple similar chassis. I worked on a Whirlpool DU1055 where the manual showed a specific latch assembly for both the DU1055XDB0 and the DU1055XTV2. They looked identical in the drawing, but the TV2 had a slightly different hinge bracket that made the original latch bind. The parts list itself called out the difference, but you have to read carefully. When you're ordering, always note the serial number in addition to the model number. Serial numbers encode the manufacture date and plant location, which determines which revision of a component was installed. A Gemon dishwasher from 2021 and one from 2023 might share the exact same model number but use a completely different pump seal design halfway through the production year. I ran into this with a Maytag MDB4949SKZ where the lower drain pump was leaking. The part number on the old pump matched the one listed in the manual, but when I installed it, the new seal didn't seat flush. Turns out Maytag swapped the pump housing material from a composite to a more durable polymer mid-year and updated the gasket profile without changing the model number. The fix was ordering the later revision part, which had a subtle step on the housing that the older manual diagram didn't show. I confirmed it by calling Maytag with the serial number and having them pull the revision-specific parts list.
Get the Full Details
Some practical notes on the actual replacement process: Turn off the power at the breaker before anything else. Dishwashers have 120-volt components inside the control panel area even when the machine is off. I once touched a live wire on a Kenmore because someone had told me it was safe to work on it unplugged. Didn't hurt badly, but it was a sharp reminder. Take photos before you disassemble anything. Not because you'll forget where a wire goes, but because the manual's wiring diagram sometimes omits field-installed accessories like external water softeners or reverse osmosis pre-filters that change the harness routing.
When removing the inner tub panel on an older unit, expect corrosion on the screws. Apply penetrant, let it sit for ten minutes, and use a socket with a little slack rather than a ratchet that can strip the head. I've ruined enough phillips heads on dishwasher panels that I now keep a screw extractor kit in my truck. For the actual part ordering, cross-reference the manual's part number with at least two sources. Sometimes the manufacturer's direct part costs more than a third-party equivalent that's functionally identical. A Timco wash arm for a Frigidaire unit costs about the same as the OEM part but arrives in two days instead of seven. The manual won't tell you that, so do your own price check. A few parts that consistently cause problems if you get them wrong:
The door gasket. Don't assume a gasket labeled for your brand will fit. Many contract manufacturers supply the same gasket to multiple brands. The curvature and lug spacing vary enough that a wrong match causes leaks that appear intermittent and hard to trace. Measure the old gasket's cross-section diameter and the distance between lug centers before ordering. The main control board. These are model-specific in ways that aren't always obvious. Two dishwashers with the same outer casing can have different boards depending on whether they were configured for high-efficiency fill or standard fill. Check the board's part number against the manual's BOM rather than assuming visual similarity means compatibility. Heating element assemblies. Some newer units use an integrated pump-heater combo that replaces two separate parts. If your manual shows them as one assembly and you order just the heater, it won't work. Verify whether the part you need is the standalone element or the combined unit by checking the assembly sub-number in the manual's exploded view.
The manual is your starting point, not your only reference. When in doubt, call the manufacturer with your model and serial number, or post the specific part question on a forum where people have actually opened the same unit. I've replaced more parts correctly the second time around after reading someone's actual installation experience than from any manual alone.
