Tractor Assembly Manuals and Their Diagrams
Most tractors ship with a stamped-steel manual that either covers assembly or references it in a separate supplement. The diagrams inside are usually black-and-white line drawings with part numbers next to them. They show you what goes where, but they don't always tell you why a particular bolt orientation matters or which fastener gets torque first. That information lives in the service manual, not the assembly manual, and mixing the two up will get you into trouble on the hydraulic lines. I spent three days once trying to reassemble the loader linkage on a 1978 two-wheel drive because the parts diagram in the operator's book didn't match the revised parts list from the dealer. The pin numbers were correct, but the bracket had been updated mid-production. I ended up taking a callus-shaped punch to my thumb and realigning the whole thing by tracing the hydraulic hose path backwards from the cylinder. If you're staring at a diagram that doesn't seem to line up with your actual tractor, check the serial number range on the cover page. Manufacturers change components without updating every printed manual. That's normal. It costs me about four hours per job when I catch it late.
Assembly Manual Tractor Diagram: What You're Actually Looking At

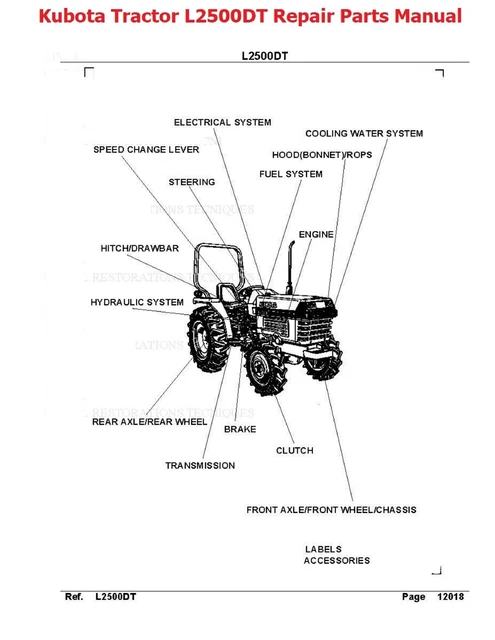

A tractor assembly diagram is a cutaway or exploded view that maps parts to their spatial relationship during installation. Each component gets a reference number that ties back to a parts table. The table gives you the part number, description, and sometimes a quantity. What it doesn't give you is torque specs, thread locker requirements, or the sequence for tightening bolts on a cover plate. For that you need the service manual, which typically runs 200 to 600 pages depending on the model. The diagrams themselves come in a few formats. Some manufacturers use a single large exploded view per sub-assembly, like the transmission housing or the three-point hitch. Others break it down into individual frames for every sub-assembly, which is more work to cross-reference but easier to read at a glance. Deere-style manuals tend to use the multi-frame approach. Kubota stays closer to single-view diagrams. Case International splits the difference. Don't assume they all work the same way just because they look similar on the surface.
How to Read the Diagrams Without Guessing
Start with the serial number. Every assembly manual has a section at the front that tells you which diagrams apply to which serial number ranges. Ignore this at your peril. A tractor built in March 1982 might have a completely different fuel line routing than one built in September 1982, even if they share the same model number. The diagrams won't show you the update unless the serial range calls it out. Next, work from the outside in. Disassembly diagrams are typically drawn in reverse assembly order. If you're putting something back together, read the diagram backwards. The last part shown being removed is the first part you install. This sounds obvious until you're three hours into a rebuild and realize you've got a gasket seated backwards because you followed the diagram top-to-bottom instead of recognizing it as a teardown sequence. Pay attention to the fastener callouts. Some diagrams show a bolt with a note like "apply medium thread locker" or "torque to 45 ft-lbs in star pattern." Others just show the bolt and assume you already know. When the diagram is vague, cross-reference the torque specs table in the service manual. If there's no table, the parts catalog footnote might have it, though those footnotes are inconsistently applied across product lines. I've seen bolt holes tapped for a metric fastener on a tractor marketed as having only SAE hardware. Happened on a Ford 3000. I found out when the replacement bolt wouldn't seat flush.
Get the Full Details
Common Problems and What to Do About Them
Missing diagrams are the most frequent issue. A lot of owners lose the manual or buy a used tractor where the manual never made it along for the ride. Aftermarket reprint companies sell copies, but they often omit the wiring diagrams or the hydraulic schematic pages. If you need those, go straight to the dealer parts department or the manufacturer's online portal. Some brands like Massey Ferguson have decent digital archives. Others require a phone call and a patience test that usually ends with you waiting forty minutes on hold. Poor print quality on older manuals is another real problem. Faint lines, smudged part numbers, and pages that have been through a grease stain cycle make reading difficult. My workaround is scanning the relevant pages and running them through a basic image enhancement tool. Bumping the contrast and sharpness usually brings the part numbers back to readability. Takes about ten minutes per page. Sometimes the diagram shows a part that no longer exists as a standalone item. Manufacturers consolidate assemblies over time. A bracket that used to be part number 12345 might now only be available as part of sub-assembly 67890. The manual might not reflect this change if it hasn't been revised. Check with the dealer parts counter using your serial number. They'll tell you whether the old part is superseded and what the new number is. Doing this before you start ordering parts saves you from receiving something that doesn't fit.
Where to Find the Diagrams
Official sources are the dealer network and the manufacturer's website. Most major brands have a parts lookup tool where you enter your serial number and get a exploded diagram with clickable parts. John Deere's eTOOL system is the gold standard here. It gives you diagram views, parts lists, and sometimes even instructional videos tied to specific procedures. New Holland and Case follow a similar model. Kubota's system is functional but less polished. Agricultural equipment brands like Massey Ferguson and Steyr vary in quality, with some offering full digital access and others only providing print-on-demand manuals. Third-party sources include books from publishers like Haynes and Clymer, though their coverage is limited to popular models. Forums and collector groups sometimes have scanned copies of rare manuals. Use these with caution. Scans can be incomplete, misaligned, or missing entire sections. I've seen a scanned transmission diagram where the gasket surface was cut off at the bottom of the page. Bought a wrong gasket because of it. Cost me sixty dollars and two trips to the parts store. For vintage tractors pre-1980, the best source is often a reproduction manual from a specialist publisher. These tend to be more accurate than original copies because they've been corrected against known revisions. The downside is they cost between forty and hundred dollars each and shipping can add another week to your wait time.
Practical Tips That Actually Matter
Lay out your parts in the order they appear on the diagram before you start. This sounds trivial but it prevents you from discovering halfway through that you're missing a spacer or a washer that was supposed to go between two components. I keep a clean tarp or mat on the ground and arrange everything from left to right matching the diagram sequence. Takes five minutes and has saved me from having to tear apart half an assembly three times. Mark every hose and wire before you disconnect it. A piece of masking tape with a marker number corresponding to the diagram reference lets you reconnect everything in the right order later. This is especially important for hydraulic lines on the loader and three-point hitch. There are enough identical fittings on a tractor that swapping two lines without marking them will give you a very unhappy hydraulic system when you prime it. Don't skip the torque sequence. Even on simple bolt patterns, the order matters for sealing surfaces. Cylinder heads, oil pans, and pump housings all have specific tightening sequences that prevent leaks. The diagram might not show it, but the service manual will. If you don't have the service manual, look up the sequence online for your specific model. There are plenty of tractor forums with detailed torque specs posted by people who've done the work.
Keep a notebook or photo log of your progress. Not because the diagram isn't clear, but because you'll forget which way a particular hose routed or which bracket went on top of the alternator mount. A quick phone picture of each stage takes three seconds and is worth more than any memory you think you'll retain. I learned this the hard way on a clutch replacement that took six hours to disassemble and four to reassemble, mostly because I kept second-guessing where a bracket belonged.
When the Diagram Won't Help You
Sometimes the diagram is just wrong. Manufacturing changes happen without manual updates. Parts get redesigned. Holes get moved. Fitting sizes change. If the diagram doesn't match your physical components, stop and verify. Check the actual parts against the part numbers in the manual. If they don't match, you're either looking at the wrong serial range or the diagram is outdated. Call the dealer parts department. They can look up the current configuration and tell you whether an update kit exists or whether you need to adapt what you have. There's also the issue of aftermarket modifications. A tractor that's been fitted with a cab, a different implement, or a non-standard PTO setup will have diagrams that don't account for those additions. The manual shows the factory configuration. Everything after that is on you to figure out, usually by tracing the physical layout and cross-referencing with whatever documentation exists for the modification. Hydraulic schematic diagrams are the hardest to work from if you're not familiar with the symbols. Standard ISO symbols are used, but the way they're arranged on the page doesn't always match the physical layout of the valves and lines. I find it helpful to draw a simplified version on paper, mapping the symbols to actual components on the tractor. This takes maybe fifteen minutes and makes troubleshooting infinitely faster than trying to mentally translate a page of symbols into physical pipe and valve locations.
The bottom line is that an assembly manual diagram is a starting point, not a complete guide. It tells you what parts exist and how they relate to each other visually. It doesn't tell you torque values, sealant requirements, or the order in which bolts should be tightened. For that you need the service manual or a reliable online resource. Having both gives you enough information to do most assembly and maintenance jobs without calling a mechanic, which saves you significant money on labor charges and downtime.
