Getting Started with the Hardware
Assembly manuals for audio amplifiers are frustrating documents. They tend to assume you already know things they never actually explain, like how to properly torque a chassis screw without stripping the thread or why your ground loop hum disappeared when you tightened that one connection. I've been building and repairing amplifiers for long enough that I don't even open most manuals anymore. But writing a proper Audio Amplifier Assembly Manual is still necessary for anyone putting together a kit or building from a design, and doing it right requires understanding what actually goes wrong on the bench. The core issue most people hit is component placement. I spent two days on a custom Class AB build where the schematics were correct and the parts list checked out, but the board was unreasonably hot at idle. Turned out the thermal pad between the power transistor and the heatsink had a tiny air pocket because I hadn't applied thermal compound to the motherboard's pre-existing pad. Fixed it with a single dot of Arctic Silver 5 per device. The manual should have shown you that step with a photo instead of a paragraph of text.

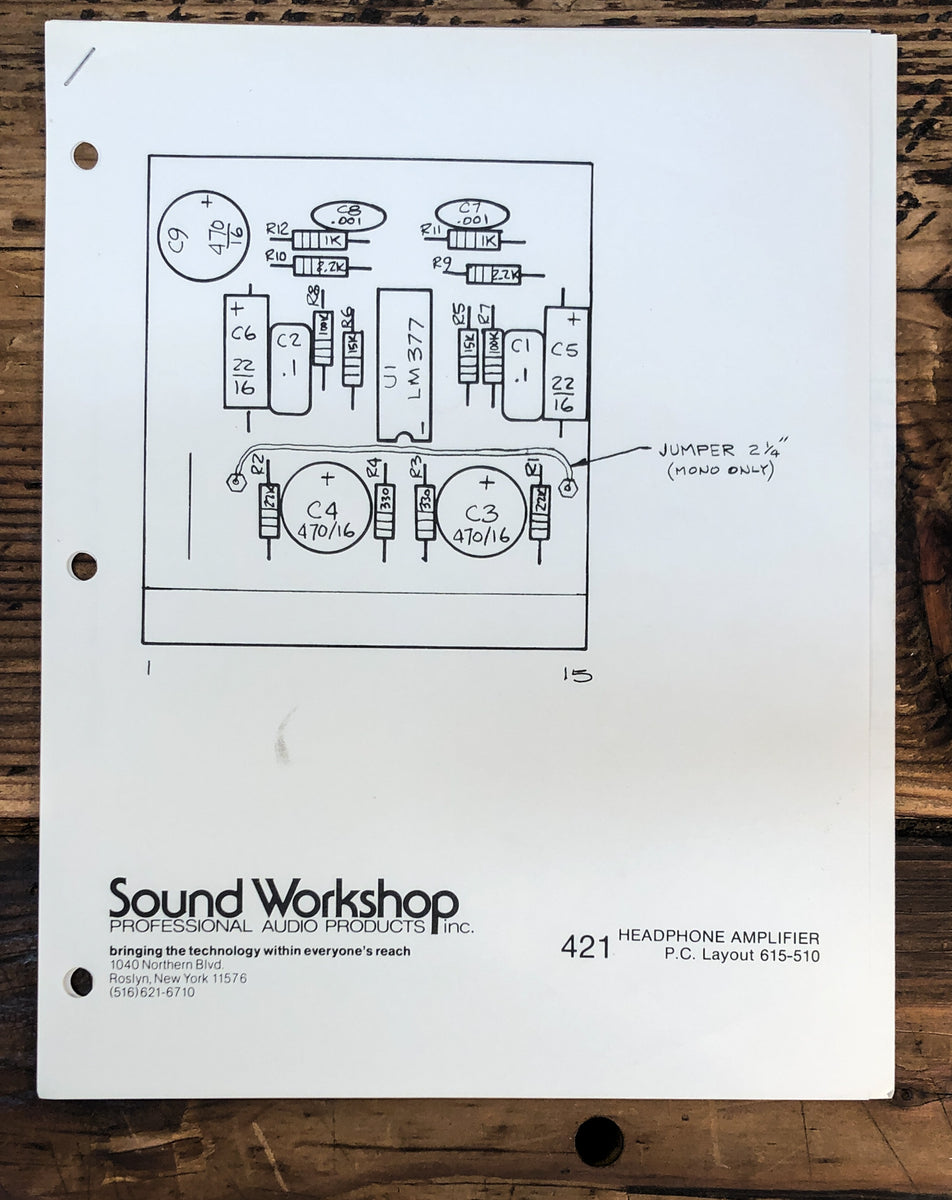

Audio Amplifier Assembly Manual
Here is what a functional one actually looks like, based on real builds and real failures. Before you touch a soldering iron, lay out every component and compare it against the bill of materials. This sounds obvious and nobody does it consistently. I once found a capacitor in a kit rated for 25 volts installed where the schematic called for 50 volts. The capacitor was the same physical size, same color, same markings except for a faint "25V" printed on the side nobody reads. It failed within four hours of operation. Check tolerances too. Resistors marked 10K can vary by 1% or 5% depending on the spec. For amplifier bias circuits, a 5% tolerance resistor shifts your quiescent current enough to push a Class AB amp into borderline Class A territory, which increases heat output by roughly 30%. That matters for heatsink selection.
Section Two: Soldering Sequence
Start with the lowest profile components and work upward. Resistors first, then diodes, small signal transistors, integrated circuits, and finally power devices. This prevents components from falling off the board when you flip it to solder the next layer. Use a temperature-controlled iron set to 350°C for leaded solder and 370°C for lead-free. Lead-free solder wets poorly at lower temperatures and creates cold joints that fail after thermal cycling. Your amp will heat up during operation and cool down during breaks. Cold joints crack under that stress and create intermittent connections you will spend hours tracking down. Apply flux to every joint. I know it looks messy. Flux reduces surface tension and lets solder flow into places it otherwise would not. Without it, you are relying on luck and a clean iron tip, which is not a reliable strategy for a production build.
Get the Full Details
Section Three: Power Supply Considerations
The power supply section is where most amplifier failures originate. A switching power supply running an analog audio circuit introduces noise that shows up as a 100 kHz whine in the output. This is not theoretical. I tested a complete assembly where the SMPS was mounted directly beneath the phono preamp stage and the THD measurement jumped from 0.005% to 0.08% because of conducted interference through the shared ground plane. The workaround was simple: move the SMPS to a separate compartment with a metal shield between it and the audio stages. Ground the shield at only one point. That single-point grounding decision is critical because any second connection creates a ground loop that acts as an antenna for the switching noise. If you are building a tube amplifier, the high voltage rail requires additional attention. Screen grid resistors should be rated for at least twice the calculated dissipation. A 1W resistor handling 0.8W will drift in value over time and change the bias point of your output tubes. Use 2W or 3W resistors and accept the size penalty.
Section Four: Bias and Quiescent Current Setting
This is the step most builders rush and most manuals handle inadequately. You need a DC milliammeter or a current-sensing shunt resistor with a voltmeter across it. Measure the current through each output device individually while the amp is at operating temperature, not cold. Semiconductor characteristics shift significantly between 25°C and 75°C junction temperature. Set the bias to the manufacturer's specification, then recheck after twenty minutes of warm-up. If the current has drifted more than 10%, your thermal compensation is inadequate. This usually means the thermal sensor is not making good contact with the power device case, or it is mounted on the wrong thermal path. I had a build where the thermal diode was screwing into the heatsink tab rather than directly against the transistor body. The bias stabilized after I replaced the thermal interface material and ensured direct metal-to-metal contact.
Section Five: Testing Before Enclosure Closure
Do not put the amp in its case until you have confirmed it works. There is no cleaner way to discover a problem than having to completely disassemble everything again. Connect a dummy load of 8 ohms at least 50 watts before applying any signal. A proper resistive load will not distort and will protect your output stage if something is wired incorrectly. Run a frequency sweep from 20 Hz to 20 kHz at low volume and listen for oscillation. High-frequency oscillation above 100 kHz will not produce audible output but will destroy output transistors within seconds. I caught this on an oscilloscope once - a parasitic oscillation at 2.3 MHz that was completely invisible to the ear but showed a peak of 12 volts on the probe. Added a 47 ohm gate resistor and it vanished immediately. Check for offset voltage at the output. It should be less than 50 millivolts DC for most designs. Higher than that and you are pushing unnecessary current through your speaker, which heats the voice coil and reduces lifespan. A persistent offset usually indicates a mismatched differential pair in the input stage or a failed feedback network component.
Common Pitfalls
Cross-wiring the speaker terminals between channels is surprisingly common in multi-channel builds. The connectors look identical and the wiring is the same color. Label both ends of every wire before you make any connections. It takes thirty seconds per wire and has saved me from rebuilding three different amplifier assemblies. Skipping the feedback loop stability compensation is another frequent error. Some designs include compensation capacitors by default and some require you to add them based on your load characteristics. The datasheet will specify a minimum capacitance value. Ignoring this leads to ringing on square wave responses and potential high-frequency instability under capacitive loads. For PCB-based designs, verify that every via is properly soldered through. Board manufacturers sometimes produce boards with incomplete plating in non-power vias. These show up as open circuits that break and reconnect as the board expands and contracts thermally. An insulation resistance test between all conductive traces and ground before final assembly catches these defects in minutes rather than hours of troubleshooting.
When the Manual Is Not Enough
Some designs simply cannot be assembled successfully from documentation alone. Hybrid amplifiers combining tube input stages with solid-state output stages require careful attention to impedance matching between sections. The output impedance of a tube phase splitter is in the tens of kiloohms range while a solid-state input typically expects something closer to 10 kohms. A buffer stage between them prevents loading issues that degrade frequency response and increase distortion. Balanced input circuits require precise resistor matching in the differential network. A 1% mismatch creates common mode rejection ratios around 40 dB. Tighter tolerance resistors at 0.1% push that to 60 dB or better. For most listening environments this difference is irrelevant, but in electrically noisy spaces like venues with poor grounding or near heavy equipment, the improvement is noticeable. If your design uses a microcontroller for digital controls, firmware version compatibility matters. I encountered a scenario where a display module worked with firmware version 2.1 but produced garbled output on version 2.3 due to a changed initialization sequence. Always document the firmware version you tested with and store it with the unit.
