Putting Together the Documentation for a Consumer Audio Amp

Most people think writing an instruction manual parts list is just typing up a BOM and slapping part numbers next to pictures. It is not. The actual work happens when you are three months into certification and your supplier quietly switches a capacitor manufacturer without telling anyone. That is when the manual stops being useful documentation and starts being a liability. I spent five years at a mid-tier consumer audio house, mostly pulling my hair out over manuals that never matched what actually shipped. The parts list in the manual had to be accurate, compliant, and readable by someone holding a screwdriver in a dimly lit living room. These are different requirements and they fight each other constantly.

Audio Amplifier Instruction Manual Parts List

The core purpose of this section is to give the end user enough technical visibility to perform basic service or verify they have the right unit. It sits alongside the safety warnings and general operating instructions and is usually one of the last things completed before final print. You will typically see it structured around four groups: removable hardware, internal serviceable components, consumables, and proprietary spare parts. Here is how I actually organized it in practice. The removable hardware group covered things like speaker terminals, input connectors, the power cord, and any front panel knobs. This was the most straightforward section because these parts are visible without opening the chassis. Internal serviceable components included fuses, transformers, and output stage PCB assemblies. Consumables were items like remote control batteries. Proprietary spare parts were the ones you could only order through the manufacturer and included things like display modules and custom-wound driver boards. The trick most companies miss is that the parts list must reference the same numbering system used on the silk screen of the actual circuit board. If your manual says "Fuse F1" but the board silk screen says "FUS-01," you have created a problem where the user cannot cross-reference between the two documents. I have seen this error on units from well-known brands. The fix is always the same: go to the fab house and update the board silk screen to match the manual, not the other way around, because changing the board art is cheaper than reprinting five thousand manuals.

One concrete example from my own experience. We had a class-D amplifier design where the thermal fuse rating changed mid-production due to a component shortage. The schematic was updated, the BOM was updated, but the instruction manual had already gone to print with the old fuse part number. The issue was caught during final compliance testing when the safety auditor asked to see the field-replaceable parts documentation. We had no choice but to pull the remaining print runs and add a supplementary insert page. That cost us approximately fourteen thousand dollars in wasted paper and labor plus a three-week delay on the product launch. The workaround after that was simple: implement a formal change notice loop between the engineering change order system and the documentation team, with a hard requirement that any BOM revision triggers a mandatory manual review before the next print batch.

Get the Full Details

Amplifier Service Manual – Vintage Audio Store - Vintage Service Manuals, Stereo Brochures and Parts
Amplifier Service Manual – Vintage Audio Store - Vintage Service Manuals, Stereo Brochures and Parts

Structuring the List for Actual Use

A functional parts list needs at minimum five columns: item number, part description, manufacturer part number, quantity, and notes. The item number should correspond to a reference designator on the schematic, not an arbitrary sequential number. Reference designators let a technician trace a component back through the circuit diagram to understand what it does. Arbitrary numbers do not. The manufacturer part number column is where most errors creep in. Cross-references between suppliers are not always clean. A Vishay resistor and a Yageo resistor with the same value and tolerance can have different lead configurations or mounting hole patterns, which matters if the part is being replaced by a user. Always verify the footprint and terminal type, not just the electrical spec. I used to include a separate reference designator column. Then I realized nobody in the field uses it because the reference designators on cheap amplifiers are often printed too small to read once the chassis is assembled. So I stopped doing that and instead provided a simple diagram of the main PCB with the item numbers called out in large type. It is a compromise, but it is better than having a column that nobody looks at.

Compliance and Liability Considerations

If your amplifier is being sold in the EU, the parts list intersects with the ErP directive and the RoHS requirements. You need to ensure that every component listed is marked as compliant with the applicable restriction of hazardous substances. This means your supplier declarations need to be on file for each part, not just a blanket statement from the assembly house. I learned this the hard way when a third-party testing lab rejected our technical file because we could not produce a RoHS declaration for a specific relay coil component that was listed in the manual parts section. In the US, the FCC Part 15 requirements do not directly govern the parts list content, but if your amplifier is Class B digital device, any change to the power supply components or the switching regulator IC can potentially affect conducted emissions. Replacing a filter capacitor with a different brand might seem harmless but has caused RF interference issues in at least one product line I worked on, where the ESR difference was enough to shift the switching noise spectrum past the FCC limit. For regions with specific audio equipment safety standards like IEC 62368-1, the parts list becomes a compliance document as much as a user guide. The standard requires that any component considered a safety-related part be clearly identified. This typically includes fuses, isolation transformers, Y-capacitors across the primary-secondary boundary, and any protective earth connections. Marking these parts in the manual with a symbol or footnote is standard practice and not optional if you want to pass certification on the first attempt.

Common Pitfalls That Waste Time

The biggest mistake I see is treating the parts list as a static document. It should not be. Every revision to the amplifier hardware, even a minor one like swapping a connector supplier, should trigger a revision bump on the manual. I have seen manuals with five different hardware revisions underneath them, all sharing the same version number. When a customer calls support asking why their replacement part does not fit, the first thing the technician needs is to know which revision of the manual applies to their unit. Without accurate revision tracking, this becomes a guessing game. Another frequent error is including parts in the list that are not serviceable by the end user. A fused PCB with surface-mount components is not a field-replaceable unit. Listing it as such leads to users attempting repairs they cannot complete, which then generates support calls and warranty claims. The correct approach is to label non-serviceable assemblies clearly and direct users to an authorized service center instead. This is not just helpful, it is a liability reduction measure. There is also the problem of overspecifying. I once worked on a project where the parts list included individual resistor values for every component on a signal chain PCB. The result was a twelve-page document that nobody actually needed. For consumer audio amplifiers, the useful level of detail is usually at the module or sub-assembly level, with only the truly field-replaceable items broken down to the component level. This keeps the manual to a reasonable length and focuses the user's attention on parts they are actually likely to need to replace.

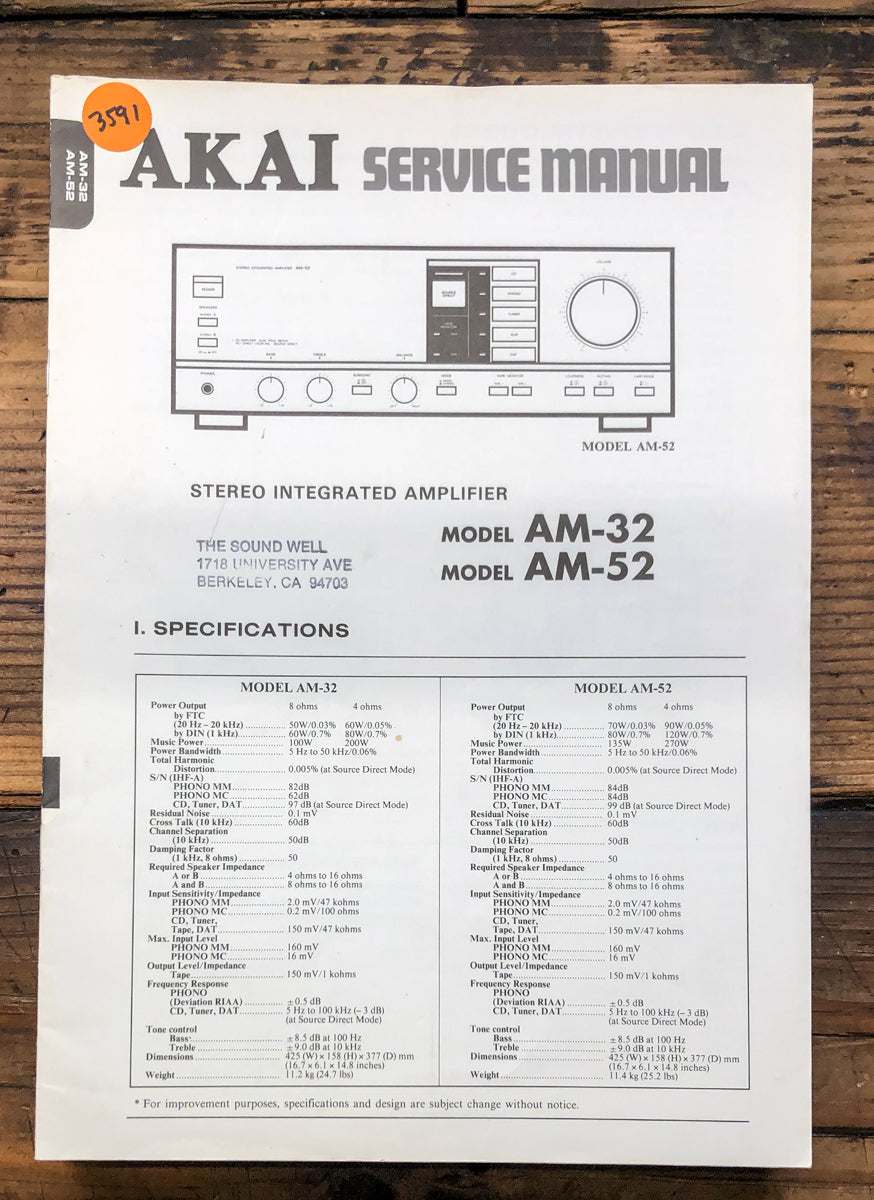

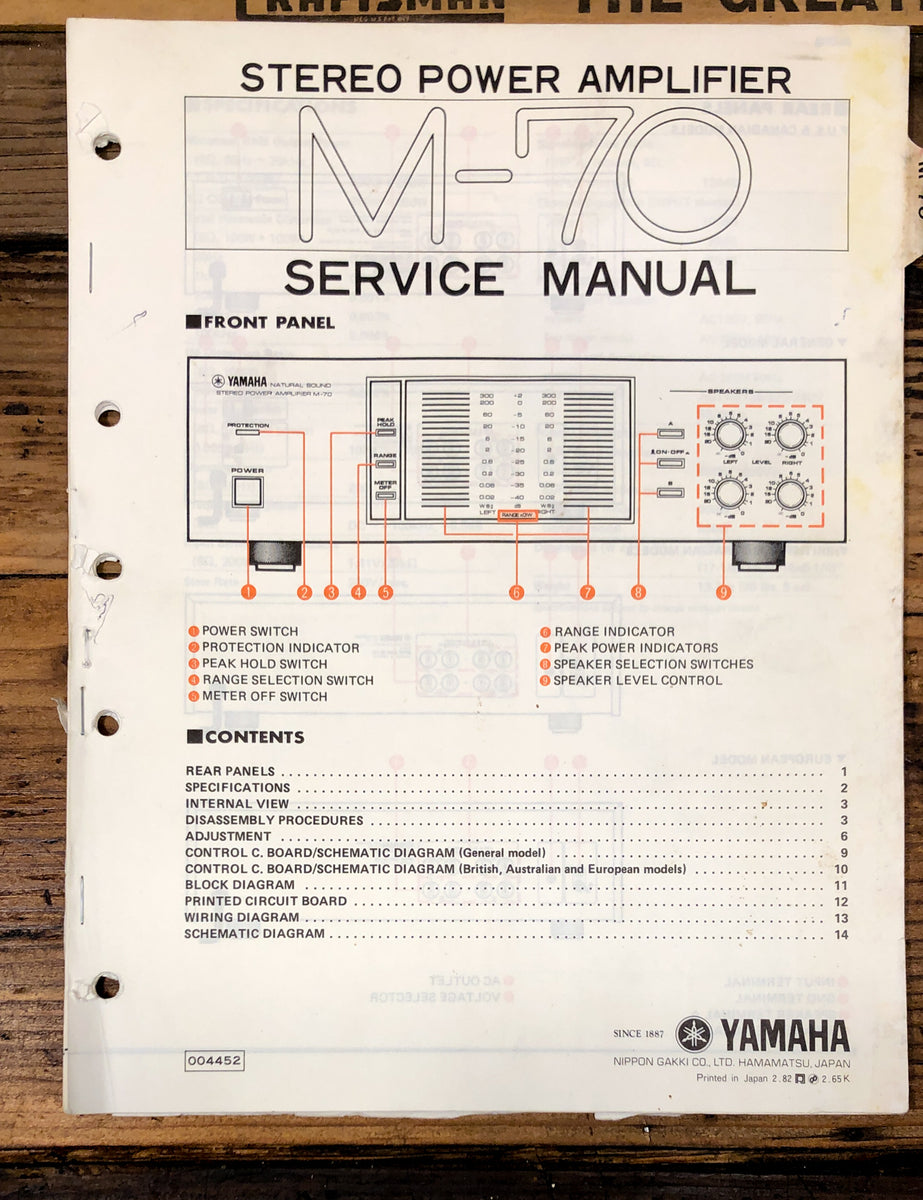

Amplifier Service Manual *Original* – Vintage Audio Store - Vintage Service Manuals, Stereo ...
Amplifier Service Manual *Original* – Vintage Audio Store - Vintage Service Manuals, Stereo ...

When This Approach Fails

The parts list method described here works well for products with fewer than about two hundred unique components and a stable supply chain. It breaks down quickly when you are dealing with a highly customized industrial amplifier where components are sourced from multiple alternate suppliers across different continents, and the BOM changes monthly. In those cases, maintaining a static printed parts list in the manual is impractical. The industry standard alternative is to reference a downloadable parts database or a QR code that links to a live web resource, updated in real time as components change. This shifts the maintenance burden from the print team to the product data management system, which is where it belongs. There is also the question of whether a parts list in the manual is the right format at all for very simple products. A basic powered speaker with no user-serviceable components inside does not benefit from a detailed parts listing. Adding one in those cases just adds clutter and creates expectations for repairability that the product was not designed to support. In those situations, a brief mention that no user-serviceable parts are contained inside is more appropriate and saves about half a page of manual content. The process of building a reliable Audio Amplifier Instruction Manual Parts List takes roughly two to three weeks for a typical stereo amplifier with moderate component count, assuming the engineering team provides the schematic and BOM on time. Delays usually come from late-stage component substitutions by the procurement team, which is why the change notice loop I mentioned earlier is not a nice-to-have, it is the single most important process improvement you can make to this workflow.
