Winding an Auto-Voltage Stabilizer Transformer from Scratch
Most people who ask about this are either rebuilding a failed unit or trying to design one from zero and hitting contradictions in online calculators. The core problem is simple: voltage stabilizer transformers need precisely placed taps on a single winding, and getting the spacing wrong means your output voltage will drift or your copper loss will cook the insulation. I spent three weeks last year untangling a badly wound stabilizer transformer that had been re-coiled by someone who used a generic transformer formula instead of the tap-specific approach. There are no universal winding tables because every stabilizer is built for a specific input range and kVA rating. What you actually need is a working methodology, not a download file. That said, a few resources come close to being useful: the older IECA (International Electrotechnical Commission) documents on auto-transformer construction, some generic winding calculators on Electrical4U and Transtechinfo, and the manufacturer datasheets from brands like Linco, Microtech, or Sona if you can find their repair manuals. Most of those windings follow the same basic architecture regardless of brand. If someone is selling a pre-made winding chart online, treat it with heavy skepticism. The only numbers that matter are the ones calculated for your specific voltage range, frequency, and core size. A 1 kVA chart will not save a 5 kVA coil.
Here is how I actually work through the data, step by step.
Step-by-Step Winding Calculation Process
Step 1: Determine your core area. Measure the central limb of your CRGO or cold-rolled grain-oriented steel core in square inches or square centimeters. Multiply the width by the stack thickness, then apply a stacking factor of about 0.9 for CRGO cores. If your core is laminated, the effective area is slightly less than the gross dimensions. I once bought a core that looked fine until I measured the individual laminations and found a 6% variance from the stated area, which threw off my entire turns-per-volt calculation. Always measure before you calculate. Step 2: Calculate turns per volt. The standard formula is T/V = 10,000 / (B × A), where B is the flux density in kilogauss (typically 10–12 kG for CRGO) and A is the net core area in square centimeters. Some older textbooks use 4.2 / (B × A) when working in inches and gauss, but the metric version is cleaner. For a 50 kcmil core area and 11 kG flux density, you get roughly 18 turns per volt. That means for a 230V primary you need about 4,140 turns total across all sections. Step 3: Map your voltage range to tap positions. This is where most people make mistakes. A stabilizer designed for 180V to 270V input needs taps at roughly every 5V or 10V intervals across that range, depending on how smooth you want the regulation. I always space taps at 5V increments for anything under 3 kVA and 10V increments above that. More taps means more switch complexity and more contact resistance points, which create their own failure modes.
Get the Full Details
Step 4: Calculate conductor size. Use the current density rule. For natural air cooling, 2.5 to 3 A/mm² is the safe range. For forced air, you can push to 4 A/mm². A 1 kVA stabilizer at 230V draws about 4.3A, which means roughly 1.5 mm² conductor area. That puts you around 16 to 17 SWG wire for the main winding. The tap sections that handle higher currents (lower voltage taps) need slightly larger wire, but in practice the difference is small enough that most builders use a single wire gauge for the entire winding and just accept a minor oversize on the high-current taps. Step 5: Layer and insulation planning. Auto-transformer windings are typically laid in layers, not concentric cylinders like a two-winding transformer. Each layer should be insulated with pressboard or polyester film. I use 0.1mm mylar between layers and 0.5mm pressboard between the primary and secondary sections. The inter-layer insulation is what prevents turn-to-turn failures, and skipping it to save time is the fastest way to get a short that you will only discover after the unit has been running for a few weeks under load.

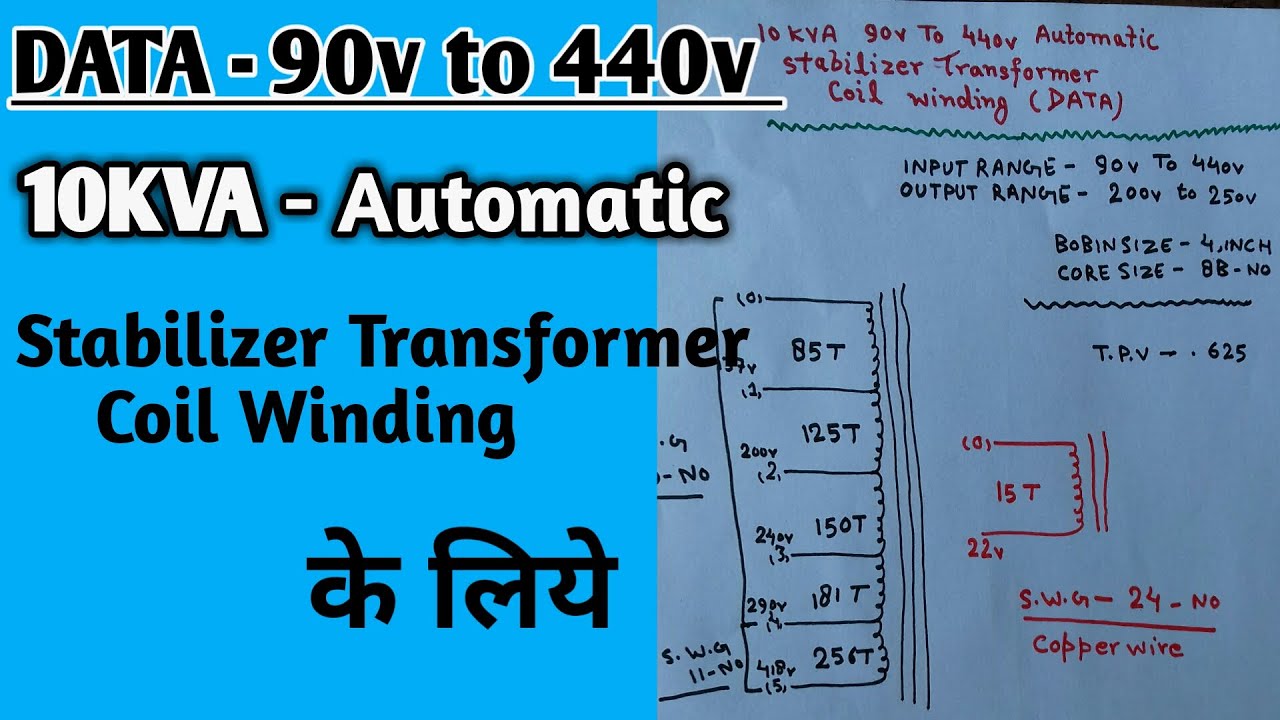

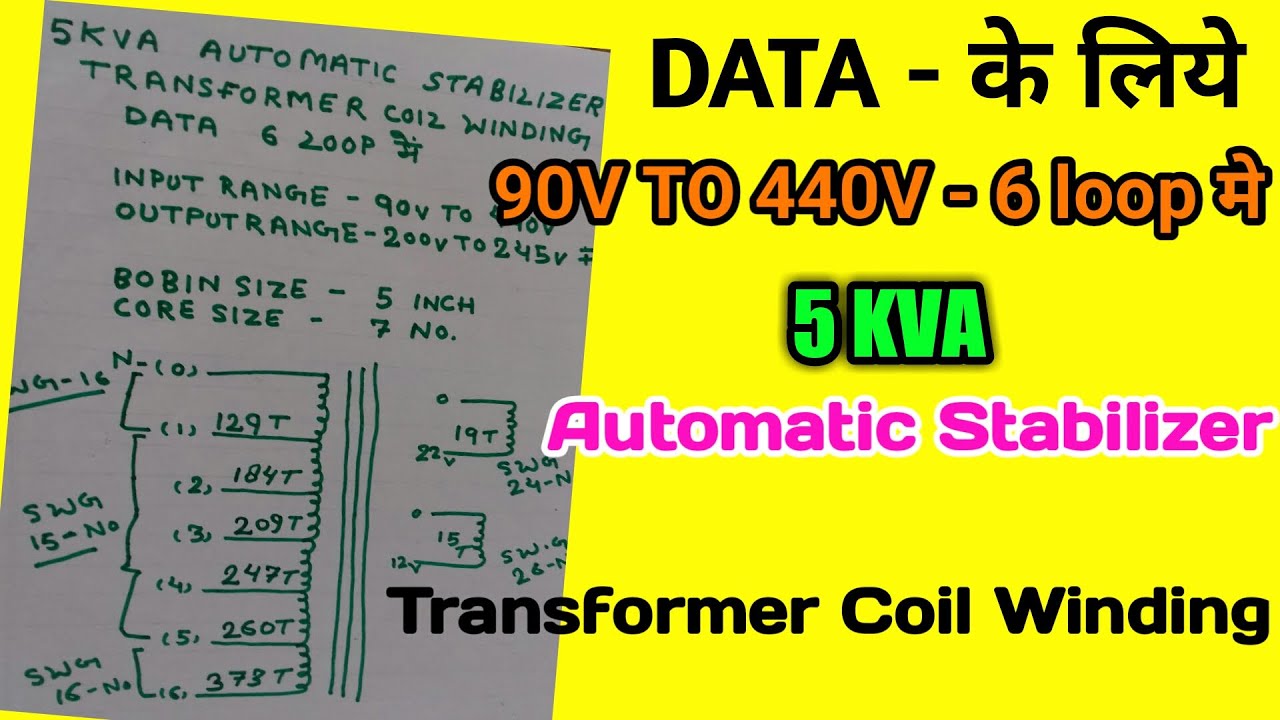

The Tap Switch and Its Relationship to Winding Data
You cannot separate the winding data from the switching mechanism. An automatic voltage stabilizer uses a servo motor, a control board, and a rotary or stepped contactor bank. The number of taps on your winding must match the number of positions on your switch. I have seen people wind 48 taps and then realize their relay selector only has 24 positions, leaving half the winding useless or forcing them to combine taps in ways that ruin regulation accuracy. The control board reads the output voltage, compares it to a reference, and drives the servo to move the wiper to the correct tap. The winding data determines how much voltage change each tap represents. If your turns-per-volt is 18 and you space taps 10V apart, each tap represents roughly 180 turns. The physical spacing between taps on the coil matters for the switch contact placement. Measure twice, cut once, and label every tap before you solder anything.
Common Mistakes That Waste Time and Copper
Ignoring the regulation percentage. Stabilizers are rated for ±10% or ±15% regulation. If your design only covers ±8%, you are wasting copper. If it covers ±20%, you are wasting core space and copper without a real benefit because most loads do not need that wide a range. Design for the actual requirement of your region. In India, ±15% is standard because the grid swings wildly. In Europe, ±10% is usually sufficient. Using EMI-grade wire for everything. Some windings benefit from double-enamelled or varnished cambric-insulated wire, especially in the outer layers where voltage stress is higher. The inner layers can use standard enameled copper, but the outermost layer should have extra insulation. I learned this the hard way when a stabilizer I built for a client failed after six months with insulation breakdown on the last layer. The outer turns saw the highest potential difference relative to the core. Overlooking eddy current losses in thick conductors. If you need a conductor larger than 3mm², consider using multiple thinner strands in parallel rather than a single thick wire. A single thick conductor develops internal eddy currents that increase effective resistance at 50Hz more than you might expect. Stranded litz-style winding reduces this effect noticeably.
My Workaround for an Underspecified Core
About two years ago, I was repairing a 2 kVA stabilizer where the original transformer core had been replaced with a slightly smaller unit from a scrap pile. The original winding data called for a 75 sq cm core. The replacement was 62 sq cm. Running the standard formula with the smaller core gave me a turns-per-volt number that was about 21% too high. If I had wound the coil with the original number of turns, the core would have been severely over-fluxed, drawing excessive magnetizing current and running hot. My workaround was to recalculate everything from the smaller core area, then adjust the tap spacing accordingly. I ended up with 22 turns per volt instead of 18. The voltage per tap changed, so I had to reduce the number of taps by about four to keep the overall winding height within the bobbin capacity. The unit ran fine after that, though the regulation was slightly coarser than the original. For a repair job, that trade-off is acceptable. For a new design, you never undersize the core.
Testing After Winding
Before closing the unit, measure the resistance of the winding with a good multimeter or, preferably, a Wheatstone bridge for low-resistance readings. Compare it to your calculated DC resistance. If it is more than 10% off, you have a turns error. Then do a no-load current test at rated voltage. A properly wound stabilizer transformer should draw less than 3% of rated current on no load. If it draws 5% or more, your turns-per-volt is too low, meaning you have too few turns for the core area, and the core is operating too close to saturation. The easiest final check is to run the unit through its full voltage range with a variac and log the output at each tap position. If any tap shows more than 3% deviation from the expected voltage, you have a tap spacing issue that needs correction before potting or final assembly.
