Getting Your Pool Installed Right the First Time
Most people buying a backyard pool figure the hardest part is digging. It is not. The manual that comes in the box does not really cover the stuff that goes wrong, which is why everyone ends up stripping bolts and wrestling with uneven ground at midnight. I have done this probably half a dozen times now across different models, and each one has its own quirks that the printed guide glosses over entirely. Open the manual on a flat surface and read it completely before you unpack a single part. Seriously, just do that. Most errors people make happen because they start assembling the wall panels before they realize the floor protector needs to go down first, or they misread the bolt torque specs and cross-thread something expensive. The section on Site Preparation is the one people skip. That section matters. The manual breaks into roughly four phases. Phase one is site prep and verification. Phase two is the base and floor installation. Phase three is the wall and top rail assembly. Phase four covers filtration setup and the initial fill. If you treat them like a checklist instead of a sequence, you will regret it later when the walls are plumb but the gutter channel does not align with the skimmer cutout.
The Actual Step-by-Step Process
Start by laying out the footprint using a garden hose or chalk line. Verify the diagonal measurements are within half an inch of each other. If they are not, the rectangle is racked and every panel after that will fight you. Square it up before you move forward. Next goes the ground preparation. The manual recommends a sand or fine gravel base, roughly two inches compacted. Level it across the entire area. This is where things usually go sideways. A garden level will tell you the high and low spots, but what matters more is that there are no sharp transitions. A sudden three-inch drop under one section of the pool floor liner causes stress concentration that eventually leads to splitting. Smooth out those transitions. Tamping with a hand tamper takes about forty-five minutes for a standard above-ground pool. The floor protection mat comes down next if your model includes one. I strongly recommend against skipping it. My own experience with a 15-foot round pool on a slightly rocky yard taught me that. There was a small buried stone the grading had not caught, and it pushed up through the liner within three weeks. After that install, I always put down the protective layer and check the base twice with my hands, feeling for any hard spots through the mat before unfolding the liner.
The liner itself requires patience. Unfold it on top of the prepared base, not beside it, and let it sit in the sun for a couple of hours if the weather is cool. Cold vinyl is stiff and tears easily when you pull on it. Warm vinyl stretches. Once it is laid, you do not need to vacuum-seal it like some manuals suggest for every single pool type. For above-ground installations with a rigid base, the water weight during filling is what seats the liner. Just make sure the corners and the skimmer opening are aligned correctly before you start adding water. Wall panel assembly starts with the corner brackets. Bolt them together finger-tight initially. Run the top rail around the entire perimeter before you fully torque anything. This gives the structure flexibility to self-adjust as the panels settle. The manual lists a specific torque value for the bolts, usually somewhere between 15 and 20 foot-pounds depending on the model. I use a click-type torque wrench for this, not an impact driver. Over-torquing strips the threads on the bracket plates, and replacing a bent bracket is a pain. Here is a detail most installers miss. After the wall panels are up but before you fill the pool, install the gutter channel and then set the coping caps. The channel sits on top of the wall rail and catches the water overflow. If you wait until the pool is partially full to install the channel, the pressure on the walls is uneven and you can push a section out of alignment. It happened to me on a 22 by 48 oval. I ended up having to drain it about four inches, loosen the affected panel clamps, reseat the channel, and refill. That cost me a solid afternoon.
Get the Full Details
Filtration and Plumbing Setup
The filter system is usually a cartridge or sand unit rated for your pool's volume. Match the flow rate to the manufacturer recommendation. An undersized pump will struggle, especially in cooler weather when the water is denser and more viscous. Connect the inlet and outlet fittings with Teflon tape on the threads, not pipe dope, unless the manual specifically calls for it. Most of these fittings are designed for tape only. Skimmer installation involves cutting into the wall panel. Measure twice, cut once. The template in the manual gives you the placement, but the actual cutting tool matters. A rotary tool with a cutting wheel works cleanly. A jigsaw tends to splinter the aluminum or steel edge depending on the material of your wall panel. I cut on the inside face of the panel rather than the outside, which means any minor burrs end up facing the water rather than creating a splash-back surface.
Common Mistakes and What to Do Instead
People forget to check local building codes. Some municipalities require a barrier or fence around pools over a certain depth. Others have restrictions on drainage runoff. Calling your local building department before you start saves a headache later. Another frequent error is ignoring the thermal expansion gap. Vinyl liners expand and contract with temperature changes. If you tension the liner too tightly during installation, especially in cold weather, it will eventually pull away from the tracks or develop wrinkles. Leave about a half-inch of overlap along the top and tuck it under the coping, not pull it tight. Chemical balancing is not optional just because the pool is above ground. The manual includes a basic chemistry chart, but it assumes you are starting with municipal water. If you are filling from a well, the mineral content can shock the system and discolor the liner. Test your source water first. pH should sit between 7.4 and 7.6, alkalinity between 80 and 120 ppm, and sanitizer levels according to the chart for your pool's gallon capacity. Adding chemicals directly into the skimmer while the pump is running distributes them evenly without bleaching the liner in one spot.
When the Manual Does Not Cover Something

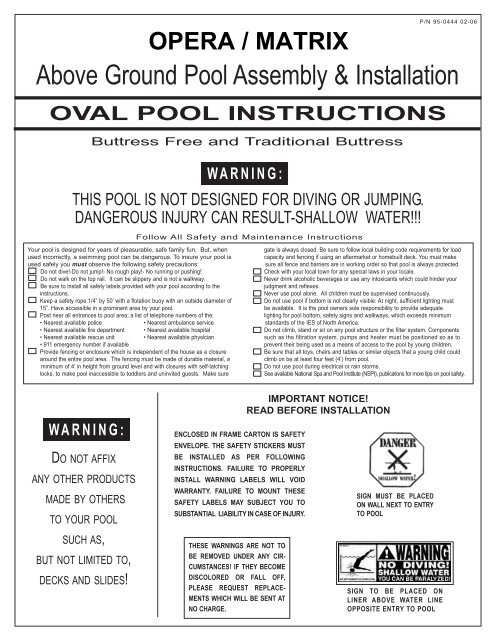

Here is the honest part. The Backyard Leisure Pools Installation Manual is solid for a standard residential install on level ground with normal soil conditions. It is not built for sloped yards, heavy clay, or areas with high water tables. If your site has any of those conditions, the manual becomes a starting point rather than a complete guide, and you will need to adapt the base preparation significantly. For sloped sites, you have two real options. You can build a retaining structure and excavate to create a level pad, which is expensive and labor-intensive, or you can step the pool installation down the slope with retaining walls on the high side. Neither is mentioned in the manual. I went the retaining wall route on a property with a six-degree slope and ended up using interlocking concrete blocks behind the upper edge. It worked fine, but it required engineering judgment the booklet does not provide. High water table is another scenario where the manual fails you. If you live in a area where the groundwater rises within a few feet of the surface, filling the pool creates buoyancy. An empty pool in wet soil is basically a boat waiting to float. The workaround is installing a perimeter drain trench around the excavation before you set the base, directing water away with a sump pump if necessary. Without that, you risk the pool shifting or the floor becoming unstable.
Final Notes on Maintenance After Installation
Once the pool is filled and running, check the bolt tension after the first week and again after the first month. Temperature changes and water pressure cause settling. Re-torque any that have dropped below specification. Inspect the liner for any bulging or wrinkling, especially around the return jets where the flow pattern can create persistent pressure points. The cartridge filter needs cleaning every three to six months depending on usage. Backwash sand filters according to the manual's pressure differential guidance, usually when the PSI reads about 8 to 10 above the clean starting pressure. Replace cartridges annually or sooner if they show visible damage. I keep the manual in a waterproof folder near the pool equipment area. When something goes wrong at 9 PM on a Saturday, you do not want to be hunting for it. The troubleshooting section in the back is surprisingly useful if you actually read it, though it leaves out the sloped-site and water table scenarios entirely. That is why this guide exists alongside it.
