Guide Blocks on a Band Saw: The Small Thing That Actually Matters

Most people build or buy a band saw and immediately start cutting. They don't think about the guide blocks until their blade starts wandering, smoking the wood, or throwing offcuts that are angled by half a degree. By then it's already annoying. The guide block is the first thing I check when a saw is running poorly. It's also the thing people get wrong most often. A guide block sits next to the blade just above and below the table. Its job is simple: keep the blade from flexing laterally during a cut. That's it. But getting it right changes everything about how your saw performs. I've seen cheap ceramic blocks and I've seen homemade aluminum ones. The ceramic ones wear down fast. The aluminum ones work fine if you set them correctly. There's a difference between a guide block that's "on" and one that's doing its job, and it usually comes down to one specific measurement most people skip.

Adjusting Your Band Saw Guide Block Properly

Here's how I do it, and it took me about three years to stop overcomplicating this process. First, you need the blade tensioned and tracking correctly. If the blade is tracking poorly, no amount of guide block adjustment will fix the cut. Run the saw empty for a minute or two. Watch where the blade rides on the upper and lower wheels. The center of the blade should sit roughly in the middle of the wheel crown, maybe a millimeter toward the front edge. If it's drifting hard one way, that's a tracking issue, not a guide block issue. Fix tracking first. Once tracking is set, focus on the side guide blocks. These are the ones that contact the blade from the sides, not the thrust bearings behind it. For ceramic or phenolic blocks, the gap should be approximately the thickness of a sheet of paper. That's about 0.1 millimeters. I use a piece of cardstock on my own saw. Some people use feeler gauges. Both work. The point is you need a measurable reference, not just "close enough."

Loosen the block adjustment screw. Place your reference material between the block and the blade. Tighten the screw until you feel slight resistance, then back it off a quarter turn. The block should not touch the blade when the saw is running. This is counter-intuitive for most people. They think the block should press against the blade. It shouldn't. The block only needs to catch the blade if it starts to deflect. A block touching the spinning blade creates heat, wears the blade, and can actually cause the blade towander into the block, making the problem worse. I learned this the hard way. Set both the upper and lower side guide blocks at the same gap. They should be positioned as close to the workpiece as possible without actually touching it. The closer they are to the cut, the more effective they are at preventing deflection. I usually set the upper block about a quarter inch above the table surface and the lower block just below, supporting the blade on both sides of the cut line. This gives maximum support where it matters most. After setting everything, do a test cut. Run a piece of scrap through and check the exit angle. If the cut is straight, you're done. If the cut drifts, check which side the blade is leaning toward and adjust that block slightly. It's a small movement. A eighth of a turn on the adjustment screw makes a noticeable difference. Go too far and you'll hear the block scraping the blade. That sound means you've crossed the line. Back off immediately.

I once had a situation where my blade kept wandering despite perfectly set guide blocks. It turned out the issue was blade tension, not the guides. My tension was about 25 percent too low for a 1-inch hook tooth blade. Once I brought it up to the manufacturer's spec and rechecked the blocks, the cuts were clean. Never assume the guide blocks are the problem before ruling out tension, tracking, or blade condition. Three separate things that can produce the same symptom. Another detail people miss: the guide blocks need to be parallel to the blade path. If your block is angled even slightly, it creates uneven pressure and the blade will still deflect. Use a square against the side of the block and the table edge to verify. If it's off, Shim it or adjust the mount. Most guide block assemblies have adjustment screws that allow minor angular correction. Take the time to use them. For resawing, the guide blocks become critical. This is where blade deflection is most obvious because you're pushing a long narrow blade through thick material. Set the upper guide block as close to the workpiece as you can get it. The lower block should support the blade right at the point where it exits the cut. Many people ignore the lower block entirely and wonder why their resaws cut crooked. Both blocks matter. Set both.

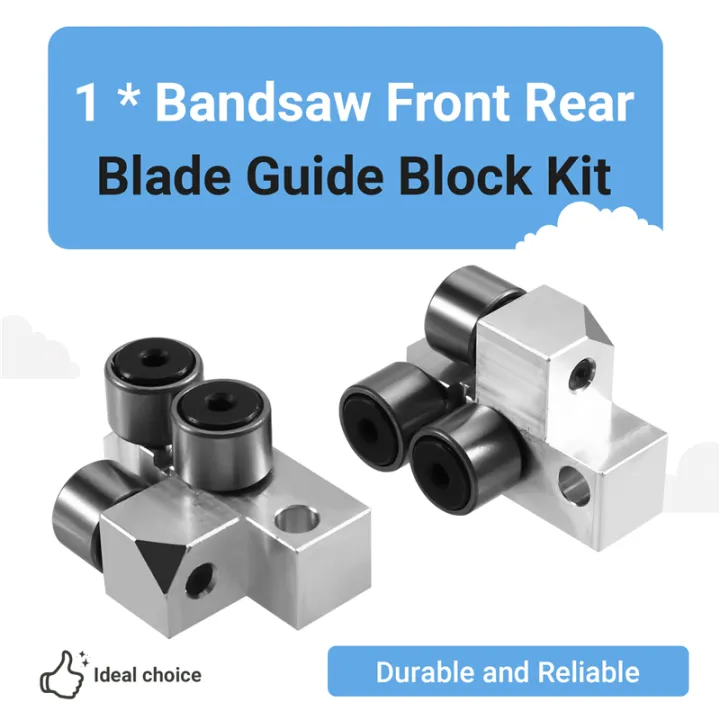

If you're cutting metal instead of wood, the rules change slightly. You need less clearance and often a different block material. Ceramic blocks can shatter under the different stress patterns. Use carbide-tipped or hardened steel guide blocks for metal cutting. The gap should be closer to 0.05 millimeters. Again, a sheet of paper is about double what you need. Use something thinner if you have it. A single layer of notebook paper works in a pinch. The biggest mistake I see repeatedly is people setting the blocks too tight because they think more contact equals better guidance. It doesn't. More contact equals more friction, more heat, and faster blade wear. The guide block is a safety net, not a support structure. The blade's own tension and your tensioner provide the support. The block just catches any unexpected deflection. Treat it that way and your blades will last longer and your cuts will be straighter. If your saw came with guide blocks and they're ceramic, consider upgrading to a set with adjustable mounting hardware. Cheap fixed mounts don't allow precise positioning. Aftermarket kits with slotted bases and locking screws let you dial in the exact placement and angle. The difference is noticeable within the first few cuts. Worth the extra fifteen dollars on a saw that otherwise cuts acceptably.

One last thing about the material itself. Phenolic blocks wear slower than ceramic and don't chip. They also run cooler. If you're cutting abrasive woods like oak or teak, phenolic will outlast ceramic by a significant margin. I switched to phenolic about two years ago and haven't gone back. The initial cost is higher but the replacement cycle is much longer. Your yearly spending on guide blocks drops considerably.
