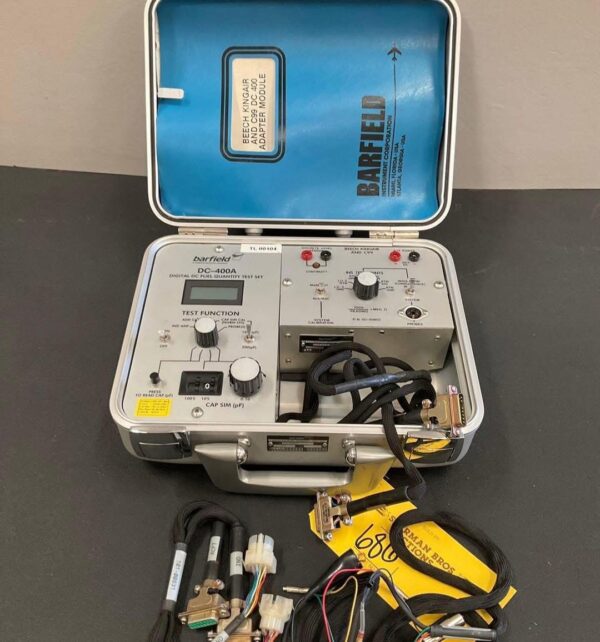

Getting Your Barfield Fuel Quantity Test Set Up and Running
You pull the test set out of the rack, and half the time the first thing you notice is that the cable harness is a mess. That's normal. The Barfield Fuel Quantity Test Set Manual walks you through the basics, but it doesn't always tell you what actually goes wrong when you're on the flight line at 0500 with a schedule to keep. I've run these things for years, and there are a few things that aren't obvious from the manual alone. The core function of the test set is to simulate capacitance variations in fuel tank probes and verify that the fuel quantity indicating system reads correctly across the full range. It replaces the actual fuel with a known electrical signal. Simple in theory. The devil is in the details of connector compatibility, lead dress, and how your aircraft's FQIS responds to the simulated ramp.
Barfield Fuel Quantity Test Set Manual
The manual itself covers setup procedures, calibration routines, error codes, and connector pinouts. It's thorough but dense. I keep mine on the shelf and refer to it for specific pin assignments and calibration steps. The quick-start section in the manual is where most people should begin. Power it up and let it warm. The manual says five minutes. In practice, I give it eight before running any precision tests. The internal references settle differently depending on ambient temperature, especially if you're bringing the unit from a cold hangar into a conditioned workspace. If you skip the warm-up, your readings drift and you waste time rechecking them later. The test leads connect between the Barfield unit and the aircraft's probe connectors. You'll typically disconnect the probes at the tank or at the main junction box depending on your aircraft type. Airbus A320 family aircraft usually have access at the wing root junction. Boeing 737 NG uses a similar approach but the connector locations differ. Know your aircraft's access points before you start. The manual doesn't cover aircraft-specific wiring — that's in the AMM or IPC for your specific model.
Select the correct probe type on the test set. Most modern Barfield units have pre-programmed probe profiles for common aircraft. If your probe type isn't listed, you can enter custom capacitance values manually. I once worked on a turboprop with an after-market fuel tank liner that changed the effective probe capacitance by roughly twelve percent from the factory spec. The test set read everything within tolerance, but the actual fuel quantity was off by almost two hundred pounds at mid-range. The manual doesn't warn you about this because it's an edge case specific to non-OEM modifications. The workaround was measuring the actual capacitance with a precision LCR meter at each probe and entering those values instead of relying on the default profile. Took twenty extra minutes but saved us from shipping the aircraft back to the MRO twice. When you run a sweep test, the unit ramps capacitance from empty to full and records the FQIS response. Watch the graph on the display. A healthy system tracks the ramp smoothly. If you see steps, dips, or oscillations, that indicates a problem in the cabling, a bad probe, or a failing Q-Unit. The manual lists acceptable deviation ranges, but those ranges assume ideal conditions. In the field, I've seen minor connector corrosion cause intermittent readings that look like probe failures but clear up after you clean the contacts with deox and reseat them. Calibration is another area where the manual is accurate but not entirely practical. It recommends calibration at specific intervals, typically annually. However, if you're running the unit hard — daily checks on multiple aircraft — you should calibrate more frequently or at least verify with a known standard before critical tests. I use a precision resistor decade box as a sanity check. Two minutes, and it tells me whether the test set is still tracking or has drifted enough to invalidate my results. The manual mentions this possibility in a footnote somewhere, but most technicians don't read that far.
Get the Full Details
Error codes. The Barfield unit throws them when something doesn't match expected parameters. Most are straightforward — open circuit, short circuit, out-of-range capacitance. But one code that trips people up is the impedance mismatch error during high-frequency sweeps. It doesn't mean the aircraft has a problem. It often means the cable length between the test set and the aircraft exceeds the recommended maximum, or you're using extension cables that add parasitic capacitance. The manual gives cable length recommendations, but it assumes you're using the provided harness. If you're improvising with extensions on the line, keep the total run under thirty feet and avoid coiling excess cable. I learned that the hard way on a 777 check at a remote station where we didn't have the full harness kit. Coiled the spare cable on the floor, got the error, spent an hour debugging before realizing the coil itself was the problem. Data logging is built into most newer Barfield models. Use it. The manual explains how to export the data, but doesn't emphasize why it matters. Those logs become your evidence trail. When a discrepancy shows up during a follow-up inspection, you need to prove whether the issue was in the test set, the cabling, or the aircraft system. Saved me from a blame cycle on an A330 once where the dispatch team thought the test set was faulty and wanted to remove it from service. The logged data showed the test set was fine and the problem was a corroded probe connector hidden inside the tank access panel. The biggest limitation of the Barfield fuel quantity test set is that it only validates the electrical simulation path. It cannot detect mechanical fuel quantity issues like stuck float switches, partial probe blockage from debris, or fuel contamination affecting capacitance readings. If your aircraft has hybrid systems with both capacitance probes and magnetic induc tan levels, the test set covers the capacitance portion only. You still need to verify the other sensors through their own test procedures. The manual touches on this but it's easy to miss if you're skimming.
Another practical limitation: the test set assumes the aircraft's power and grounding are stable. If you're running off a portable ground power unit with noisy output, you can get false readings. I always check the aircraft's bus voltage before starting. It should be in the normal operating range, ideally above twenty-four volts on a twenty-eight volt system. Anything lower and the FQIS computers may not operate within spec, which makes your test results unreliable regardless of what the Barfield unit shows. If you need the manual itself, Barfield Engineering publishes it on their website. Search for the model number on your unit — usually a label on the rear panel — and download the corresponding document. The link is straightforward on their support page. Make sure you have the revision that matches your firmware version. I've had mismatches between the manual and the actual menu structure because the unit received an update that changed the calibration sequence. The firmware change log is separate from the manual and worth reading when you apply updates. The process from unboxing to a completed fuel quantity check on a typical narrow-body aircraft takes about forty-five minutes to an hour with this setup. That includes warm-up, connector inspection, test execution, and data review. If you're doing it slower, you're probably second-guessing readings or dealing with connector issues that could have been prevented with better preparation. Lay out your harness, verify your cable integrity before connecting to the aircraft, and trust the data but verify the setup. That's the short version of how this actually works in the shop.
