Working With the X32 Compact Manual

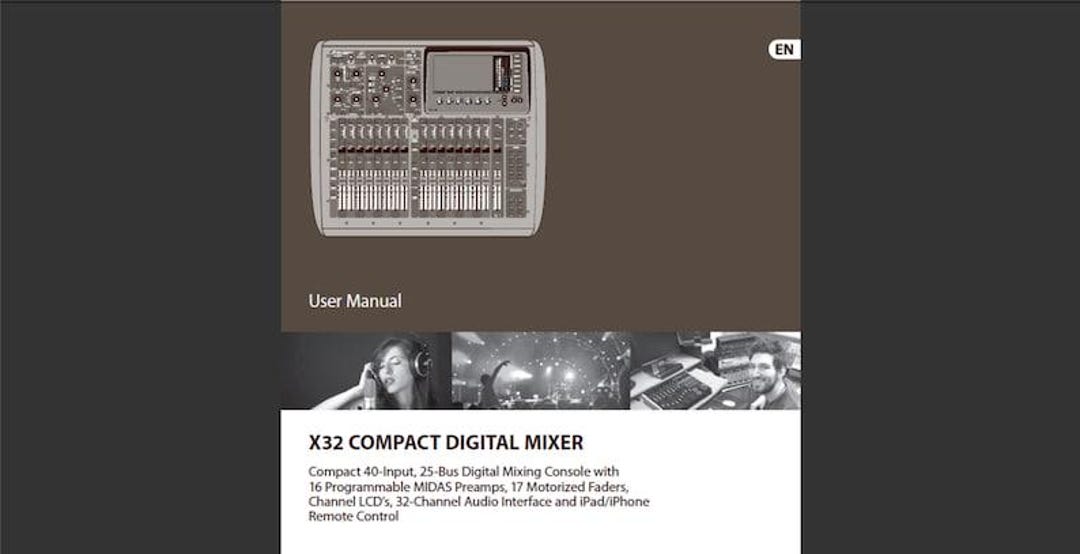

The Behringer X32 Compact manual is a 400+ page PDF that covers every button, screen, and menu on the console. It is thorough. It is also overwhelmingly dense. I have recommended this document to people who just wanted to know how to assign a mic to a channel strip, and they stared at it blankly for ten minutes before giving up. The manual works best when you approach it with a specific problem in mind rather than trying to read it cover to cover. You can download it directly from Behringer's support site under the X32 Compact product page. It is free. I recommend saving a local copy because the online version sometimes loads slowly on older browsers, and you do not want to be hunting for the USB restore procedure while a singer is mid-performance. Once you have the PDF, use the search function heavily. The table of contents is detailed but navigating by page number is slower than searching for a keyword like "AES50" or "MADI." Here is a practical issue I ran into early on: the manual describes the USB disk format as FAT32, but it does not explicitly state that the drive needs to be formatted as FAT32 with a single partition. I tried using a 64GB exFAT drive once and the console simply did not recognize it. Formatting a smaller drive to FAT32 fixed it immediately. The manual implies this but never says it outright.
The manual is organized into sections that roughly follow the signal flow. Channel strips come first, then routing, then the master section, then system settings. This structure makes sense if you already understand how the X32 route audio internally. If you do not, you will flip between sections trying to understand why a channel on Input 1 is appearing on Bus 1/2 instead of the main mix, and the manual will not connect those dots for you without context. One counter-intuitive thing the manual does not make clear: the channel strip screen and the route screen are not independent. When you assign a channel to a bus on the route page, you do not see that bus level or status reflected on the channel strip itself unless you bring up the aux send faders. Beginners often think their channel is not going anywhere because the main fader looks correct but the output is silent. The signal is actually sitting on a bus that nobody has muted or raised. Check the aux send levels first before blaming a cable or a microphone. Another common trap: the manual describes the "Path" system for routing, which lets you create custom signal paths between sources and destinations. The concept is useful but the implementation requires understanding that every source and destination has an address. A microphone on Input 3 is addressed as "In 03," and a mix bus is addressed as "Mix 01." The manual explains this in section 4.3 but the examples use different addresses than what most people would actually need, so you have to mentally map the examples to your own setup. It took me three live shows to stop second-guessing whether I had typed the address correctly.
The manual covers the recall system in detail, including the eight scene memory buttons and the snapshot feature. The limitation that nobody seems to warn about is that snapshots save the entire console state, including user names, labels, and note fields. If you mix multiple genres or work with different bands that have very different input setups, you will end up with a recall that overwrites your previous band's mic names and labels. I learned this the hard way when a folk duo's acoustic setup got replaced by a full rock band's configuration mid-set. I had saved a snapshot between acts without realizing it would overwrite everything. For the technical specs, the manual lists 40 input channels, 25 motorized faders, 16 fully addressable aux buses, and a 32-by-32 AES50 interface. It also notes the built-in effects processor and the dual SD card slot for recording. What the manual understates is the importance of the network settings. The X32 Compact relies on a stable IP configuration for rack mode and remote control applications. If your network switch has DHCP conflicts or your subnet mask is misconfigured, the console will behave erratically with no clear error message. Set static IPs for all connected devices. The manual mentions IP configuration in chapter 13 but does not emphasize that network stability is a prerequisite for reliable operation. There is also a section on the X32 Edit software, which runs on a computer and provides a graphical representation of the console. The manual acknowledges the software but treats it as optional. In practice, I find the software indispensable for deep edits because the physical console screen is small and the menus are buried. The manual recommends installing the software before attempting any complex routing tasks, and that advice is worth following.
Get the Full Details
If you are coming from an analog desk, the manual will feel like it assumes you already know the digital signal flow. It does not explain why a preamp gain stage matters differently than on an analog console, or why phantom power distribution follows a specific pattern across the input blocks. These gaps are real. The workaround is to pair the manual with forum discussions and video walkthroughs that show the console in action, because seeing the process is faster than reading about it. The Behringer X32 Compact Manual is a solid reference document. It is not a beginner's tutorial. Use it as a lookup tool for specific procedures, not as a teaching resource. When you hit a wall, search the PDF for the relevant keyword, cross-reference with what you are actually doing on the console, and test the setting in a controlled environment before trusting it for a live show.
