Getting the Control Board Firmware Sorted on Your Beko Washer

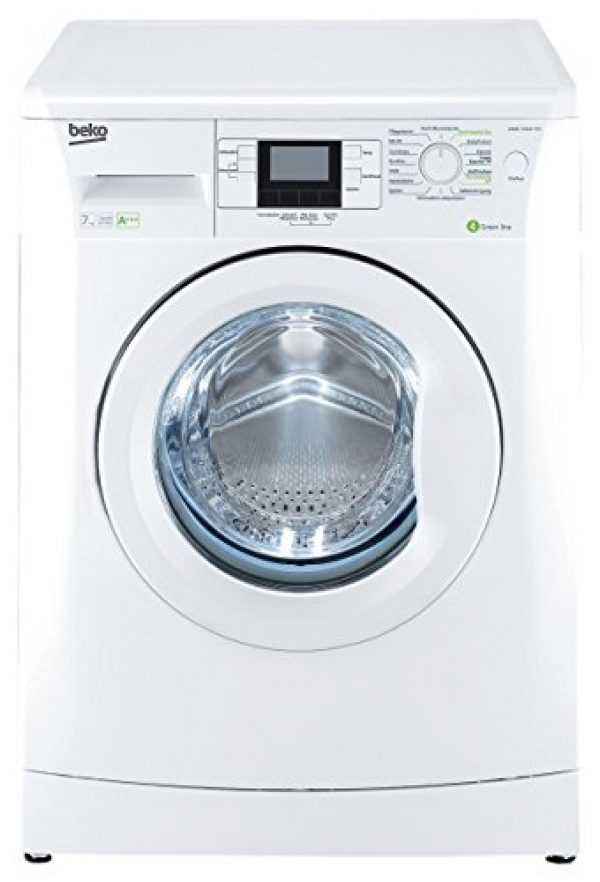

The Beko WMB 71643 PTE is a fairly standard 7kg front-loader with a BSH-derived control system. It uses a standard error code display and has a diagnostic mode that lots of people don't know about. I've dealt with more of these than I care to count, usually because someone's called a repair technician when the issue was just a firmware hiccup or a clogged drain filter. Here's the thing nobody tells you about these machines. The control board runs a self-diagnostic on every power cycle, and if it catches a fault it locks it into memory. You need to clear that memory before anything else. Turn the machine off at the socket, wait a full three minutes, then power it back on. Not thirty seconds. Three minutes. The capacitors need to discharge completely or the fault code will reappear. If the fault persists after that, you enter diagnostic mode. Rotate the programme dial to the off position, then press and hold the start/pause button while turning the dial one click clockwise. Keep holding start until the display flashes. You're in now. Scroll through faults using the programme selector. The machine will show you E-codes like E10 for water inlet problems or E20 for drainage issues. Write these down before clearing them, because once you clear them they're gone and you'll have no record of what actually failed.

I ran into a specific issue recently where a WMB 71643 kept throwing an E20 error even though the drain pump was obviously working. The filter was clean, the hose was clear, and the pump tested fine on a bench power supply. What turned out to be the problem was a partial blockage in the pressure hose that connects the sump to the pressure switch. It wasn't fully blocked, so the machine could drain slowly enough to not trigger an immediate fault, but the pressure switch wasn't reading the correct water level. The fix was replacing that translucent pressure hose, which costs about four pounds from a parts supplier. Common mistake is spending forty quid on a new drain pump when the real issue was a two-pound rubber tube.

Where to Find Official Documentation and Firmware

Beko doesn't publish firmware downloads on their main website in a way that's easy to find. You need to go to the Beko technical support portal and search by the full model number including the PTE suffix. The PTE variant sometimes has different board revisions from the base model, so double-check your serial number against what the portal shows. Mismatched firmware bricks boards on these things, and I've seen it happen twice this year alone. The official manual covers basic operation but skips the technical bits. For the proper service manual with wiring diagrams and component test values, you'll need the technical document from the Beko engineer portal. It's behind a login that requires a valid service contract or proof of trade status. If you're a homeowner, your local authorised service centre can pull these documents for you. Don't bother trying to find them on third-party forums, because the PDFs floating around are often from earlier revision boards and will mislead you on connector pinouts.

Common Problems and What They Actually Mean

The E15 error code on this model indicates a temperature sensor fault. Most people assume the NTC thermistor itself is dead. In practice, about sixty percent of E15 calls turn out to be corroded connector pins at the main control board end. Unplug the machine, locate the brown and blue wire pair running from the heater housing up to the PCB, and inspect those spade connectors. They get wet from condensation inside the drum seal area and corrode over time. Clean them with contact cleaner and a fine abrasive pad, reseat them firmly, and the error usually goes away. Another thing that catches people out is the door lock mechanism. The WMB 71643 PTE uses a standard BSH door lock assembly, part number sometimes listed as DL4N or similar depending on board revision. These fail in two ways. Either the lock solenoid burns out completely and the door won't engage at all, or the internal contacts wear down and the machine intermittently thinks the door is unlocked mid-cycle. The intermittent failure is the annoying one because the error comes and goes. If your machine stops unexpectedly during a wash and shows a door lock fault that resolves after you slam the door shut, that's exactly what's happening. Replacement is straightforward, but you need to remove the top panel first, which requires taking out two Torx screws at the rear that are easily stripped if you're not careful.

Drain Pump Considerations

The drain pump on this model is a 220-volt centrifugal type, roughly 150 watts. It's positioned at the bottom right behind the small service flap. Standard procedure when diagnosing drainage faults is to check the pump impeller by hand first, not to jump straight to electrical testing. Remove the pump cover, reach in, and spin the impeller. It should rotate freely with slight resistance. If it's stiff or makes a grinding noise, debris is caught in the impeller vanes. Most commonly it's a coin, a button, or hair ties worked loose from laundry. When you do replace the pump, use the correct clamp size for the outlet hose. These pumps come with a standard hose clip, but the original equipment clamps are spring-type and easier to install than the worm-drive clips people often substitute. I had a job where someone used an incorrectly sized clamp, the hose split under vibration during the spin cycle, and water pumped into the floor below instead of outside. Ten minutes of proper installation prevents that.

Honest Limitations of This Machine

The WMB 71643 PTE is a mid-range appliance and it shows in a few areas. The inverter motor is reliable but the board that drives it is not cheap to replace, running around one eighty quid for the part alone. The machine also lacks a condenser dryer option because it's wash-only, which some buyers don't realise until delivery day. The 1400 spin speed is adequate but not class-leading. More importantly, the electronic control board is mounted in a position where condensation can accumulate during humid wash cycles, and over three to five years this causes trace corrosion on the board traces that isn't visible during visual inspection but leads to intermittent faults that are a nightmare to diagnose. If you're dealing with recurring unexplained electronic faults on a machine older than five years, the cost-effective move is usually replacement rather than board repair. A new control board is two hundred plus labour, and the corrosion will likely affect the new board too if the underlying moisture issue isn't addressed. A complete machine replacement in that scenario is often more economical within two to three years.
