Understanding and Installing Boat Trailer Guide Bunks

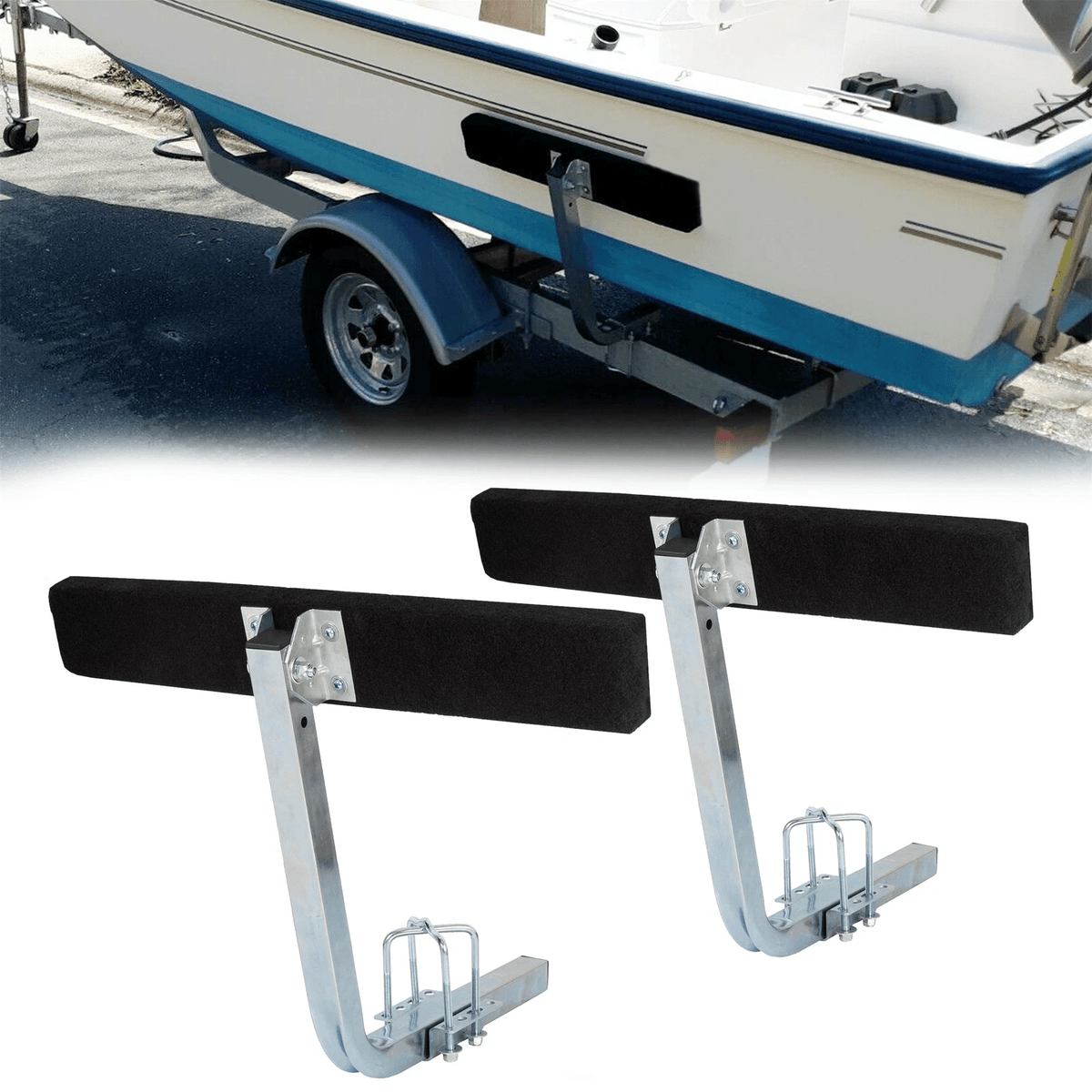

Guide bunks are foam-padded supports on the front portion of a boat trailer that keep the bow section centered while you're loading. They sit ahead of the main trailer bunks and create a small ramp angle that naturally steers the hull into position. Without them, you're guessing where the hull sits every time you back up, and that leads to scraped gelcoat and crooked loads. The principle is simple. The bunk is angled slightly so that when the bow of the boat makes contact, the hull slides sideways toward the centerline of the trailer rather than past it. Most aftermarket bunks come pre-angled at about 10 to 15 degrees. Some trailer builders angle the entire bunk frame before attaching the pads, which is more durable than trying to achieve the same effect with just a tilted pad. I installed guide bunks on a friend's trailer once using off-the-shelf adjustable roller-and-bunk combos. The factory brackets were flimsy and bent within six months of regular use. I replaced them with custom-welded mount plates made from 3/16 inch steel and heavy-duty U-bolts. That setup has been solid for four years now across multiple seasons. The takeaway is that the mounting hardware matters as much as the pad itself. Cheap brackets will let the whole assembly work loose under vibration and load.
The foam type is worth paying attention to. Closed-cell marine foam won't absorb water the way open-cell foam does. Open-cell bunks get heavy, stay wet, and can damage a hull finish over time from trapped moisture and debris. I've pulled apart bunks that looked fine on the outside and found water standing inside the foam core. That's an easy failure mode if you're launching from a lake with heavy algae growth or frequent muddy shoreline access.
Spacing and Alignment
Position the guide bunks so the leading edge sits roughly 8 to 12 inches ahead of the front-most main bunk. This gives enough contact surface to guide the boat without creating a gap the hull can drop into. If they're too far forward, the bow swings past center before the bunks engage and you end up correcting with throttle and steering anyway. Too close and they interfere with the actual loading sequence. Center them on the trailer frame. Use a tape measure from each side of the trailer tongue to the planned bunk location and mark both sides. The measurements should match within a quarter inch. If your trailer isn't symmetric, which happens on older aluminum frames, adjust accordingly rather than forcing equal spacing from an arbitrary point. The height matters too. When the boat is on the main bunks at trailer height, the guide bunks should touch the hull just below the chine or at the mid-hull point depending on your boat's shape. For flat-bottom fishing boats, that's often the transom slope area. For V-hulls, it's the transition from deep V to the underside of the bow. I learned this the hard way on a 20-foot center console with an extra-deep V. The guide bunks were set too high and rode on the very tip of the bow instead of the flat planing surface. The boat wouldn't seat properly on the main bunks and kept rocking. I lowered them about two inches and the whole loading behavior changed. It's one of those details that seems minor until you're standing in the water adjusting brackets in the dark.
Get the Full Details
Installation Process
Most guide bunks mount to the trailer frame or to custom brackets bolted to the frame. Here's the straightforward version: Measure and mark your positions on the frame. Drill pilot holes for the mounting hardware. Use stainless steel bolts with nylon lock nuts to prevent vibration loosening. Flat washers under the bolt head and under the nut distribute the load across the frame rail. Never skip the lock nuts on a trailer. Road vibration will back them out faster than you'd expect. If you're fabricating brackets, use 1-inch by 1-inch by 1/8 inch square steel tubing bent into a bracket that wraps around the frame rail. Weld or bolt it securely. The bracket should allow vertical adjustment so you can fine-tune the height after initial installation. A single slot hole pattern works fine for this.
Secure the bunk pad to the bracket using the hardware provided. Most pads have a metal plate on the underside with pre-drilled holes. Match those to your bracket. Use thread-locker on the bolts. It's cheap insurance.
Common Mistakes to Avoid
The biggest mistake I see is treating guide bunks as optional. People skip them to save money or because they think they can load by eye. You can, but it takes longer and risks damage. Every time you misalign and have to winch the boat sideways, you're scraping the hull against the bunks or the roller assembly. That wear adds up. Another mistake is using bunks that are too wide. Wide bunks create more surface friction and can actually make loading harder because the hull catches and binds instead of sliding smoothly into position. Two to three inch wide pads are usually the right range. Anything wider than four inches starts competing with the main bunks for contact and creates confusion in the loading sequence. Some people install guide bunks on trailers meant for trailering through tight spaces or low-clearance routes. The added width and height of the bunks can become a clearance issue. In those cases, consider removable guide bunks with quick-release pins instead of permanent bolts. I do this on my own trailer. It takes about 90 seconds to pop them off and two minutes to put them back on. The pins are inexpensive and the brackets last for years.
When Guide Bunks Aren't the Right Solution
There are situations where rollers or a different loading approach makes more sense. If you have a boat with a delicate gelcoat finish, soft vinyl or padded J-style cradles may be better than standard foam bunks regardless of whether they're guide bunks or main bunks. Foam can pick up grit and act like sandpaper if not cleaned regularly. Heavy multi-hull boats, especially catamarans with narrow pontoons, don't seat well on conventional guide bunks designed for monohulls. The contact points are too few and the hull can pivot unnaturally. Rollers arranged in a tracked pattern along the sides work better here. I had a client with a 24-foot catamaran who was tearing up the pontoons with standard foam bunks. We switched to a roller configuration and the loading time dropped from about 20 minutes to under 5 because the boat rolled into position instead of being dragged. Ultra-light boats on light trailers sometimes don't generate enough weight on the bunks during loading for them to be effective. The hull simply doesn't press into the pad hard enough to create the guiding friction. In those cases, adding a small amount of weight to the bow during loading or using a temporary guiding rope held by a second person does the job cheaper than modifying the trailer.
Maintenance
Rinse guide bunks with fresh water after every saltwater or muddy launch. Inspect the foam annually for compression set, tears, or waterlogging. Replace pads that no longer spring back to their original shape. Compressed foam loses its ability to cushion and guides less effectively because the contact geometry changes. Check the mounting hardware every time you service the trailer. Torque values for typical 3/8 inch carriage bolts on trailer frames run about 20 to 25 foot-pounds. Overtightening distorts the frame rail. Undertightening lets everything walk loose. A simple torque wrench check once a year prevents most problems. If you're replacing worn pads, consider upgrading to a higher-density closed-cell foam at the same time. The cost difference is marginal and the performance difference is noticeable within the first few uses. You'll know immediately because the boat seats more consistently and the pads don't get saturated after a single launch.
Replacing and Upgrading Your Boat Trailer Guide Bunks
Replacement is straightforward if the mounting points are in good shape. Remove the old pad, measure the base plate dimensions, and order a replacement that matches the bolt pattern and overall size. Universal replacement pads are available from most trailer parts suppliers and typically cost between $15 and $40 per pad depending on density and size. Premium closed-cell options run toward the higher end but are worth it if you launch frequently. Upgrading to a combined roller-and-guide-bunk system is an option for boats that benefit from both. The rollers handle the initial centering while the bunks take over once the hull is seated. This hybrid approach works well on boats with irregular hull shapes or when loading conditions vary significantly between calm and choppy water. It costs more and adds complexity but reduces the skill required for consistent loading. I use this setup on a trailer that sees four to five launches per week. The maintenance is higher but the consistency payoff is real. The bottom line is that guide bunks are a small component that has outsized impact on loading quality and hull protection. Get the angle right, mount them securely, keep them clean, and replace them before they fail completely. That's all there is to it.
