Working with the Cadillac Eldorado Repair Manual

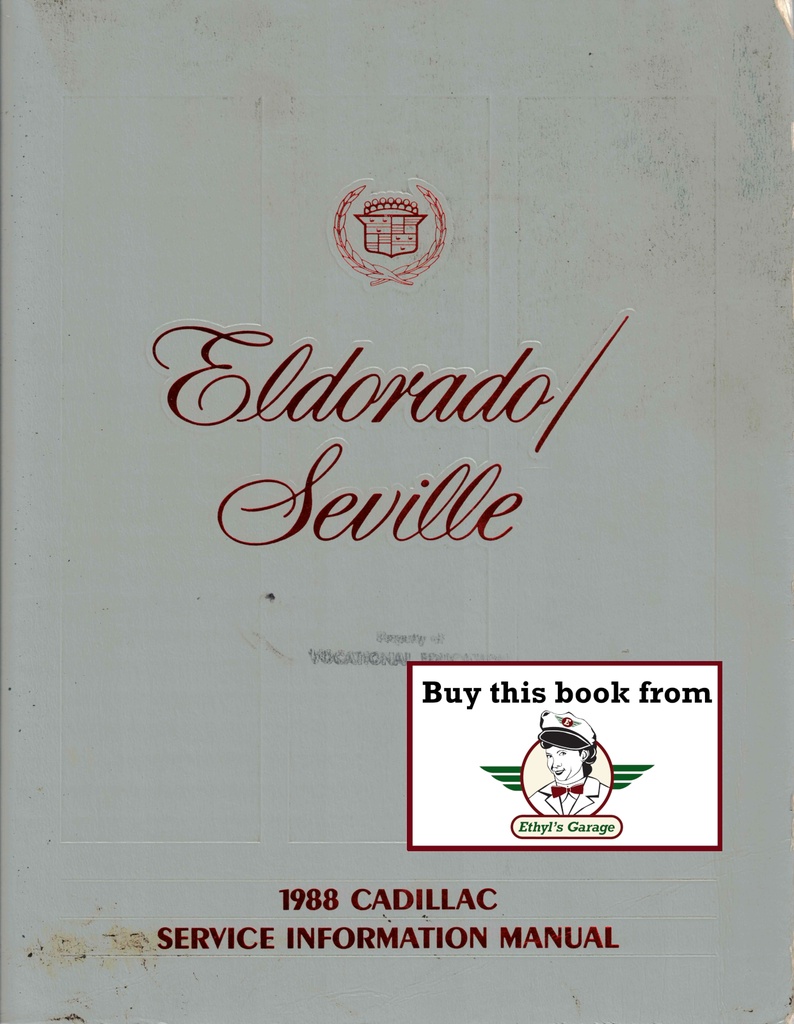

If you are trying to keep an Eldorado on the road, the repair manual is your primary reference. It covers everything from engine tune-ups to transmission rebuilding, but it was printed in an era before everyone had a phone with internet. You will work differently with this book than you would with modern digital documentation. That is not a complaint. It is just the reality of how the material is organized. The official Cadillac Eldorado Repair Manual is a factory service document published by General Motors for each model year. The content changes significantly between the 1960s, the 1980s, and the 1990s because the cars themselves changed dramatically. A 1967 Eldorado manual will walk you through the 365 cubic inch V8 with a four-barrel carburetor and a Powerglide automatic. A 1993 model covers the Northstar V8 and 4T60E transmission. These are fundamentally different machines. Buying the right manual for the right year matters more than most people realize. You can find factory service manuals on eBay, on dedicated GM enthusiast forums, or through specialty publishers like Bentley Publishers who have reissued many of them. Some years also exist as original dealer service bulletins bundled with the main manual. The original GM shop packs from the 1970s through 1990s are thick and heavy. They are usually sold as loose-leaf binders. Modern reprint editions come bound or spiral-bound and are easier to actually use at the workbench.

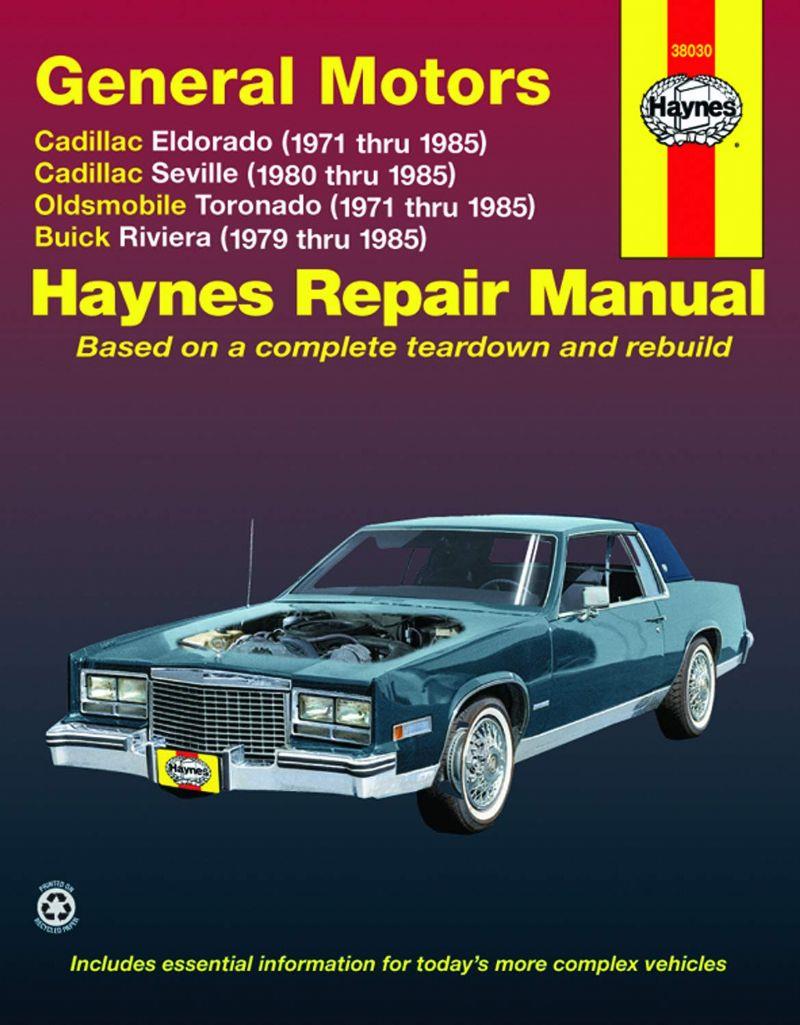

There is also the Chilton and Haynes line of aftermarket manuals. They are cheaper and more portable but they simplify things in ways that sometimes hide details you actually need. For something as complex as a Northstar head gasket procedure, I would rather have the factory document. The aftermarket version might tell you to torque the heads in a certain sequence, but it will not include the factory specification for crankshaft endplay or the exact procedure for inspecting the cylinder head mating surfaces.
How the Manual Is Actually Used
The factory repair manual is organized by system. You go to the engine section for engine work, the suspension section for steering and ride components, the electrical section for wiring diagrams. The wiring diagrams alone are worth the price of admission if you are dealing with an electrical gremlin. They show every connector, every splice point, and every ground location. A 1995 Eldorado with a parasitic battery drain can take hours to diagnose by probing random wires. With the wiring diagram from the manual, you can trace the circuits and identify which modules stay awake when they should not. Torque specifications are scattered throughout the manual in tables and notes. They are not all in one place. Some are embedded in the paragraph text rather than listed in a chart. If you are building a engine, you need to read the entire section before you start, because the torque sequence for the main bearing caps might be mentioned on a different page than the specifications table. I have seen people miss that and install bearings backward because the removal instructions were on page 40 and the reassembly sequence was on page 52. Ford did not make the Eldorado. It was a Cadillac. This sounds like a pointless statement but I have encountered enough people ordering repair materials for the wrong manufacturer that it bears mentioning. The Eldorado shared platforms with the DeVille and Seville in later years, particularly the Type IV platform from 1980 to 1985 and the E-body from 1986 to 1991. Sharing a platform means shared components. You can often cross-reference parts between those models. The manual itself sometimes references related model groups in the parts section.
Get the Full Details
A Specific Problem I Ran Into
I was working on a 1993 Eldorado with a failing 4T60E transmission. The manual describes the complete valve body removal and rebuild procedure, including the exact bolt torque sequence and the specification for the separator plate gasket clearance. Everything looked straightforward. The problem came during reassembly when I could not get the transmission to shift properly. It would go into gear but would slip badly in second and fourth. I re-read the manual three times. Nothing seemed wrong. Then I went back to the electrical section and cross-referenced the solenoid circuit diagrams. The manual mentions the shift solenoids by name but does not emphasize that the 4T60E uses a two-solenoid design controlled by the TCM. The TCM commands gear changes based on inputs from the vehicle speed sensor, throttle position sensor, and transmission fluid temperature sensor. When I traced the wiring, I found that the harness connector for the transmission had corroded pins on the ground circuit for the pressure control solenoid. The manual does not highlight this as a common failure point. It simply shows the wiring and assumes you will check the connectors. The fix was cleaning the connector pins with electrical contact cleaner and applying dielectric grease. The transmission shifted normally after that. I spent about six hours on the transmission before I realized the problem was not mechanical. A fresh manual review would have caught it sooner, but the way the documentation is structured separates the hydraulic system from the electronic controls. You have to actively bridge that gap yourself.
What the Manual Leaves Out
The factory repair manual is thorough on procedure and specification. It is not thorough on diagnosis. You will find detailed instructions for removing and installing a water pump, but you will not find a flowchart that helps you determine whether a coolant leak is coming from the weep hole, the gasket surface, or the heater core line fitting. That kind of diagnostic reasoning comes from experience and supplemental material. Service bulletins are another gap. General Motors issued hundreds of technical service bulletins for the Eldorado across its production run. These addressed known problems that were not covered in the original manual because they were discovered after the car was on the road. A 1991 Eldorado with premature brake rotor wear might have a TSB about the caliper slide pin lubrication procedure. The repair manual will tell you how to service the brakes but may not mention that GM found a widespread issue with the front caliper design on those particular model years. I usually keep a folder of relevant TSBs when I am working on an Eldorado. Several online archives compile them by VIN and year. It takes maybe ten minutes to check, and it can save you from repeating a repair that someone else already solved for the entire model line.
Pitfalls People Run Into
One common mistake is assuming that all Eldorados within a generation share identical procedures. The 1986 to 1991 Eldorado came with both the 4.1L V6 and the 4.5L and 4.9L Northstar V8s. The suspension components, engine mounts, and various under-hood parts differ between those configurations. If you pull a part number from the manual without verifying it matches your specific engine, you might order something that looks right but does not fit. Another issue is relying on the manual for fastener specifications without accounting for condition. The torque values in the manual assume clean, dry threads on new or properly prepared fasteners. If you are dealing with a rusted exhaust manifold bolt on an older Eldorado, the manual torque specification is irrelevant because the bolt will likely snap before it reaches that value. The workaround is penetrating oil, heat, and sometimes just accepting that the bolt is gone and you need to drill and tap the hole. I have broken more exhaust bolts than I care to admit, and the manual does not offer much comfort about that reality. The Northstar head gasket issue is well known. The factory manual describes the replacement procedure, which involves removing the upper intake manifold, the alternator, and various brackets to access the timing covers. The actual job takes most of a day for a mechanic who has done it before. For someone working from the manual alone, it can take significantly longer. There is no shortcut around that. The engine layout is tight, and nearly everything blocks access to something else. Some people use a Northstar-specific guide or video series in addition to the manual to visualize the disassembly order.
When the Manual Is Not Enough
For basic maintenance like oil changes, brake pad replacement, and filter swaps, the manual is sufficient. It gives you the specifications, the torque values, and the removal sequence. For anything involving the transmission, the Northstar engine, or the electronic controls, you will want supplemental resources. Online forums for Eldorado owners often contain threaded discussions that address edge cases the manual does not cover. A search for your specific symptom plus the model year usually surfaces something useful. Professional repair databases like ALLDATA or Mitchell1 are essentially digitized versions of factory service manuals with added diagnostic trouble code information and technical service bulletins. They are more expensive but they save time if you are doing this work regularly. For a one-off repair on your own car, the physical manual combined with online owner communities is usually adequate. The Cadillac Eldorado Repair Manual remains a solid reference for anyone working on these cars. It is not a complete solution for every problem you will encounter, and it was never designed to be. It gives you the procedure and the specification. The diagnosis and the workarounds come from elsewhere. Knowing where to look for the rest of it is what separates a successful repair from a weekend wasted on the wrong assumption.
