What CAEPipe Actually Is

CAEPipe is a piping stress analysis program developed by Centum. It solves the same matrix equations that any general-purpose finite element code would solve, but the user interface and defaults are built around process plant piping rather than generic structures. If you've used CAESAR II before, the overall workflow feels similar—geometry input, support definition, load cases, results review—but the implementation details and some of the underlying assumptions differ enough that copying your CAESAR II habits directly into CAEPipe will cause problems. The software handles thermal expansion, weight, wind, seismic, pressure, and occasional dynamic loads on piping systems. It models elbows as flexible elements, treats anchors as rigid restraints, and uses standard beam theory for straight runs. That's the baseline. The nuances are in how it treats things like branch connections, local stresses at tees, and the interaction between multiple loaded conditions.

Caepipe Pipe Stress Or Piping Stress Analysis Software

People looking for this specific phrasing usually find it through product documentation or vendor websites rather than casual conversation. Engineers on the floor just call it CAEPipe. Download links for the full version typically live behind vendor licensing portals—Centum's official site or authorized resellers. There isn't a genuine free download floating around that I'd trust, and trial versions are handled through their sales channels. You'll need to contact them directly for evaluation copies or licensing information. Here's the part that matters more than where to get it: how to actually use it without producing garbage results that look convincing on paper.

Getting Started Without Wasting Three Days

The geometry build is where most people make their first mistake. CAEPipe uses a node-and-element approach. You define points in 3D space and connect them with pipe segments. The software then discretizes those segments into finite elements for the stiffness matrix. This sounds straightforward until you realize that the default element subdivision might be too coarse for a pipe run with multiple bends and thermal gradients, which means your displacement results at critical points could be off by enough to change a design decision. My rule of thumb: whenever a pipe run has an elbow within two pipe diameters of a branch, nozzle, or support, you need at least three to four elements between that elbow and the discontinuity. CAEPipe's auto-mesh might give you one element per straight segment. That's not enough for accurate local stress evaluation. You have to manually refine the mesh, and the software does let you override element counts per segment. Material properties and pipe specifications need to match your project standards. CAEPipe comes with a library of material grades, but the default ones are often generic. If your project specifies ASME B31.3 allowable stress values for a particular alloy at operating temperature, you need to verify that CAEPipe's built-in table matches. I spent a week once chasing a discrepancy where the software's temperature-dependent modulus of elasticity was slightly different from what our engineering standard called for. It changed the thermal displacement calculation just enough to flip a support location. Check your material data against the design basis before you run anything.

Get the Full Details

CAEPIPE 3D+ ׀ Pipe Stress Analysis Software ׀ Flumen
CAEPIPE 3D+ ׀ Pipe Stress Analysis Software ׀ Flumen

A Specific Problem I Ran Into

I was modeling a cold process line with frequent thermal cycling between ambient and minus forty degrees Celsius. The line had a long horizontal run anchored at both ends with a vertical expansion loop in the middle. CAEPipe reported acceptable stresses everywhere except at one anchor, where the axial force exceeded the design limit by about twelve percent. I checked the model three times. Geometry was right. Material data was right. Load cases were right. The result didn't change when I refined the mesh further. The issue turned out to be how CAEPipe handles thermal load application across the entire model simultaneously versus sequentially. By default, the software applies all defined thermal gradients at once in a single solve step. For a system with drastically different temperature zones, this can produce slightly inaccurate reaction forces at anchors because the solver doesn't account for the gradual stress redistribution that happens as different sections warm or cool at different rates. My workaround was to split the model into sub-systems at a logical isolation point, run the thermal cases separately for each sub-system, and then manually combine the anchor forces using superposition. It added time to the workflow—maybe twenty minutes per case instead of ten—but it gave me results that matched what we saw in the field during commissioning. CAEPipe does support this through its substructure modeling capability, but you have to set it up intentionally. It won't do it automatically.

Common Pitfalls That Will Waste Your Time

Support definition is the second major source of errors. CAEPipe lets you model supports as rigid, spring, or friction types. The default spring constant for many support libraries is set to zero stiffness in the upward direction, which means the software treats it as a rigid stop rather than a spring hanger. If you're modeling a cantilever support or a spring hanger from a real vendor catalog, you need to enter the actual spring rate. Using the default values for a system with heavy thermal growth will give you displacements that are too large and stresses that are too low, because the supports aren't resisting movement the way they would in reality. Another issue is how the software handles pressure thrust. Internal pressure creates axial forces at pipe bends and tees that are sometimes significant. CAEPipe accounts for this in the stress calculations, but if you forget to define the operating pressure in your load case, those forces simply don't appear. I've seen models where the pressure was omitted from the primary load combination, and the resulting displacement at a flexible joint was underestimated by enough to require a redesign after fabrication. Always verify that your pressure load case includes the design pressure, not just the test pressure. Seismic modeling deserves special mention. CAEPipe uses response spectrum analysis for seismic loads, which is standard for process piping. But the orientation of the seismic input vectors and the combination method matter enormously. The software supports SRSS and CQC combination methods. For closely spaced modes, CQC is more accurate, but it takes longer to compute. For most plant piping systems, the natural frequencies are widely separated enough that SRSS gives results within acceptable tolerance. Using CQC unnecessarily can slow down your runs without improving accuracy. On the other hand, if you're analyzing a piping system with long continuous runs where modes cluster—say, a pipeway spanning multiple bays—SRSS will underpredict the combined response. Use CQC there.

What CAEPipe Does Well and Where It Falls Short

The software is solid for routine process plant piping stress analysis. It handles complex geometries, multiple load combinations, and code compliance checks against ASME B31.3 and B31.1 without fuss. The report generation is adequate, and the results are easy to export for further review. For a standard refinery or chemical plant, it will get the job done efficiently. Where it struggles is in highly dynamic applications. If you're analyzing pump suction piping with significant fluid-structure interaction, or piping subjected to sustained vibratory loads from rotating equipment, CAEPipe's capabilities are limited. It doesn't have built-in features for transient analysis or fluid hammer modeling. In those cases, engineers typically pair CAEPipe with a dedicated dynamic analysis tool or fall back to a more general-purpose finite element package. It's not a weakness in CAEPipe itself—it's just that the software is designed for static and quasi-static load cases, which cover the vast majority of plant piping. Another limitation is the learning curve for advanced features. Basic models are straightforward to build, but substructure modeling, non-linear support behavior, and custom load case definitions require a deeper understanding of both the software and the underlying mechanics. Documentation exists, but it's not always intuitive. Many users end up learning these features through trial and error or by watching someone who already knows the workflow. Budget time for that if you're new to the program.

Tutorial For Buried Piping Modeling and Analysis Using CAEPIPE | PDF | Soil | Stress (Mechanics)
Tutorial For Buried Piping Modeling and Analysis Using CAEPIPE | PDF | Soil | Stress (Mechanics)

Practical Tips That Come From Actual Use

When building your model, start with a simplified version and verify it against a hand calculation before adding complexity. Take a simple cantilever pipe run with a known thermal expansion and calculate the expected displacement and stress by hand. Run it in CAEPipe. If the numbers don't match within a reasonable tolerance, something in your model setup is wrong. This takes about fifteen minutes and can save you hours of debugging later. Keep your model files organized by system and tag number. CAEPipe projects can grow large, especially for full-plant analyses. I've worked on projects where the main model file exceeded fifty megabytes, and loading times became significant. Breaking the analysis into individual systems—feeders, headers, branch lines—keeps file sizes manageable and makes it easier to isolate and fix problems. You can still run a global combination later if needed, but starting with a monolithic model is a mistake. Use the software's validation checks. CAEPipe has built-in diagnostics that catch common modeling errors: unsupported free ends, conflicting support definitions, duplicate nodes, and missing material properties. Running these checks before submitting your results to a senior engineer will prevent embarrassing corrections. The validation pass takes about two minutes on a typical model and catches issues that would otherwise require manual review.

For code compliance reporting, export your results to a format that your reviewing engineer can read. CAEPipe generates its own native reports, but they're not always the most readable for someone who isn't familiar with the software. I usually export the key results—displacements, forces, moments, and stress ratios—to a spreadsheet or PDF summary. This makes review faster and reduces back-and-forth questions during the approval process.

Alternatives Worth Considering

If CAEPipe doesn't fit your needs, the main alternatives are CAESAR II, AutoPIPE, and some open-source options. CAESAR II is the most widely used tool in the industry, and for good reason. It has a larger user community, more extensive documentation, and better support resources. If your company already has CAESAR II licenses, switching to CAEPipe solely for stress analysis might not be worth the retraining cost. AutoPIPE is another option, particularly if you're already in the Bentley ecosystem and working on structural-piping hybrid models. For organizations that need a lower-cost solution and have the expertise to manage it, open-source tools like CodeCalc or custom Python-based scripts can handle simple stress calculations. They won't replace a full finite element solver, but for straightforward cases—cantilevers, simple loops, basic thermal expansion checks—they can produce acceptable results quickly. I've used a custom script to check whether a proposed support location was roughly adequate before running the full CAEPipe model. It took about five minutes to set up the script and saved a full modeling cycle that would have turned out to be unnecessary.

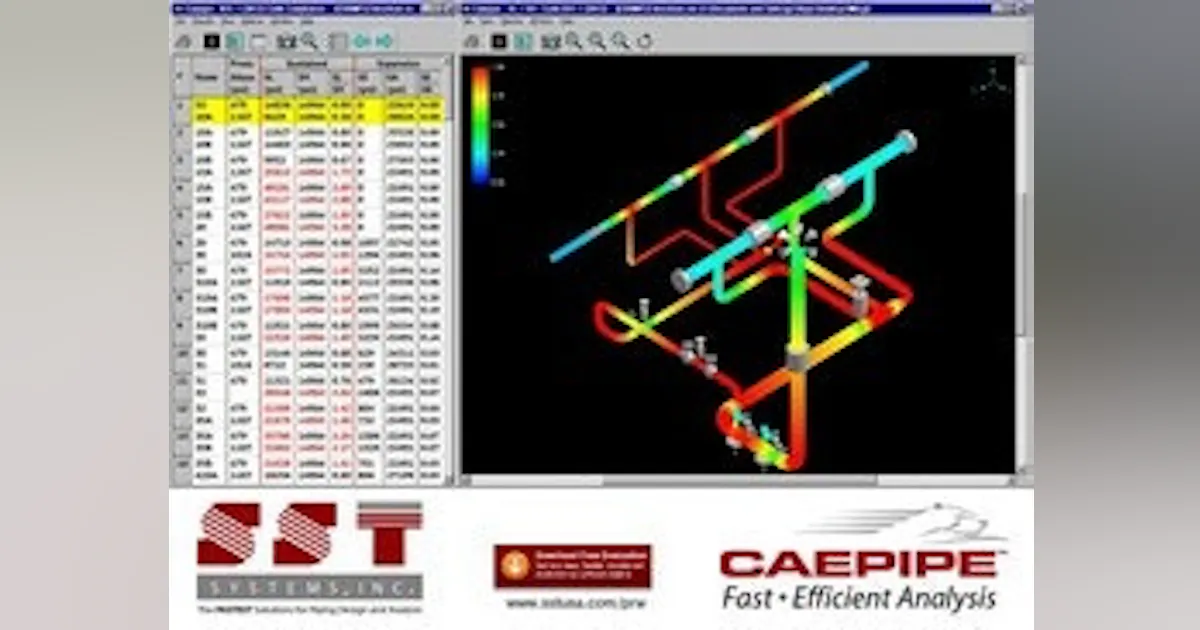

Design & Simulation | SST Updates CAEPIPE Pipe Stress Software | Chemical Processing | Chemical ...
Design & Simulation | SST Updates CAEPIPE Pipe Stress Software | Chemical Processing | Chemical ...

Bottom Line

CAEPipe is a capable tool for process plant piping stress analysis. It's not the easiest software to learn at an advanced level, and it has some quirks that will trip up inexperienced users. The key is to verify your models against known cases, pay close attention to support and material definitions, and don't assume the default settings are correct for your specific application. Spend time on the front end—model validation, mesh refinement, load case verification—and you'll get results you can trust. Skip those steps, and you'll be spending your days figuring out why the numbers don't match what you see in the field.
