Where to Find Actual Service Documentation for Old Camcorders
The first thing you need to understand is that most people looking for a Camcorder Service Manual are already in a bad position. They have a camera that refuses to power on, or it's displaying an error code like 41:10 or E:91, and they've already watched a dozen YouTube videos telling them to tap the side of the unit and blow into the lens. That doesn't work. You need the schematic, the error code list, and the part cross-reference numbers. Everything else is just noise. Service manuals aren't the same as owner's manuals. An owner's manual tells you how to set the white balance. A service manual tells you which capacitor on the main board fails when the device won't focus, and what the replacement part number is. They're completely different documents, and they are not publicly distributed by any major manufacturer anymore.

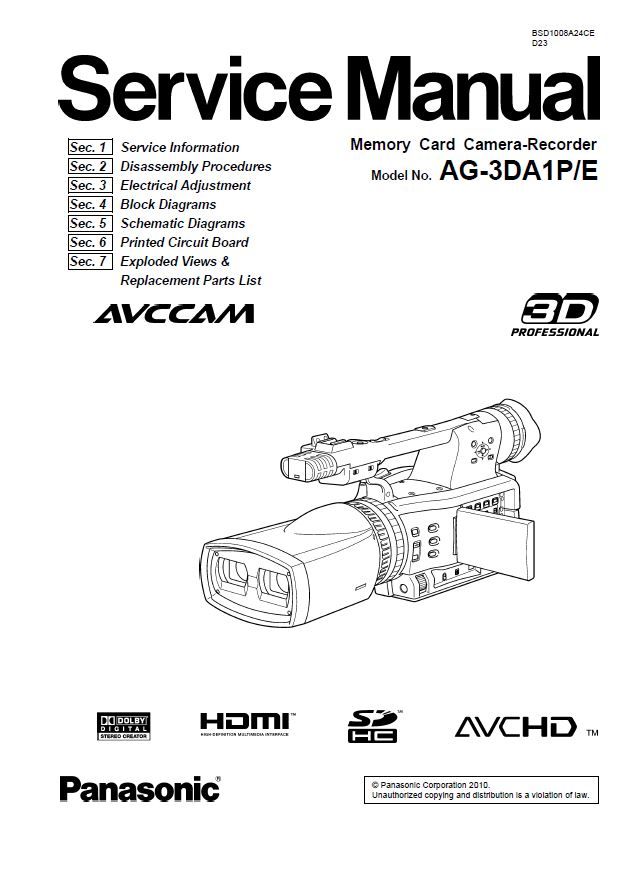

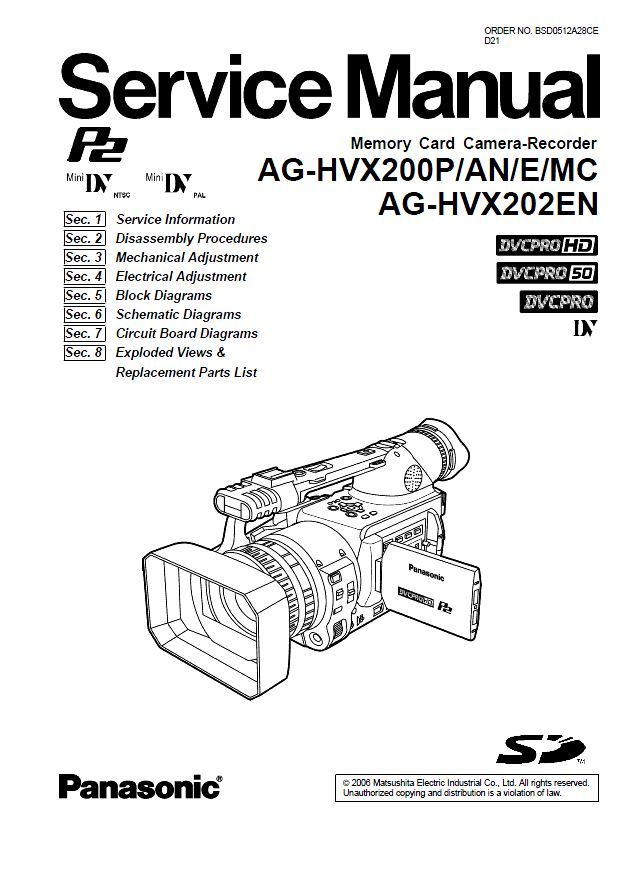

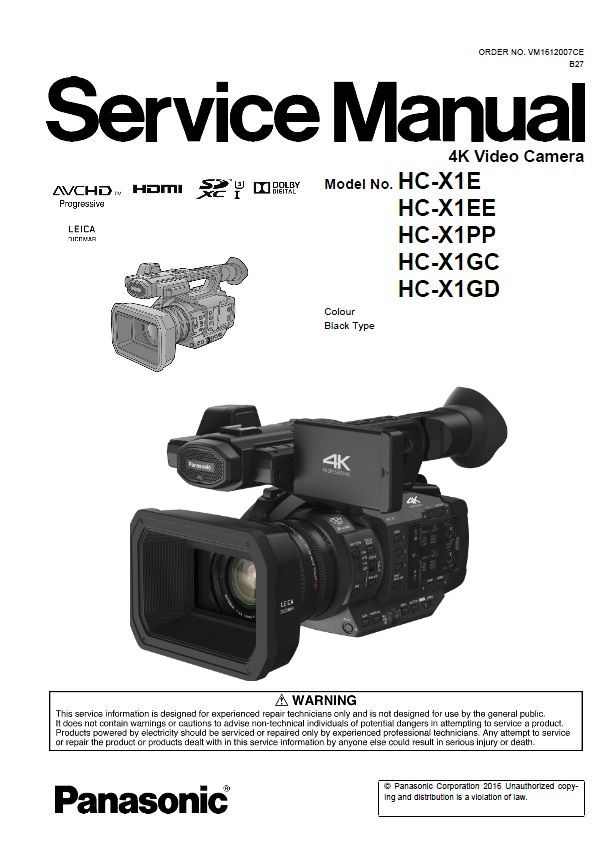

What a Camcorder Service Manual Actually Contains
A proper service manual has several sections that overlap but serve different purposes. The block diagram shows signal flow from the lens assembly through the CCD or CMOS sensor, through the image processing board, and out to the viewfinder and record heads. The schematic gives you actual circuit details with component values, test points, and voltage readings under normal operating conditions. The exploded view shows every screw, clip, and spring with part numbers so you can order replacements without guessing. The adjustment procedure tells you exactly what settings to run through after a repair, which most people skip and then wonder why the image is still wrong. Error code listings are usually the most useful section if your camera is dead on arrival. Sony cameras are particularly good about this. Panasonic is decent too. Some brands like Canon will show you an LED blink pattern instead of a code, which requires a different lookup process entirely.
How to Get Your Hands on One
The reality is that manufacturers stopped releasing service manuals around 2010. Before that, you could sometimes find them on the manufacturer's own support pages. After that, they went behind registration walls or disappeared entirely. The places that still have them are third-party repositories and paid document services. SchematicsPlus is one of the more reliable paid sources. They have a searchable database organized by brand and model number. A single manual usually runs between $15 and $40 depending on the age and complexity of the unit. Sony camcorders tend to be the most thoroughly documented because the repair technician community is largest for that brand. ManualsLib and PDFManuals are free but incomplete. They mostly have owner's manuals and occasionally a service bulletin or two. Don't waste much time here if you're actually trying to repair something. You'll find error code lists sometimes, which can be enough for a simple diagnostic.
Get the Full Details
There are also Usenet archives and specialized electronics repair forums where technicians share scans. The VideoRepair forum and the Ebay discussion boards for specific brands are where real knowledge lives. Post your exact model number and what's happening. Someone there has probably seen it before. This is often faster and more accurate than any manual you'll download.
Common Pitfalls When Using a Service Manual
The biggest mistake people make is assuming the manual they found matches their exact unit. It doesn't always. Manufacturers will release revisions mid-production run. A 2003 Sony Handycam might have three different board revisions with different part numbers, and the service manual you're reading might be for revision B when your camera is revision D. The block diagram stays the same, but the component values, the IC part numbers, and sometimes the physical layout change between revisions. Always check the date code on your main board. It's usually printed right next to a small sticker or etched into the green solder mask. Compare that to the revision date on your manual. If the board date is after the manual date, you're flying partially blind. Some capacitors might have been upgraded, some resistors changed value, some trace routing is different. It often works fine for basic diagnostics, but if you're replacing a faulty IC, the replacement might not fit or the pinout could be different. Another thing nobody warns you about is that voltage readings in service manuals are taken at specific test points under very specific conditions. The manual might say "measure 3.3V at TP102" but not tell you that the camera needs to be in playback mode with the lens extended and the battery attached, not AC power. If you're measuring with a multimeter while the camera is off, you'll get zero volts everywhere and assume the board is fried when it's perfectly fine. The manual assumes you already know this. It doesn't explain it.
I had a Panasonic PV-GS500 come in with a complete video dropout. The manual's error code list pointed to the drum motor circuit. I checked voltages, replaced the motor, ran the alignment tape, and it still wasn't recording properly. Turns out the main board had a cracked solder joint on the DPU connector, and the service manual had no visual reference for that particular board layout since it was a revision C unit with a reworked board. I ended up using the block diagram to trace back from the video output IC, followed the trace with a continuity tester, and found the break. No manual told me that joint would fail. It's a known issue in the repair community but it's not in any published documentation.
What Service Manuals Can't Tell You
They won't tell you about firmware issues. If your camera is failing after a software update or if a certain error code only appears after leaving the camera in a hot car, the manual is useless. That's firmware territory, and the only fix is usually a reflashing procedure that manufacturers don't publish anymore. They also don't cover mechanical wear. The service manual will tell you how to replace a belt in the lens assembly, but it won't tell you that after four years of use the plastic gears in the zoom mechanism will have expanded slightly and the replacement belt will be too loose unless you source a tensioner kit that isn't listed in the parts catalog. That comes from doing the repair three times, not from reading the manual. If your camera is a consumer-grade model from the mid-2000s, be aware that the repair cost ceiling is real. A service manual for a $400 camcorder from 2006 won't justify spending $80 on the manual itself if the repair requires parts that cost more than the camera is worth today. That's just economics. Professional repair shops won't touch these unless the problem is obvious and cheap to fix. A bad flex cable in the lens assembly is one of those. A cracked main board trace is not.
Working Without a Camcorder Service Manual
Sometimes you just can't find the manual. This happens more often than you'd think with obscure models or regional variants. When that occurs, the block diagram from a similar model can get you 70% of the way there. Sony shares board designs across many models. A Handycam G-series manual will often have the same main board layout as a G-220 or a G-410 even though the external casing is completely different. Cross-reference the board revision numbers, not just the model numbers. For board-level diagnostics without a schematic, a thermal camera or even a cheap infrared thermometer can find shorted components in seconds. A failed power regulation IC will run hot almost immediately. A open trace will show a voltage drop at the expected point. This approach takes experience to interpret correctly but it's faster than hunting through a manual for test points that might not exist on your revision. Board-level photos from teardown videos on YouTube are surprisingly useful. They're not annotations, but they show you component placement, connector types, and which chips are on which board. A lot of camcorders have two or three separate PCBs stacked together, and the service manual will label them Main Board, Video Board, and Power Board. The YouTube teardown might call them by different names. Line them up visually and you can map the manual to the actual hardware.
If you're working on a Sony and you can't find the manual, try searching for "Sony service solution" plus the model number. They maintained a professional technician portal for years and some documents leaked or are still accessible through old account credentials. Panasonic has a similar archive called "Panasonic Professional Services."
