What the Manual Actually Covers
A car stereo manual is the document that tells you how to install, wire, and operate a specific head unit. Most people treat it like background reading. It is not. The wiring diagram inside it is the only thing separating a clean install from a burnt fuse and a confused afternoon. The document covers physical dimensions, power draw, speaker output ratings, antenna adapter compatibility, and the wiring pinout. It also includes the menu structure, which matters more than most owners realize because so many functions hide behind sub-menus that never get mentioned outside the manual. I have pulled units out of dashboards three separate times because someone installed them without checking the manual's amperage rating. The difference between a 50-watt-per-channel unit and a 100-watt-per-channel unit matters when your factory harness is already maxed out on accessory power. One of those installs shorted the illumination wire and killed the backup camera display on a 2015 Ford F-150. I traced it back to the manual's note about constant versus switched 12-volt on that particular harness. The fix was rerouting the illumination lead to a fused tap instead of pulling it from the factory harness feed.
Most manuals are 30 to 80 pages. The installation section is usually six to twelve pages. The technical specifications follow. The rest is button diagrams and warranty text nobody reads.
Reading the Wiring Diagram
Look for the wiring schematic first, not the feature list. It will show you wire colors, functions, and whether any wires are optional. The color codes follow a general convention, but they are not standardized across brands. Kenwood uses a different blue than Pioneer does for the accessory wire. JVC is worse about it. Always verify against the diagram in your specific manual. The yellow wire is constant power. The red wire is switched power. The black wire is ground. The orange wire is illumination. This is standard enough to rely on, but I still check every time because I have seen aftermarket harnesses where someone swapped orange and red during a prior installation and the unit would not dim properly. You find that out when you try to adjust the brightness and the display refuses to change. Speaker wires follow a similar pattern. Positive and negative pairs for each channel. White is usually front left, gray is front right, green is rear left, purple is rear right. Again, not guaranteed. The manual will tell you what your unit actually uses.
Get the Full Details
When the Manual Falls Short
Sometimes the manual does not cover your vehicle. Aftermarket manuals assume a universal fit. Your car likely does not. The missing piece is usually the vehicle-specific harness adapter or mounting bracket. Check the retailer's compatibility tool before you buy anything. It is more accurate than guessing from the manual alone. I ran into this with a 2018 Honda Civic Si. The stereo manual showed a standard ISO connector, but the factory harness used a proprietary plug with two additional pins for the amplifier wake-up signal. Without the correct adapter, the unit would power on but the speakers stayed dead because the amp never received the trigger. The workaround was a Metra harness adapter with the amp enable wire crossed over. It added about $18 to the cost and thirty minutes to the install. Another common gap is Bluetooth pairing instructions. Some manufacturers bury the pairing sequence deep in the manual or reference a QR code that leads to a support page. A few skip it entirely and expect you to figure out the combination process by trial and error. That works until you realize you paired it once and then forgot how to initiate pairing mode again.
What the Manual Gets Wrong or Omits
Wire gauge recommendations in most car stereo manuals are too thin for anything beyond basic setups. They list 16-gauge or 18-gauge speaker wire as sufficient. That works for stock speakers at moderate volume. It does not work if you are running an external amplifier or high-output coaxials. Use 14-gauge or thicker for amplifier power runs. The manual rarely mentions this because the wiring diagrams are generic. Phase information is another blind spot. Most manuals do not tell you whether the speaker outputs are inverted or non-inverted. If you ever build a custom bass box or add a subwoofer with an external crossover, this matters. I learned this the hard way with a JL Audio unit where the manual did not specify phase on the preamp outputs. I ended up flipping the polarity at the subwoofer end until the soundstage centered properly. Took about ten minutes, but it should have been in the spec sheet. Memory retention is another area where manuals are vague. They state that the unit remembers presets and radio stations, but they do not always clarify that a full power loss during installation can wipe those memories. If you pull the unit without keeping it powered via a auxiliary 12-volt source, you will lose your presets. I keep a small jumper cable and a 9-volt battery adapter in my kit for this reason. It saves fifteen minutes of reprogramming every time.
Download and Access

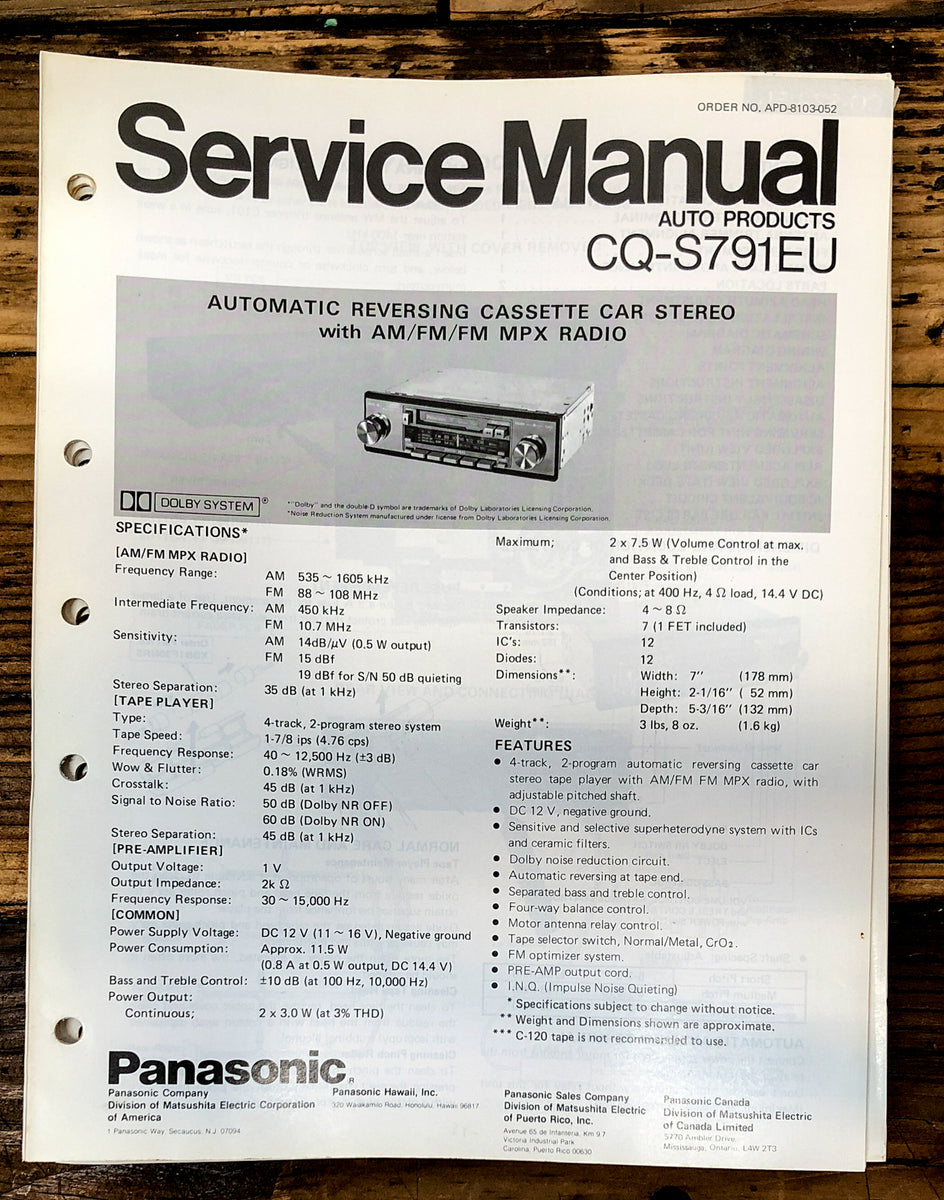

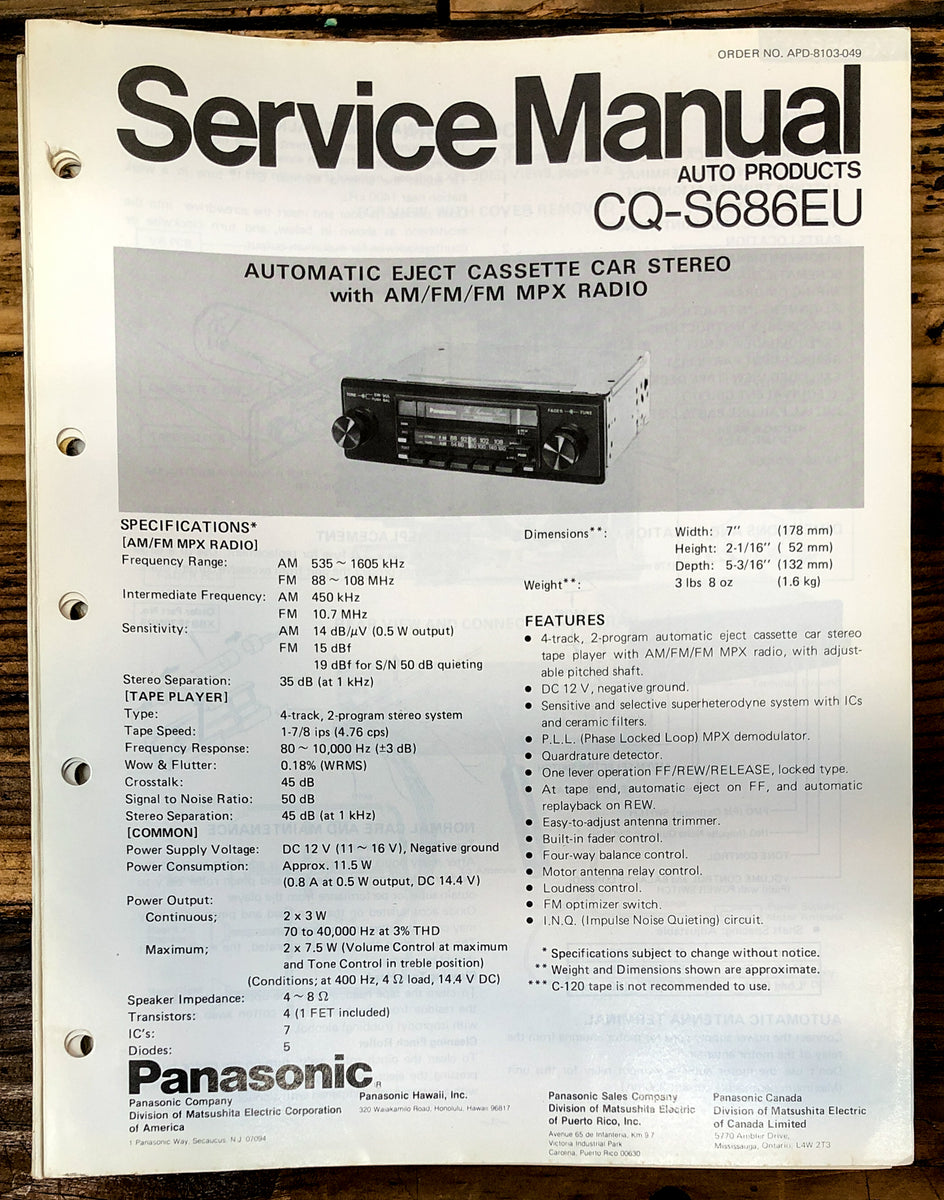

You can usually find the PDF version of your Car Stereo Manual on the manufacturer's support website. Search by model number. Sony, Panasonic, Alpine, and Kenwood all host them. If you cannot find it, the dealer portal or the OEM parts site often has the service manual, which is more detailed than the consumer version. The service manual includes factory wiring diagrams and diagnostic trouble code listings. It is useful if you are troubleshooting a communication error with your vehicle's CAN bus system. For factory-installed stereos, the manual may not exist as a downloadable PDF. In that case, the vehicle's owner manual sometimes includes a simplified version of the stereo controls. It is not complete, but it covers the basics. If you need the full version, contacting the manufacturer's support line with your VIN and model number usually gets you a copy within a day or two.
A Practical Checklist Before You Start
Read the manual first. Specifically the installation section and the wiring diagram. Verify your vehicle's harness with the retailer's compatibility tool. Pull your current unit and photograph the existing wiring before disconnecting anything. This is the single most useful step in the entire process because factory harnesses vary even within the same model year. I have seen two 2016 Toyota Camrys with completely different antenna connections despite being identical trims. Having a photo means you are not guessing when you reconnect everything. Check whether your vehicle uses a data bus system for stereo communication. If it does, you will need a interface module. The manual will mention this in the installation notes. Do not skip it. Without the module, you may get audio but lose steering wheel controls, backup camera, or vehicle information display integration. The manual also lists the unit's maximum power consumption. Add up your expected draw before you connect anything. If you are running an amplifier, factor that in too. A typical 4-channel amp draws around 15 to 25 amps at full output. A subwoofer amp can pull 40 amps or more. Your factory fuse may not handle both the head unit and the amp on the same circuit. Split them onto separate fuses if the manual's electrical section recommends it.
Common Mistakes
Treating the manual as optional reading is the biggest one. Another is ignoring the grounding instructions. A poor ground causes static, humming, and intermittent audio dropouts. I have diagnosed more installations that turned out to be bad grounds than actual unit failures. The manual specifies where the ground wire should attach and what surface it needs. Strip the paint. Use a ring terminal. Torque it down. These steps are listed in the manual and most people skip them anyway. A second mistake is assuming all aftermarket units fit the same dash opening. The manual will state whether your unit is single-DIN or double-DIN. Some manuals use confusing sizing terminology, especially with European models. Measure your dash opening before you proceed if the manual is unclear. Finally, do not assume the manual covers every possible configuration. Factory integration, amplifier wake-up, backup camera input, and CAN bus communication are often optional features that require additional modules. The manual will mention these options, but it will not always explain the installation process for each one. That is where the service manual or the manufacturer's installation video becomes necessary.
The manual is the starting point, not the final answer. Use it to understand the unit. Then verify everything against your actual vehicle setup. That is how you avoid the headaches that show up three months later when something stops working for no obvious reason.
