Working on a Case 540 Backhoe? Here's What You Actually Need to Know
I spent three weeks tracking down a hydraulic leak on a 1980s-era Case 540 backhoe that was burning through fluid faster than it could be topped off. The manual didn't have the exact diagram I needed for the loader arm cylinder seals, but it did give me the torque specs and the sequence that kept me from cross-threading the fitting on the first try. That's the kind of thing a real service manual handles, even when it isn't perfect. Most people looking for a Case 540 Backhoe Service Manual just want to fix something and get back to work. The good news is this machine is mechanically straightforward compared to later models with integrated electronics. The bad news is that parts availability and worn components mean the manual alone won't always tell you what's actually wrong. You still need to understand how the system behaves under load.

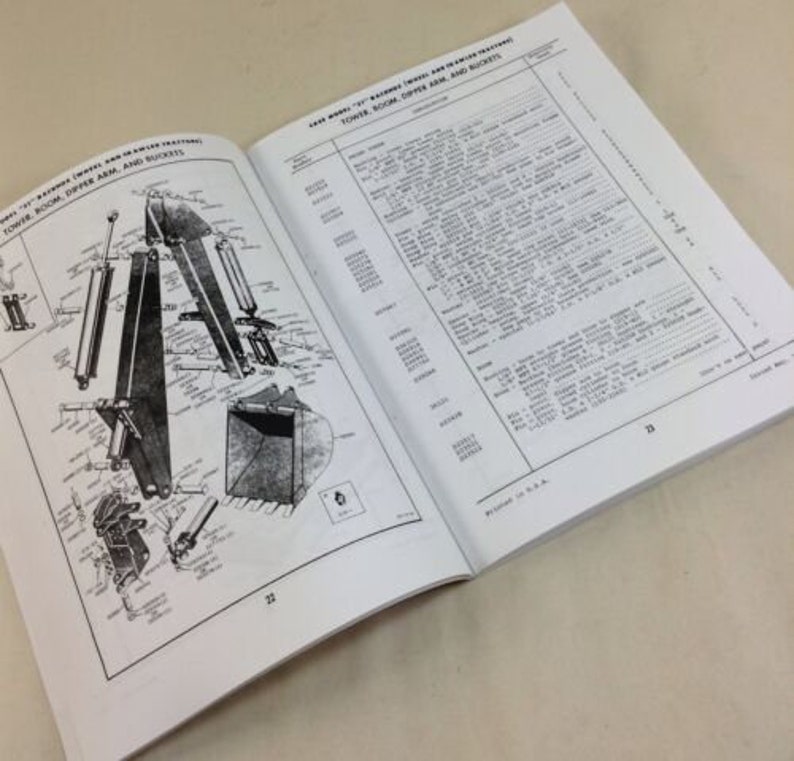

Getting Your Case 540 Backhoe Service Manual
The official Case IH service documentation for the 540 is not something you find floating around freely on the internet. It was originally published by Case Construction Equipment and later absorbed into the Case IH dealer network. Your best paths are through an authorized dealer parts department, third-party manual publishers who reproduce the content legally, or equipment owner forums where technicians share scanned copies they've personally maintained. Warning: many free PDFs you find online are incomplete, blurry, or mislabeled. Verify the table of contents before you start relying on it for anything beyond general reference. A missing page on the transmission section can cost you an afternoon of guesswork.
What the Manual Covers
A proper service manual for the Case 540 includes several major sections. The engine section covers the diesel unit's fuel system, air intake, cooling, and valve adjustments. The hydraulic system section breaks down the pump, valve bank, cylinders, and reservoir. The transmission and final drive sections handle the powershift gearbox and axle assemblies. The electrical section is surprisingly minimal because this machine predates heavy CAN-bus integration. One thing that trips up people who are new to these machines is the torque sequence for the hydraulic cylinder head bolts. The manual specifies a three-pass tightening pattern starting from the center. I learned this the hard way after a seal blew on a bench test because I torqued from the outside in and warped the cast iron head. It sounds minor, but it saves you from replacing parts you didn't need to replace.
Get the Full Details
Common Problems and What the Manual Can Tell You
The Case 540 has a few well-known failure points. The most frequent one I encounter is the main hydraulic pump wearing past its pressure rating, which shows up as slow loader cycle times and weak swing resistance. The manual gives you the pressure test points and the acceptable range, which is usually around 2500 PSI for the main pump at stall. When you're at half that number, the pump is done. Another issue is the transmission slipping under load. The case has a wet clutch pack arrangement, and wear inside the transmission housing causes slippage that feels like the machine is struggling to hold gear. The service manual provides the clutch clearance specifications and the rebuild procedure, but here's the practical reality: if the case internals are scored, a clutch replacement alone won't fix it. You need a case inspection first. The cooling system on these machines also tends to clog from the outside. The radiator fin spacing is tight, and debris gets packed in between them. The manual tells you the coolant capacity and the overflow procedure, but it won't warn you about how easily the core fails if you never clean it. I use a compressed air wand going from the engine side out once a season. Takes twenty minutes and extends radiator life significantly.
Using the Manual Effectively
Don't treat the manual as a complete diagnosis tool. It's a reference for procedures, specifications, and disassembly sequences. The actual diagnosis comes from listening to the machine, checking pressures, and observing symptoms under load. I keep the manual open on my tablet while I work, but I rely on a pressure gauge and a stethoscope more than I rely on the text itself. The diagrams in the manual are helpful for understanding flow paths, but they're static. Real hydraulics move. When you're troubleshooting, trace the circuit yourself with a pressure gauge at each test port. The manual gives you the port locations, but you need the gauge to confirm what's actually happening.
When the Manual Falls Short
Sometimes the manual doesn't cover modifications that dealers or previous owners made over the years. Aftermarket quick-hitch systems, third-party attachment setups, and repaired hydraulic lines can exist outside the documented configuration. In those cases, you're on your own for finding the right specification. Take photos before you disconnect anything, and measure everything twice. There's also the matter of parts sourcing. The manual lists part numbers, but those numbers may have been superseded by updated versions. Always cross-reference the old part number against the current catalog before ordering. I've had machines sit for days waiting for a $40 seal because the old number was stale and the new one wasn't listed in the manual I was using.
Case 540 Backhoe Service Manual
The manual remains the single most useful document you can have for this machine. It won't do the work for you, and it won't account for every variation you'll encounter in the field, but it gives you the foundation you need to make informed decisions instead of guessing. Treat it as a living reference, not a gospel. Keep a copy accessible, mark the sections you use most, and build your own notes alongside it over time. That's how you turn a thick binder into something that actually saves you money and downtime.
