Circuit Analysis Cheat Sheet

What You Actually Need When Solving Circuits at 2 AM

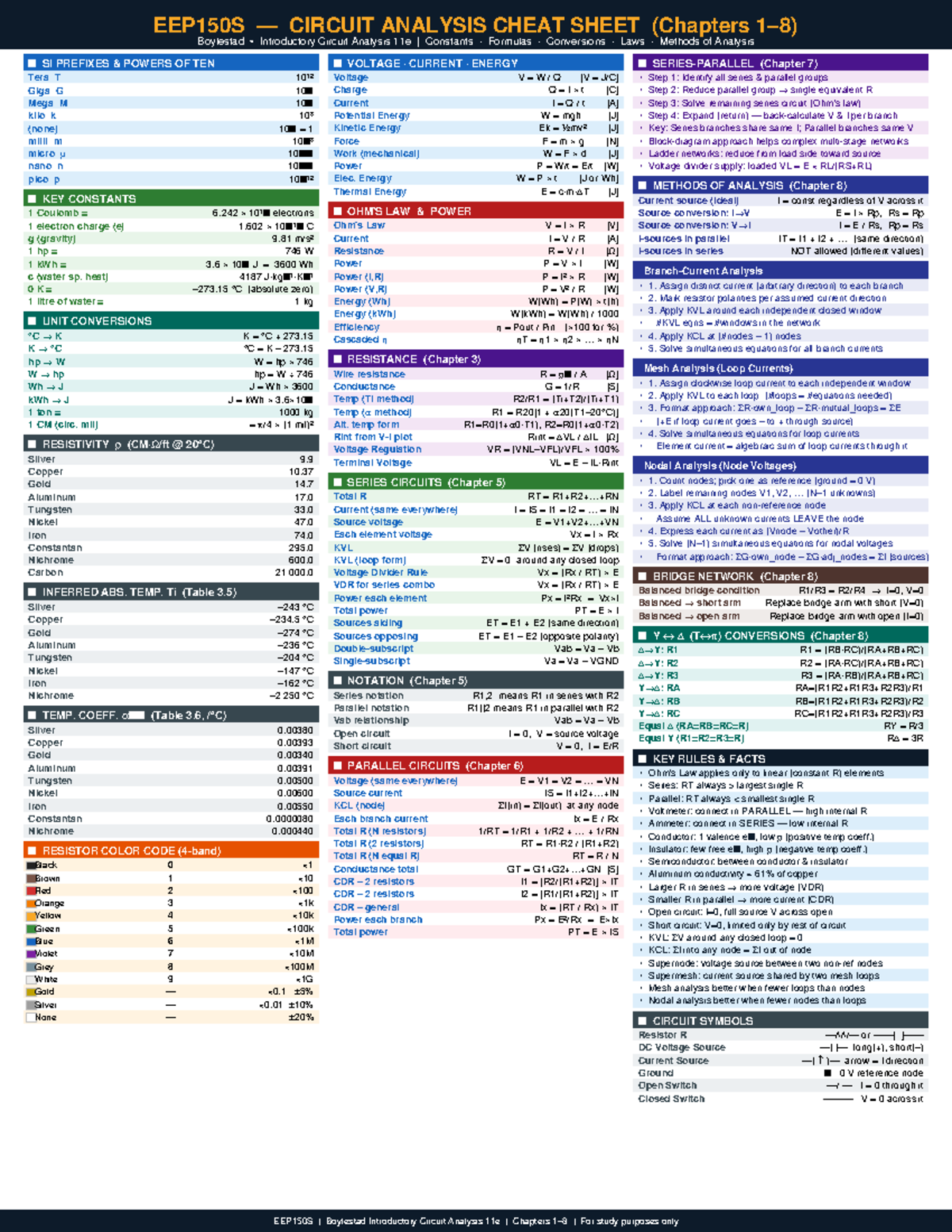

Most people spend too long trying to memorize formulas instead of understanding what the equations are actually describing. I put together a Circuit Analysis Cheat Sheet a while back because I kept seeing the same mistakes in forum posts and lab reports. The sheet itself is straightforward, but the way people use it (or don't use it) is where the real problem lies. Let's start with the method, not the definitions. When you're faced with a circuit that looks like a tangle of resistors, capacitors, and sources, you pick a node and write a KCL equation. That's it. The cheat sheet doesn't change that process. It just gives you the equations you need without flipping through three different textbooks. Nodal analysis works for nearly any linear circuit. Mesh analysis works when you have a planar circuit with clearly defined loops. The trick is knowing which one saves you time instead of making things worse.

Building Your Own Circuit Analysis Cheat Sheet

Here's what actually belongs on a useful reference sheet, not the generic garbage you find on random education sites. Start with the fundamental laws. KVL says the sum of voltages around any closed loop equals zero. KCL says the sum of currents entering a node equals the sum leaving. These are not optional. Everything else is built on top of them. Ohm's law goes next, but write it as V = IR and I = V/R and R = V/I so you're not stuck rearranging during an exam. Power equations follow: P = VI, P = I²R, P = V²/R. People forget that last one half the time. Then move to component impedance forms. A resistor is just R. An inductor is jL. A capacitor is 1/(jC). If your circuit is in the frequency domain, you need these immediately. For DC steady state, inductors become short circuits and capacitors become open circuits. That alone solves more problems than most students realize. The divider rules belong on there too. Voltage divider: V_out = V_in × (R / (R + R)). Current divider: I_x = I_total × (R_total / R_x). These are deceptively simple and save you from writing full KVL equations for basic branches. Source transformation is another one that earns its keep. A voltage source in series with a resistor is equivalent to a current source in parallel with that same resistor. I use this constantly when a circuit has a branch that's blocking a clean nodal or mesh setup.

Thevenin and Norton equivalents round out the core. Any linear two-terminal network can be replaced by a single voltage source in series with a resistance, or a current source in parallel with a resistance. V_th is the open-circuit voltage. R_th is the equivalent resistance looking back with all independent sources killed. Norton current is just I_N = V_th / R_th. These are non-negotiable for anything involving load variations or circuit cascading.

Superposition and Its Actual Limits

Superposition is elegant on paper and genuinely useful in practice when you have multiple independent sources. Turn off everything except one source, solve, then repeat for each source. Add the results. But here's the thing most cheat sheets omit: superposition does not work for power. Power is a nonlinear function of voltage or current. You cannot superpose power values. I've seen students compute power for each source individually and then add them up, which is wrong. Compute the total voltage or current first, then calculate power from that. Another limitation people miss. Superposition applies to independent sources. Dependent sources stay active during every sub-problem. You don't turn them off. If you have a circuit with both dependent and independent sources, the usual approach is to find the Thevenin or Norton equivalent by applying a test source at the terminals and measuring the response, or by finding the open-circuit voltage and short-circuit current separately. I ran into a specific edge case last year involving a circuit with a voltage-controlled current source and three independent sources. The problem was that when I deactivated the independent sources to find R_th, the dependent source still produced current, making the equivalent resistance negative. The standard textbook procedure didn't cover this clearly. My workaround was to apply a 1A test current source at the output terminals, solve for the resulting voltage, and then R_th = V_test / 1A. This gives you the correct equivalent resistance regardless of what the dependent source does. It also reveals when the equivalent resistance is negative, which indicates the circuit could be unstable or oscillating under certain conditions. That's useful information a simple formula lookup won't give you.

Frequency Domain Analysis Without the Headache

Once you move into AC analysis, impedance replaces resistance everywhere. The same techniques apply. Nodal, mesh, Thevenin, superposition — they all work identically. The only difference is that your numbers become complex. Manage that by keeping everything in either rectangular form (a + jb) for addition and subtraction, or polar form (magnitude angle) for multiplication and division. Switch between them as needed. Use a calculator or a quick spreadsheet rather than doing complex arithmetic by hand unless you're practicing for an exam. Resonance deserves a mention. Series resonance occurs when the inductive and capacitive reactances cancel: = 1/(LC). At resonance, the impedance is purely resistive and minimal. Parallel resonance is messier because it depends on the actual component values and their parasitics. In ideal parallel LC, impedance becomes infinite at resonance. In real circuits, resistance in the inductor windings changes that behavior significantly. I once worked on a filter design where the simulated response looked clean but the bench measurements showed a broad, damped peak instead of the sharp resonance I expected. The culprit was the inductor's series resistance, which was not in the textbook model. Adding that resistance to the simulation brought it in line with reality. Two-port networks are another area where a cheat sheet helps. Z-parameters, Y-parameters, h-parameters, and ABCD parameters each serve different purposes. ABCD parameters are particularly useful for cascaded stages like amplifiers or filter sections because you can multiply their matrices directly. Z and Y parameters are better for nodal and mesh analysis respectively. The conversion formulas exist but are tedious. A well-organized reference table for these conversions is worth having.

Transient Analysis and Time Constants

RC and RL circuits in the time domain follow exponential curves. A charging capacitor through a resistor reaches about 63% of its final voltage after one time constant, where = RC. After five time constants, it's effectively at steady state. An inductor discharging through a resistor decays with = L/R. These are the only two time constants you need to memorize for basic first-order circuits. Everything else — second-order RLC circuits — requires solving differential equations or using Laplace transforms. Laplace transform techniques let you convert differential equations into algebraic equations in the s-domain. Capacitor impedance becomes 1/(sC) and inductor impedance becomes sL. Initial conditions appear as additional voltage or current sources in the transformed circuit. The inverse Laplace transform gets you back to the time domain. Partial fraction expansion is the standard tool for this. I typically keep a table of common Laplace pairs on the reference sheet rather than looking them up each time. The most frequently used ones are the step response, impulse response, and exponential decay forms.

What the Cheat Sheet Won't Fix

A reference sheet is a tool, not a substitute for understanding. The biggest mistake students make is treating it like an answer key instead of a reminder of how the pieces fit together. If you can't explain why a Thevenin equivalent works or when a particular method breaks down, memorizing formulas won't help you when the circuit doesn't look like any of the standard examples. The cheat sheet approach also fails for nonlinear circuits. Diodes, transistors, op-amps in saturation — none of these obey superposition or simple impedance models. You need piecewise linear approximations, load line analysis, or numerical simulation tools. SPICE handles these cases reliably, but you need to know how to set up the model and interpret the results. A printed sheet of linear circuit formulas is useless for switching regulator design or amplifier biasing calculations. There's also a practical limitation. The cheat sheet assumes ideal components. Real resistors have tolerance and temperature coefficients. Real capacitors have ESR and leakage current. Real inductors have parasitic capacitance and core losses. At high frequencies, trace inductance and parasitic coupling become significant. If you're designing actual hardware, the idealized calculations are a starting point, not the final answer. You validate with simulation and then with measurements.

How to Use This Efficiently

Keep the sheet to one page. Two sides maximum. If it's longer, you're including stuff you don't need or haven't organized it well. Group related formulas together. Put DC resistive analysis first, then AC steady state, then transient, then advanced methods. Put the most commonly used equations at the top where your eye lands first. Practice with the sheet before you need it. Work through at least five or six circuits using only the reference as your guide. This builds the association between problem type and the right tool. Without that, you'll waste time flipping through the sheet trying to find something that matches, when you should have recognized the circuit topology immediately. I keep a laminated version in my workshop and a digital copy on my phone. The laminated one is for bench work where I might spill coffee or solder flux on it. The phone copy is searchable, which matters when you're looking for a specific conversion formula at midnight. Both serve the same purpose: reducing the friction between knowing what you need to do and finding the exact equation to do it.
