Working With a Cobra CA 380 Parts Diagram

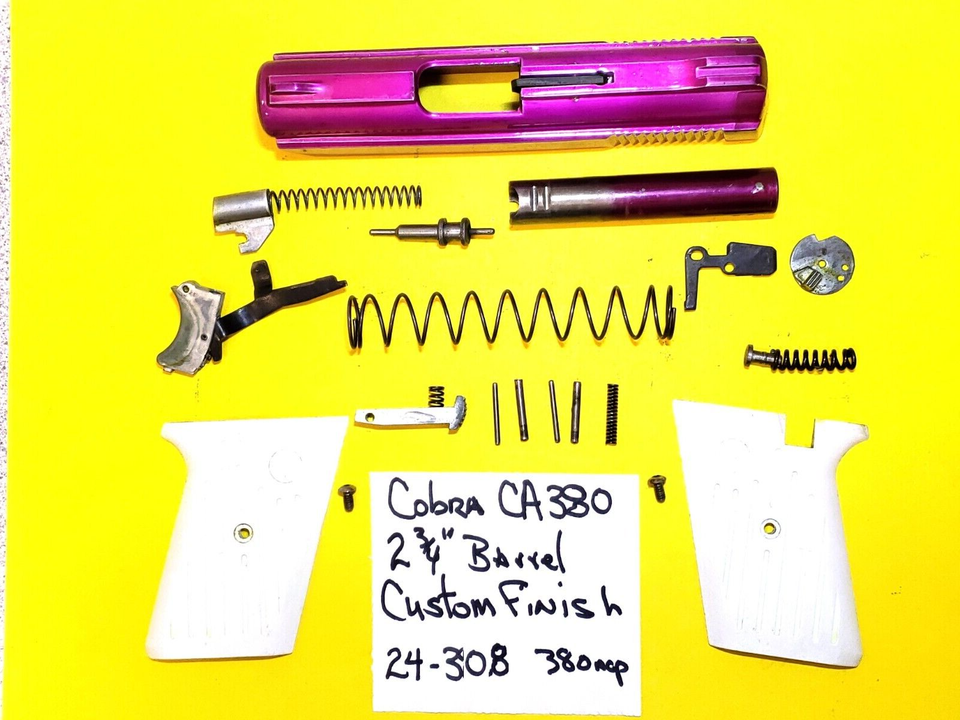

The Cobra CA 380 is a budget 9mm compact, and finding a clean parts diagram for it is one of those things that sounds simple until you actually need one. I've spent time tearing these down for trigger jobs, spring replacements, and the occasional broken firing pin situation. The problem isn't that they're complicated guns. It's that Cobra doesn't put out the kind of official documentation companies like Glock or Smith & Wesson do. When I need a Cobra CA 380 Parts Diagram, my first stop is usually Brownells or the midwest gunsImporter archive pages. They've got exploded view images from time to time. Sometimes you'll find the diagram on the manufacturer's own site if Cobra is still actively supporting the model, but honestly that's hit or miss. GunPartsdirect.com used to have decent coverage of Cobra models, though their inventory changes depending on what parts Cobra has in stock. If you're looking at this because you just disassembled your slide and have no idea where the trigger bar goes, I'd recommend taking your own photos at each stage of disassembly before you start pulling things apart. That saves you from trying to reconstruct the internals while standing over a towel on your kitchen table at 10pm.

The diagram itself will typically show these main groupings: the slide assembly, the frame assembly, the trigger group, the recoil spring and guide rod, the firing pin assembly, and the magazine. The CA 380 uses a standard double-stack 9mm magazine, which is one of the more straightforward aspects of this pistol.

Common Parts and What Actually Goes Wrong

From experience, the things that fail on these are pretty predictable. The recoil spring retainer tab can bend if someone forces reassembly without aligning it properly. I had a customer bring me a CA 380 once that wouldn't cycle past half-stroke, and it turned out the previous owner had shoved the barrel under-lug back into the slide without rotating the barrel hood into its correct position. The gun looked fine visually, but the barrel was binding against the slide rails. The trigger return spring on the CA 380 is small and easy to lose during field stripping if you don't keep track of it. I've seen three of these pistols come through my bench with a missing trigger return spring, and every single time it was because the person cleaning it let the trigger group fly free without supporting the spring tension. Keep a small parts tray handy. A magnetic mat works but sometimes these springs are small enough that they stick to the tray edges instead of staying visible in the center. The firing pin safety plunger spring is another tiny piece that causes headaches. This is the little spring inside the frame that pushes the firing pin block up. If it gets worn or loses tension, you can get a light primer strike issue or a failure to fire altogether. The fix isn't usually replacing the spring itself. More often it's cleaning out carbon buildup around the firing pin channel that prevents the plunger from moving freely. I use a toothpick and some gun solvent for that. Takes about five minutes and solves more ignition problems than people expect.

Assembling the Trigger Group — The Part Diagrams Don't Really Show

Here's something I wish every parts diagram included: the orientation of the trigger bar relative to the sear faces. The CA 380 has a simple inertia-type trigger system, but getting the trigger bar to seat correctly requires aligning the rear of the bar under the sear notch on the slide. I usually install the trigger group first, then drop the barrel and recoil spring assembly in last. You can test the trigger function before putting the slide back on the frame, which catches mistakes early. The magazine catch is another detail that trips people up. On the CA 380 the magazine release button has a small detent ball and spring underneath it. If you're working without a diagram and remove the grip panel screws, those two pieces can pop out. Not ideal. I always tape the grip panels to each other with a strip of painter's tape before removing the screws. Cheap insurance.

What the Diagrams Leave Out

Most parts diagrams for the CA 380 won't show you the finish options or manufacturing variations. Cobra has produced several slight revisions of this pistol over the years, and a diagram from a 2018 parts catalog might not match your 2021 model exactly. The frame geometry is the same, but some internal surfaces and pin diameters shifted between production runs. If you order a replacement part based on a diagram and it doesn't fit, don't force it. Measure the old part and compare it to the new one before trying to install anything. A firing pin that's two millimeters too long will cause problems you don't want to deal with. I've also noticed that some third-party diagrams online have errors in the part numbering. A diagram might label a component as part number A when it's actually part number B according to Cobra's current listing. Always cross-reference with at least two sources, preferably including the actual dealer or distributor pricing page, before ordering parts. It costs nothing extra and saves you from having to return a part that looks right but isn't.

Cobra CA 380 Parts Diagram — Quick Reference

If you just need the basic layout for reference, here's the standard component order from front to back on the slide: barrel, barrel lock-up under-lug, recoil spring assembly, and guide rod. On the frame side you have the magazine well, trigger housing, slide catch lever, and the takedown lever on the left side. The takedown procedure is straightforward — slide the takedown lever down and forward, then the slide comes off. Reverse that to reinstall. That's basically all the instructions any diagram is going to give you for field stripping. For actual part ordering, your best bet is contacting a Cobra authorized dealer directly with your serial number. They can pull the correct parts breakdown for your specific production run. The diagrams you find free on the internet are useful for understanding how the pieces relate to each other, but they're not always reliable for part numbers or exact specifications. That's the tradeoff with budget firearms manufacturers. You get a functional pistol at a reasonable price, and you figure out the rest yourself.
