Working With the Coleman Mach 15 Control Board

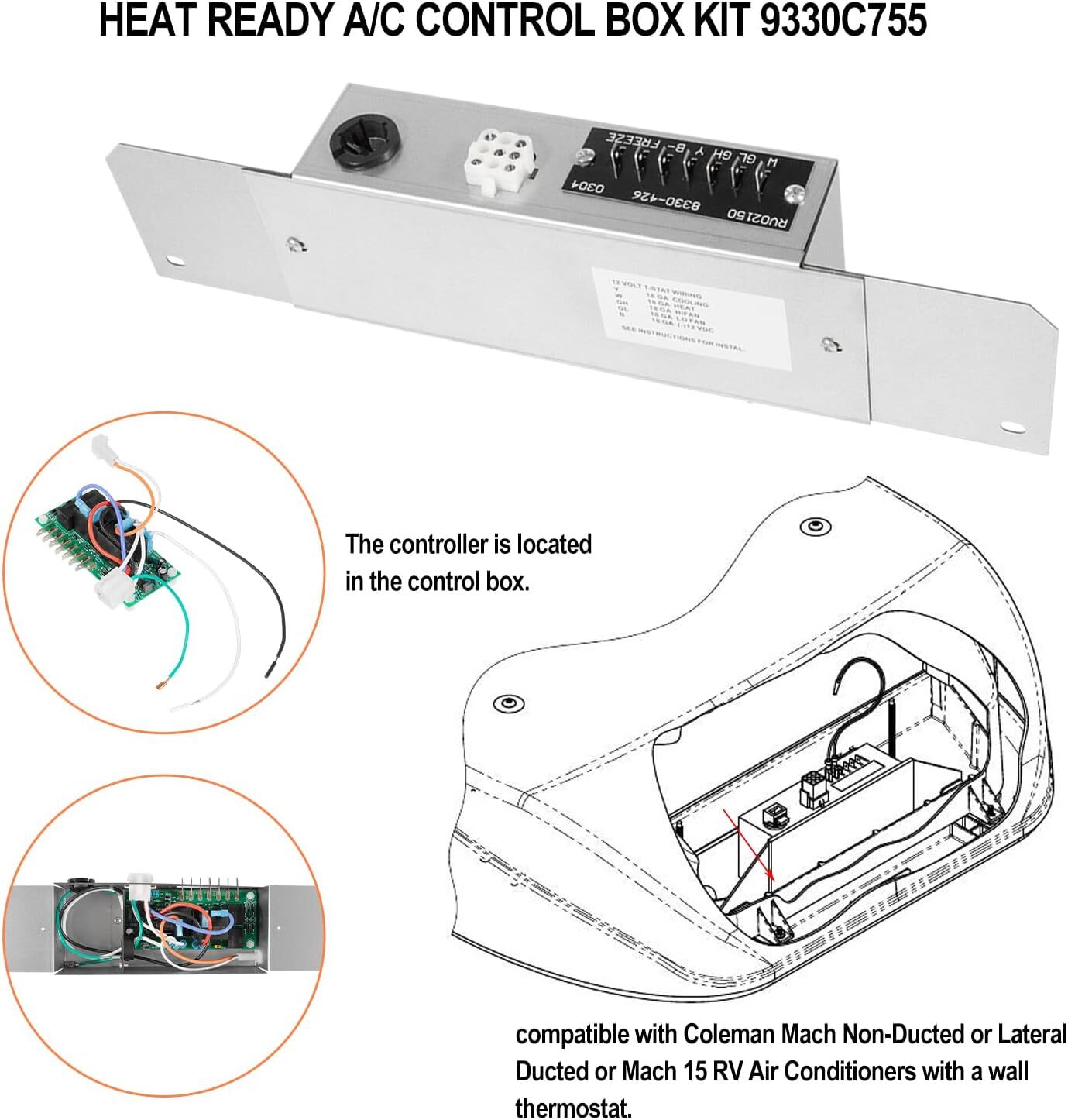

The Coleman Mach 15 is one of those units you see on every third RV on the road. They run fine until they don't. The control box is where most people get stuck because the diagrams in the manual are either missing or barely legible. I've rewired three of these over the years, and the wiring isn't nearly as clean as the factory drawing suggests. The control box sits inside the plenum under the roof, tucked behind the plastic cover. It takes 120V AC power from the shore power or generator input, steps that down through a transformer to 12V DC for the logic board, and then switches 120V to the compressor, condenser fan, and evaporator fan based on thermostat calls. The diagram maps out a few key circuits: power feed on terminals L and N, the 12V transformer output feeding the control board, the thermostat connection on the low-voltage side, the compressor relay, and the two fan motor circuits. You'll also see a common wire that ties everything together on the terminal strip. The terminal block uses numbered positions. Terminal 1 is line voltage in. Terminal 2 goes to the transformer primary. The transformer secondary drops to 12V and feeds the control board. From there, terminal strips handle the compressor contactor coil, the condenser fan, and the evaporator blower motor. The thermostat plugs into the low-voltage side with a standard two-wire or three-wire connection depending on whether you have a fan switch or just a simple on-off setup.
Here's the thing most people miss. The ground wire on these units is typically a bare copper strand connected to the metal mounting bracket, and that bracket bolts to the fiberglass roof surround. If that bolt is painted over or sitting on silicone, your ground is floating. I had a Mach 15 last winter that would randomly shut down the compressor after twenty minutes of running. No error codes, no visible issues. Turns out the ground strap had corroded through right at the mounting point. I filed the paint off the bracket, added a new ring terminal, and bolted it directly to clean metal on the roof surround. Fixed immediately. That problem wasted me a weekend. The thermostat wiring deserves attention too. Coleman uses a standard 12V low-voltage loop, but the wire gauge matters more than people think. If you're running wire from a remote thermostat near the bed to the unit on the roof, use at least 18-gauge stranded wire. Thin thermostat cable will drop voltage over distance and cause the control board to misread the call for cooling. I've seen units fail to start the compressor because someone ran a long run of 22-gauge wire through the walls. The board sees 9 or 10 volts instead of 12 and treats it like an open circuit.
Common Wiring Problems and What Actually Works
The relay on the control board is the first thing to go. After about eight to ten years, the contacts weld shut or fail to close. You'll notice the fan runs but the compressor never engages, or vice versa. The relay itself isn't usually serviceable as a separate component on the Mach 15 board. You replace the whole control board. The part number varies by manufacturing date, so check the label on your existing board before ordering. Numbers like 601560.001 or 601560.003 are common but not universal. Another issue is the transformer. The 120V to 12V transformer can fail intermittently, especially if the unit sees voltage spikes from a bad generator or an unconditioned shore power connection. When the transformer weakens, the control board gets brown-out symptoms: lights flicker on the board, the unit resets, or it goes completely dead. You can test it with a multimeter on the secondary side. Should read between 11.5 and 13 volts AC under load. Anything below 11 is suspect. If you're pulling the control box out to redo the wiring, disconnect power at the breaker first. Then remove the four or five screws holding the cover plate. The wires are color-coded but the coloring isn't consistent across production runs. Some units use white for neutral, black for hot, red for the relay switch leg. Others swap red and blue. Don't trust the colors. Photograph the existing wiring before you touch anything, and label each wire with masking tape and a marker. It takes thirty seconds and saves you from guessing for an hour.
Get the Full Details
The defrost cycle wiring is another area where people get confused. The Mach 15 has a defrost mode that cycles the reversing valve or adjusts fan operation in cold weather. The defrost sensor is a small thermistor clipped to the evaporator coil. If that sensor fails or its wire pinches shut, the unit won't defrost properly and you'll get ice buildup on the coil. The sensor connects to the control board on two pins and reads resistance. At room temperature it should be around 10 kilohms. At freezing it should climb to roughly 30 kilohms or more. If it reads open or shorted, replace the sensor. They're cheap and accessible once you pull the evaporator cover.
Where to Find the Diagram
Official Coleman wiring diagrams for the Mach 15 are available through Partstown, VRSSupply, and occasionally on the Internet Archive if you search for the original service manual PDF. The manual number is usually something like 601560 or referenced in the Coleman Aeroquip documentation. Third-party RV parts sites often have the diagram as a downloadable PDF attached to the control board listing page. If you can't find a clean version, the terminal block itself has the wire positions molded or printed into the plastic near each screw terminal. It's not as complete as the full diagram but it's accurate for reconnecting after servicing. One last note about the evaporator fan motor wiring. The Mach 15 uses a shaded-pole motor that runs directly off the control board's fan relay output. There's no separate capacitor. The motor draws about 0.5 to 0.8 amps on high speed. If you measure current and it's significantly higher, the motor bearings are wearing and the board will eventually fail from the overload. I've replaced boards twice because the fan motor was drawing too much current and nobody caught it early. Put a clamp meter on the fan circuit when diagnosing a dead board. It might save you from replacing a good control board.
