Working Through Conformational Energy Diagrams by Hand

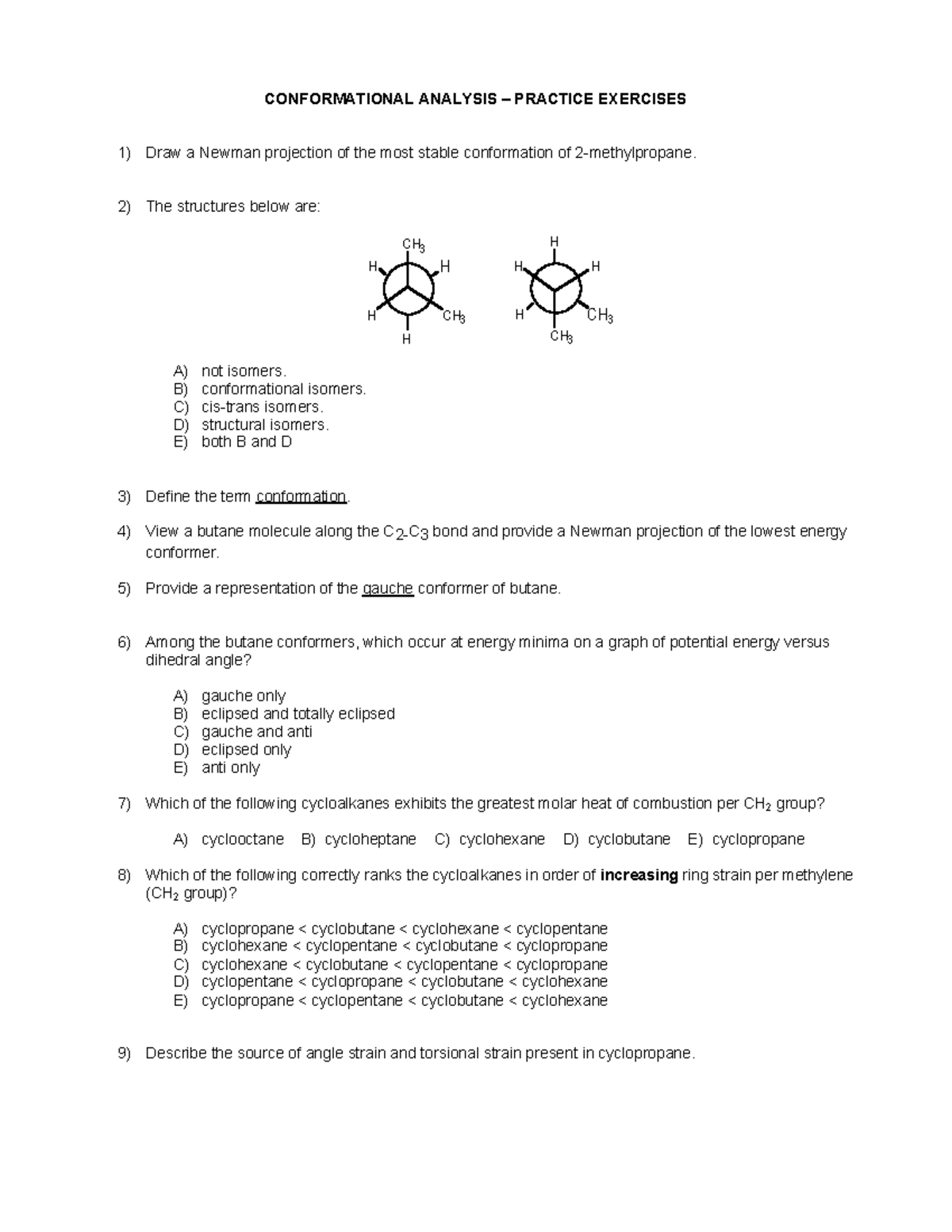

Most people learn conformational analysis from textbook drawings that look too clean. The real problem shows up when you try to analyze something with multiple substituents and you realize you have no idea which staggered conformation is actually the lowest energy one. I spent a whole semester going back and forth on this stuff before it clicked. There are practice sets floating around on organic chemistry resource sites, older course websites, and open educational platforms. You want sets that include answers with full reasoning, not just letter selections. A good set will give you structures like 2-methylbutane, cyclohexane derivatives, and at least one problem involving a molecule with two or more stereocenters where you have to do a chair flip and compare energies. I keep a folder of PDF problem sets from university course pages that still exist. Some of these haven't been updated since 2016 but the problems are solid. Look for ones from courses that emphasize the topic rather than skimming it.
The Mechanics of Drawing the Diagrams
Start with the simple ones. Take butane and rotate around the C2-C3 bond. Draw the Newman projection every sixty degrees. You get three staggered conformations and three eclipsed ones. Label each one. That is the foundation. Here is where beginners make mistakes. They draw the eclipsed conformations but forget to label the dihedral angle. Or they call the anti conformation gauche by mistake. Write the angle next to each structure. Anti is 180 degrees. Gauche is 60 degrees. Eclipsed can be 0, 120, or 240 depending on what you are looking down. Once you have butane down, move to 2-methylbutane. This adds a methyl group and introduces a new variable. The energy differences shift because you now have different groups interacting. The anti conformation with the two largest groups opposite each other will be the most stable. You can tell without doing any math if you know your steric sizes. Methyl beats hydrogen. Ethyl beats methyl. tert-Butyl is essentially a wall.
Chair Conformations and Ring Flips
Cyclohexane is where the difficulty jumps. You need to draw two chair conformations related by a ring flip. Every substituent that was axial becomes equatorial and every equatorial becomes axial. This is mechanically straightforward but you keep making errors on the placement. My trick, and this is the kind of thing no professor emphasizes enough, is to draw the ring first as a skeleton with no substituents, then add the groups one at a time while saying out loud whether each position is axial or equatorial. If you do not verbalize it, you will misassign at least half of them on your first try. I learned this the hard way during a midterm when I drew a chair flip for cis-1,2-dimethylcyclohexane and put both methyls equatorial. They cannot both be equatorial in the cis isomer. One has to be axial. The correct answer is one axial and one equatorial in both chair forms.
Get the Full Details
Quantifying the Energy Differences
A1,3 values are what you need here. These are the energy penalties for having a substituent in an axial position compared to equatorial. For methyl, it is roughly 1.74 kcal/mol. For tert-butyl, it is about 4.9 kcal/mol. Use these numbers to calculate the relative stability of each chair conformation. Here is a detail people miss. When you have 1,3-diaxial interactions involving two substituents, the total strain is not always a simple sum. If both axial groups are on the same side of the ring and close enough to interact directly, you get an additional gauche butane interaction layered on top of the A-values. This shows up clearly in cis-1,3-dimethylcyclohexane when both methyls are axial. The calculation requires you to count both the 1,3-diaxial H-CH3 interactions and the CH3-CH3 gauche interaction separately. I worked through this with a problem set once and got the energy difference wrong by almost 2 kcal/mol because I only counted the A-value contributions and forgot the extra gauche interaction between the two axial methyl groups. The correct answer is approximately 5.4 kcal/mol for the diaxial conformer relative to the diequatorial one. My initial answer was 3.5. The difference was the missing interaction term.
Common Problems and How to Fix Them

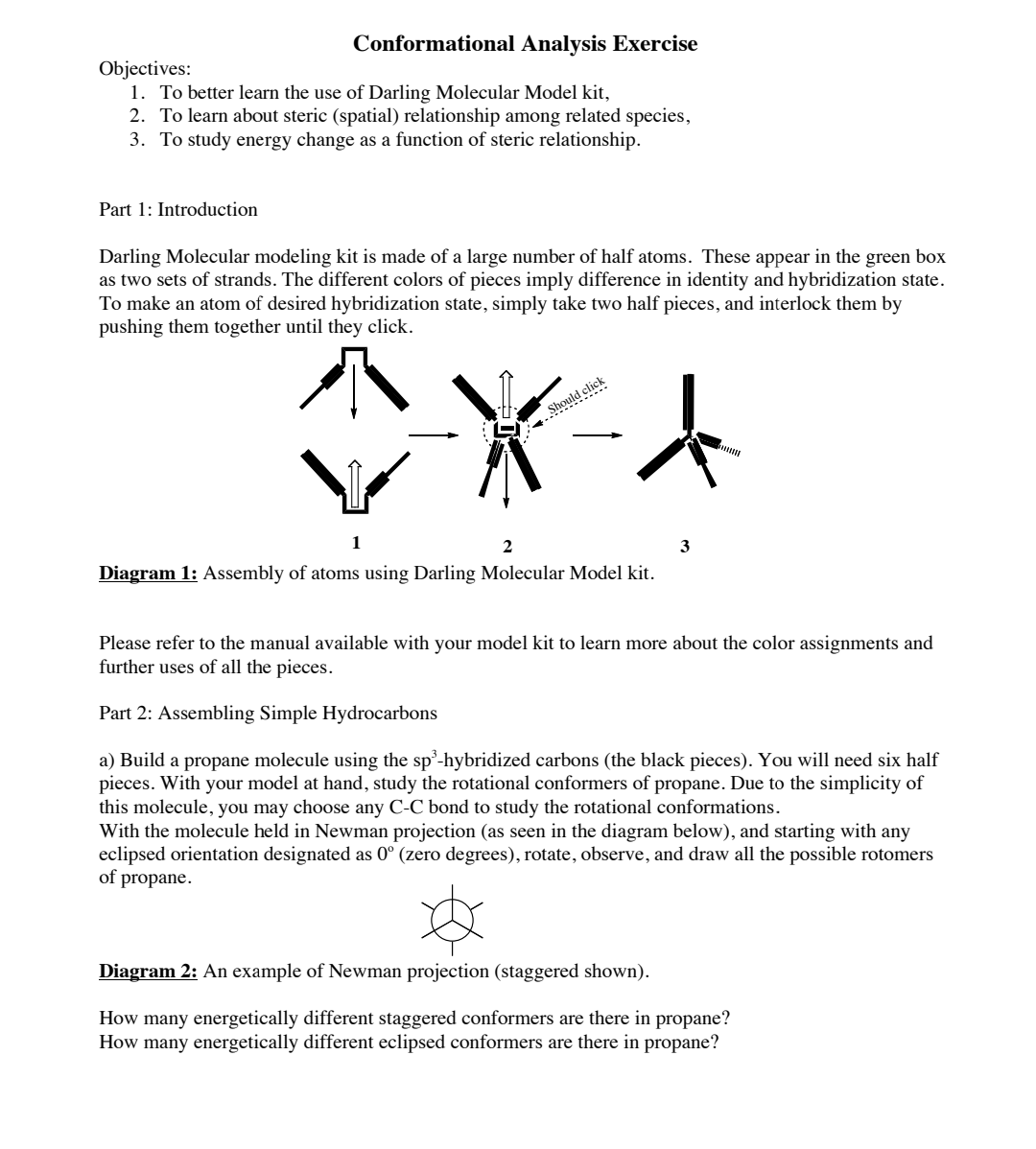

The biggest issue students face is visualizing three-dimensional structures on paper. You are taking a 3D object and flattening it onto a 2D surface. Your brain is doing the heavy lifting and it will fail you if you do not give it tools. Get a molecular model kit. Not a cheap plastic one. A decent one with flexible bonds costs about fifteen dollars and will save you hours of confusion. Build the molecules. Rotate the bonds. See the eclipsing interactions. When you can physically feel the steric strain by trying to push two groups together, you understand it better than any drawing ever showed you. Another problem is knowing when to use a Newman projection versus a chair drawing versus a sawhorse projection. Use Newman when looking down a single bond in an open chain. Use chair for cyclohexane derivatives. Use sawhorse only when your instructor specifically asks for it. Do not mix them up in the same problem.
What the Standard Approaches Cannot Handle Well
Conformational analysis as taught in undergraduate organic chemistry works fine for small to medium molecules with a handful of substituents. It breaks down when you get into macrocycles, molecules with restricted rotation from ring strain, or systems where electronic effects like anomeric interactions dominate over steric effects. The textbook treatment also assumes you are working at room temperature, which means you are mostly interested in the Boltzmann distribution of accessible conformers. At higher temperatures, or when dealing with very shallow energy minima separated by less than 1 kcal/mol, the simple analysis becomes unreliable because you can no longer treat the conformers as distinct populations. If you are dealing with those cases, you need computational chemistry software. Programs like Gaussian or ORCA can optimize geometries and give you relative energies that account for things your hand-drawn diagrams miss entirely. This is not something you will do in an undergrad course but it is worth knowing the boundary of what the manual method can actually do.
A Practical Study Sequence
Start with butane conformations. Move to substituted butanes. Then do cyclohexane itself. Then monosubstituted cyclohexane. Then 1,2-disubstituted cyclohexane in both cis and trans forms. Then 1,3-disubstituted. Then 1,4. Then trisubstituted. This sequence works because each step only adds one new variable. Do not skip the disubstituted problems. They are where the real learning happens and they are also where exam questions come from. A typical exam will give you a substituted cyclohexane and ask you to draw both chair conformations, identify the more stable one, and calculate the equilibrium constant using the energy difference. If you have done enough of these by hand, you will recognize the pattern immediately and the calculation will be routine. When you finish a problem set, check your answers honestly. If you got something wrong, draw it again from scratch without looking at the solution. The second attempt will either confirm your understanding or expose the exact gap in your reasoning. That second attempt is worth more than ten problems you got right the first time without really understanding why.
