What a Crush Tester Actually Is

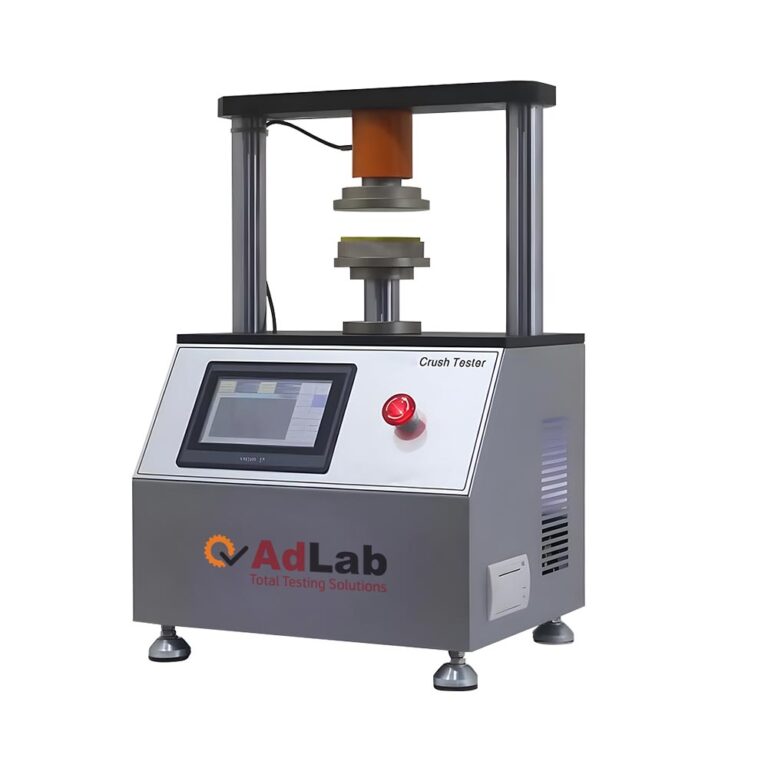

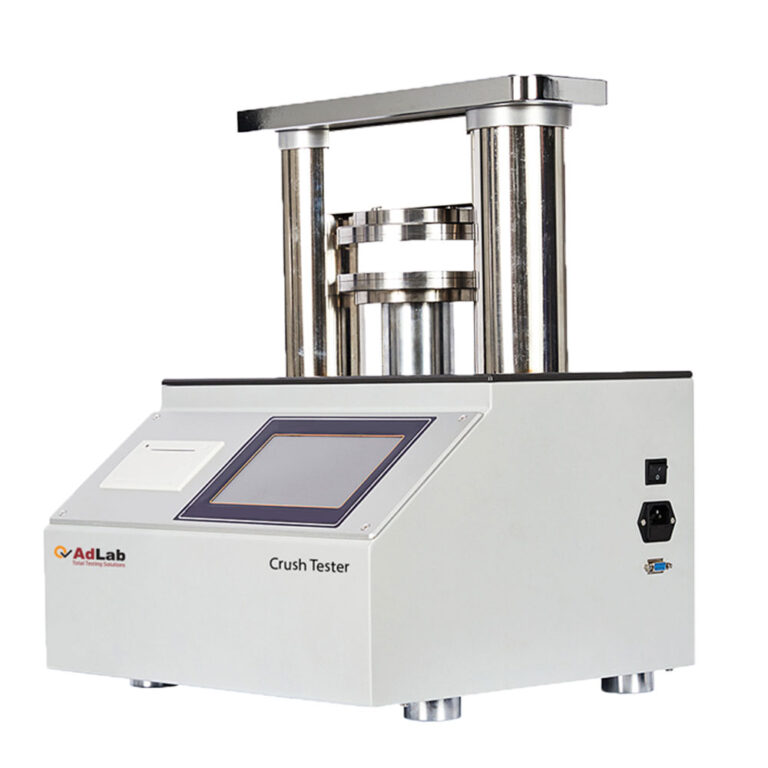

A Crush Tester is a piece of laboratory equipment designed to apply a controlled compressive force to a material sample until it fractures or deforms beyond a set threshold. The most common applications are in construction and materials testing, where you're trying to figure out how much load a brick, concrete cylinder, or soil sample can take before it gives way. The machine itself is relatively straightforward — two platens, a hydraulic or screw-driven actuator, a load cell, and a control system that records force versus displacement. I've run these things for years. They're not glamorous, but they're essential when you need verified data for compliance or quality control. The key thing most people miss is that the machine alone doesn't give you results. How you prepare the sample, how you seat it, and what rate you apply the load at matter far more than the specs on the nameplate.

Setting Up and Using a Crush Tester

Before you even power the unit on, check your platens. They need to be clean, flat, and free of debris from the last test. I've seen crushed concrete results go completely off because someone left a flake of old aggregate on the lower platen. A single millimeter of contamination changes the stress distribution across the entire sample. Wipe them down with a brass brush and a dry cloth. Nothing aggressive that would scratch the surface. Sample preparation is where most errors creep in. For concrete cylinders, the standard size is 150mm diameter by 300mm height, though 100mm by 200mm cylinders are used when space or material is limited. If you're cutting cores from existing structures, the ends need to be ground flat and perpendicular. A deviated angle of even two degrees can cause premature failure on one side, which skew. The acceptable tolerances are usually spelled out in ASTM C39 or ISO 22476, depending on what your lab reports against. Once the sample is ready, load it into the machine. Center it carefully. Don't just drop it on the platen and crank the crosshead down. Use the alignment feature if your machine has one, or do it by eye and then tap the sample gently with a rubber mallet while watching the load cell readout. If the force number jumps when you tap, it's not seated evenly. Fix it before proceeding.

Set your loading rate. For concrete, the standard is somewhere around 0.25 MPa per second, which translates to roughly 28 kN/s for a 150mm cylinder. If you load too fast, the result will be artificially high. Too slow and you might get creep effects that lower the reading. I've adjusted my rate by trial and error when working with older machines that don't have closed-loop control. You listen to the pump, watch the gauge, and adjust the valve until the needle climbs at a steady pace. It takes practice but it's not magic. Start the test. The machine applies load continuously until the sample fails. Record the peak force. Divide by the cross-sectional area and you have your compressive strength. For concrete, that's usually reported in MPa or psi. The entire test on a single cylinder should take between 20 and 40 seconds from first contact to failure. If it's taking longer, your rate is too slow. If it's instantaneous, something is wrong with your setup or the sample was already compromised.

A Real Problem I Ran Into

Early on I ran into an issue where brick samples kept failing at wildly inconsistent strengths — sometimes 40% below the expected range. The machine was calibrated. The samples looked fine. After days of chasing it down, I realized the problem was moisture. The bricks were stored in a humid environment and absorbed surface moisture before testing. When the load was applied, the water created a lubricating layer between the brick and the platen, causing lateral slippage and uneven stress distribution. The fix was simple but not obvious: I started conditioning the bricks in a drying oven at 105°C for 24 hours before testing, then letting them cool in a desiccator. After that, the results stabilized within the expected tolerance band. It cost me an extra day of turnaround time, but it saved me from issuing bad reports. The first thing that trips people up is assuming the load cell reading is the whole story. It's not. You also need to track displacement. Force alone tells you when the sample failed, but displacement data tells you how it failed. A brittle material like cured concrete will show a sharp peak followed by a rapid drop. A more ductile material like soft soil or green brick will show a gradual curve. Without displacement recording, you're only getting half the picture, and you might miss signs of improper sample preparation or machine misalignment. Another pitfall is ignoring the stiffness of the testing frame itself. If you're testing very hard materials like high-strength concrete or steel, the frame can deflect under load. That deflection gets counted as part of the sample displacement if you're not using an extensometer or crosshead displacement compensation. The result is an artificially low modulus calculation. I had a client once who was comparing test results across three different labs and got wildly different modulus values. Turns out two of the labs were using machines with significantly different frame stiffness and none of them were compensating for it. We ended up running a calibration block through all three and documented the correction factors. It took two afternoons but it saved a contract dispute.

Calibration is another area where people cut corners. The load cell needs periodic verification against a known standard force. Most labs do this annually, but if you're running high-volume tests, quarterly checks are more realistic. I've seen load cells drift by 3% over six months in a busy lab, which is enough to push a borderline result from pass to fail or vice versa. The displacement transducer needs the same treatment. Don't skip it.

When a Crush Tester Isn't the Right Tool

There are scenarios where a standard Crush Tester won't give you useful data. If you're testing irregularly shaped samples from field conditions — say, chunks of demolished concrete with no uniform geometry — the results will be scattered and difficult to interpret. In those cases, a point-load strength test or a schmidt hammer rebound test might be more appropriate as a screening method, even though they're less precise. The Crush Tester requires geometric consistency to produce comparable numbers. Another limitation: Crush Testers measure compressive strength in a uniaxial setup. Real-world structures experience multi-axial stress states. A wall doesn't just get squished from the top. If you need to understand how a material behaves under confined or triaxial conditions, you'd need a different apparatus, like a triaxial cell for soils or a true triaxial machine for more advanced materials research. A Crush Tester simply can't replicate that. It's not a weakness of the machine, it's a limitation of the test method itself. Know what question you're actually trying to answer before you pull the sample out of storage. Download links and specific model recommendations aren't something I can provide reliably since equipment varies by region and supplier, and I don't maintain a current parts catalog. But if you're looking to acquire a Crush Tester, the main thing to sort out is your testing standard, your maximum load requirement, and whether you need closed-loop control or if an open-loop hydraulic system will suffice. For most routine construction materials testing, a 2000 kN capacity machine with a basic displacement transducer and an annual calibration schedule will cover the vast majority of cases. Anything beyond that is usually over-spec for standard compliance testing.
