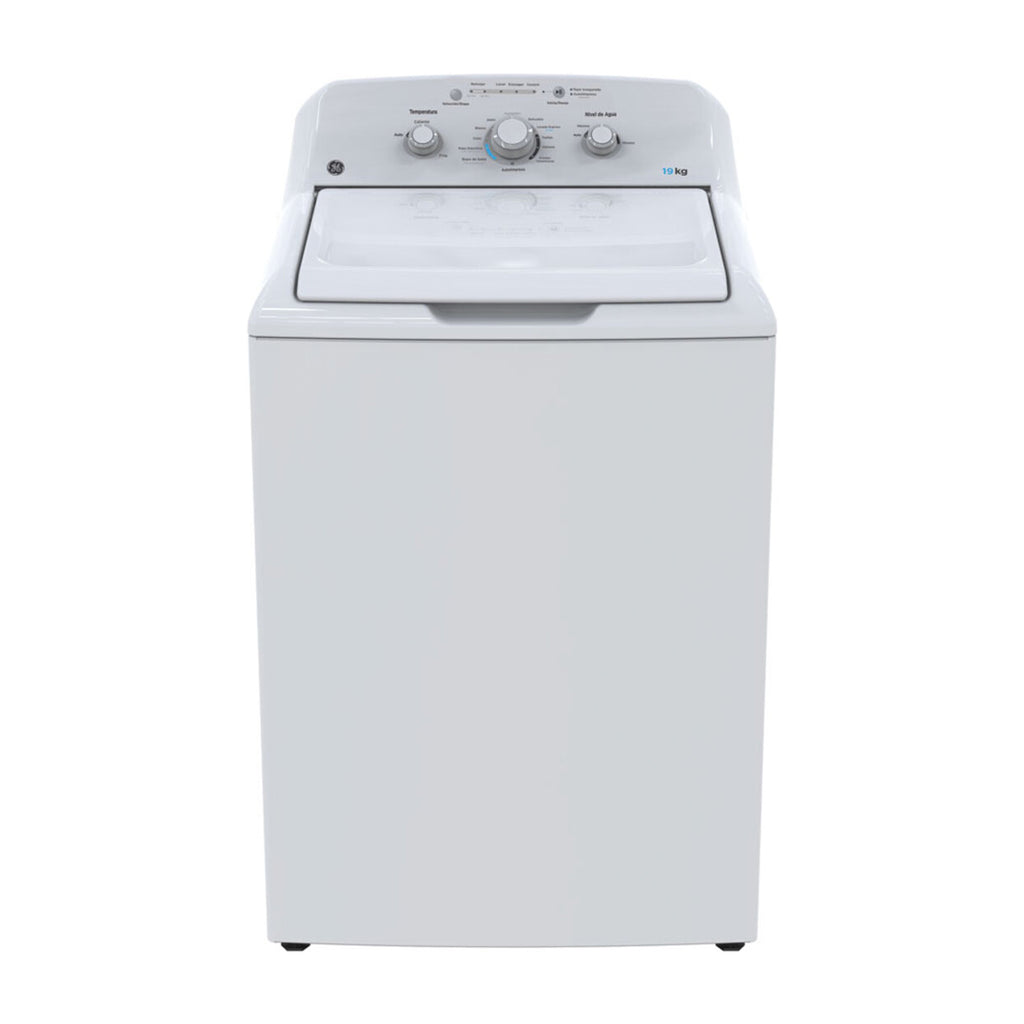

Working with the GE Digital Washer: What Actually Happens When Things Go Wrong
Most people buy these washers expecting them to just work. They do, for about two years, and then you start getting error codes that mean nothing to anyone who hasn't opened the back panel. I spent last Tuesday diagnosing an F05 code on a neighbor's unit that turned out to be a faulty hall sensor on the motor, not the drive belt like the first three parts I replaced. Here is how the system actually behaves and what you should know before calling a technician. The display on these units cycles through diagnostic codes when something trips a protection threshold. F01 through F04 typically map to drain issues, water level sensor failures, or inlet valve problems. F05 and F06 are your motor-related codes—either the hall sensor or the motor driver board is throwing a fault. The LE code usually means the lock mechanism has engaged incorrectly or the tub is unbalanced enough to trigger the safety switch repeatedly. I have seen more than one person replace the entire control board only to find out the issue was a loose wire on the door lock assembly that had worked itself loose from vibration over eighteen months of use. If your washer throws an OE code, it is failing to drain within the expected time window. Check the drain pump filter first. It is located behind a small access panel near the bottom front of the unit. Remove it and clear out whatever has accumulated. Lint, coins, and the occasional lost sock fragment create blockages that cause the pump to work harder and eventually trigger the error. The filter should be cleaned every six months even if the machine seems to be draining fine. My own unit started showing intermittent OE codes after a year and a half until I found a clump of dryer lint that had migrated into the pump housing through the drain hose.
Why These Machines Struggle with Small Loads
The digital controls on GE washers use load sensing to determine water levels and cycle times. When you run a single pair of jeans or a light towel, the system sometimes misreads the load as empty or significantly lighter than it actually is. This causes the washer to under-fill with water, which then triggers unbalance errors mid-cycle. The workaround is simple but not obvious: add a couple of towels to any load under three items. It sounds pointless, but the added fabric gives the sensor something to register and lets the machine complete its calibration routine properly. I also noticed that the tall fill mode on these units does not always engage correctly when the water pressure in the building is below 20 PSI. If you live in an older apartment or a high floor where pressure drops, the washer may take eight or nine minutes just to fill, and the digital timer display will show inflated cycle times. Running a rinse and spin cycle without detergent often fills faster because the system skips the prolonged soak phase. This was not documented anywhere in the manual I had.
Control Board Failures and What They Actually Cost
The main control board on these digital washers is a known point of failure around the five to seven year mark. The capacitors on the board degrade from heat cycling and moisture exposure inside the console. Symptoms include the display dimming, buttons becoming unresponsive, or the machine starting and stopping unpredictably. A replacement board runs between eighty and one hundred fifty dollars depending on the model number. The part itself is usually GE branded and available through most appliance parts suppliers, but installation requires removing the top console which involves several Phillips screws and a careful prying motion to release the clips without cracking the plastic. Before replacing the board though, check the ribbon cable that connects the control panel to the main board. These cables can develop intermittent connections from repeated opening and closing of the lid. Removing the console, inspecting the connector, and cleaning the contacts with isopropyl alcohol resolved a phantom error on my unit that I had considered a board failure for weeks. The board test itself is straightforward—you need a multimeter and the service manual for your specific model. Voltage at the board should read 120 volts AC on the power input terminals. If it does not, the issue is upstream in the power supply or the lid switch assembly.
Get the Full Details
Filter Maintenance That Prevents Most Problems
The drain pump filter on the GE Digital is easy to miss because the access panel is painted to match the cabinet. Look for a small rectangular door at the bottom front, slightly to the right side. Behind it is a black plastic cap that unscrews counterclockwise. Place a shallow pan or folded towels underneath before opening it. Water will drain out, sometimes with debris. This filter is not high-tech but it does its job well when it stays clear. I replaced mine once when the internal mesh screen cracked during a cleaning session. The part costs about twelve dollars and takes ten minutes to install. You remove the old filter, thread in the new one by hand until it seats, and then tighten it a quarter turn past hand-tight. Over-tightening is the most common mistake and it makes the next cleaning attempt unnecessarily difficult. The screen inside the filter housing should also be inspected for tears or deformation. A damaged screen allows debris to pass through and can damage the pump impeller over time.
When the Machine Stops Mid-Cycle
This is probably the most frustrating issue with these units. The washer will run normally and then suddenly stop with no error code displayed. In my experience, this behavior points to one of three things: a failing lid switch, a tripped thermal cutoff on the motor, or a degraded control board relay. The lid switch is the cheapest and easiest to check. It is located on the top panel near the hinge area. Use a multimeter to test for continuity when the switch is pressed. If it opens and closes inconsistently, replace it. The switch costs around fifteen dollars and takes about five minutes to swap. The thermal cutoff is a one-time fuse located near the motor windings. If it has blown, the motor will not engage and the machine will appear dead even though the display is lit. You will need to access the motor housing to inspect it. This requires removing the rear panel and disconnecting the motor wiring harness. The fuse itself is not always available as a standalone part, which means you may need to replace the motor assembly as a unit. That runs closer to two hundred fifty dollars in parts.
Detergent Usage and Residue Buildup
High-efficiency digital washers from GE are sensitive to detergent overdose. Using regular detergent or more than the recommended amount creates suds that confuse the pressure sensor and can cause overflow conditions. The machine may extend cycle times or abort cycles entirely when it detects excessive suds. I switched to a HE-certified detergent and reduced my by half after noticing residue building up in the drum seal and around the dispenser drawer. The buildup was stiff and gray, the kind that does not rinse out with water alone. Running an empty hot water cycle with two cups of white vinegar once a month keeps the internal passages clear. Do this before the residue becomes a visible problem. The vinegar dissolves mineral deposits and breaks down soap film without damaging the rubber seals or the stainless steel drum. I also wipe down the door gasket after each load because moisture trapped in the folds promotes mold growth within a few weeks in humid climates.
Wi-Fi Features and SmartThings Integration
The digital interface on these washers includes optional Wi-Fi connectivity through GE's app ecosystem. Setup is straightforward if your network is on the 2.4 GHz band. The 5 GHz band will not work and the app will timeout during pairing. Once connected, you receive cycle notifications and can monitor remaining time remotely. The feature is functional but not essential to operation. Several users in my building disabled the Wi-Fi module entirely because the constant connection attempts seemed to interfere with the control board's internal communications, causing random reset loops. If you do not need remote monitoring, you can disable the wireless module through the settings menu or physically disconnect the antenna wire inside the console. The washer operates identically without it. I kept mine disabled after the first month because I never actually used the app and the potential for board interference was not worth the convenience. The long-term reliability of these machines depends mostly on filter maintenance, proper detergent use, and addressing error codes early rather than ignoring them. The digital display is a diagnostic tool, not just a countdown timer, and learning to read the codes properly saves more money than any warranty extension I have seen sold for this appliance.
