Working Out Cation Exchange Capacity in Soil Samples

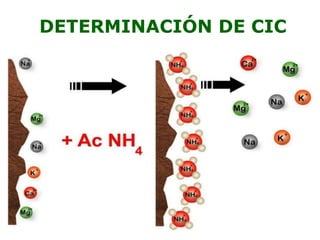

CIC stands for Capacidad de Intercambio Catiónico, the Spanish acronym for Cation Exchange Capacity. It measures how many positively charged ions a soil can hold onto its particle surfaces. The result is expressed in centimoles of charge per kilogram of soil (cmolc/kg). Everything below comes from doing this test repeatedly in a lab setting where the paperwork sometimes arrives two days late. The most widely used procedure is the AMBA (American-Mexican-Brazilian Association) 1M NH4OAc method at pH 7.0. You take a 5-gram soil sample, mix it with 50 mL of ammonium acetate solution, shake it for 30 minutes, let it settle, and then filter or centrifuge. The filtrate goes into an ICP or flame photometer to measure the ammonium that was displaced from the exchange sites, or alternatively you directly measure the NH4+ retained on the soil after washing. Another approach is the BaCl2-triethanolamine method. This one uses barium chloride buffered with triethanolamine at pH 8.2. It displaces all the exchangeable cations simultaneously. You then titrate the excess barium with EDTA using murexide indicator. This method is slightly more labor-intensive but avoids the need for expensive instrumental equipment. I use this method when the ICP is booked out or when you need results on-site.
For calcareous soils, the 1M NH4OAc method can give inflated results because the calcium carbonate itself contributes to the exchange complex. In those cases, a 0.5M NH4OAc extraction is more appropriate. Or you use the MgCl2 method at pH 7.5, which is less aggressive toward the carbonates and gives you a more honest reading of the actual exchange capacity.
The Calculation Workflow
When I run the NH4OAc method, the calculation looks like this. You measure the concentration of ammonium in the extract, usually in mg/L or ppm. Convert that to milliequivalents by dividing by the equivalent weight of ammonium, which is 18 mg/meq. Multiply by the extraction volume, divide by the soil mass in grams, and multiply by 10 to get cmolc/kg. So if your extract reads 45 mg/L NH4+, the calculation is: 45 divided by 18 equals 2.5 meq/L. Times 50 mL extraction volume equals 125 meq total. Divided by 5 grams of soil gives 25 meq/100g, which converts to 25 cmolc/kg. That is a fairly high CIC for a sandy loam. Something to double-check if the soil description says it is mostly quartz sand. With the BaCl2-TEA titration method, the math is different. You record the volume of EDTA used to titrate the blank and the volume used for the sample. The difference between those two volumes corresponds to the amount of barium that was displaced by the soil cations. You convert that difference to meq of exchangeable cations using the normality of your EDTA solution, then apply the same mass correction. A 0.05N EDTA is standard, and 1 mL of 0.05N EDTA equals 0.05 meq of barium.
Get the Full Details
Edge Cases And Problems I Have Encountered
I once analyzed a volcanic ash soil from the central highlands where the NH4OAc method gave an apparently impossible CIC of 85 cmolc/kg. The sample was dark, crumbly, and smelled faintly sulfurous. After running the BaCl2-TEA method on the same material, the result came back at 42 cmolc/kg, which matched the lab's historical data for similar materials. The problem was organic matter interference. The high humus content was chelating the ammonium and artificially boosting the reading. I adjusted the procedure by pre-washing the soil with distilled water to remove soluble organics before the main extraction, and the second run stabilized at 44 cmolc/kg. That is a 30 percent correction on a single sample. Another issue is salinity. When the electrical conductivity of the soil extract exceeds 4 dS/m, the excess soluble salts contribute to the cation reading. I always run a blank extraction on a sodium chloride standard at the same concentration as the sample's saturation extract and subtract that contribution from the final CIC value. Skipping this step is why some published CIC values for coastal soils look unrealistically high.
Pitfalls To Watch For
The biggest mistake I see people make is using the wrong soil-to-solution ratio. The standard calls for a 1:10 ratio, but if you weigh out 5 grams and add only 25 mL of extractant, you concentrate the system and artificially increase the cation release per unit mass. Always use 50 mL for a 5 gram sample unless a specific protocol says otherwise. A second common error is not letting the suspension equilibrate long enough. The 30-minute shaking period is a minimum, not a target. Clay-rich samples benefit from 1 to 2 hours of shaking or even overnight equilibration on a reciprocal shaker. I usually set a timer for 45 minutes and check the samples again at 60 minutes before filtering. The extra 15 minutes consistently improves repeatability, especially for samples with high organic matter or low CIC below 5 cmolc/kg. A third thing that trips people up is assuming CIC equals the sum of exchangeable cations. CIC is technically the maximum cation exchange capacity, which should be measured after full saturation with a single reference cation. The sum of Ca, Mg, K, and Na exchangeable cations is the effective cation exchange capacity, or ECEC. On acidic soils with significant aluminum saturation, ECEC will be noticeably lower than the true CIC because the aluminum has not been displaced during routine extraction. If your sum of bases does not match the CIC by at least 80 percent, check for aluminum interference or incomplete base saturation.
When The Method Fails Completely
High-organic soils like peats or mucks are problematic for almost every standard CIC method. The organic colloids hold onto cations so tightly that the standard extractant cannot displace them efficiently. For these materials, the SIGE (Sistema Integral de Grados Equivalentes) method or a modified ammonium acetate procedure with a longer contact time and a higher extractant volume is necessary. Even then, results can vary by 20 to 30 percent between laboratories using different protocols. If you are working with organic soils and need inter-lab comparability, report the specific method and conditions alongside the CIC value rather than assuming a universal number. Calcium carbonate-rich soils above 15 percent CaCO3 also distort results in most standard procedures. The ammonia buffer in NH4OAc reacts with the carbonate, releasing additional ammonium that gets counted as exchangeable. For these, the 1M MgCl2 extraction at pH 7.0 is the preferred alternative, or you can treat the sample with acetic acid to dissolve the carbonates before testing, though that changes the natural cation balance you are trying to measure.
Practical Notes On Reporting
Always report the extraction method, the soil-to-solution ratio, the equilibration time, and whether the result represents CIC or ECEC. These four details determine whether someone else can replicate your work or compare it to existing data. A CIC value without method documentation is essentially useless in a scientific context. If you are calculating CIC from raw instrument data, keep all intermediate results in milliequivalents until the final conversion step. Rounding too early introduces errors that become visible when you are working with low-CIC samples below 3 cmolc/kg, where a rounding difference of 0.1 meq can change the final result by 2 percent or more.
