Getting Your Shifts Right With the DT12
The Detroit DT12 is an automated manual transmission used across Freightliner, Western Star, and other heavy-duty trucks. It replaced the traditional two-pedal setup with a shifterless design that handles clutch actuation, gear selection, and shifts all on its own. When it needs service, the manual isn't some vague pamphlet you find buried in a glovebox. It is a dense, specific document from Detroit Diesel that covers everything from fluid specifications to full rebuild procedures, sensor alignment, and the mechatronic unit that controls the whole thing. I spent three days wrestling with a DT12 that would not engage first gear after a routine service call. The truck was a Cascadia sitting in my bay with the dash throwing a P1132 code and no forward movement below 15 mph. The manual had the diagnostic tree for that exact code, but the real fix wasn't in the code description. It was in the section on mechatronic unit air line routing. The previous tech had cross-connected the A and B shift fork lines at the solenoid block. The manual shows the fittings by part number, not by label color, which is a frustration I learned the hard way. I traced both lines back to the shift lever assembly, found the swap, flipped them, cleared the codes, and the truck drove normal within twenty minutes. What the manual gives you is the proper torque specs, the sequence for removing the extension housing, the exact fluid type—Detroit Diesel Approved 3090 or equivalent synthetic 75W-90—and the air system pressures you should be seeing at idle and at governed RPM. It tells you when to replace the clutch disc versus when the pressure plate is still good. That last one matters because the DT12 uses a different clutch wear compensation strategy than older manuals. The transmission self-adapts over time, and if you just swap the disc without running the adaptation reset procedure, you will have grabs and jerks for the next few hundred miles.
Basic service intervals come straight from the manual. Initial fluid and filter change at 25,000 miles or six months, whichever comes first. After that, every 50,000 miles. Air system maintenance is separate—the dryer cartridge, the relay valve diagnostics, and checking for moisture in the reservoirs. The manual has a dedicated chapter for air system troubleshooting that most people skip until they are stuck on the side of the road. If you are doing a full rebuild, the manual walks you through the Mechatronic Control Unit removal first. That is the box bolted to the front of the transmission that houses the shift motors and the control module. You do not want to drop the transmission from the truck before disconnecting and removing that unit. The electrical harness clips are brittle after a few years, and I have seen two broken connectors on the same job because someone yanked too hard while the trans was still supported by the torque converter. One thing the manual does not make obvious: the input speed sensor gap matters. It is set by shims during assembly, and if you reuse old shims without checking the gap with a feeler gauge, you can get intermittent speed signals that mimic a sensor failure. The code that comes with it looks exactly like a bad sensor. The manual mentions the gap spec, but it buries it in the sensor installation section rather than calling it out as a common misdiagnostic. I wasted an entire day replacing a perfectly good sensor on a truck that turned out to have a 0.015 inch gap instead of the specified 0.010 inch.

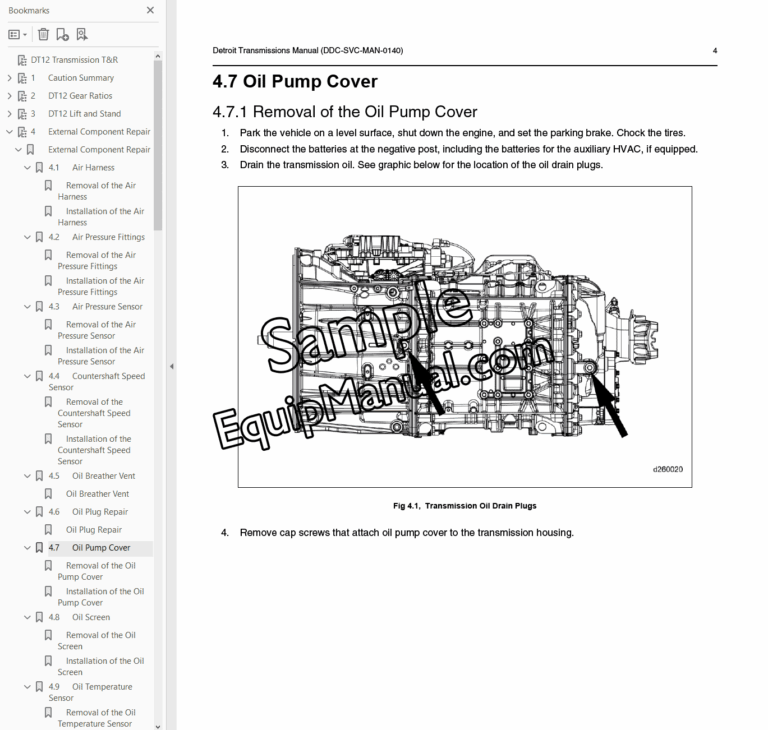

The adaptation procedure after any major work is critical. The DT12 learns shift points based on driving patterns and load conditions. After a clutch replacement, fluid change, or mechatronic unit swap, you need to run the adaptation cycle. Detroit uses Detec for this, and the manual shows the exact steps. Skip it and the shifts will feel rough until the system relearns, which can take anywhere from 50 to 200 miles depending on how aggressively the driver is driving. If you are in a shop environment, you can sometimes force a faster adaptation using the service mode in Detec, but the manual cautions against that for everyday use. I have used it when a truck needed to leave the bay the same day, and it worked, but it puts extra wear on the synchronizers during the learning phase. Fluid capacity is roughly 13 quarts for a dry fill and about 11 quarts for a drain and refilled unit. The filter is inside the oil pan, which means you are dropping the pan to change it. The pan bolts are a mix of standard metric and a few special torx heads, and the gasket surface on the aluminum housing can get scored if someone over-torques the pan bolts during reassembly. The manual gives a torque sequence and a two-step torque value—first to a lower spec to seat the gasket, then to the final value. Most techs I know just go straight to the final torque because they think it saves time. It does not. It cracks the gasket and leaks fluid all over the exhaust bracket. For people looking for the actual document, Detroit Diesel provides the official service manual through their dealer portal. Third-party sites sometimes host PDFs, but those are usually outdated scans of older revisions, and the DT12 got several firmware and procedural updates over its production run. The revision number matters more than you might think. A 2018 manual will have different mechatronic part numbers than a 2022 one, and the wiring diagrams shift between model years. Always check the revision date against your truck VIN before you start pulling anything apart.
Get the Full Details
The biggest limitation of the manual is that it assumes you have the right tools and a basic understanding of pneumatic and electronic systems. It does not teach you how a truck works from the ground up. If you are brand new to heavy-duty transmissions, you will flip through the diagnostic trees and feel lost because the codes reference other systems like the ECM and the air brake module without explaining the interconnections. The manual is written for people who already know how these trucks are put together. Another practical issue: the shift fork adjustment procedure. The DT12 uses dual shift forks to select gears, and the manual gives a torque spec for the fork retaining bolts but not a clear method for verifying proper fork travel. You can end up with forks that are technically torqued to spec but are binding because the shift rail is misaligned inside the housing. I learned to finger-rotate the input shaft by hand after reassembly to confirm smooth travel before I even bothered bolting the extension housing back on. The manual does not explicitly say to do this, but it is something every tech who has rebuilt one of these units does instinctively. Overall the Detroit DT12 Transmission Service Manual is thorough but not forgiving. It expects you to read carefully and follow sequences exactly. Miss a step on the mechatronic unit reinstall and you will be troubleshooting air leaks and electrical faults for hours. Follow it closely and the transmission will run cleanly for the next 500,000 miles or more. That is just how these things work.
