Understanding the Dl D P Rev 1 Dimmer

The Dl D P Rev 1 is a compact dimming controller designed specifically for working with Alvit LED drivers that operate at 12V or 24V DC. It sits between your power source and the driver, taking a low-voltage control signal and converting it into whatever dimming method the driver expects. Most installations use it for constant-current LED strips or modules where you want smooth brightness control without replacing the existing driver. I ran into a real issue last year when someone wired this dimmer into a 24V system and expected it to handle the full load directly. It doesn't. The Dl D P Rev 1 is a signal-level device, not a power switch. It dims by sending a control voltage or PWM signal to the driver's dimming input pin. The driver itself still handles all the current. If you try to pass load current through the dimmer's output terminals, you will burn it out within seconds. That one cost me about forty dollars in replaced hardware before I figured it out.

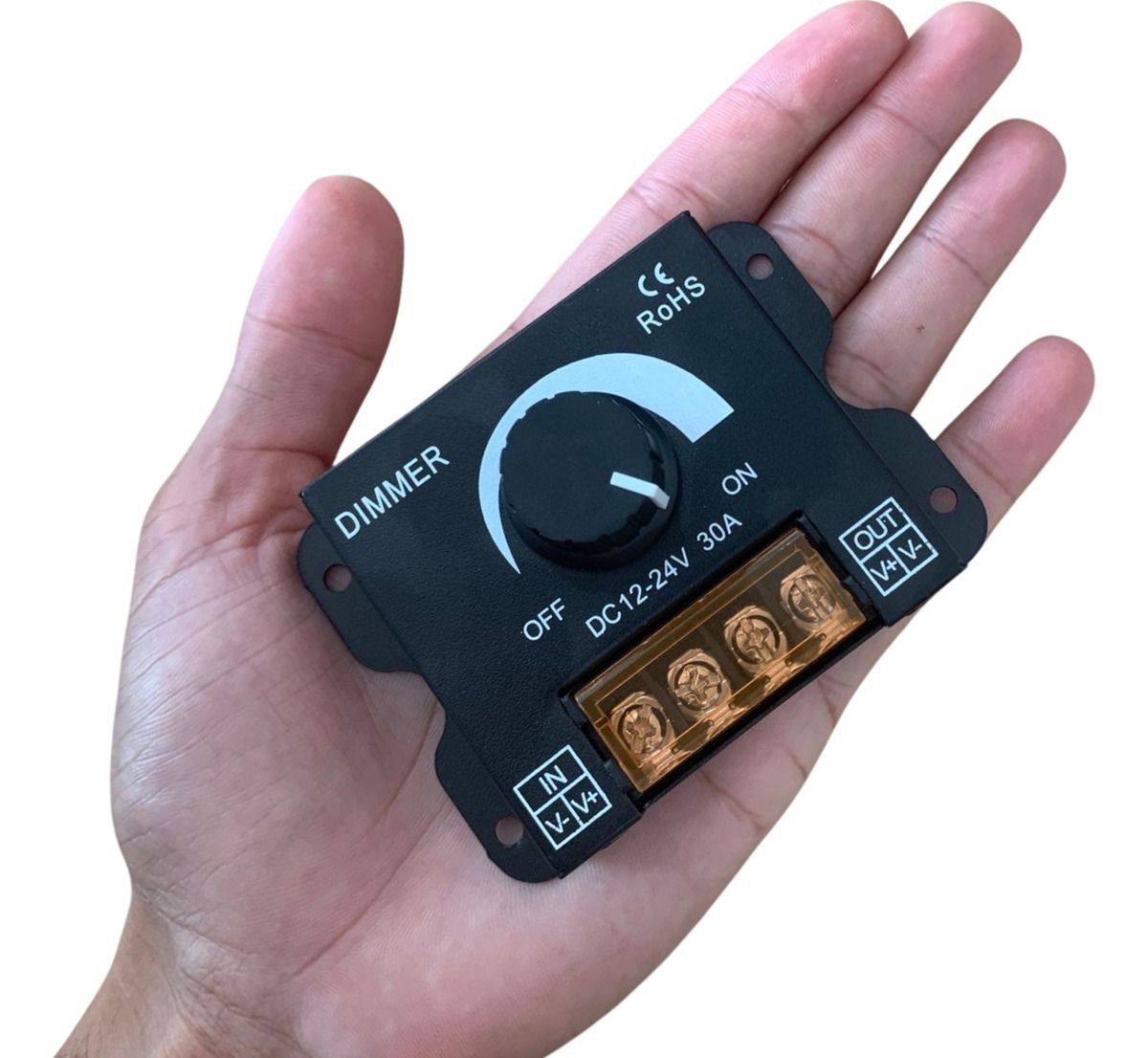

Dl D P Rev 1 Dimmer For 12 24v Led Driver Alvit

The most common dimming methods this controller supports are PWM output and analog voltage control, depending on how it is set up. Some versions use a potentiometer or external control line, others respond to a standard 0-10V input from a wall dimmer. You need to check the specific revision on the board silkscreen because Alvit has released updates over the years and the pinout can shift slightly between revisions. Here is how a typical installation goes. First, identify the three main connection groups on the dimmer: the input side that receives your control signal, the output side that sends the dimming signal to the driver, and the power supply connections that keep the dimmer itself running. The control input usually accepts either a potentiometer wiper, a 0-10V signal, or a logic-level PWM signal depending on jumper positions. The output side connects to the dim+ or PWM+ terminal on the Alvit driver. You do not connect it to the main power output of the driver. The driver still gets its 12V or 24V from the mains-side power supply directly. I have seen people wire this wrong at least twice a week on forums. They connect the dimmer output to the LED positive rail instead of the driver dimming input. The LEDs flicker wildly or the dimmer shuts down immediately. Make sure you are reading the driver datasheet, not guessing from the dimmer board alone. The Alvit documentation usually marks the dimming input clearly, often with a label like DIM or PWM on the terminal block.

Setting the dimming range

One thing the documentation does not always make obvious is that the dimmer has a minimum brightness floor. If you turn the control down too far, the LED driver will shut off completely rather than dim smoothly. This is a safety feature in the driver, not a fault in the dimmer. To get smooth dimming at low levels, you often need to adjust the driver's internal dip switches or use the companion software if your particular Alvit model supports it. Some drivers let you set the minimum output level via a potentiometer on the driver itself. Without that adjustment, you will get a dead zone where nothing happens until you turn the dimmer past a certain point, then sudden full brightness. It feels jerky and unusable for most residential applications. The biggest problem I encounter is using this dimmer with LED drivers that do not support the dimming protocol the dimmer is set to output. PWM dimming and 0-10V dimming are not interchangeable. If your Alvit driver expects a 0-10V signal and the dimmer is outputting PWM, nothing will happen. You will measure voltage at the dimmer output, but the driver will ignore it. Check the driver specifications first. Then match the dimmer mode accordingly. This usually takes about five minutes once you know what to look for, but it causes hours of confusion if you miss it. Another issue is ground loops. If your control signal source and the LED driver are powered from different transformers or separate secondary windings, you can get a ground potential difference that causes the dimmer to behave erratically. The LEDs will pulse or drift in brightness on their own. Connecting a common ground between the control side and the driver side usually resolves this. It is a simple wire, but it is easy to overlook.

Get the Full Details

DL/DP Dimmer LED - Regolatore di luminosità per Driver LED CV 12-48 V
DL/DP Dimmer LED - Regolatore di luminosità per Driver LED CV 12-48 V

Where to find the manual and firmware

The official documentation and any firmware updates for the Dl D P Rev 1 Dimmer For 12 24v Led Driver Alvit are available on the Alvit website under the support or downloads section. You will need the exact model number of your driver as well, since the dimmer may need configuration specific to the driver variant. The manual typically includes a wiring diagram, jumper settings for different dimming modes, and troubleshooting tables. If the website layout has changed or the document is missing, contacting Alvit technical support directly is the fastest route. They usually respond within a business day with the correct PDF. If you are working with a driver that uses a different communication protocol like DALI, KNX, or Zigbee, this dimmer will not work. It is designed for basic analog or PWM dimming only. If you need scene control, scheduling, or integration with a smart home system, you would be better off using a dedicated intelligent dimmer or a driver with built-in smart protocols. The Dl D P Rev 1 is a simple, reliable component for straightforward dimming tasks. It is not a replacement for a full lighting control system. Similarly, if your application requires dimming below 5% brightness, expect some drivers to behave unpredictably. Cheap LED drivers tend to flicker or strobe at very low outputs regardless of the dimmer you use. In those cases, upgrading to a driver rated for deep dimming is more effective than swapping the dimmer. I have found that many so-called dimming problems are actually driver limitations, not dimmer problems.
