Dynamics Of Fluid Flow

Getting Your Fluid Model To Stop Exploding

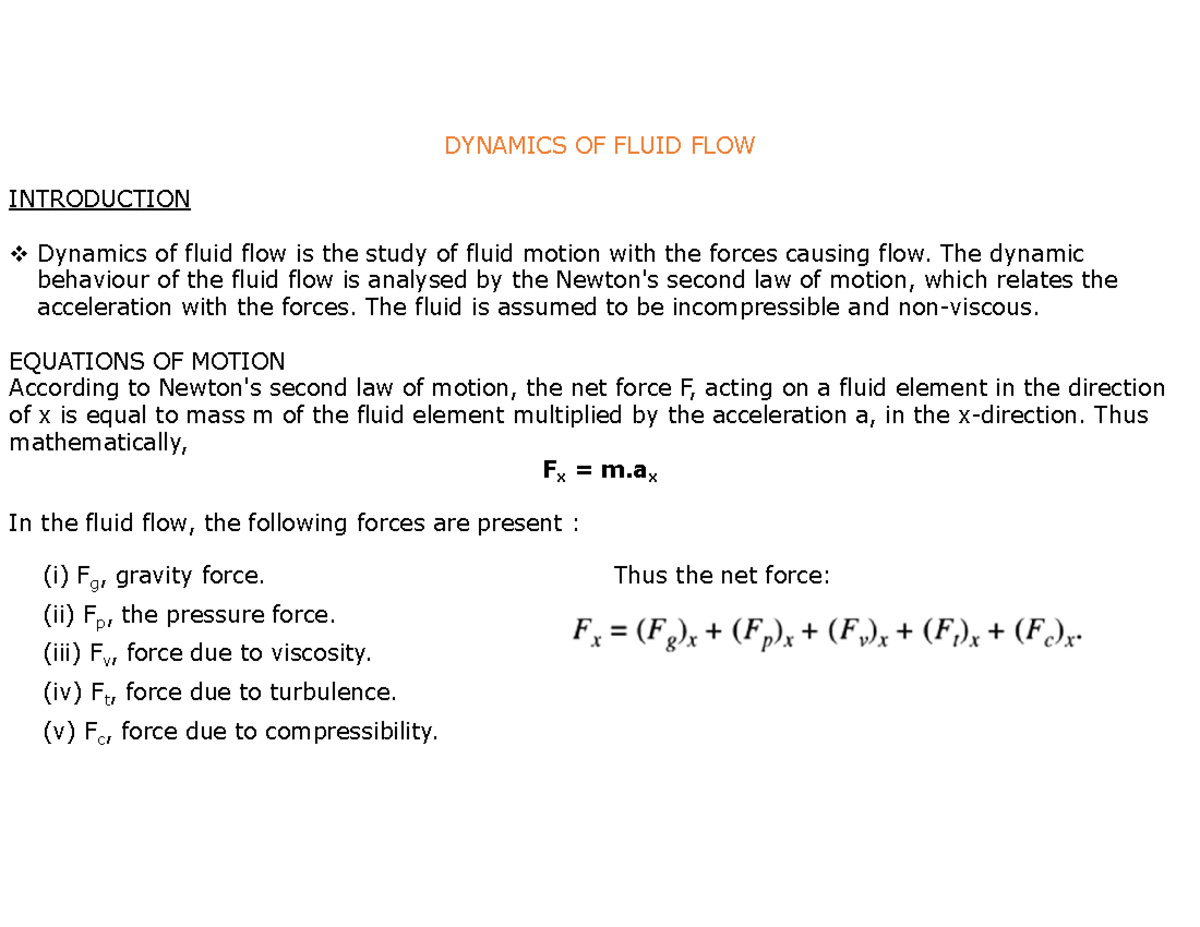

The first thing you learn when working with Dynamics Of Fluid Flow is that every simulation wants to fail. The equations themselves are fine. Navier-Stokes is mathematically sound and has been for 150 years. But the discretization you layer on top of it to solve it numerically is where everything goes sideways. I spent three days last year debugging a mesh that was technically valid but was generating negative volumes at corner elements, which caused the pressure solver to blow up at iteration 47. The residuals looked normal right up until they didn't. You just have to check your cell quality metrics before you even attempt a solve. Skewness above 0.95, aspect ratio above 1000, and you're playing roulette with your convergence. You need continuity, momentum, and energy. Those are the three pillars. Continuity enforces mass conservation. Momentum handles forces and acceleration. Energy closes the loop if your fluid is compressible or if temperature matters. For incompressible flow, you drop energy and you use pressure as a Lagrange multiplier to enforce the divergence-free condition on velocity. That coupling between pressure and velocity is the whole reason these problems are hard. You can't just solve for velocity and be done with it. The pressure field adjusts instantaneously across the domain to keep the flow incompressible, which means every pressure correction step affects every cell simultaneously. That's why you use segregated solvers or coupled pressure-velocity algorithms like SIMPLE or PISO rather than trying to invert a massive global matrix directly. The matrix would be too large for most practical meshes, and the conditioning would be terrible. Reynolds number is still the first thing I calculate before anything else. It tells you whether your flow is laminar or turbulent, and that decision completely changes your modeling approach. A Re of 500 gets you a laminar solution with no extra equations. A Re of 50,000 means you need a turbulence model, and picking the wrong one will give you results that look plausible but are quantitively wrong. I once ran a pipe flow case with a k-epsilon model when the physics were dominated by near-wall viscous effects, and the predicted pressure drop was off by 40 percent. Switching to a low-Re y+ resolved model with k-omega solved it in two iterations instead of two days of refactoring.

Setting Up A Practical Simulation

Start with your geometry cleanup. Garbage geometry produces garbage mesh, and there is no numerical trick that fixes that. I've seen people spend hours tuning solver parameters on a domain that had overlapping volumes and gap faces they never noticed. Check for sliver faces, small edges that get lost in meshing, and any non-manifold geometry before you spend five minutes on it. Boolean operations in CAD sometimes leave behind tiny residual edges that create terrible prism layers later. Mesh generation is where most projects stall. Prism layers near walls are non-negotiable if you care about wall shear stress or heat transfer. You need at least ten layers, and your first layer height should target a y+ value appropriate for your turbulence model. If you're using an enhanced wall treatment with k-omega, aim for y+ below 1. If you're using standard wall functions with k-epsilon, y+ between 30 and 300 is acceptable. Getting the transition right usually takes two or three attempts. I set up my mesh with a global size parameter and local sizing overrides for regions of interest, then run a quick quality check. If more than 2 percent of cells have a quality score below 0.3, I go back and refine the problematic zones before proceeding. Boundary conditions are where assumptions become explicit. Inlet velocity, outlet pressure, wall no-slip. Simple on the surface. But specifying a pressure outlet when your flow might separate and create recirculation zones near the exit is a common mistake. Reverse flow at a pressure boundary can destabilize the solution. I usually add a small extension to the domain past the outlet and apply the pressure boundary further downstream, giving the flow room to develop naturally before it hits the boundary. This alone fixed a case where the solution oscillated because the recirculation region was being artificially constrained by the outlet condition.

Common Pitfalls That Wasted My Week

One specific issue I ran into recently involved a transient simulation of flow through a valve with a rapidly moving mesh. The mesh motion was driving the fluid, not the other way around. The solver kept failing at early time steps with a Courant number exceeding 100 in the gap region between the valve and its seat. The fix wasn't reducing the time step across the entire domain, which would have made the simulation take ten times longer. Instead, I capped the maximum cell face speed in the mesh motion settings and used a localized time step control that only affected the moving mesh region. The global Courant number stayed manageable while the actual physics resolved correctly. It saved roughly six hours of runtime and eliminated the need for a complete remeshing strategy. Another frequent problem is convergence criteria that are too loose. Residuals dropping below 1e-3 might look converged on paper, but your force coefficients could still be drifting. I monitor integral quantities like drag, lift, and mass flow rate at boundaries alongside residuals. When those stabilizes within 0.1 percent over ten consecutive iterations, I consider it truly converged. Residuals alone lie sometimes, especially in cases with complex turbulence or species transport where some equations are inherently harder to drive down.

When Dynamics Of Fluid Flow Models Break Down

No solver handles every situation well. If your flow involves phase change, cavitation, or combustion, you are pushing the model far beyond its validated range. Eulerian-Eulerian multiphase models can approximate some of this but they introduce closure relationships that are themselves uncertain. I'd rather have a weak experimental validation than a confident-looking simulation built on five unverified assumptions. For high Mach number compressible flows with shock waves, standard solvers struggle with numerical diffusion across the discontinuity unless you use shock-capturing schemes specifically designed for that. Even then, grid alignment with the shock matters enormously. Turbulence modeling remains the largest source of error in most industrial simulations. RANS models like k-epsilon and k-omega are fast and adequate for many engineering applications, but they assume isotropic turbulence and struggle with strong curvature, separation, and anisotropic stresses. LES and DNS resolve more physics but require grids and compute time that are impractical for most real-world geometries. Hybrid RANS-LES approaches like DES and IDDES try to bridge the gap, but they introduce their own issues around grid-induced separation and model switching behavior. There is no free lunch here. If you need higher fidelity and can afford the compute cost, transitioning to a scale-resolving simulation on a properly refined mesh is the next step. Otherwise, you work with what you have and understand the limitations of your chosen model. The best simulations I've produced were the ones where I explicitly acknowledged what the model couldn't capture and designed the analysis to compensate for those gaps rather than ignore them.
