How to Actually Maintain Your Trailer Axle With an E-Z Lube System

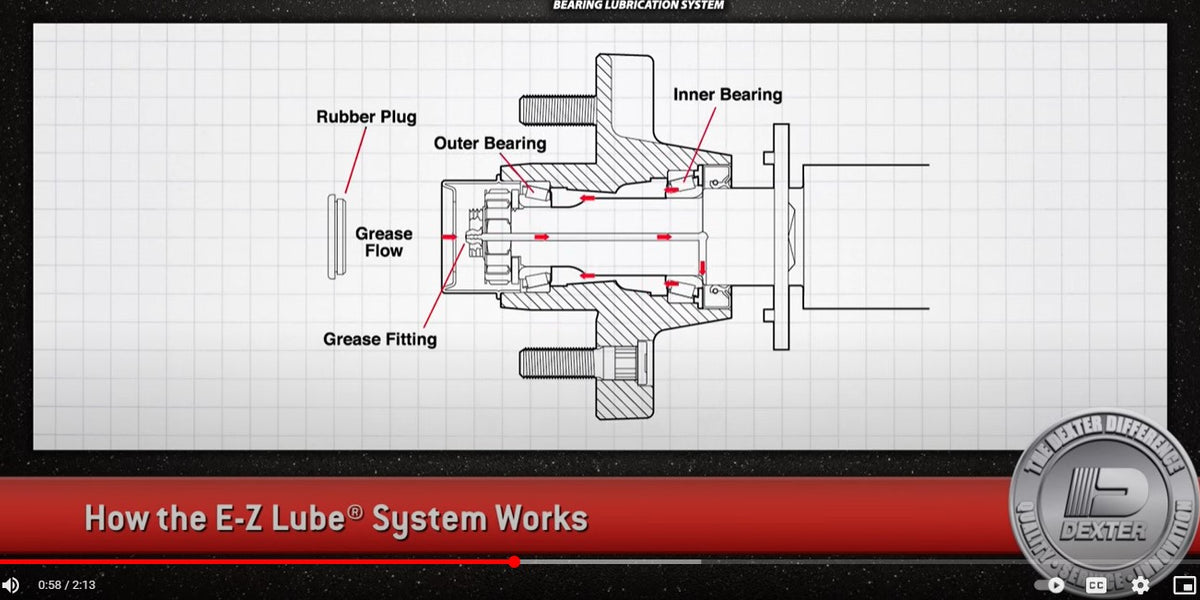

Most people buy a trailer, see those little grease zerk fittings on the hub caps, and assume they know how to maintain it. They grab a grease gun and pump until something happens. That is exactly how you blow seals and ruin a perfectly good hub assembly. The E-Z Lube system is basically a pressurized grease channel that runs through the axle cavity and pushes old grease out through the zerk fittings on the bearing cups. It sounds efficient on paper. In practice it requires a specific approach that most people skip.

E Z Lube Axle Manual

Here is the actual procedure. Remove both hub caps. Run your grease gun into the fitting on one side until you see old grease starting to weep out of the fitting on the opposite side. Stop immediately. That is your cue. Then do the same from the other side. Two minutes total if you are not overthinking it. The grease you use matters more than people admit. A standard NLGI Grade 2 lithium base grease works for most applications in mild climates. If you are operating in wet or marine environments, switch to a waterproof extreme pressure grease with molybdenum disulfide. I learned that the hard way on a boat trailer that spent two winters sitting in salt air. The regular chassis grease turned into paste inside the axle within a year and clogged the internal channels. One thing nobody puts in the manual: you need to run the system at low pressure. Most grease guns operate at 4,000 to 6,000 PSI. The E-Z Lube internal passages are narrow and the seals on these hubs are not built for that kind of pressure spike. Use a hand pump with a pressure relief valve set below 2,000 PSI, or stick to a standard foot-pump grease gun and go slow. I destroyed a Dexter hub seal by running a pneumatic grease gun through the zerk without throttling. Cost me about eighty dollars and four hours I will never get back.

Another practical detail that gets ignored. Before you start greasing, spin the wheel by hand and listen. If you hear any grinding or roughness, greasing will not fix it. You need to pull the hub, clean the bearings, and inspect them. E-Z Lube moves grease through the cavity. It does not magically recondition worn bearings. I had a customer once who asked why his axle was still making noise after a fresh lube. The bearings were already scored. The grease just made it worse by forcing particles deeper into the raceways. The interval depends on your usage. For occasional trailering, once a year is fine. If you launch boats weekly or run the trailer on dusty roads, do it every three months. The telltale sign you need it sooner is when new grease stops coming out the opposite fitting within thirty to forty strokes. That means the internal passage is blocked or the old grease has turned to sludge. One edge case worth noting. Some newer axles have both E-Z Lube fittings and standard zerk fittings on the bearing cups themselves. The E-Z Lube system is meant for routine maintenance between full bearing services. When you do pull the hub for a full pack job, you should also clean the E-Z Lube passages. Use a small brush and solvent, then flush with fresh grease before reassembly. I found a clogged passage on a 2018 axle that had never been serviced past the initial factory fill. The fitting looked fine externally but the internal channel was completely packed with hardened grease from the factory. Took me about twenty minutes with a pick and some brake cleaner to clear it out.

If your axle does not have an E-Z Lube system and you are considering retrofitting, be realistic. Some axles have solid shafts with no internal passage. Drilling and tapping for fittings is possible but you will compromise the structural integrity of the axle tube and void any warranty. Not worth it unless you are building a custom axle from scratch. The manual itself is usually a small pamphlet included with the axle at purchase. Many people lose it. The specs you actually need are the grease capacity for your hub size, the recommended torque on the hub nuts, and the service interval for your application. Everything else you can figure out from experience. Just don't treat a grease fitting like a pressure washer and you will be fine.
