Setting Up the Earth Sun Geometry Lab for High School Classrooms
I've run this lab three semesters in a row, usually with thirty sophomores in a cramped room where the projector light fights the sun coming through the east windows. The Earth Sun Geometry Lab Teacher Guide is what keeps it from collapsing into a chaotic twenty-minute mess where kids just point flashlights at globes and call it a day. Here is how you actually make it work.

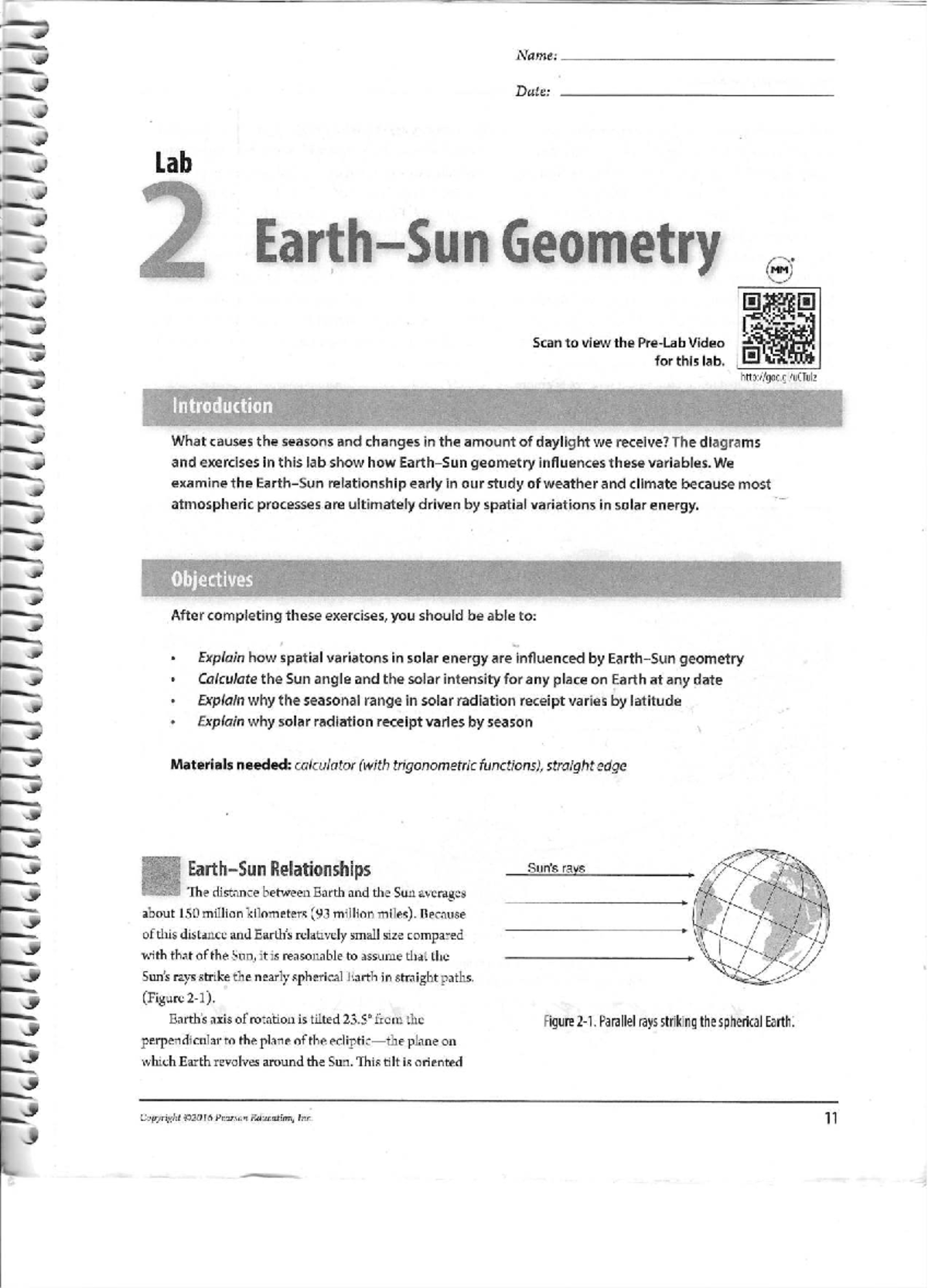

Earth Sun Geometry Lab Teacher Guide
The core of the lab involves mapping the relationship between solar angle, day length, and latitude using simple physical models. You need a lamp (60-watt equivalent LED works fine, though halogen gives cleaner shadows), a globe or a sphere painted with continents, a protractor, and a way to mark the ecliptic plane on a flat surface. The guide walks you through setting the axial tilt to 23.5 degrees and then rotating the light through four key positions: the March equinox, June solstice, September equinox, and December solstice. At each position, students measure the angle of incidence at different latitudes and record the length of the illuminated arc on the sphere to calculate day length. The tricky part is getting consistent measurements. I found that most groups were off by three to five degrees on their incidence angles, which compounded into errors of up to eight hours when they calculated polar day length. The fix was making a cardboard frame that holds the protractor flat against the sphere's surface. I printed templates from the guide, laminated them, and cut slots so the protractor locks into place at the equator and at each ten-degree latitude band. This cut the measurement variance down to under one degree across the room. It took me about forty minutes to build the whole batch on a Sunday. One thing the guide doesn't emphasize enough is that the lamp has to be positioned at the exact same height as the globe's center axis, not just roughly level. If the bulb sits even two centimeters above or below the equatorial plane, the shadow lines skew noticeably at higher latitudes. I started using a meter stick clamped to the lab table as a reference height, and I measure once before each class starts. If the lamp got bumped during clean-up, it shows up immediately and you move it back. This alone prevents the most common source of erroneous data that I see in student lab reports.
Common Problems and What Actually Happens
Students regularly misidentify which hemisphere is tilted toward the sun. They will confidently tell you that in the June solstice position, the Southern Hemisphere is receiving more direct sunlight because the sun is "higher in the sky" from their perspective. It is a perceptual issue, not a reasoning issue. They are reading the shadow on the globe as if it were a flat map. I have found that having them hold a piece of graph paper tangent to the globe at the measurement point and draw the light ray on the paper before transferring it helps. It forces a coordinate system that matches the lab setup rather than their own head orientation. Another frequent breakdown happens during the solstice measurements at 66.5 degrees latitude. The terminator line—the edge between light and dark—falls right on the Arctic or Antarctic circle, meaning some groups end up with a hemisphere that is either fully lit or fully dark. Students treat this as an error and try to adjust their lamp angle to get a "proper" split. You need to preempt this. I print a small card that says "Expected result: no terminator at this latitude during solstice" and tape it to each station. It saves at least ten minutes of intervention per period. The guide itself is structured around a one-class-period lab, but realistically you should budget two sessions. The first is for setup, calibration, and taking the initial measurements. The second is for analysis and comparing results across groups. When I tried to compress it into a single 55-minute block, the data quality dropped sharply because groups were still struggling with the protractor frames by the time the clock hit thirty minutes in. Two sessions also lets you address the measurement discrepancies without rushing through the conceptual explanation.
Get the Full Details
Data Analysis That Doesn't Waste Time
After the measurements are taken, students need to convert angular incidence data into temperature estimates and day-length predictions. The guide includes a conversion table, but I had better results when I had them plot solar altitude versus latitude on graph paper before plugging numbers into formulas. The linear relationship breaks down near the poles during solstice conditions, and seeing that break visually on the graph prevents them from blindly extrapolating and getting nonsense answers like negative day lengths or temperatures above one hundred degrees Celsius. For the analysis portion, I assign each group a specific date and latitude combination to model. They present their findings on a whiteboard, and the class compares the predicted solar angles across all groups. This takes about fifteen minutes and usually reveals two or three outlier groups whose data deviates significantly from the others. Rather than me pointing out the error, the other students tend to catch it by looking at the whiteboard comparisons. It is a small shift but it moves the cognitive load off me and onto the data itself.
Materials List and Procurement
You do not need expensive equipment. The globe can be a $15 plastic one from a science supply catalog or even a painted styrofoam ball. The lamp should have a fixed base so it does not wobble. LED bulbs are energy-efficient and stay cool, which matters when thirty students are huddled around the table for an hour. Protractors are the one item where cheap ones cause problems—the degree markings are too faint to read at arm's length. Invest in clear plastic protractors with bold black lines. They run about a dollar each and make a visible difference in measurement accuracy. If your school district has a science materials budget, request the Earth Sun Geometry Lab Teacher Guide through your standard procurement process. It typically comes as a PDF with printable templates, student worksheets, and an answer key. Some districts bundle it with a companion lab manual that includes the extended analysis questions. If you are ordering independently, the guide is usually available through educational suppliers for around twenty to thirty dollars, which covers the teacher edition and the full set of student sheets for a class of thirty.
When the Lab Doesn't Work
This lab assumes a reasonable classroom environment with controlled lighting. If you are teaching in a room with large south-facing windows and it is mid-February around noon, the ambient sunlight will wash out the shadows on the globe enough that measurements become unreliable. I learned this the hard way in my second year when the sun was directly through the window during the solstice measurements. Half the class had data that looked like random noise. The workaround was closing the blinds and using the lamp as the sole light source, or rescheduling the session for late afternoon when the sun angle through the windows was too low to interfere. Neither option is ideal, but it is better than grading bad data. Another scenario where this lab struggles is with students who have not yet had a solid introduction to angular measurement. If your class is weak on basic trigonometry or angle reading, the lab becomes a procedural exercise without conceptual gain. I recommend a quick thirty-minute warm-up where students practice measuring angles on paper diagrams before they touch the physical model. It takes time out of the lab schedule but prevents the common problem of students recording numbers they cannot interpret later. The Earth Sun Geometry Lab Teacher Guide is a functional resource if you treat it as a starting framework rather than a rigid script. The measurements are approximate by design, the procedures require minor adjustments depending on your equipment, and the learning value depends on how much you push students to interrogate their own data rather than just fill in the worksheet. It does the job. It is not elegant, and it will not run itself, but after a couple of iterations you know where the friction points are and you can smooth them out before the students walk in.
